14K Kraftsman Deckover Flatbed Tilt Trailer
Trailer Specifications
The following configurations of this trailer are available to best suit your needs.
Construction
- 10” @ 12 lb. I-Beam Main Frame
- 3” Crosspieces on 16” Centers
- Rub Rail with Stake Pockets & Chain Spools
- Diamond Plate Steel Approach Plate
Electrical
- Lifetime LED Lighting, Rubber Mounted
- Marker Lights on Front of Trailer & Steps
- USA Made Sealed Wiring Harness
- 3 Way 12V DC Pump
Undercarriage
- 7,000 lb. EZ Lube Axles

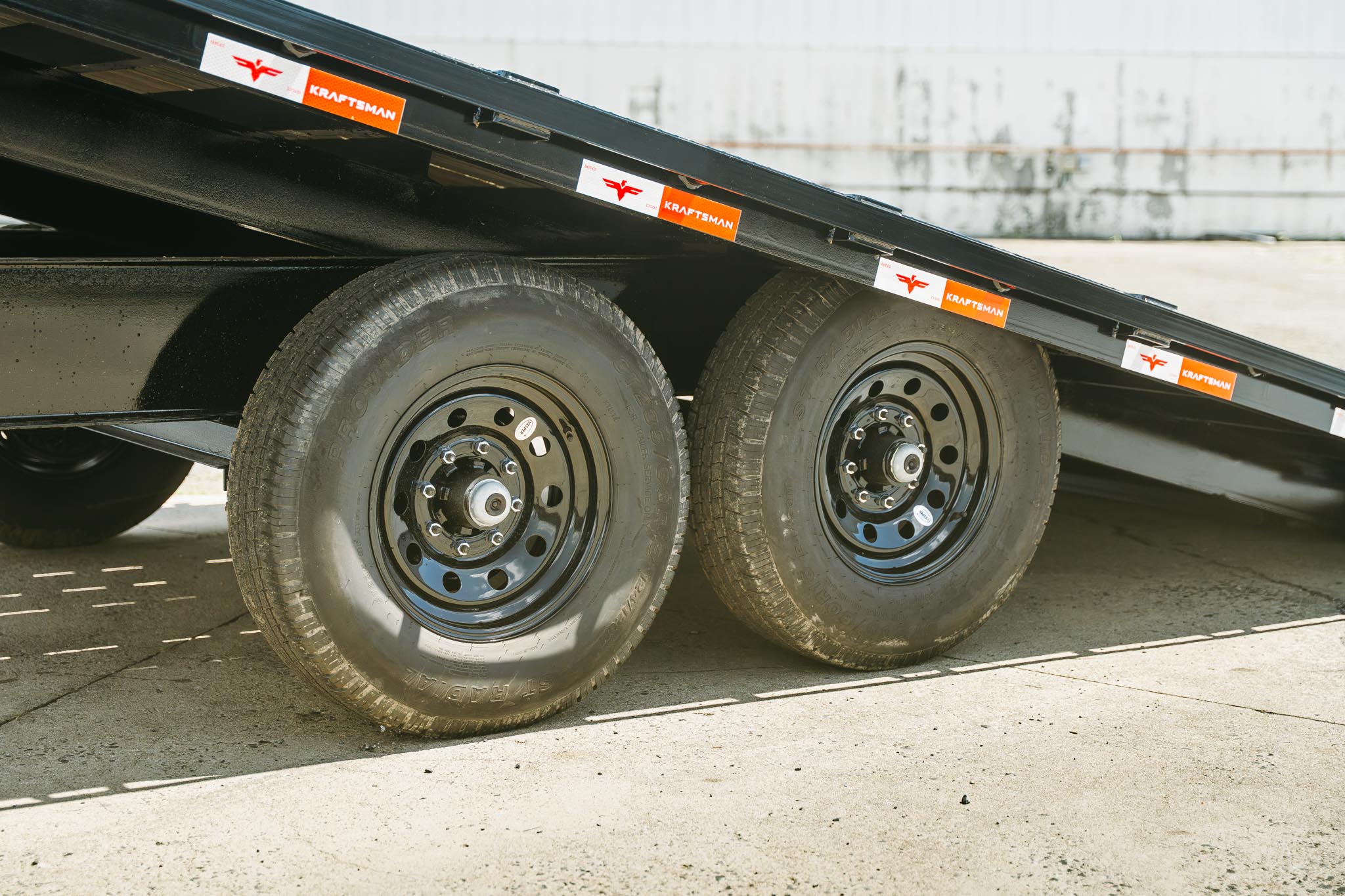

- 4 x 235/80 R16 10 Ply Radial Tires
- 8 on 6.5” Bolt Pattern
- Slipper Spring Suspension
Dimensions
- 14,000 lb. GVWR, 10,000 lb. Max Capacity
- 102” Wide x 22’ Deck Standard, 24' & 26’ Available
- Approx. 35” Deck Height
- Approx. 6’ Cold-Formed Tongue
Additional Features
- Nominal 2'' Pressure Treated #1 Pine Deck
- Single 12K Drop-Leg, Spring-Loaded Jack
- 2-5/16” Adjustable Coupler
- Large Front Tool Box
Finish
- High Pressure Phosphate Wash
- Primed Top & Bottom w/ Automotive Primer
- Two Top Coats of 2-Part PPG Black Gloss
- DOT Reflective Tape, Kraftsman Decals
- Safety & Operational Decals

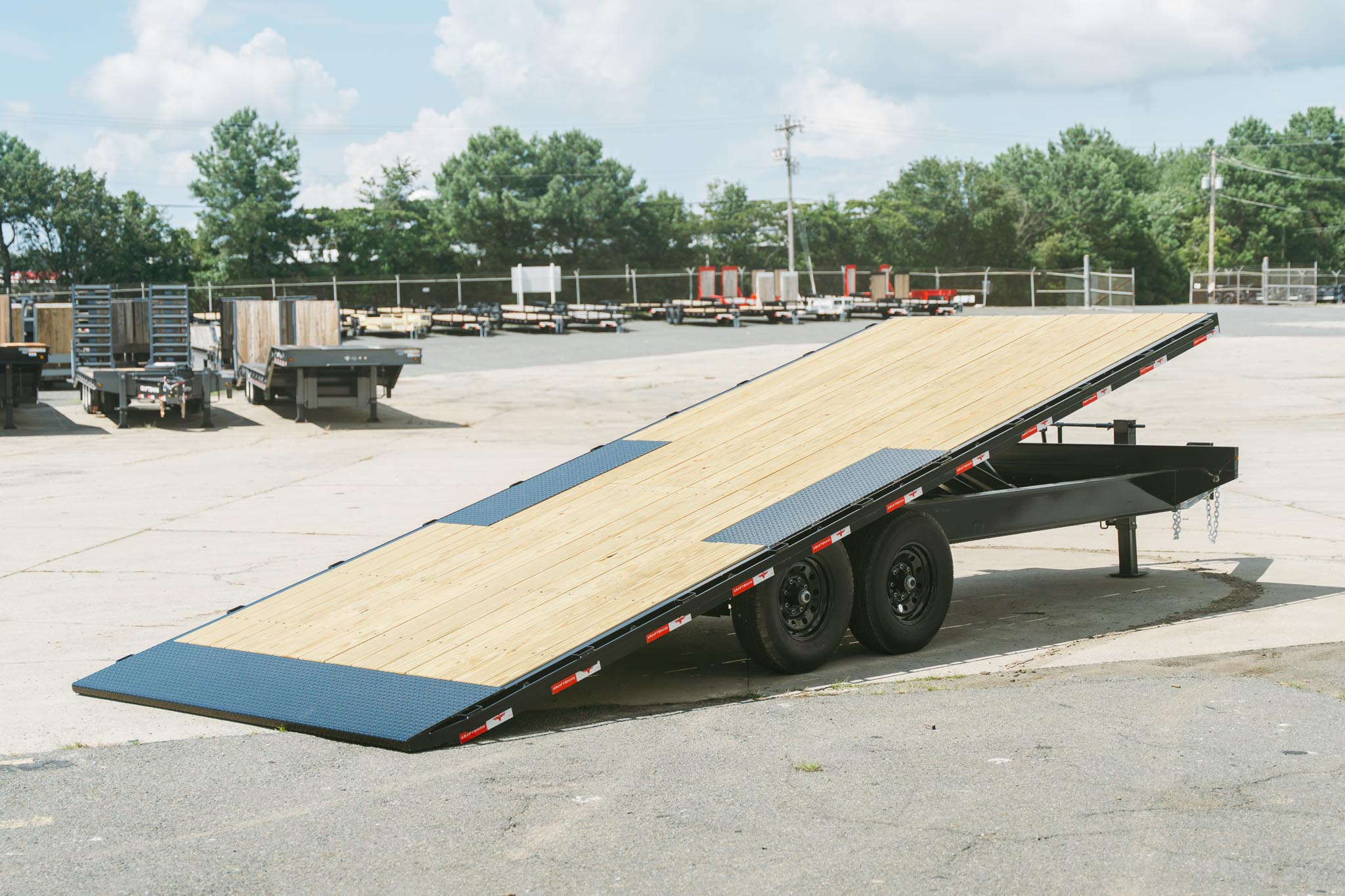

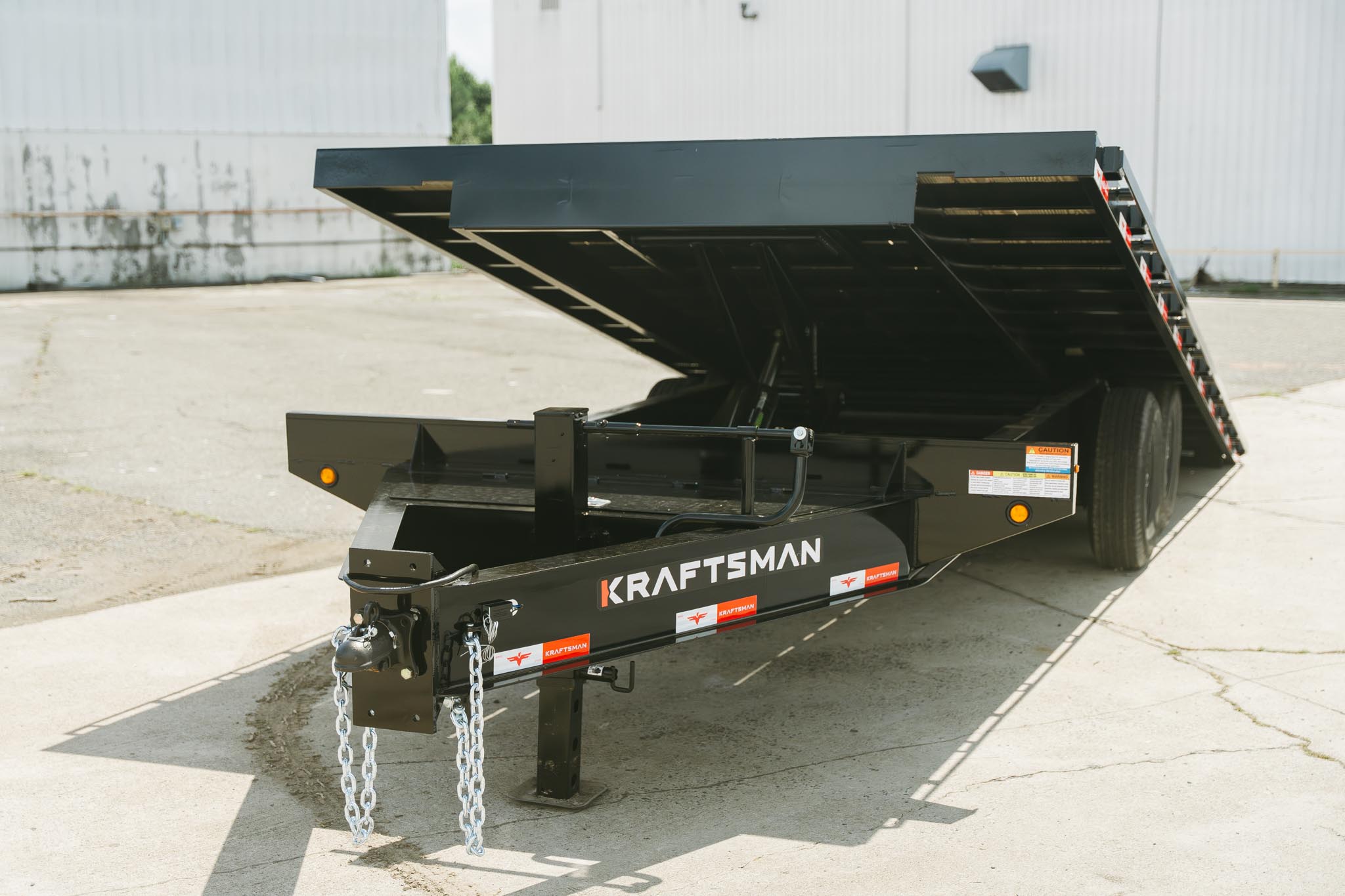

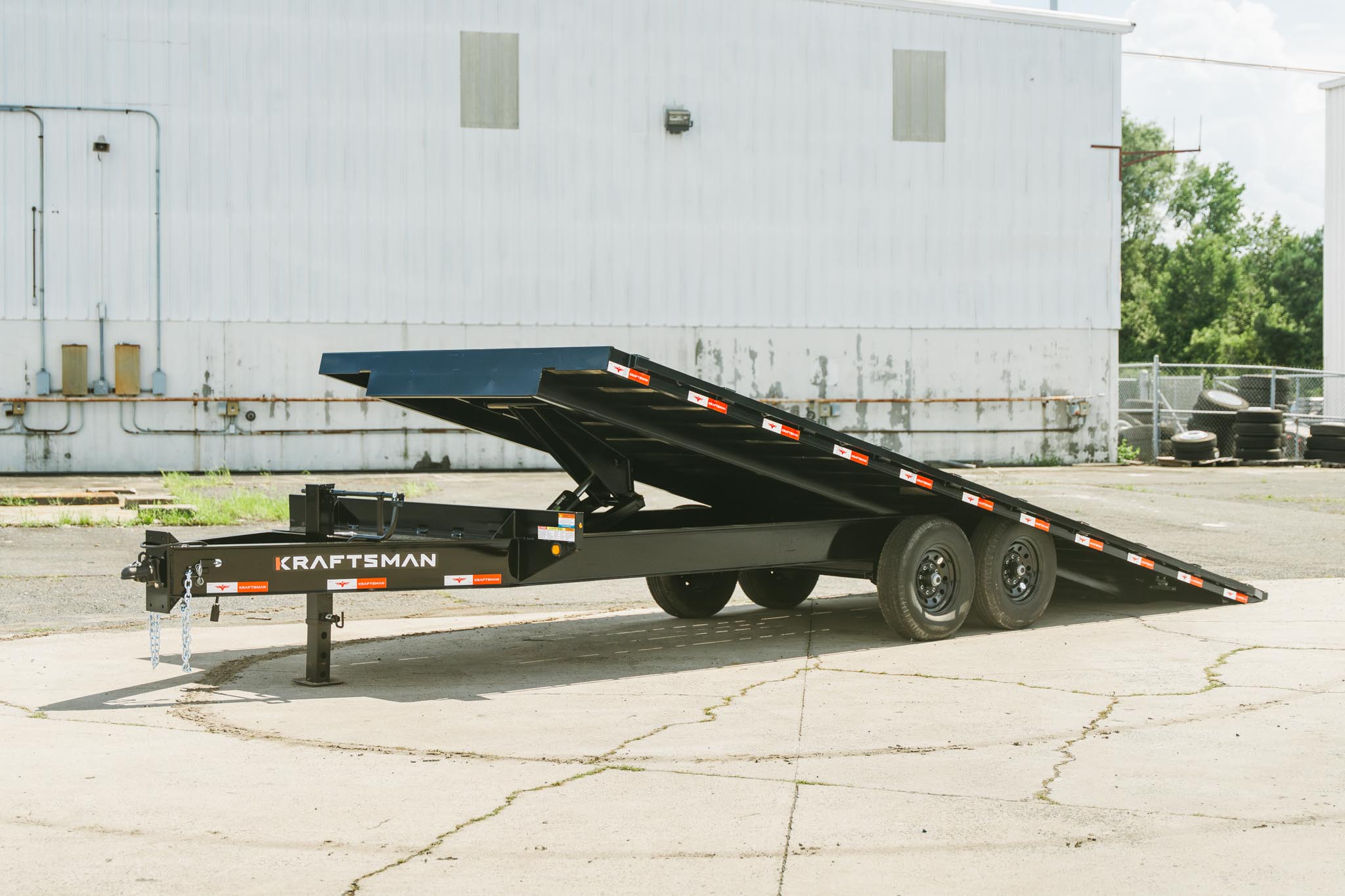

About The FT-14 Deckover Full Tilt Equipment Trailer
Kraftsman Trailer's model FT-14 is our 14K deckover full power tilt equipment trailer, designed for reliable hauling and constructed with a 10” 12-pound I-beam frame and 3” crosspieces on 16” centers.
Standard features on the FT-14 full tilt trailer include 16" wheels with 10 ply radial tires, 2" pressure treated pine deck floor, 2 x 7,000 lb. EZ-Lube axles, 12" x 2" brakes on both axles, diamond plate steel approach plate, and a lockable front toolbox. This model comes with a 35" approximate deck height and a 22' standard tilt deck for easy loading and unloading of equipment & cargo like tractors, skid steers, trucks, shipping containers, and more.
The FT-14 hydraulic full tilt equipment trailer has a 14,000 GVWR rating with a 10,000 lb. max capacity, and is available in three deck lengths: 102'' x 22', 102” x 24’ and 102” x 26’. A heavy duty package that puts crosspieces on 12" centers and upgrades the tires, is also available and allows the trailer to haul more. Additional options are available.
Contact us today to learn more about this 14K full tilt equipment trailer, and look at our other offerings including the FT-16 and FT-21. Goosenecks also available.
