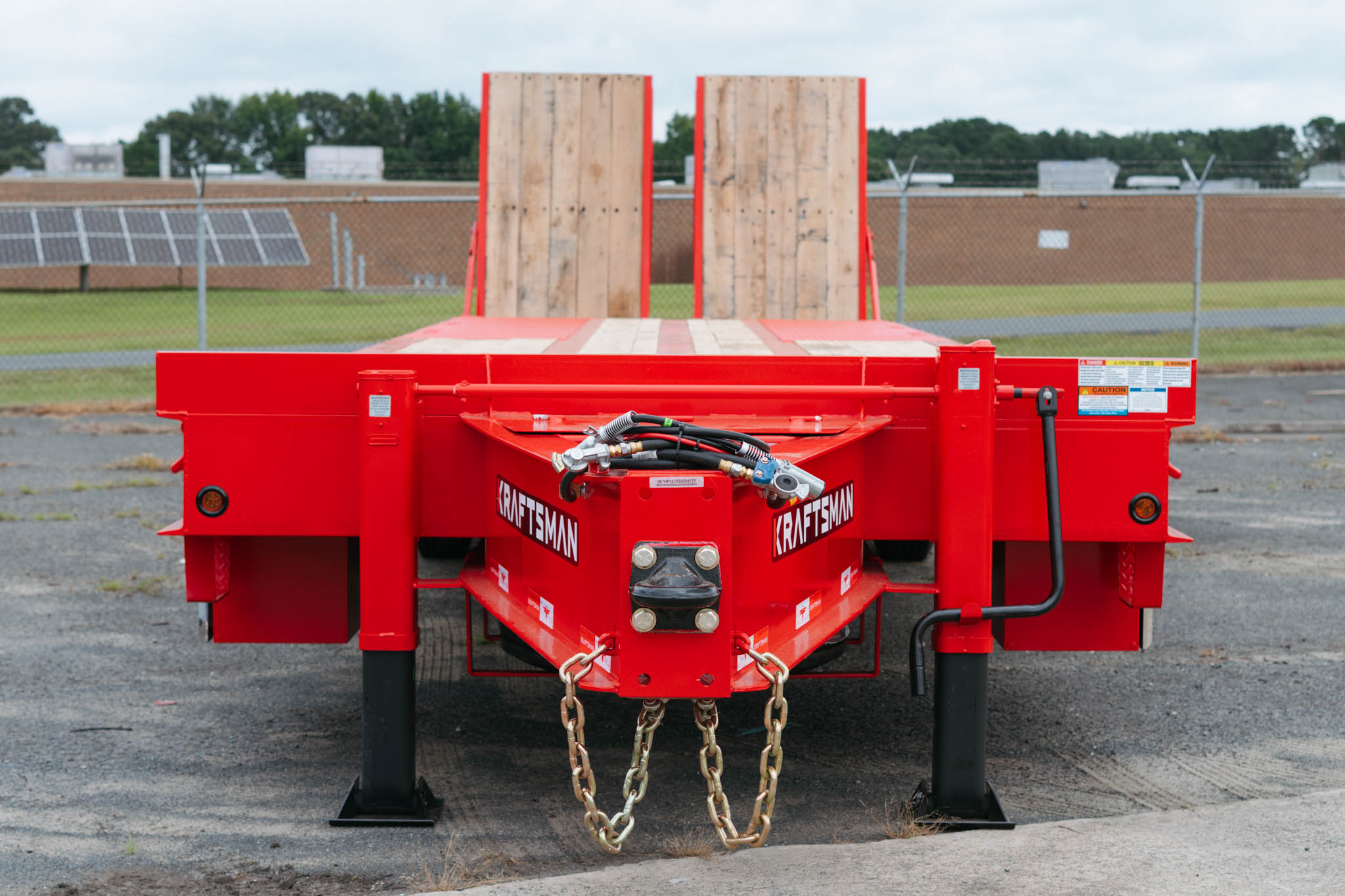

Front of Kraftsman Beast Trailer

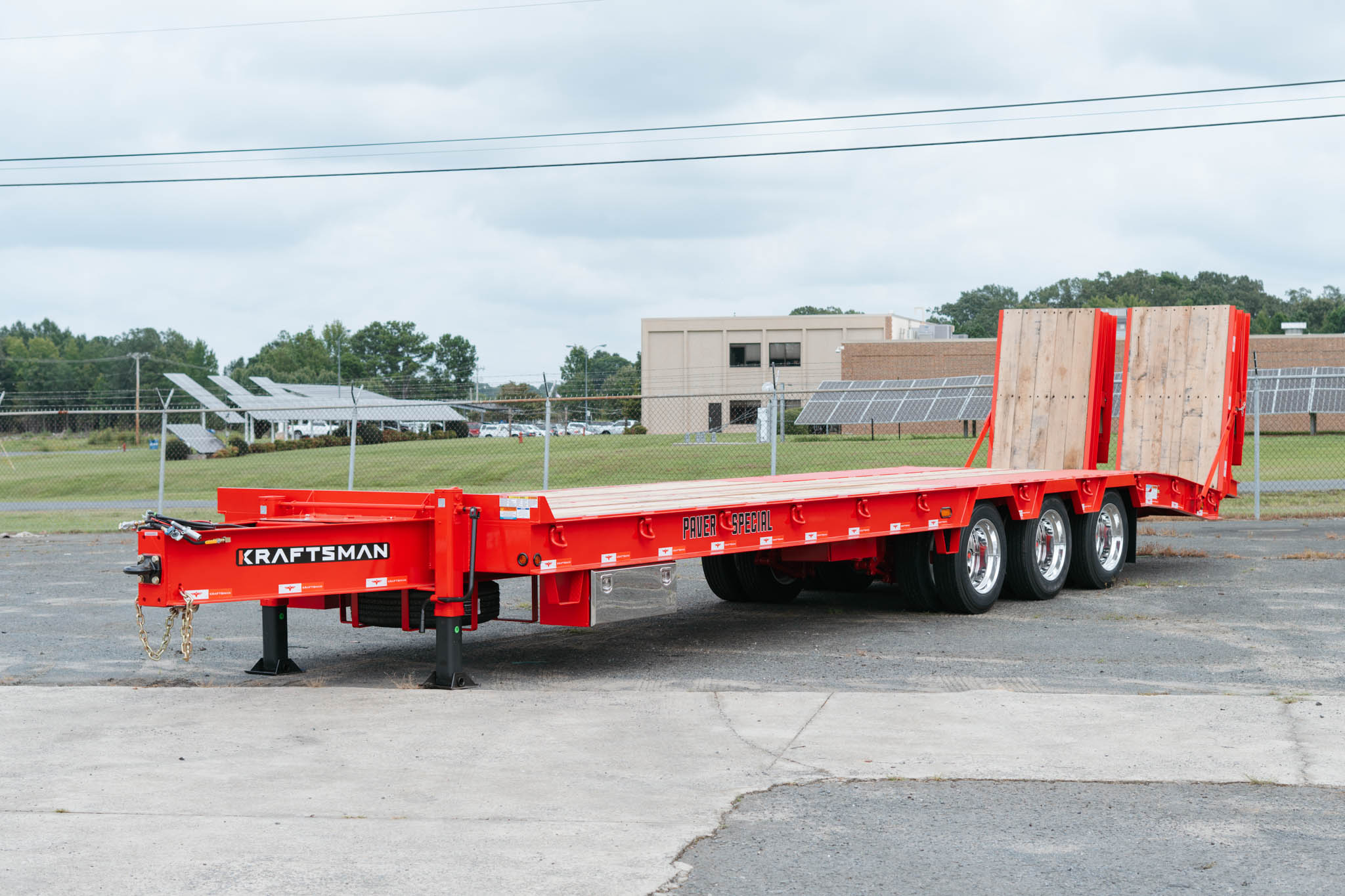

Kraftsman Beast Trailer Side Profile

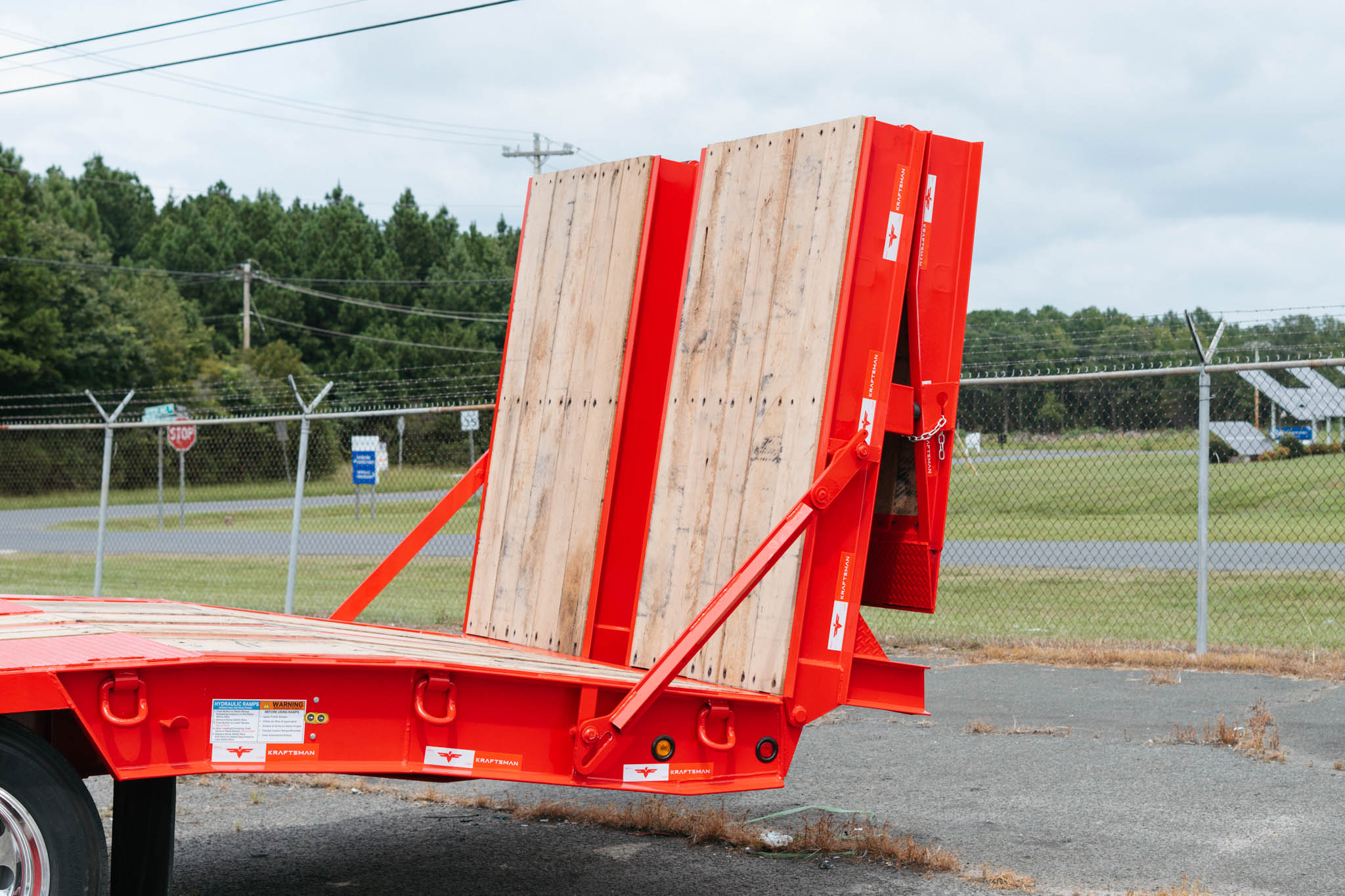

Kraftsman Beast Bifold Ramps

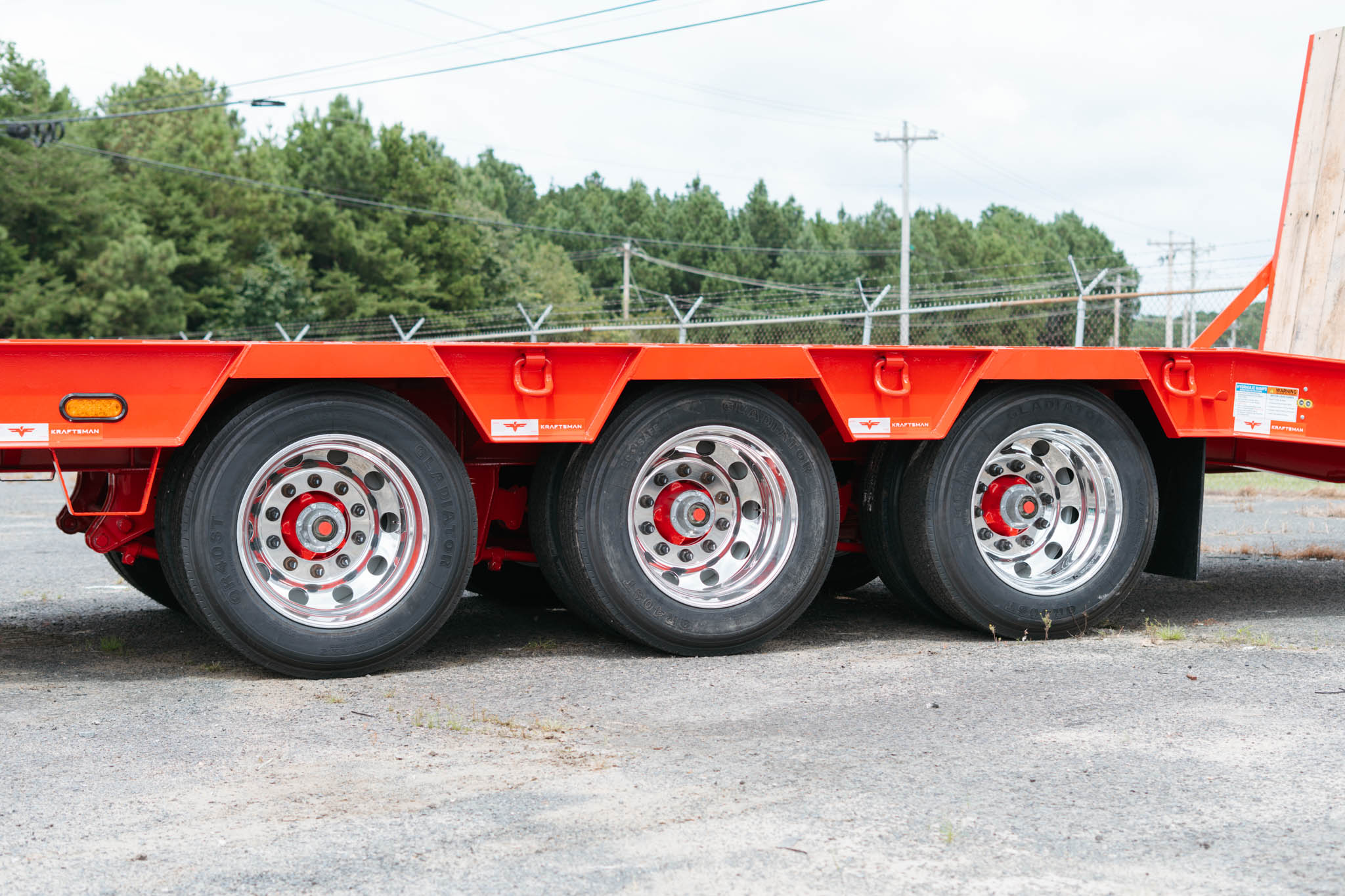

Kraftsman Beast Wheels Tires Axles
Kraftsman Beast Full-Width Ramp
Kraftsman Beast Side Rail
Kraftsman Beast side profile full width ramp

THE BEAST 30 ton 12" Side Rail Paver Special

GVWR: 68,000
Model #: HP-60 XDPS-LA

Trailer Specifications

The following configurations of this trailer are available to best suit your needs.


  • 16” @ 26 lb. I-Beam Main Frame & Tongue
  • Pierced 4” Crosspieces on 16” Centers
  • 12” Channel Side Rail, Wheel Wells
  • 8” Channel Ramps Runners


  • Lifetime LED Lights, Rubber Mounted
  • USA Made Sealed Wiring Harness
  • 7-Way Semi Plug for Signals & Lighting
  • 2-Way Plug, 4 GA Charge Cable for Batteries (Not Applicable on Air Ramps Trailers)


  • 3 x 25,000 lb. Heavy Wall Oil Bath Axles
  • 16” x 7” Air Brakes on All Hubs, 2S/1M
  • Heavy Duty Slipper Suspension on Rear Axles
  • Cush Air Ride w/ Lift on Front Axle
  • 12 x 255/70 R22.5 16 Ply Tires, 22.5” Rims


  • 68,000 GVWR
  • 30’ Flat Deck + 6’ Wood-Lined Beavertail
  • 11’ x 44” Wide Bi-Fold Hydraulic Ramps
  • 40” Unloaded Deck Height
  • 6’ Cold-Formed Tongue w/ Toolbox

Additional Features

  • 2” Nominal Linseed Oil-Stained Oak Decking
  • Dual 2-Speed 50K Jacks
  • 90,000 lb. Bolt-On, Adjustable Pintle
  • Heavy Duty D-Rings on 36” Centers
  • HD Anti-Sail Mudflaps


  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals

Available Trailer Options

The following options are available on this model; speak to your sales advisor for the most comprehensive selection. A variety of colors are available, and almost any color can be matched. A front lift axle is standard on this model.

Deck Length

26' + 6'
28' + 6'
30' + 6'


11' x 44" Bi-Fold Hydraulic Ramps
Full-Width Ramp


Hydraulic Jacks
Air Ride Suspension
4S/2M ABS System
Additional Toolboxes
Doublebreak Beavertail
Crossfire Tire Inflation System


Choose Your Color
Strobe Light Packages
Extra Marker Lights
Aluminum Outer Wheels


Kraftsman's HP-60 XDPS-LA "The Beast" is our premier trailer in our Extreme Duty series. It is constructed with a 16" I-beam main frame weighing 26 lb. per foot, 4" pierced crosspieces on 16" centers, and a 12" channel side rail (2x stronger than the industry standard 8" Side Rail!). HP-60 XDPS-LA has an air ride front axle with lift axle kit installed from the factory. This feature allows the front axle to be raised when transporting empty or with lighter loads, saving wear and tear on the front set of tires.

The HP-60 XDPS-LA includes all of the great features you would expect on a Kraftsman Trailer Paver Special with several premium upgrades. It features a 11' x 44" bifold hydraulic ramps and a 41" unloaded deck height.  "The Beast" rests on dual 2-speed 50K jacks and  22.5" 16 ply tires with optional aluminum outers. Additional features include strobe lights in the rear tailboard, a large toolbox in the tongue, and a linseed oil stained oak deck.

This trailer is enough to handle any of your paving needs! There is a reason we call it "The Beast".

Kraftsman Trailers is the industry leader in paver special equipment trailers! Contact us today to find out about additional options, and let us know how we can help you!
