22.5 ton Pintle Paver Special | 22.5" Tires

GVWR: 53,000
Model #: HP-45 HDPS

Trailer Specifications

The following configurations of this trailer are available to best suit your needs.

Construction

  • 16” @ 26 lb. I-Beam Main Frame & Tongue
  • Pierced 4” Crosspieces on 16” Centers
  • 8” Channel Side Rail, Wheel Wells
  • 6” Channel Headboard, 1x Step Per Side, Spare Mount

Electrical

  • Lifetime LED Lights, Rubber Mounted
  • USA Made Sealed Wiring Harness
  • 7-Way Semi Plug for Signals & Lighting
  • 2-Way Plug, 4 GA Charge Cable for Batteries (Not Applicable on Air Ramps Trailers)

Undercarriage

  • 2 x 25,000 lb. Heavy Wall Oil Bath Axles
  • 16” x 7” Air Brakes on All Hubs, 2S/1M
  • Heavy Duty Slipper Suspension, 49” Spread
  • 3 Leaf High-Arch Springs
  • 8 x 255/70 R22.5 16 Ply Tires, 22.5” Rims

Dimensions

  • 53,000 GVWR,

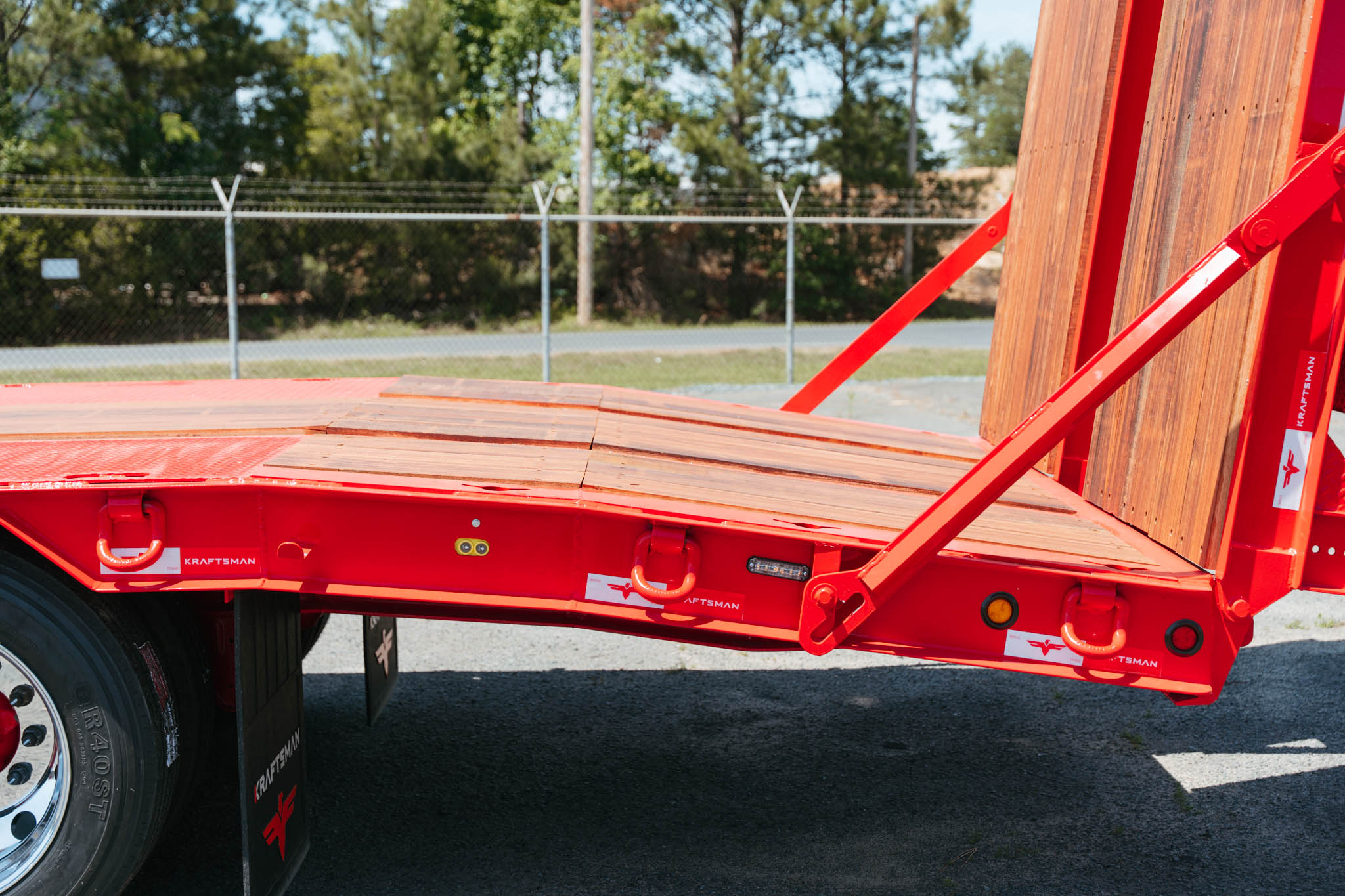

  • 24’ Flat Deck + 6’ Wood-Lined Beavertail

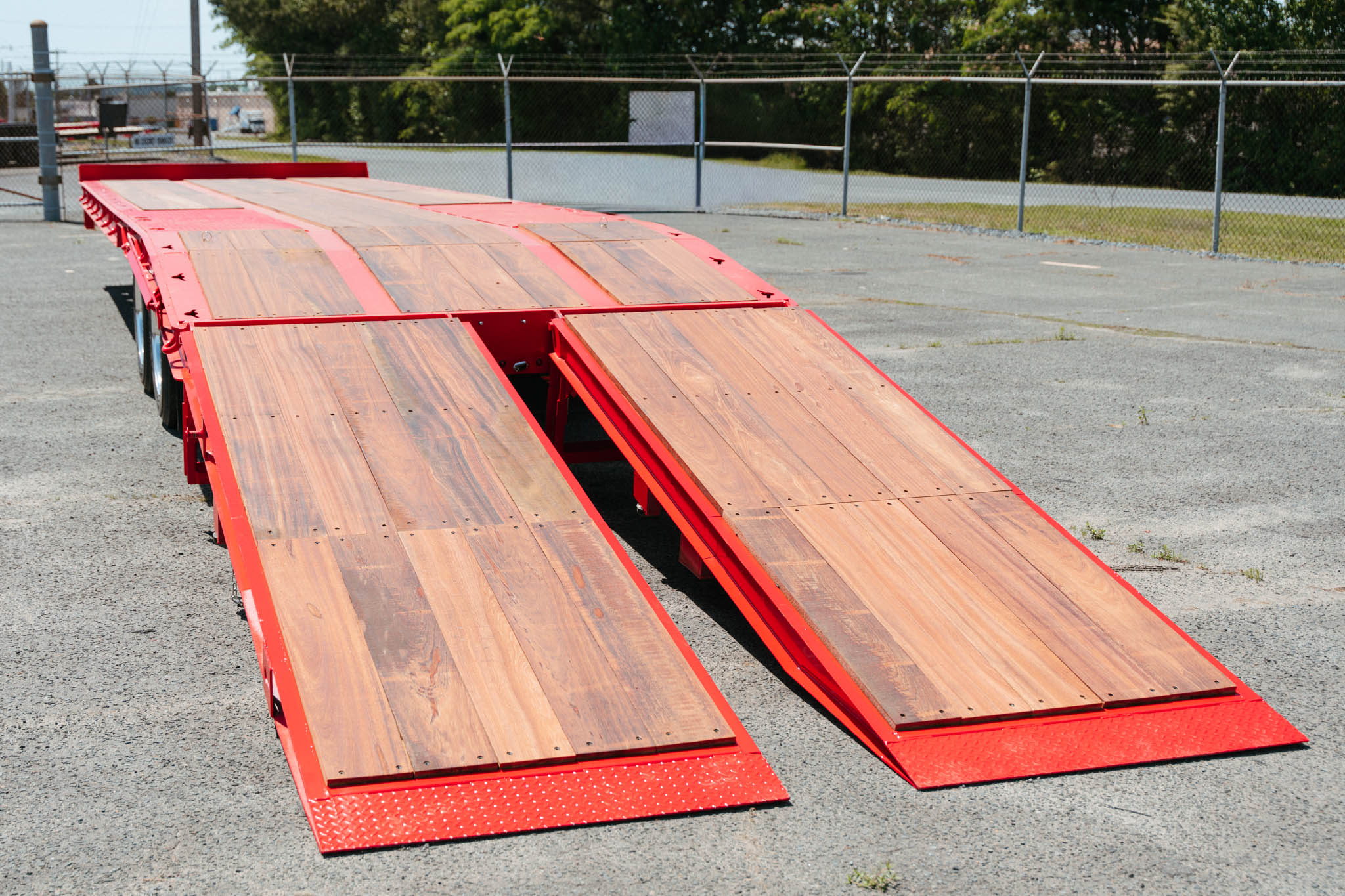

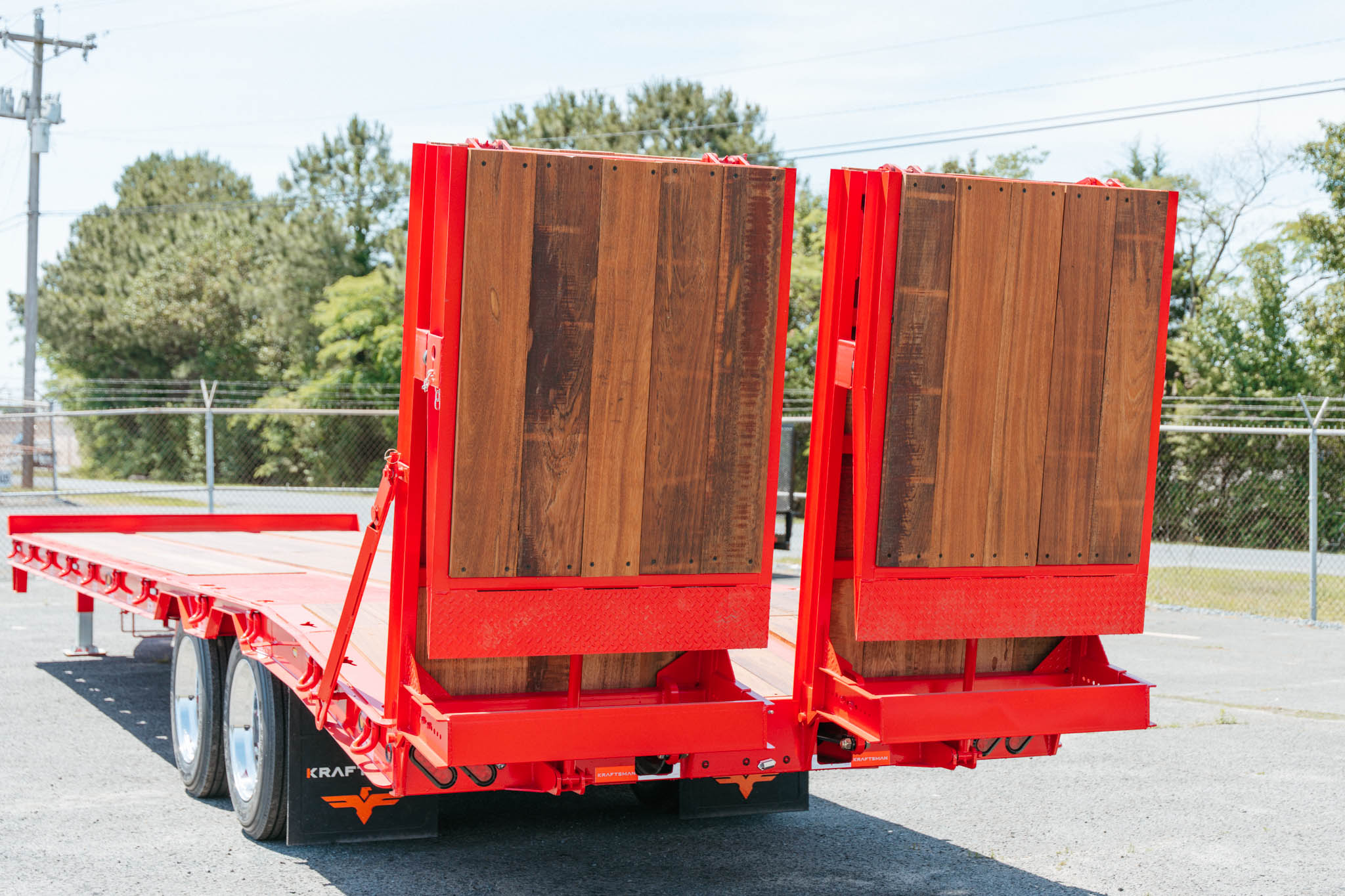

  • 8’ Tall x 34” Wide Hydraulic Ramps
  • 40” Unloaded Deck Height

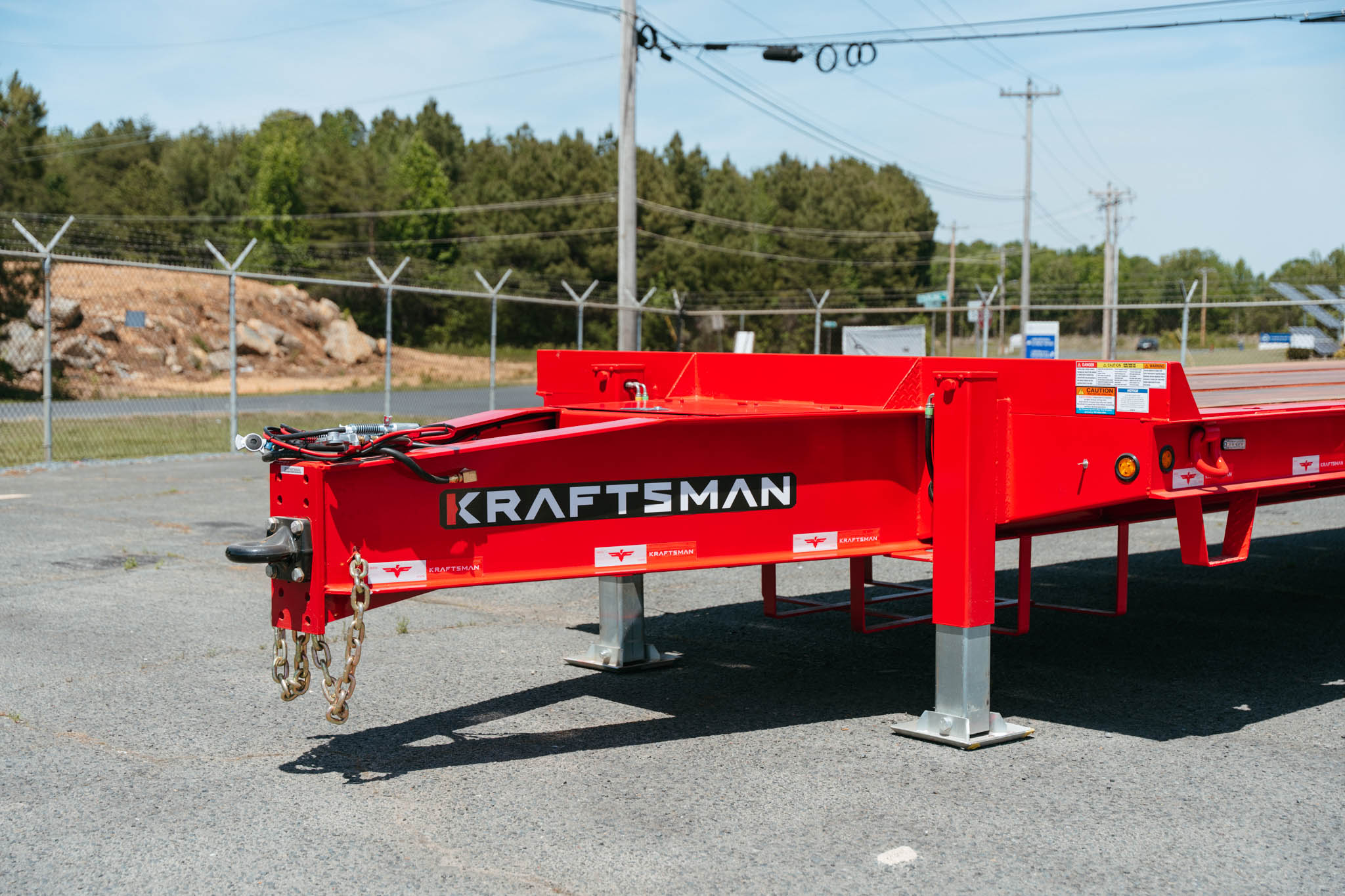

  • 6’ Cold-Formed Tongue w/ Toolbox

Additional Features

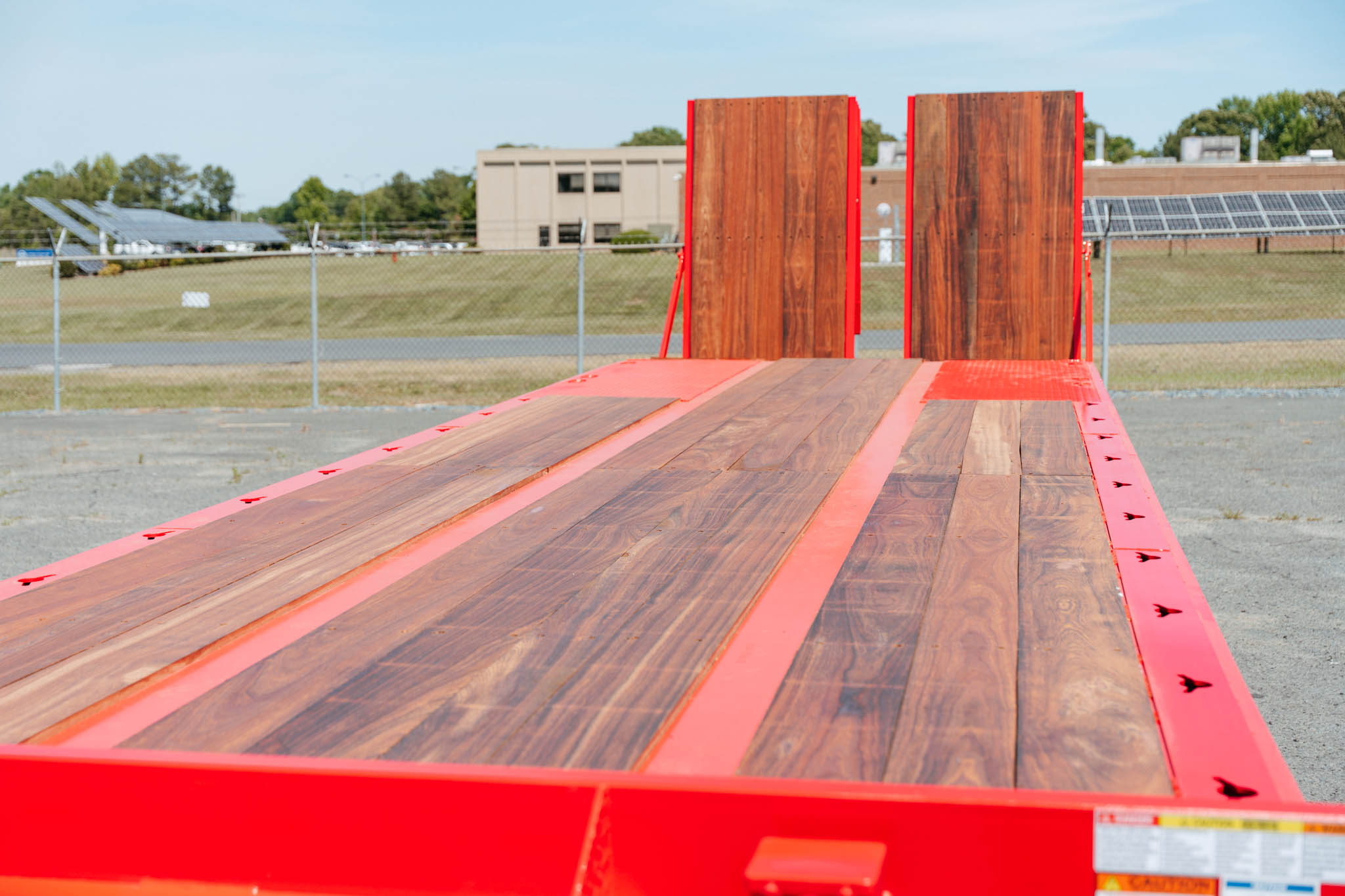

  • 2” Nominal Linseed Oil-Stained Oak Decking
  • Dual 2-Speed 50K Jacks
  • 60,000 lb. Bolt-On, Adjustable Pintle
  • Heavy Duty D-Rings on 36” Centers
  • HD Anti-Sail Mudflaps

Finish

  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals

Available Trailer Options

The following options are available on this model; speak to your sales advisor for the most comprehensive selection. Almost any color can be matched.

Deck Length + Dovetail

24' + 6'
26' + 6'
28' + 6'

Ramps

8' x 34" Hydraulic or Air
8' x 44" Hydraulic or Air
11' x 44" Bi-Fold Hydraulic or Air

Functional

Hydraulic Jacks

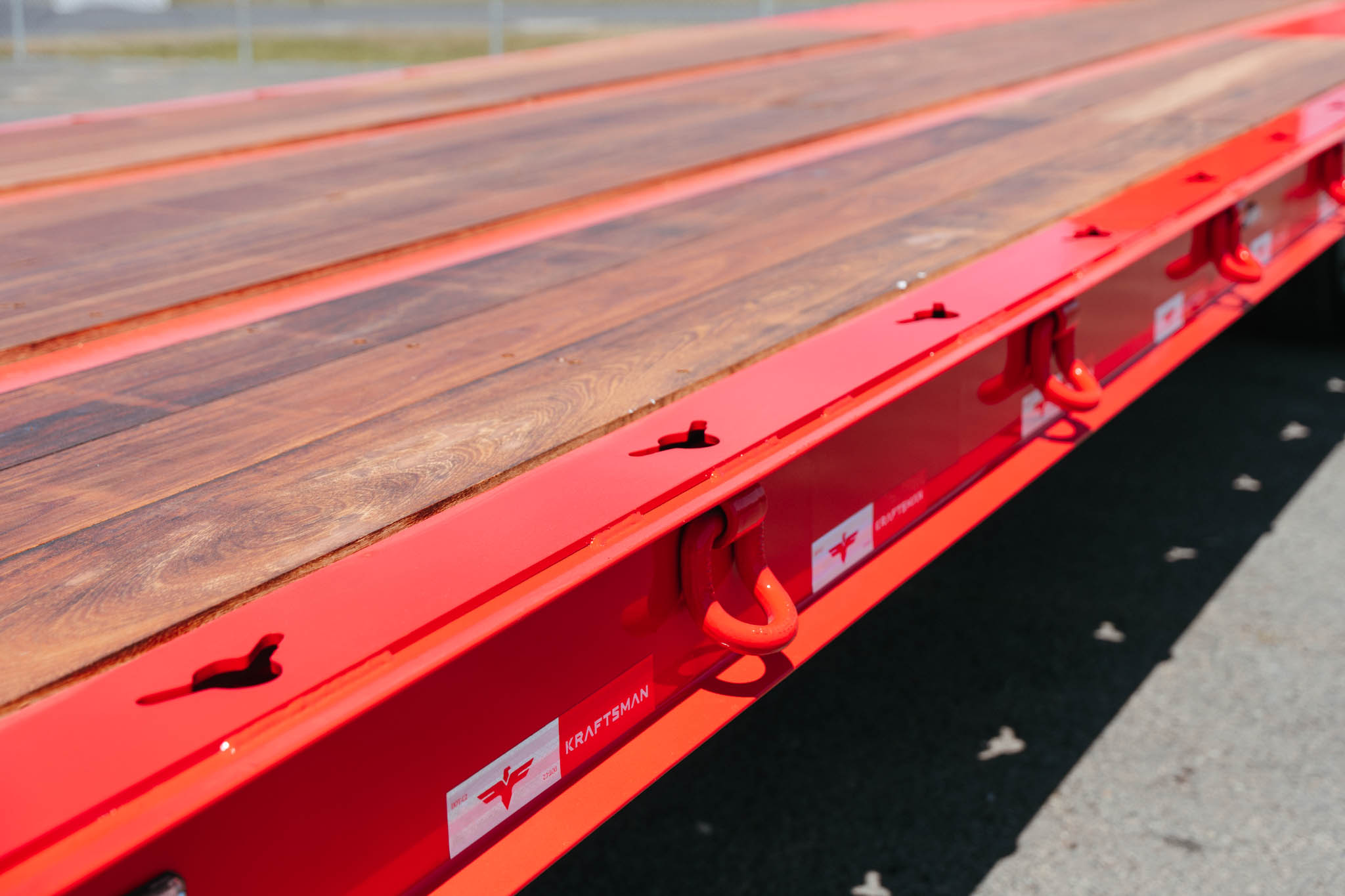

Chainslots
Double Break Beavertail
Side Toolboxes
Air Ride Suspension
4S/2M ABS System
Front Lift Axle

Appearance

Pick Your Color

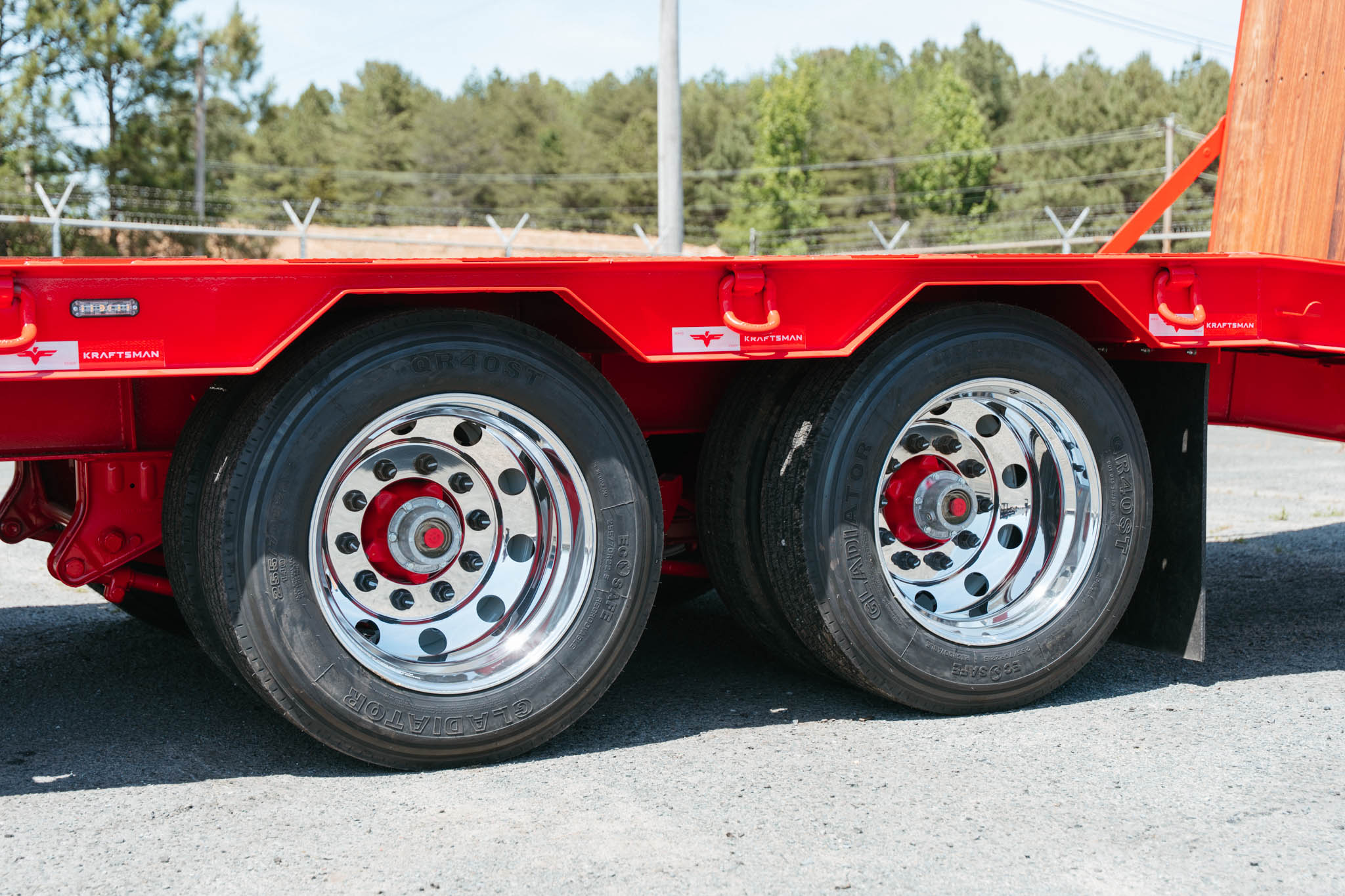

Aluminum Outer Wheels
Strobe Light Packages
Deck Stain

ABOUT THE HP-45 HDPS PAVER SPECIAL TRAILER

Kraftsman's HP-45 HDPS is constructed with a 16" I-beam main frame weighing 26 lb. per foot, 4" pierced crosspieces on 16" centers, and an 8" channel side rail with knee braces.

Standard features on the HP-45 HDPS include dual 2-speed 50K jacks, two 25,000 lb. heavy wall oil bath axles, 22.5" 16 ply Radial tires, and 8' x 34" hydraulic ramps. It has an unloaded deck height of 41" and a 6' woodlined beavertail.

The HP-45 HDPS has a 53,000 GVWR rating, and is available in three sizes: 102" x 28' (22' + 6'), 102" x 30' (24' + 6'), and 102" x 32' (26' + 6')

Kraftsman is the industry leader in paver trailers! Contact us today to find out about additional options, and let us know how we can help you!
