HP-50 PS-LA Pintle Paver Special
Trailer Specifications
The following configurations of this trailer are available to best suit your needs.
Construction
- 14” @ 26 lb. I-Beam Main Frame & Tongue
- Pierced 4” Crosspieces on 16” Centers
- 8” Channel Side Rail with Knee Braces
- 6” Channel Headboard, 1x Step Per Side, Spare Mount
Electrical
- Lifetime LED Lights, Rubber Mounted
- USA Made Sealed Wiring Harness
- 7-Way Semi Plug for Signals & Lighting
- 2-Way Plug, 4 GA Charge Cable for Batteries (Not Applicable on Air Ramps Trailers)
Undercarriage

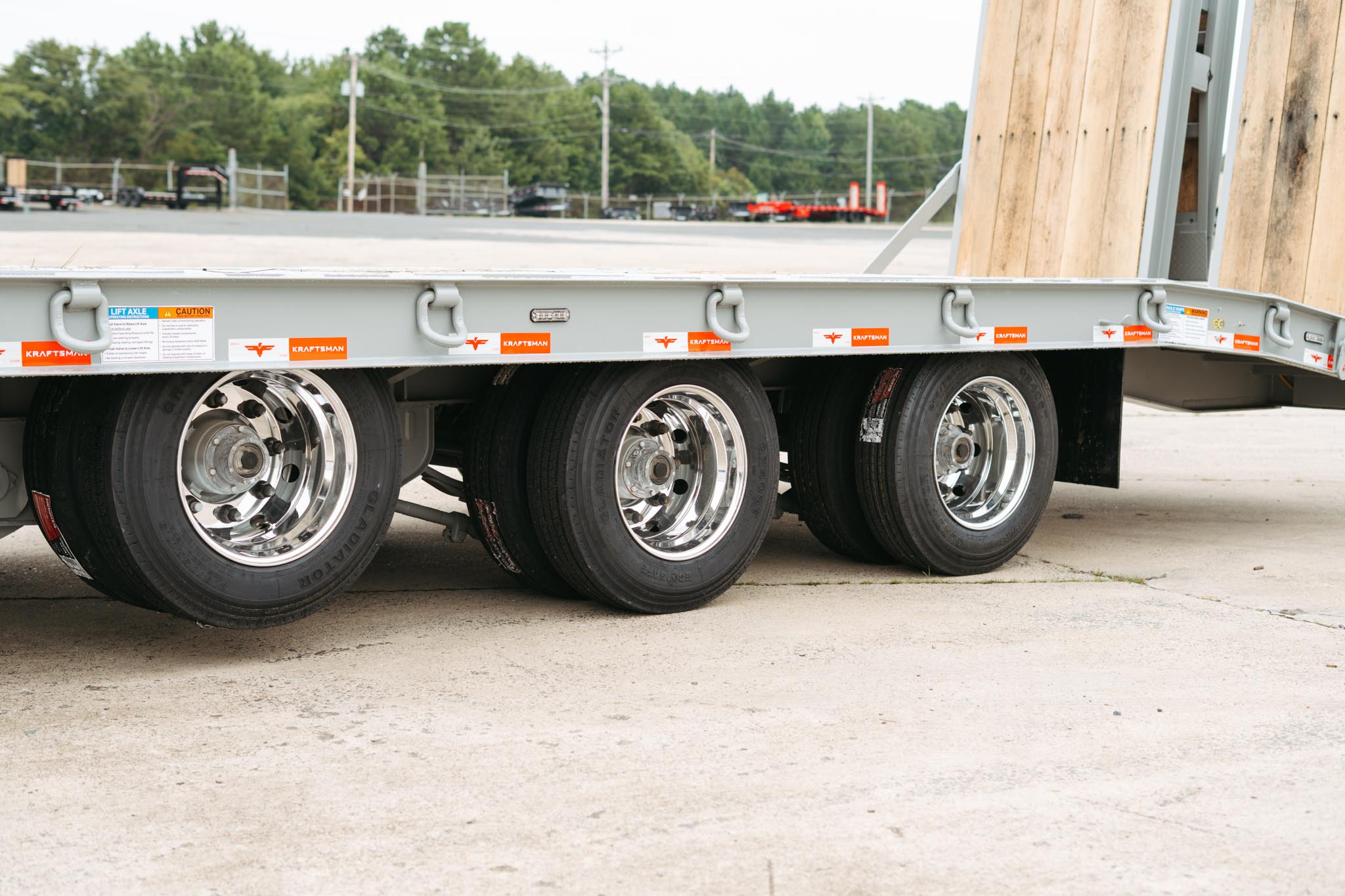

- 3 x 22,500 lb. Heavy Wall Oil Bath Axles
- 12 1/4” x 7 1/2” Air Brakes on All Hubs, 2S/1M
- Hutch 9700 Suspension on Rear 2 Axles
- Cush Air Ride w/ Lift on Front Axle
- 215/75 R17.5 16 Ply Tires, 17.5” Rims
Dimensions
- 62,000 GVWR
- 24’ Flat Deck + 6’ Wood-Lined Beavertail

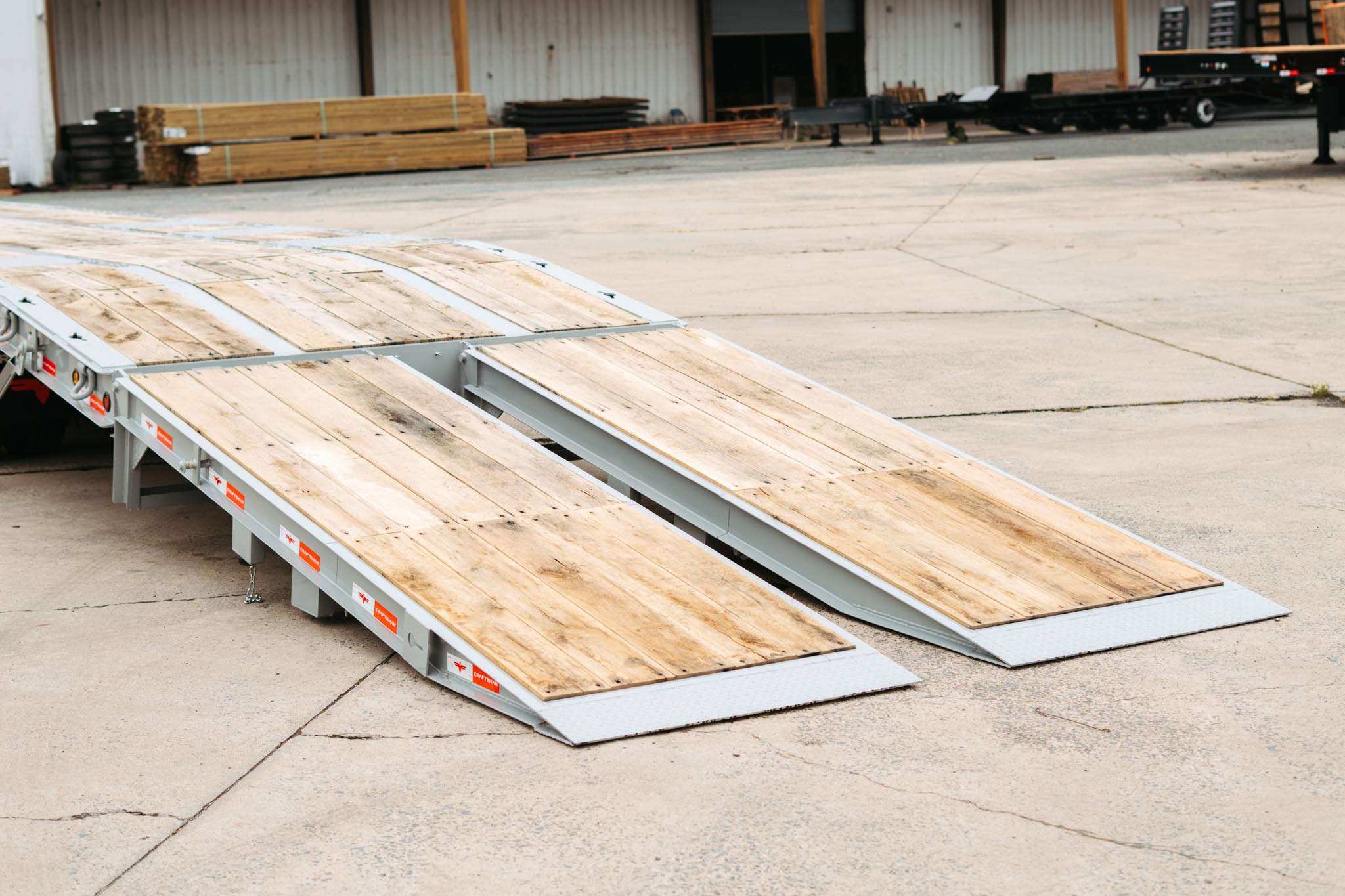

- 8’ Tall x 34” Wide Hydraulic Ramps
- 35” Unloaded Deck Height
- 6’ Cold-Formed Hydraulic Tongue
Additional Features

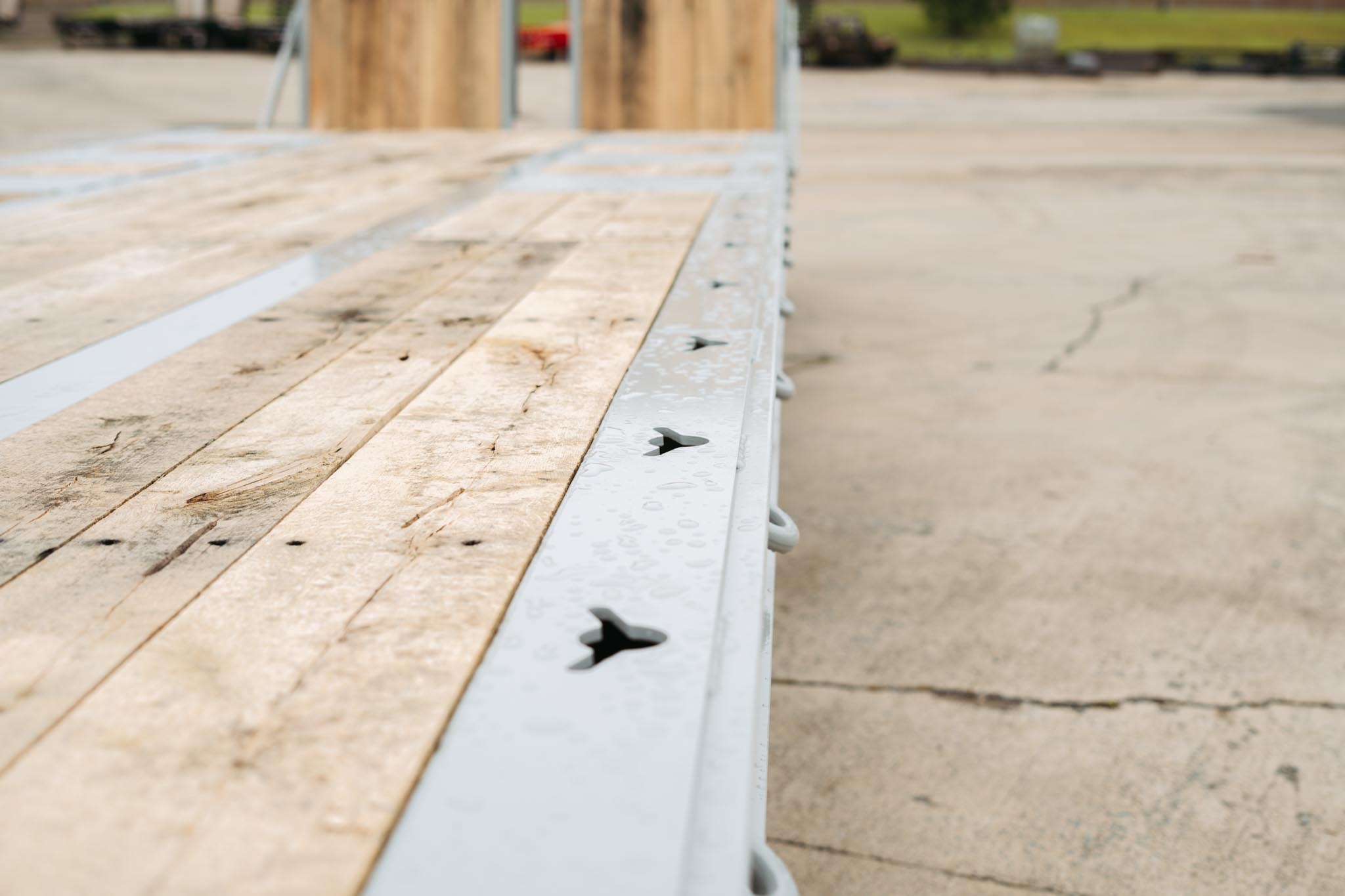

- 2” Nominal Linseed Oil-Stained Oak Decking
- Dual 2-Speed 50K Jacks

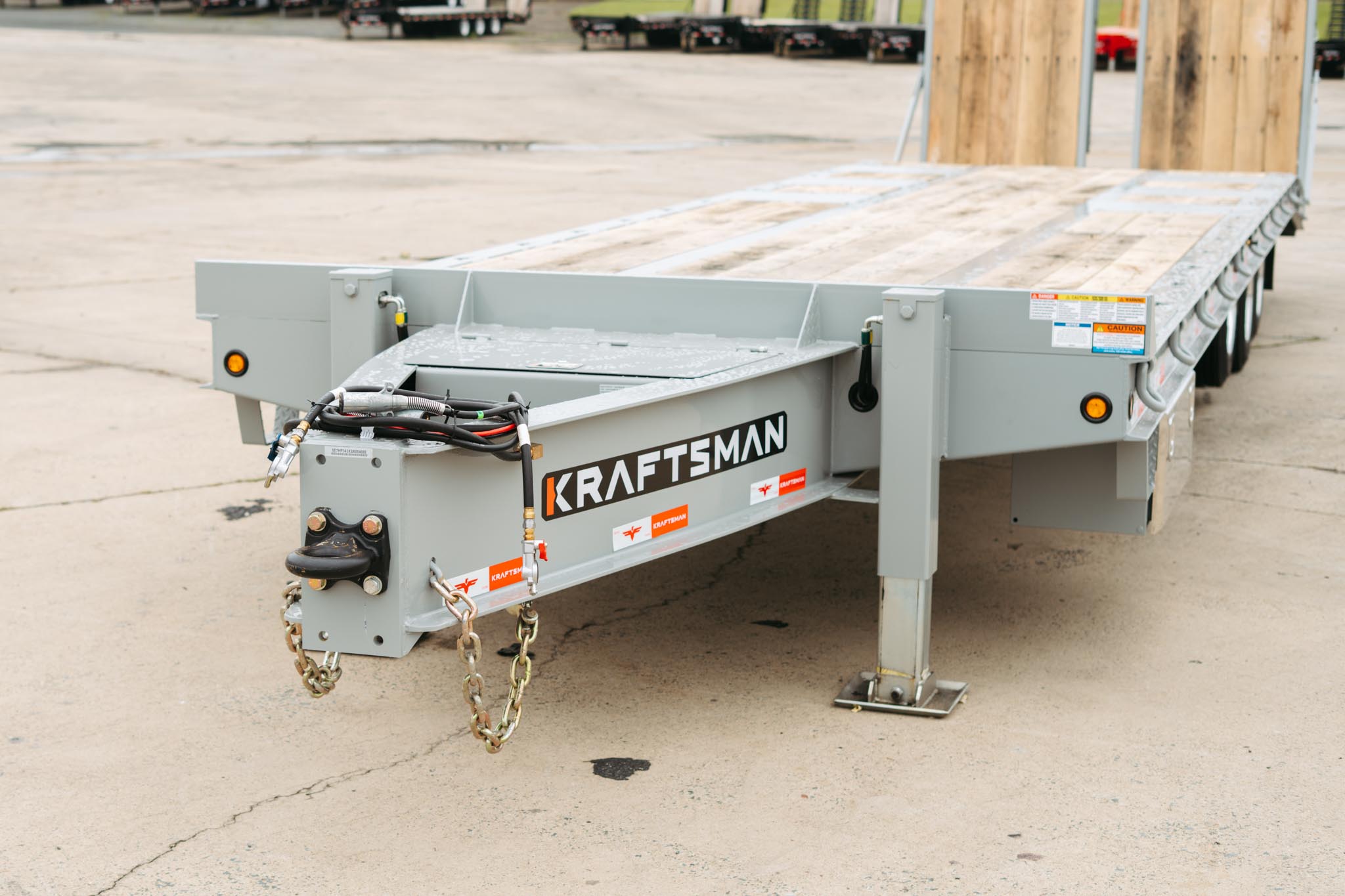

- 60,000 lb. Bolt-On, Adjustable Pintle
- Heavy Duty D-Rings on 36” Centers
- HD Anti-Sail Mudflaps
Finish
- High Pressure Phosphate Wash
- Primed Top & Bottom w/ Automotive Primer
- Two Top Coats of 2-Part PPG Black Gloss
- DOT Reflective Tape, Kraftsman Decals
- Safety & Operational Decals

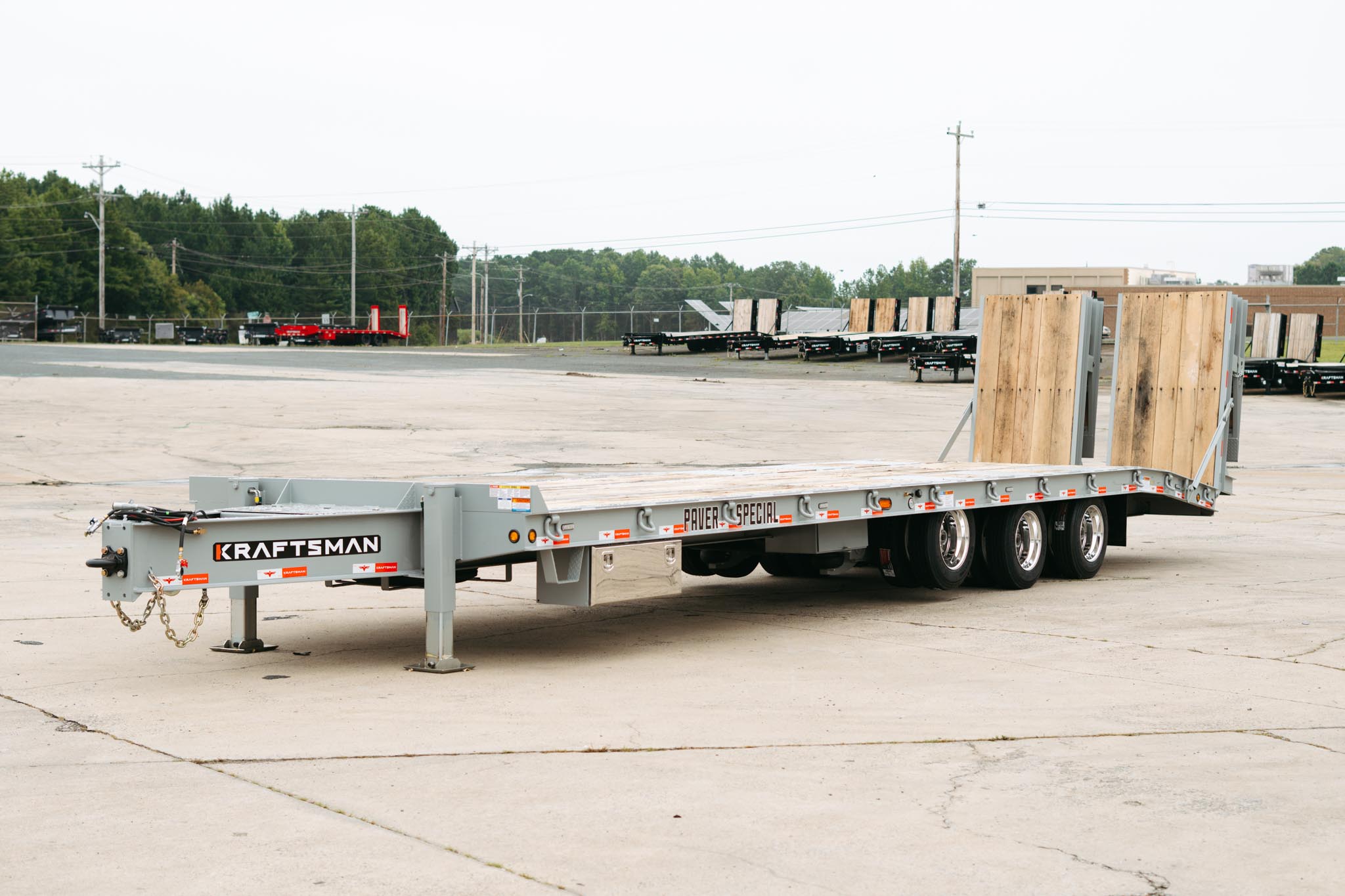

ABOUT THE HP-50 PS-LA PAVER SPECIAL TRAILER
Kraftsman's HP-50 PS-LA is constructed with a 14" I-beam frame weighing 26 lb. per foot, with 4" pierced crosspieces on 16" centers, and an 8" channel side rail with knee braces. In additional to the specifications on the HP-50 PS, the HP-50 PS-LA has an air ride front axle with lift axle kit installed from the factory. This extra feature allows the front axle to be raised when transporting empty or with lighter loads, saving wear and tear on the front set of tires.

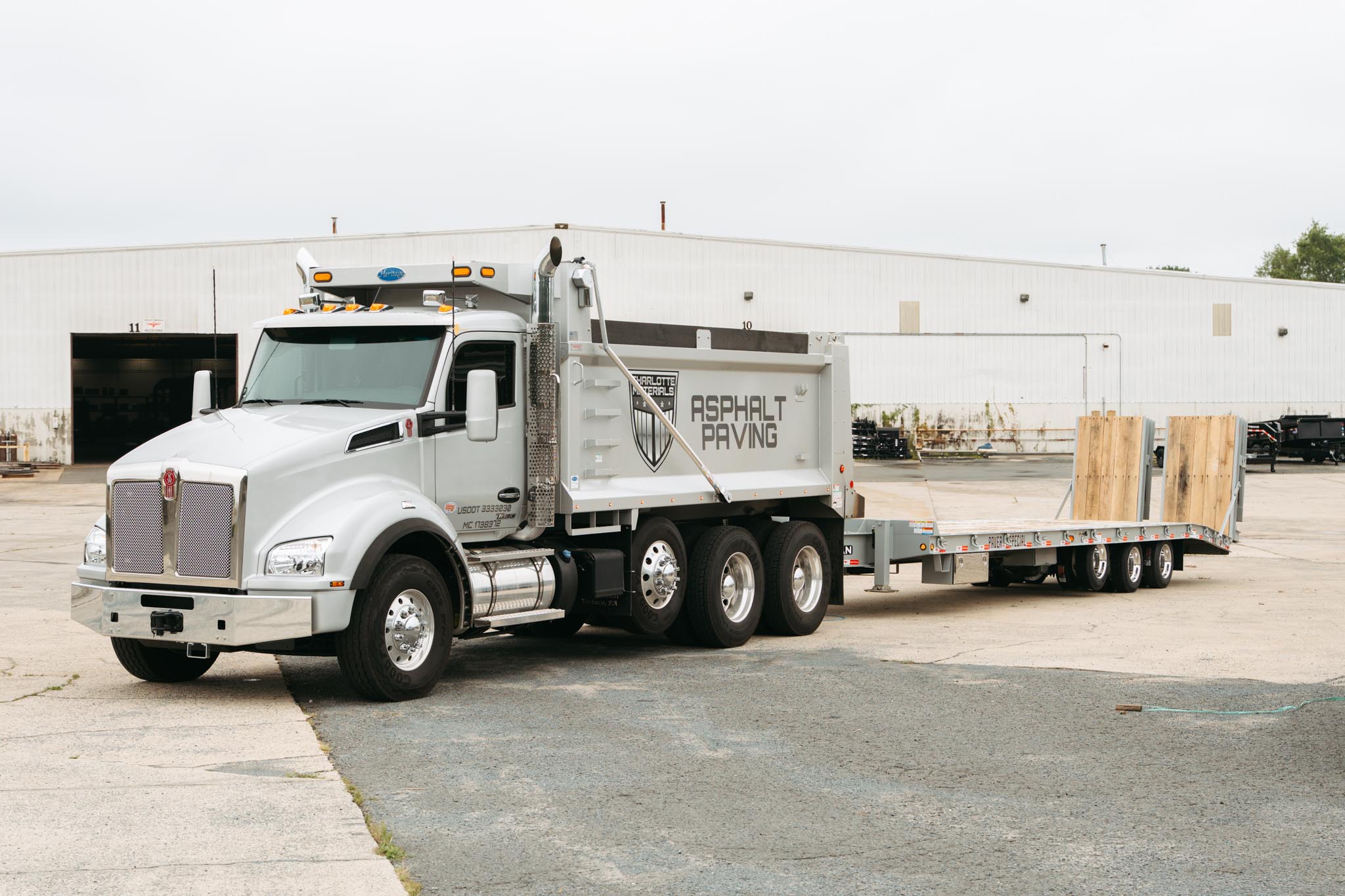

Tthe HP-50 PS-LA is loaded with premium components making it perfect for the paving industry. This model rests on dual 2-speed 50K jacks, and loading and unloading is safe and easy with our 8' x 34" hydraulic ramps and low 35" unloaded deck height. Standard running gear is three 22,500 lb. heavy wall oil bath axles and 17.5" radial tires.
The HP-50 PS-LA has a 62,000 GVWR rating, and is available in three sizes: 102" x 28' (22' + 6'), 102" x 30' (24' + 6'), and 102" x 32' (26' + 6')
Kraftsman is the industry leader in paver trailers! Contact us today to find out about additional options, and let us know how we can help you!
