HP-45 PS Pintle Paver Special
Trailer Specifications
The following configurations of this trailer are available to best suit your needs.
Construction
- 14” @ 26 lb. I-Beam Main Frame & Tongue
- Pierced 4” Crosspieces on 16” Centers
- 8” Channel Side Rail with Knee Braces
- 6” Channel Headboard, 1x Step Per Side, Spare Mount
Electrical
- Lifetime LED Lights, Rubber Mounted
- USA Made Sealed Wiring Harness
- 7-Way Semi Plug for Signals & Lighting
- 2-Way Plug, 4 GA Charge Cable for Batteries (Not Applicable on Air Ramps Trailers)

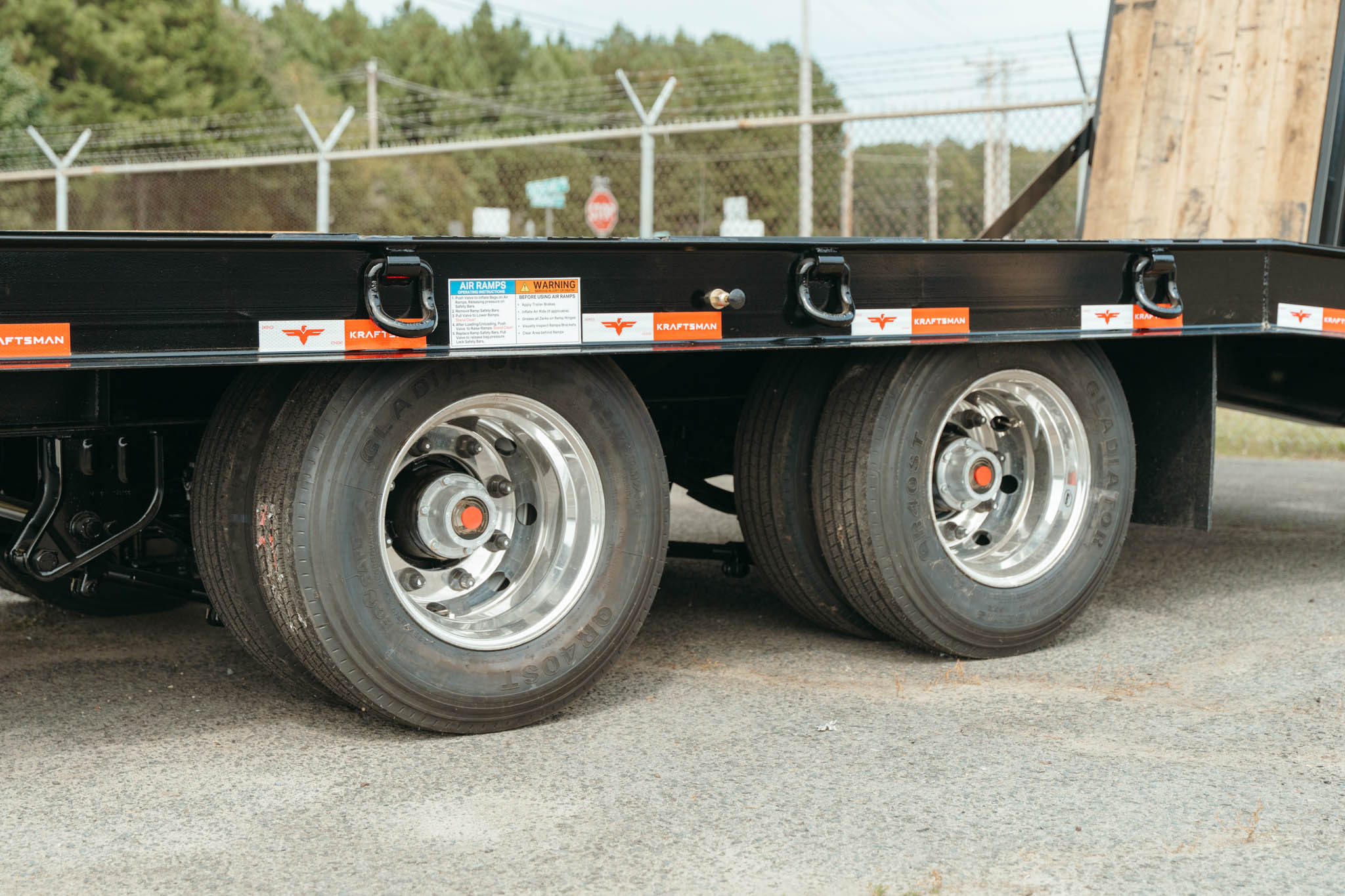

Undercarriage
- 2 x 25,000 lb. Heavy Wall Oil Bath Axles
- 12 1/4” x 7 1/2” Air Brakes on All Hubs, 2S/1M
- Hutch 9700 Suspension, 49” Axle Spread
- 2S/1M ABS, T3030 Air Chambers
- 235/75 R17.5 18 Ply Tires, 17.5” Rims
Dimensions
- 53,000 GVWR
- 24’ Flat Deck + 6’ Wood-Lined Beavertail

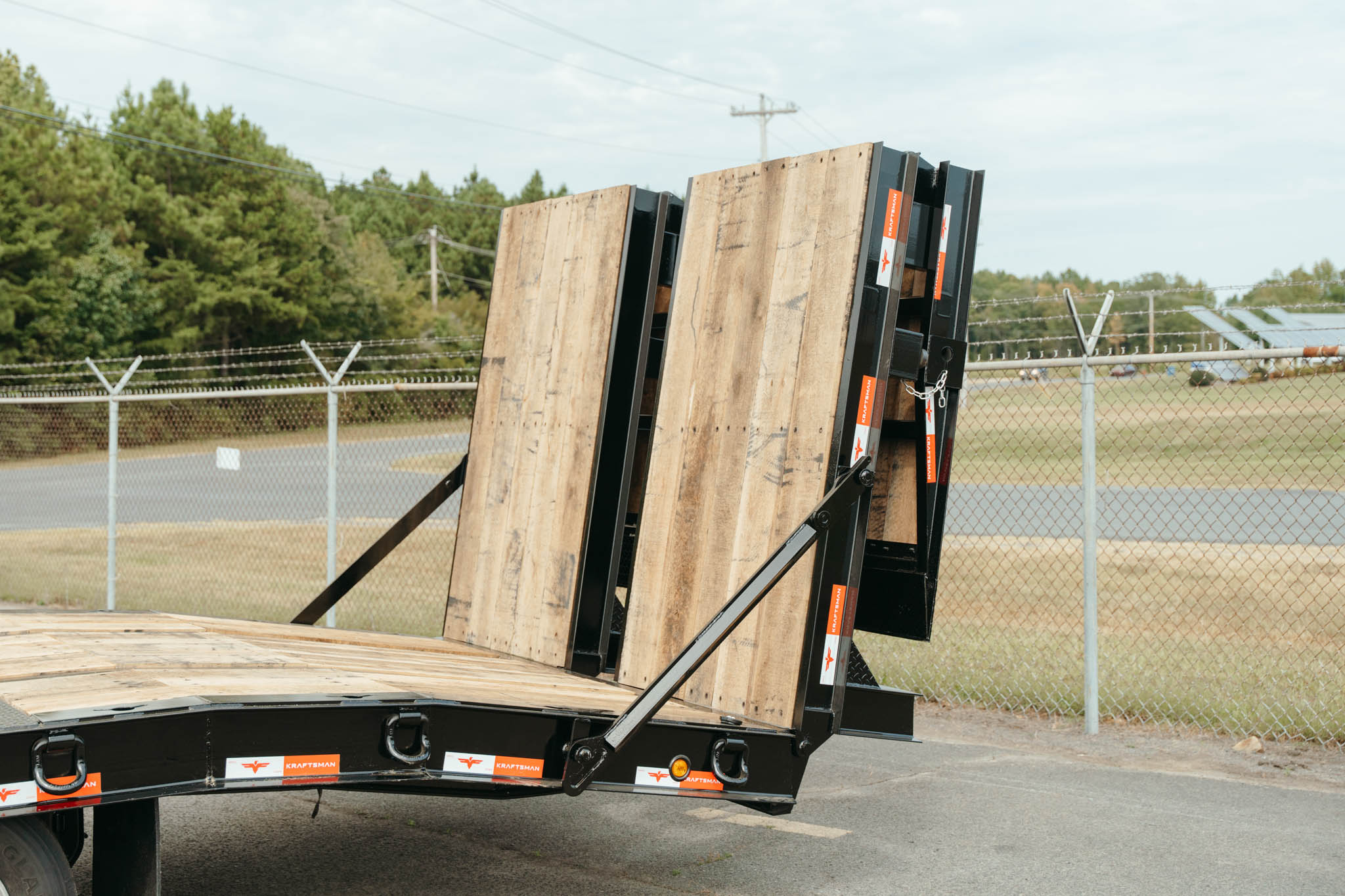

- 8’ Tall x 34” Wide Hydraulic Ramps
- 35” Unloaded Deck Height
- 6’ Cold-Formed Hydraulic Tongue
Additional Features

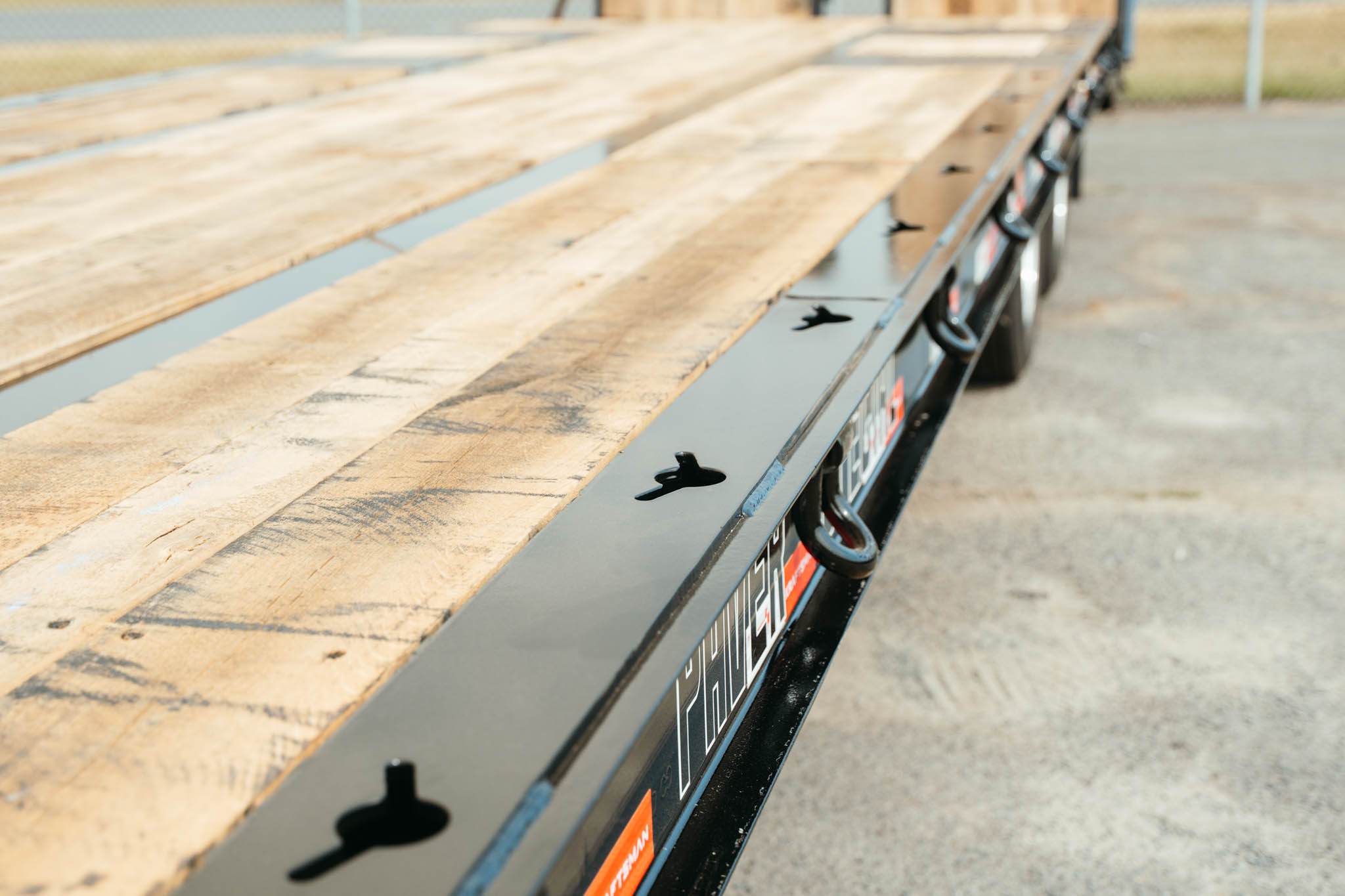

- 2” Nominal Linseed Oil-Stained Oak Decking
- Dual 2-Speed 50K Jacks
- 60,000 lb. Bolt-On, Adjustable Pintle
- Heavy Duty D-Rings on 36” Centers
- HD Anti-Sail Mudflaps
Finish
- High Pressure Phosphate Wash
- Primed Top & Bottom w/ Automotive Primer
- Two Top Coats of 2-Part PPG Black Gloss
- DOT Reflective Tape, Kraftsman Decals
- Safety & Operational Decals

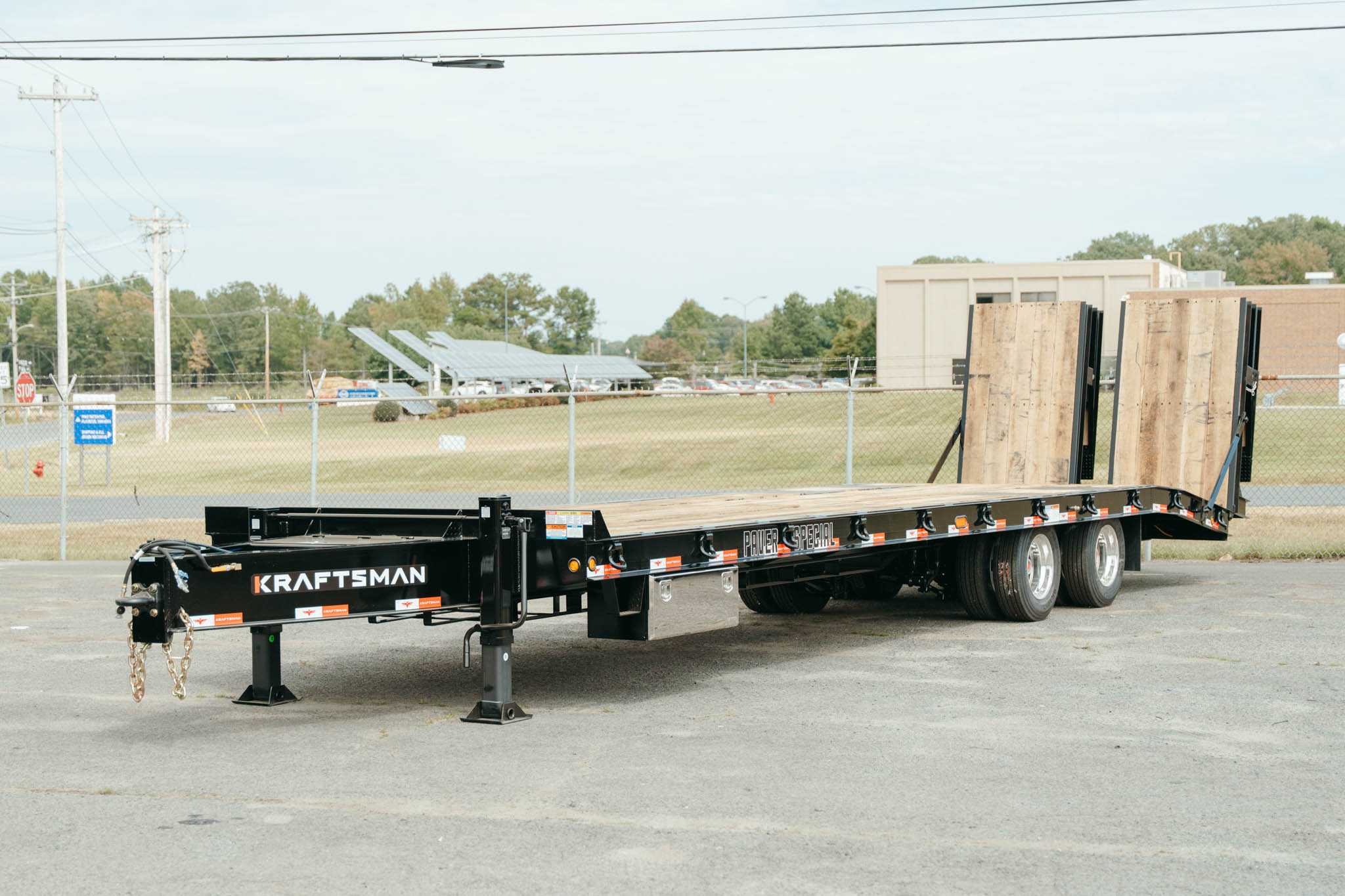

ABOUT THE HP-45 PAVER SPECIAL TRAILER
The HP-45 PS series is Kraftsman's heaviest tandem axle "Paver Special" equipment trailer. It is constructed with a 14" I-beam frame weighing 26 lb. per foot, 4" pierced crosspieces on 16" centers, and an 8" channel side rail with knee braces.
The HP-45 PS is loaded with features, making it perfect for the paving industry. Some key features include dual 2-speed 50K jacks, two 25,000 lb. heavy wall oil bath axles, and 8' x 34" hydraulic ramps and a low unloaded deck height of 35".
This model has a 53,000 GVWR rating, and is available in three sizes: 102" x 28' (22' + 6'), 102" x 30' (24' + 6'), and 102" x 32' (26' + 6')
Kraftsman is the industry leader in paver trailers! Contact us today to find out about additional options, and let us know how we can help you!
