Model hK-110 HDPS-LA

55 Ton Lowboy Heavy Equipment Trailer

GVWR: 128,000
Model #: HK-110 HDPS-LA
Starting at $60,999

Trailer Specifications

The following configurations of this trailer are available to best suit your needs.

Construction

  • 24” @ 55 lb. I-Beam Main Frame
  • 8” I-Beam Crosspieces on 20” Centers
  • 12” Channel Outer Frame
  • Fabricated Neck, 1x Step on Each Side

Electrical

  • Lifetime LED Lights, Rubber Mounted
  • Mid-Span Amber Turn Signals
  • USA Made Sealed Wiring Harness
  • 7-Way Semi-Style Female Plug

Undercarriage

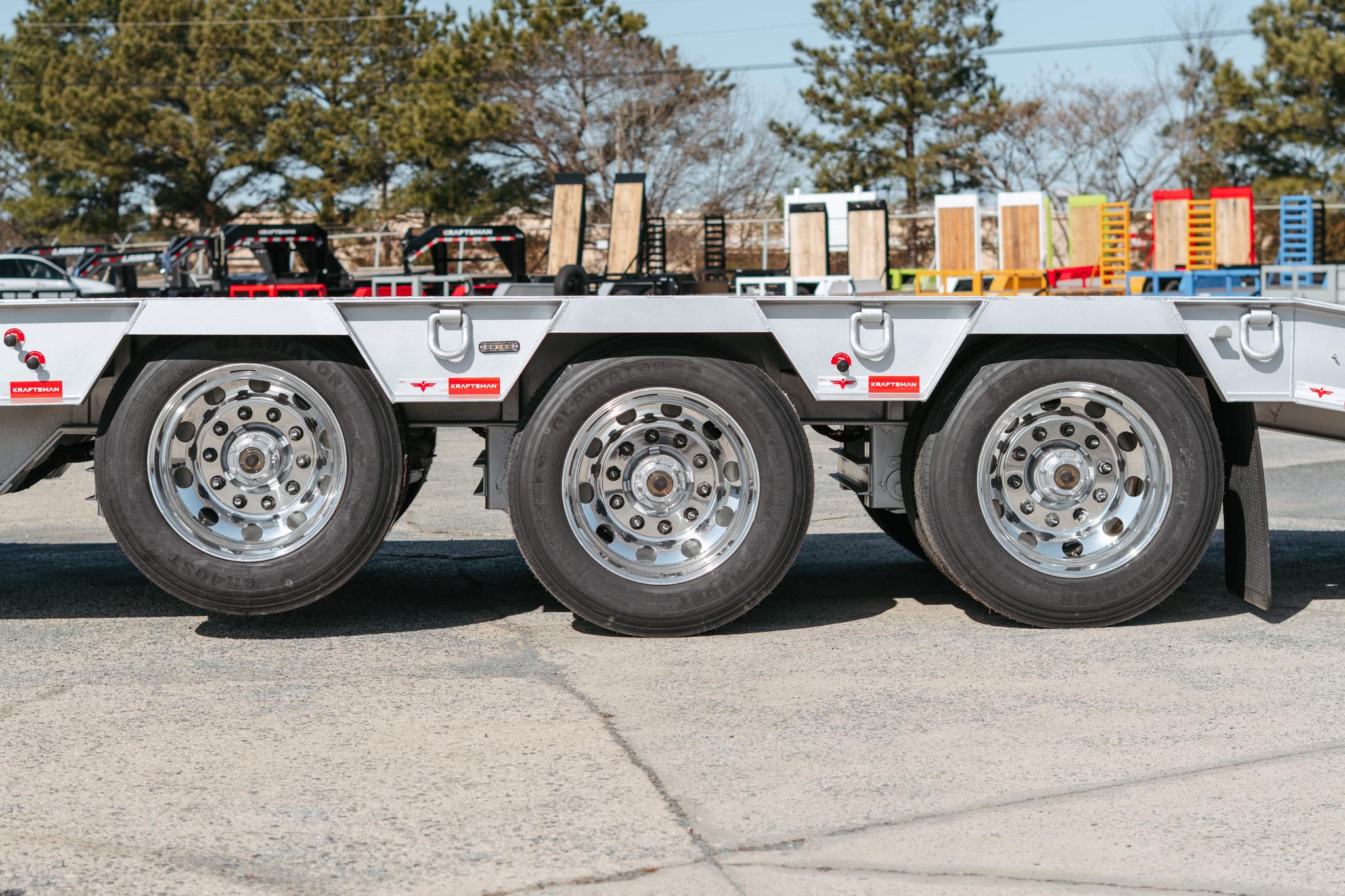

  • 3 x 25,000 lb. Heavy Wall Oil Bath Axles
  • Cush Air Ride with Lift Kit on Front Axle
  • Standard with Air Ride, 49” Axle Spread
  • 2S/1M ABS, T3030 Air Chambers
  • 255/70 R22.5 16 Ply Tires on 22.5” Steel Rims

Dimensions

  • 128,000 GVWR
  • 48’ & 52’ Lengths Available
  • 48’ Overall Length Standard
  • 40” Unloaded Deck Height

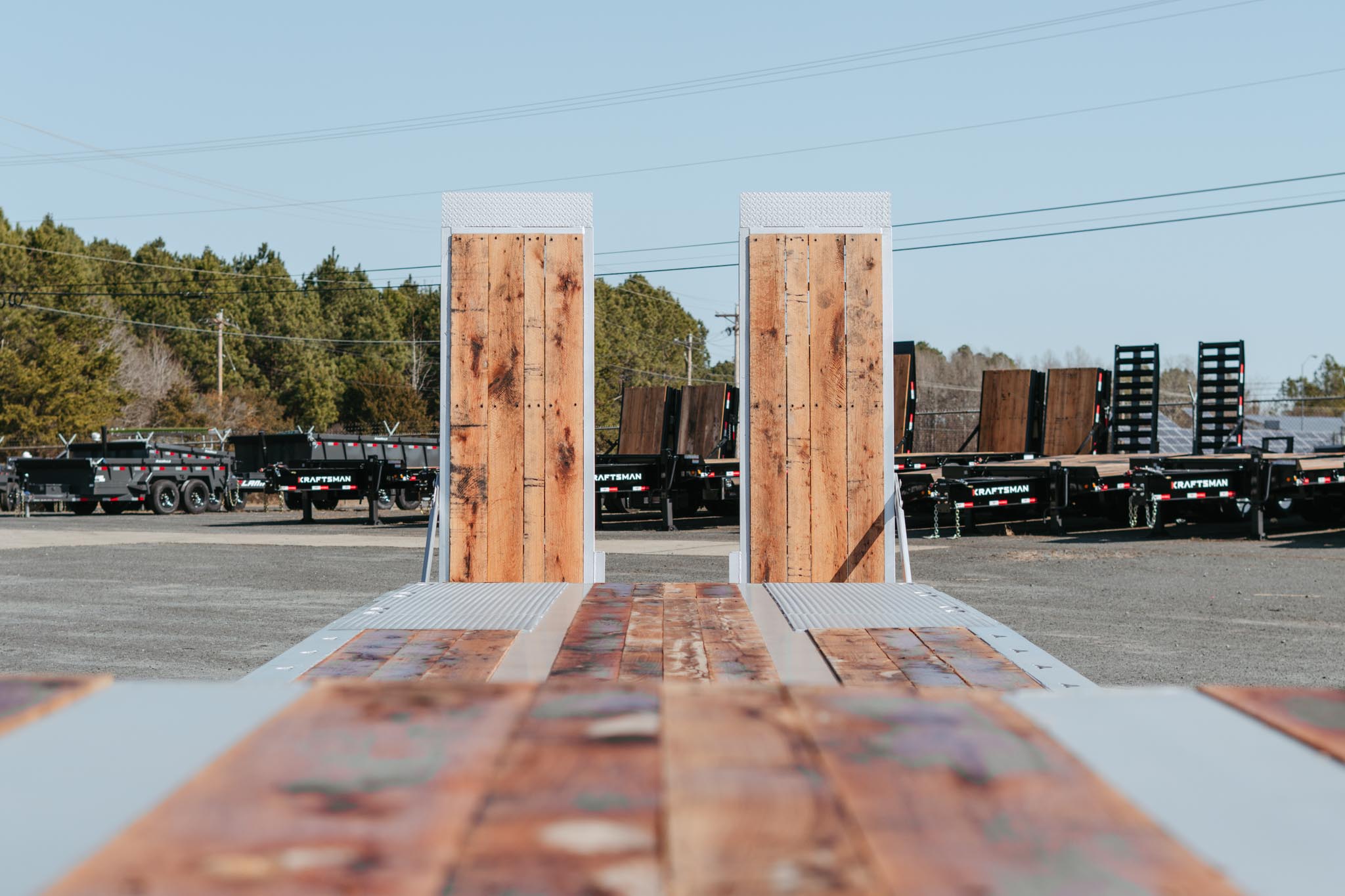

  • 8’ Tall x 34” Wide Hydraulic Ramps

Additional Features

  • 2” Nominal Linseed Oil-Stained Oak Decking
  • Dual 2-Speed 50K Jacks
  • 2” Heat-Treated King Pin
  • Heavy Duty D-Rings on 36” Centers
  • HD Anti-Sail Mudflaps

Finish

  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals

Available Trailer Options

The following options are available on this model; speak to your sales advisor for the most comprehensive selection. A variety of colors are available, and almost any color can be matched. A front lift axle is standard on this model.

Deck Length

48'
53'

Ramps

8' x 34" Hydraulic or Air
8' x 44" Hydraulic or Air
11' x 44" Bi-Fold Hydraulic or Air

Functional

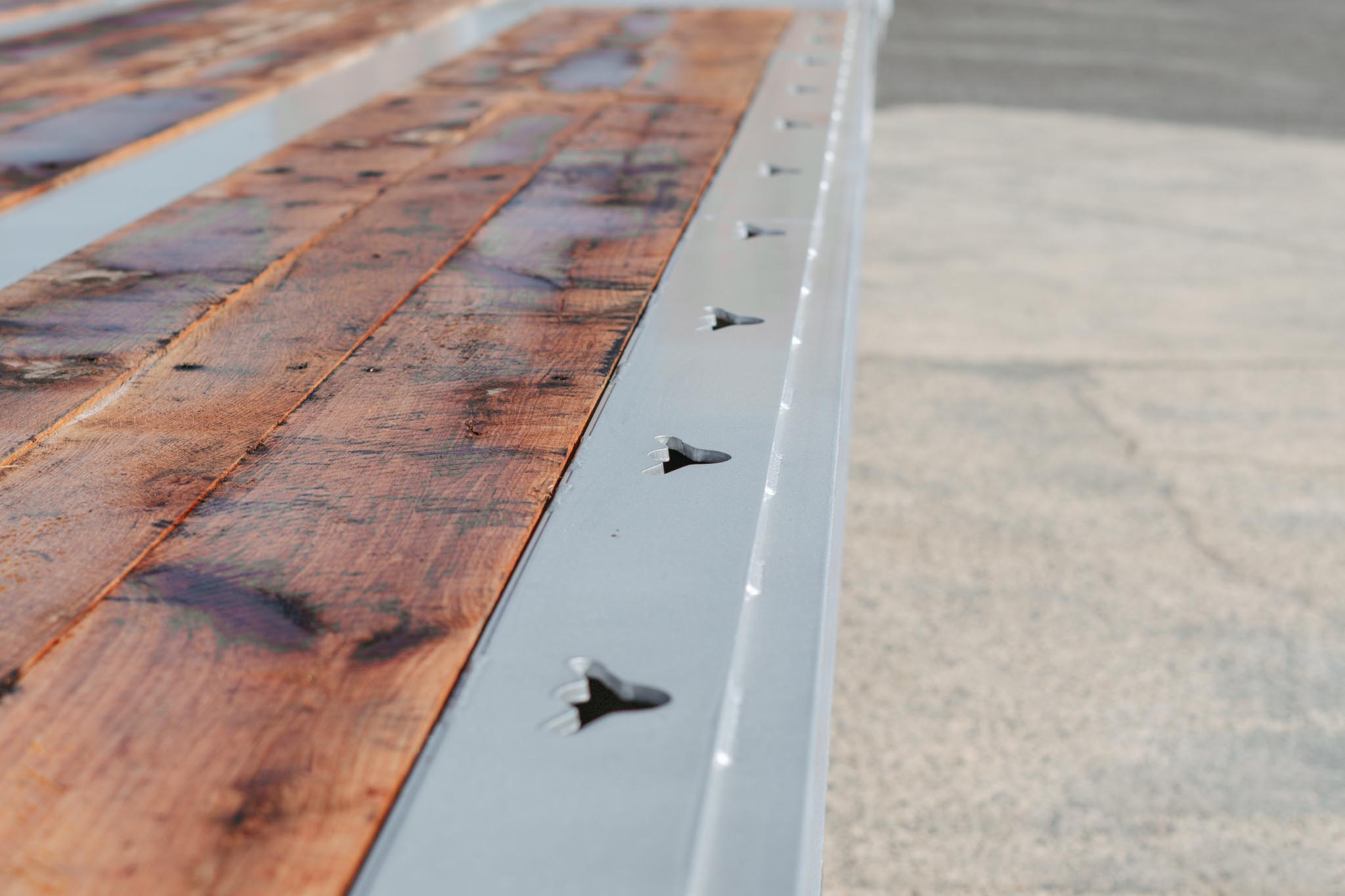

Chainslots
Side Toolboxes
4S/2M ABS System
Crossfire Tire Inflation System

Appearance

Choose Your Color
Strobe Light Packages
Extra Marker Lights
Aluminum Outer Wheels

ABOUT THE HK-110 HDPS-LA LOWBOY EQUIPMENT TRAILER

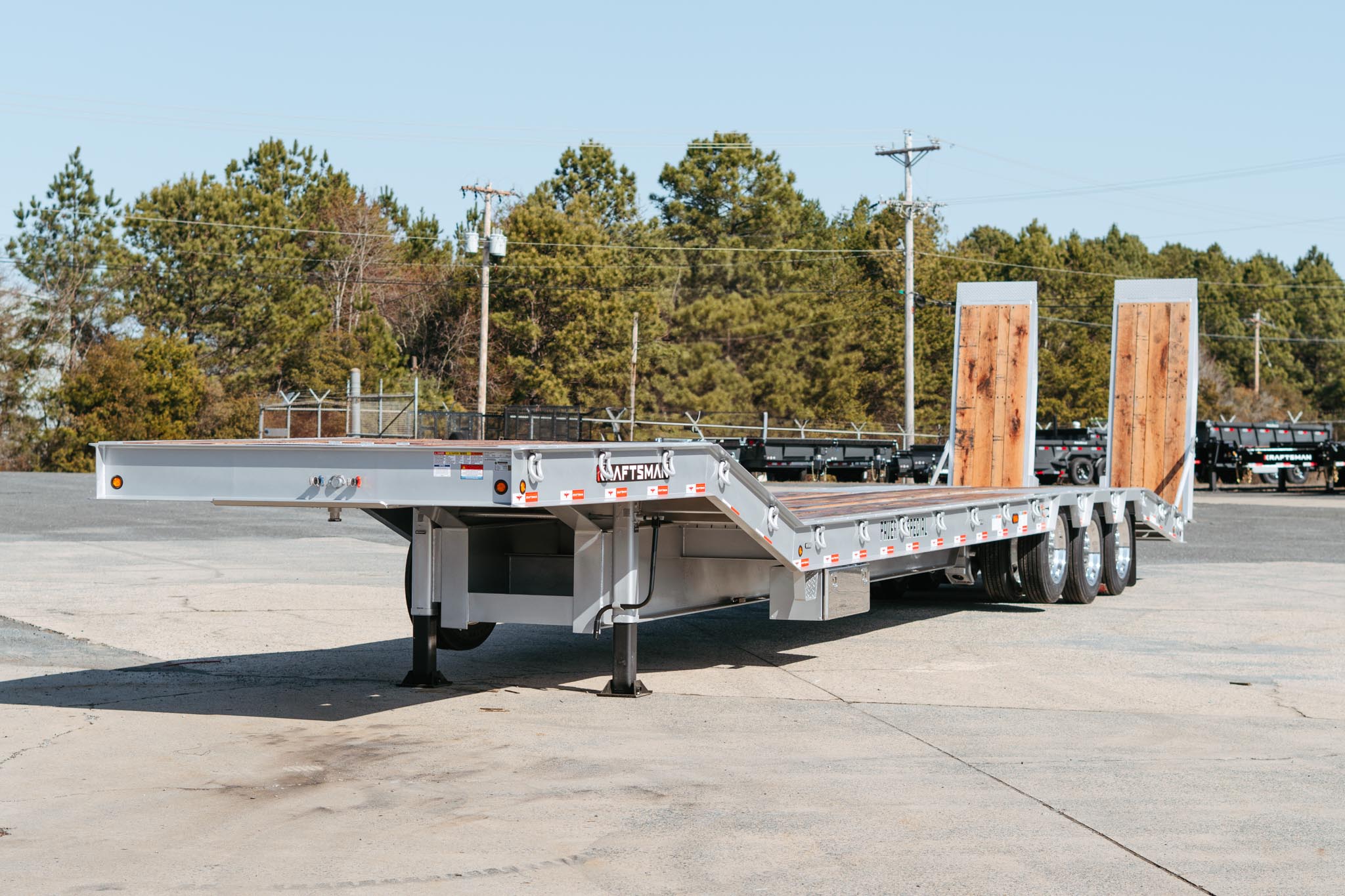

Kraftsman's HK-110 HDPS-LA is constructed with a 24" I-beam frame weighing 55 lb. per foot, 8" I-beam crosspieces on 20" centers, and a 12" channel outer frame.

Kraftsman loads our Paver Specials with features that make it perfect for the paving industry! The HK-110 features a 27' main deck, a 6' wood-lined beavertail, and a 9' neck with a 6' slope. The standard 8' x 34" hydraulic ramps make loading and unloading easy! Dual 2-Speed 50K jacks provide plenty of lift when the trailer is loaded, and the Air Ride suspension and 22.5" 16 ply tires ensure your load will arrive safely to its destination.

The trailer has a 128,000 GVWR, and is available in two sizes: 102" x 48' and 102" x 53'.

Kraftsman is the industry leader in paver trailers! Contact us today to find out about additional options, and let us know how we can help you!
