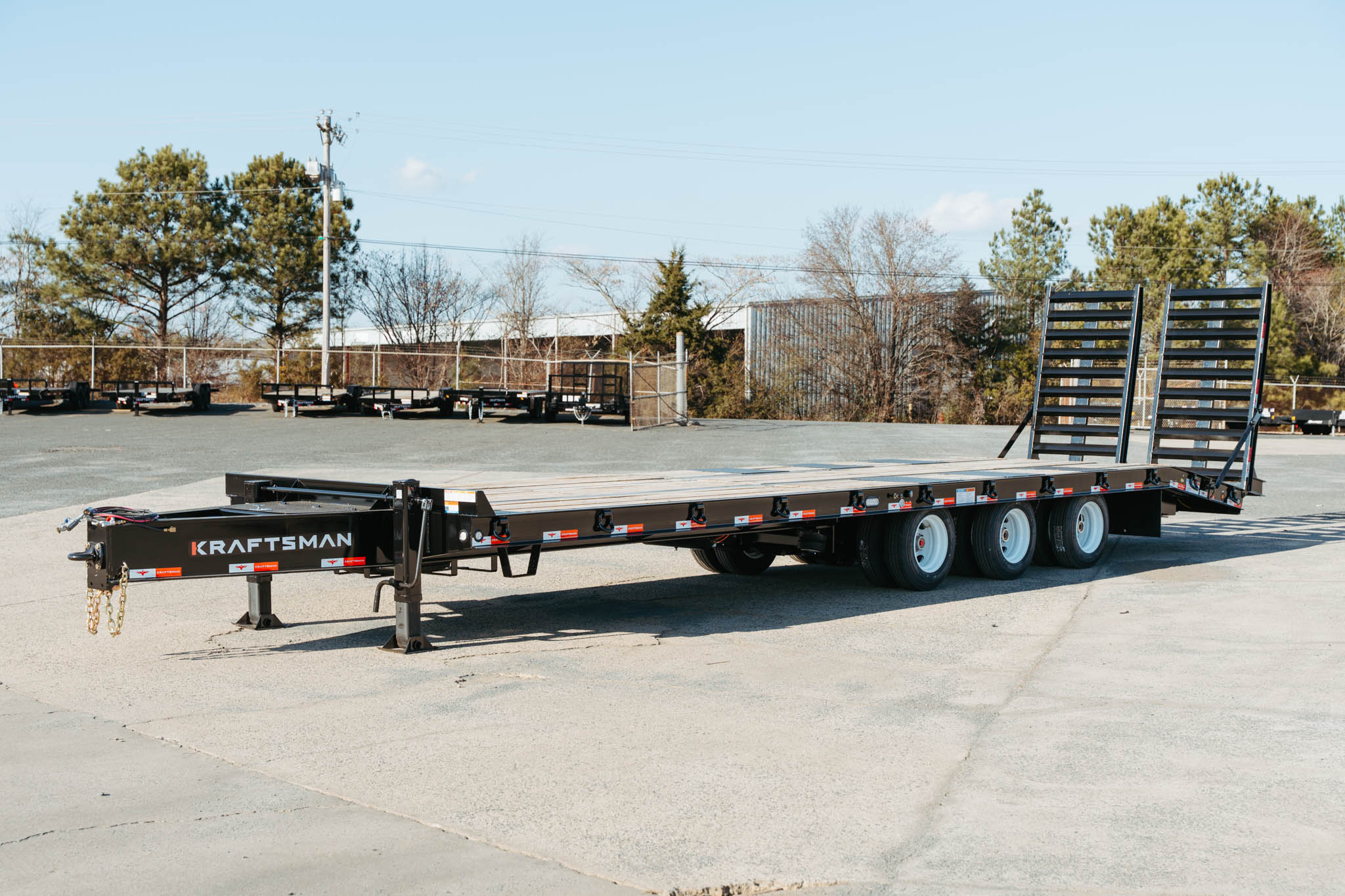

25 ton Pintle Heavy Equipment Trailer with Lift Axle

GVWR: 62,000
Model #: HP-50 LA

Trailer Specifications

The following configurations of this trailer are available to best suit your needs.

Construction

  • 14” @ 26 lb. I-Beam Main Frame & Tongue
  • Pierced 4” Crosspieces on 16” Centers
  • 8” Channel Side Rail with Knee Braces
  • 6” Headboard, 1 x Step per Side, Spare Mount

Electrical

  • Lifetime LED Lights, Rubber Mounted
  • Mid-Span Amber Turn Signals
  • USA Made Sealed Wiring Harness
  • 7-Way Semi-Style Plug

Undercarriage

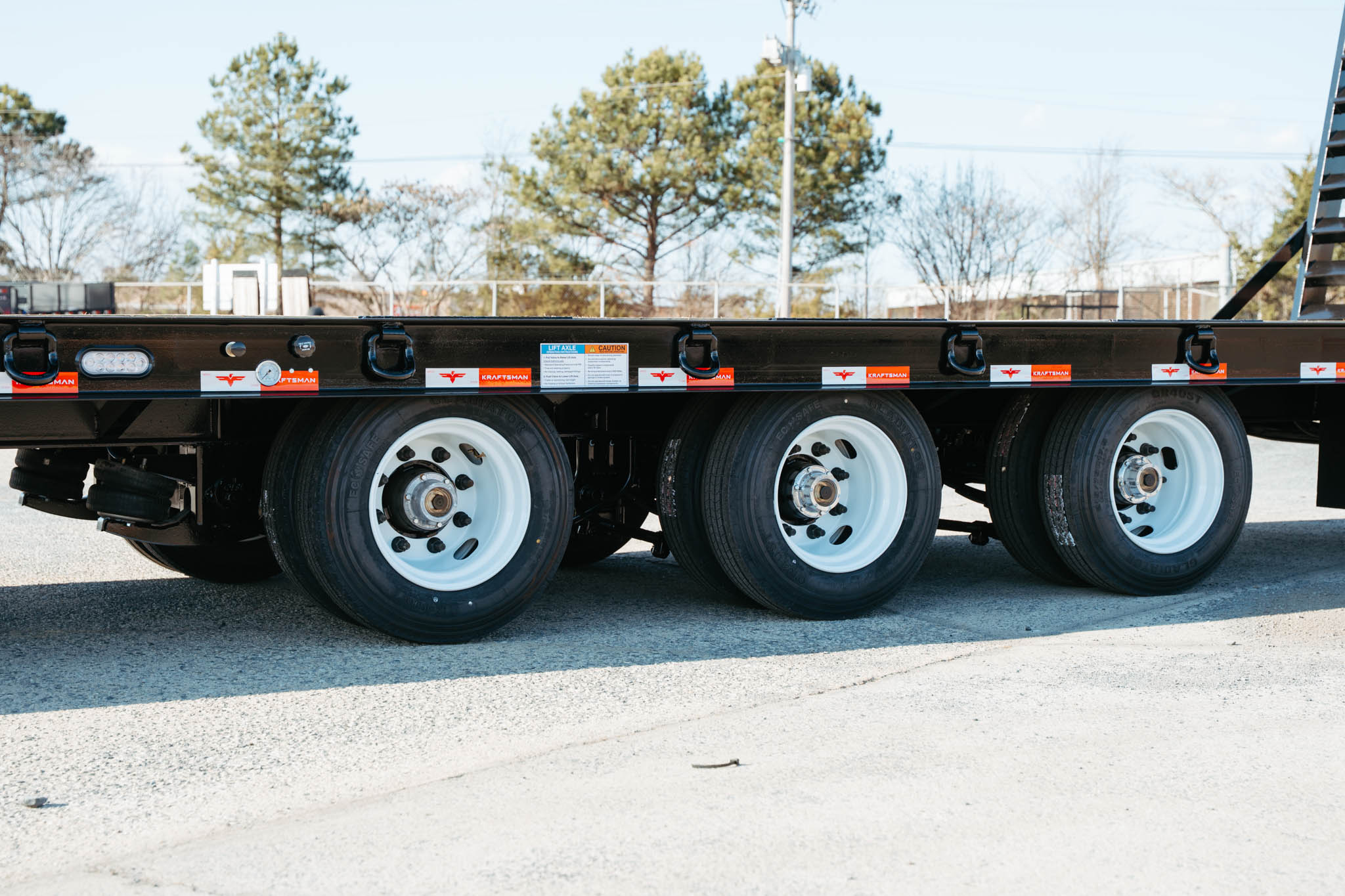

  • 3 x 22,500 lb. Heavy Wall Oil Bath Axles
  • 12 1/4” x 7 1/2” All Wheel Air Brakes, 2S/1M
  • Cush Air Ride w/ Lift on Front Axle
  • Hutch 9700 Suspension on Rear 2 Axles
  • 215/75 R17.5 16 Ply Tires, 17.5” Rims

Dimensions

  • 62,000 GVWR
  • 25’ Flat Deck + 5’ Wood-Lined Beavertail

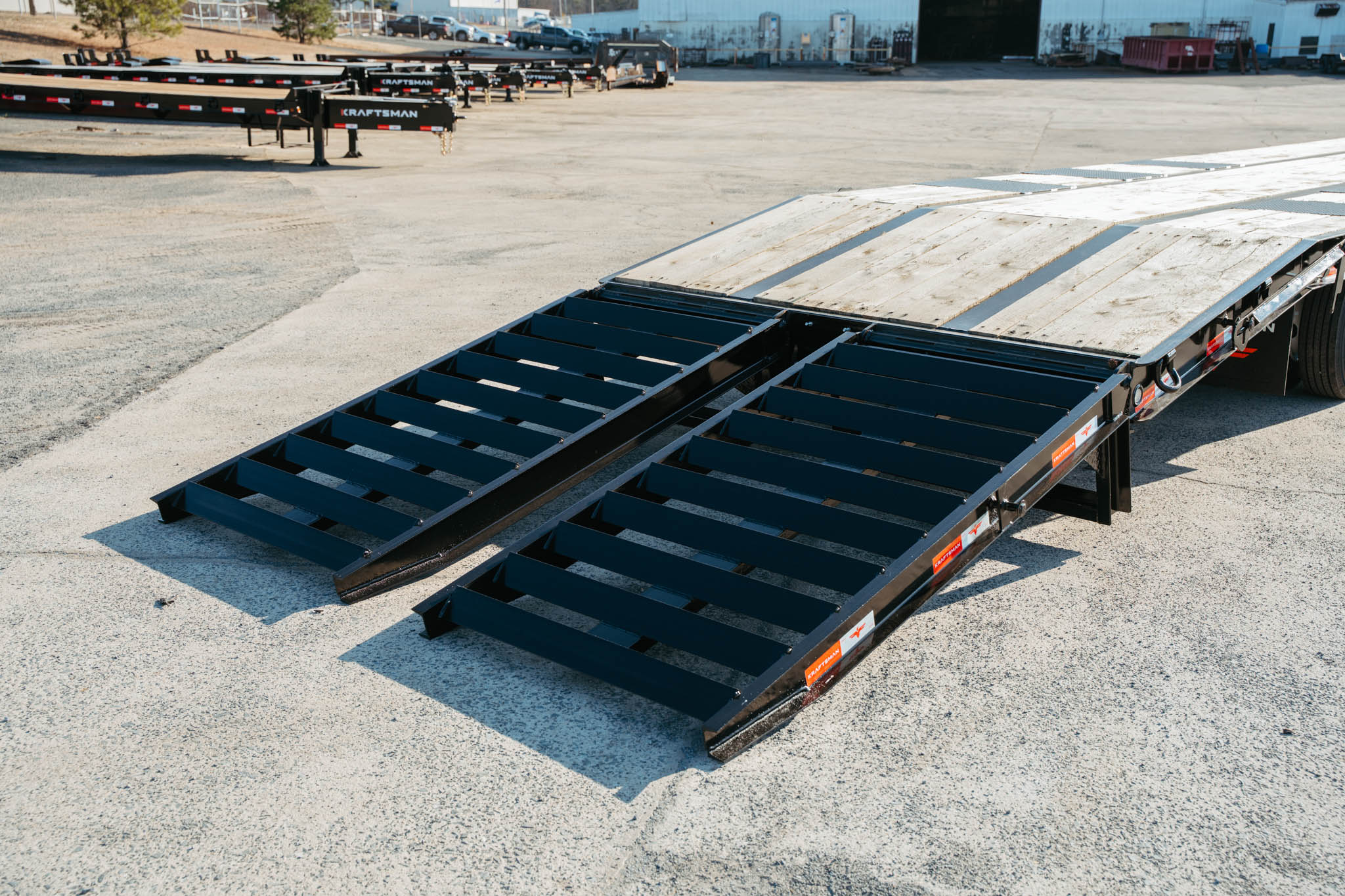

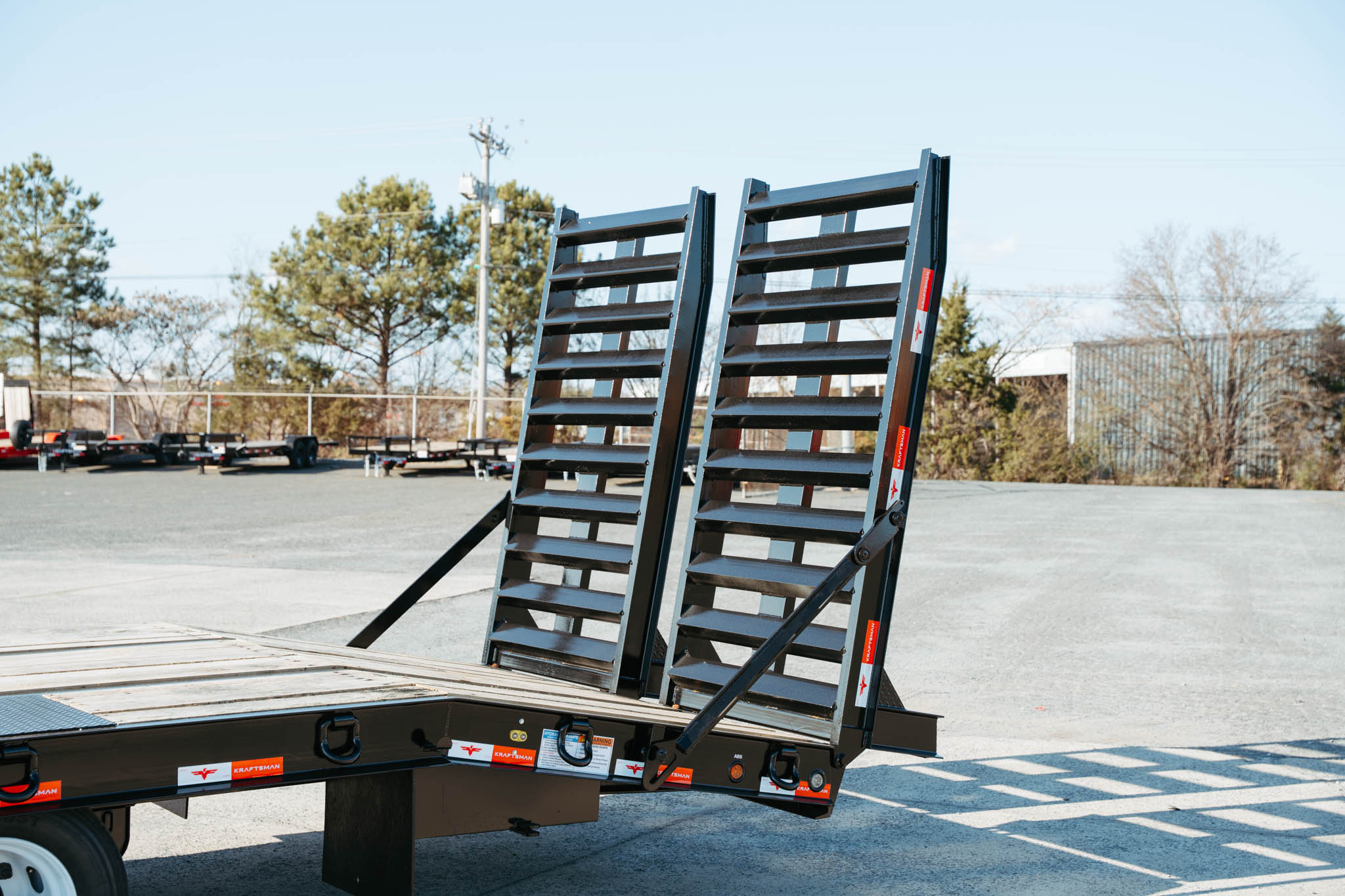

  • 5’ Tall x 20” Wide Spring, Fold-Over Ramps
  • 35” Unloaded Deck Height

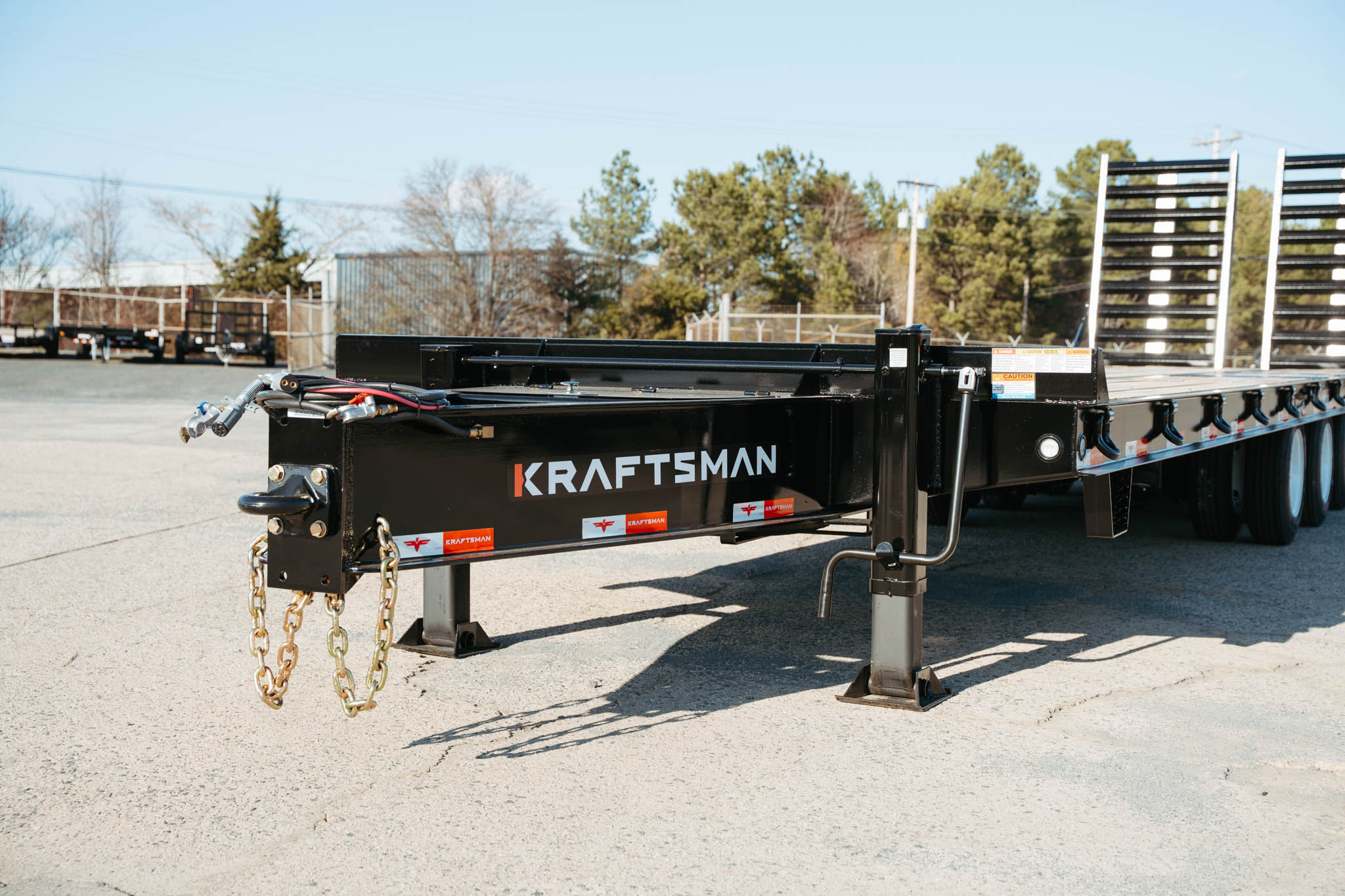

  • 6’ Hydraulic Cold-Formed Tongue

Additional Features

  • 2” Nominal Linseed Oil-Stained Oak Decking
  • Dual 25K 2-Speed Jacks
  • 60,000 lb. Bolt-On, Adjustable Pintle

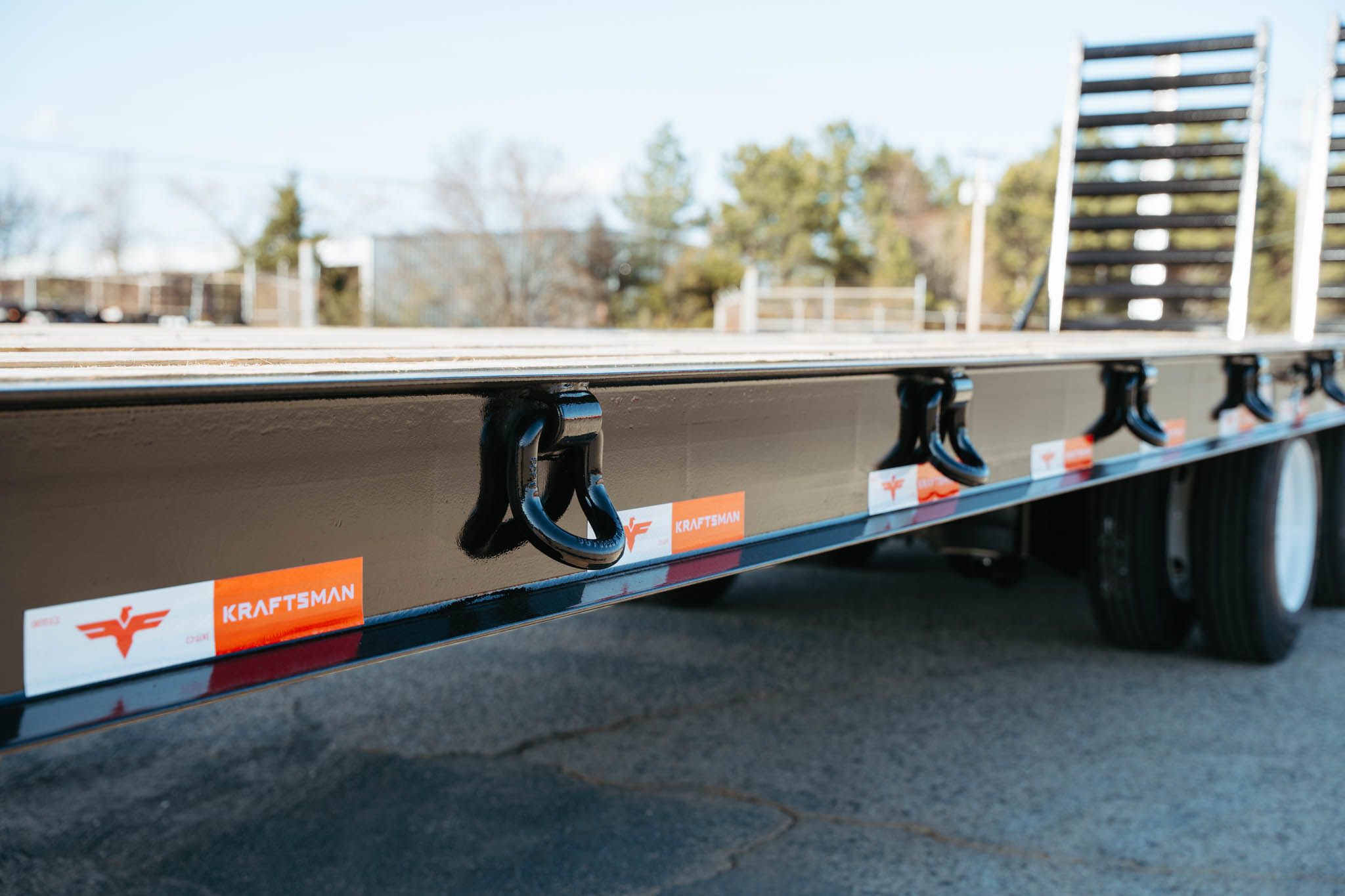

  • Heavy Duty D-Rings on 36” Centers
  • HD Anti-Sail Mudflaps

Finish

  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals

Available Trailer Options

The following options are available on this model; speak to your sales advisor for the most comprehensive selection. A variety of colors are available, and almost any color can be matched. A front lift axle is standard on this model.

Deck Length + Dovetail

25' + 5'
27' + 5'
29' + 5'

Ramps

7' x 34" Self-Cleaning Hydraulic or Air
7' x 44" Self-Cleaning Hydraulic or Air

Functional

Hydraulic Jacks
Chainslots
Self-Cleaning Beavertail
Side Toolboxes
Air Ride Suspension
4S/2M ABS System

Appearance

Pick Your Color
Aluminum Outer Wheels
Strobe Light Packages
Deck Stain

ABOUT THE HP-50 LA HEAVY EQUIPMENT TRAILER

Kraftsman's HP-50 LA 60K 25 Ton Pintle Heavy Equipment Trailer w/ Lift Axle is constructed with a 14" I-beam main frame and tongue, 4" pierced crosspieces throughout the main beam on 16" centers, and a 8" channel side rail with knee braces.

The running gear on the HP-50 LA includes 17.5" 16 ply radial tires, three 22,500 lb heavy wall oil bath axles, and a Hutch 9700 suspension on the rear two axles. It is decked with nominal 2" nominal linseed oil stained oak, and is equipped with 5' x 24" spring, fold-over ramps. The trailer is standard with a 62,000 GVWR rating, and has a 35" unloaded deck height.

This model features a 5' woodlined beavertail, and is available in three sizes: 102" x 30' (25' + 5'), 102" x 32' (27' + 5'), and 102" x 34' (29' + 5')

Additional options are available. Contact us today to let us know how we can help you!
