25 ton Pintle Heavy Equipment Trailer

GVWR: 62,000

Model #: HP-50

Get a Quote

Call Now

Finance Options

Trailer Specifications

The following configurations of this trailer are available to best suit your needs.

Construction

14” @ 26 lb. I-Beam Main Frame & Tongue
Pierced 4” Crosspieces on 16” Centers

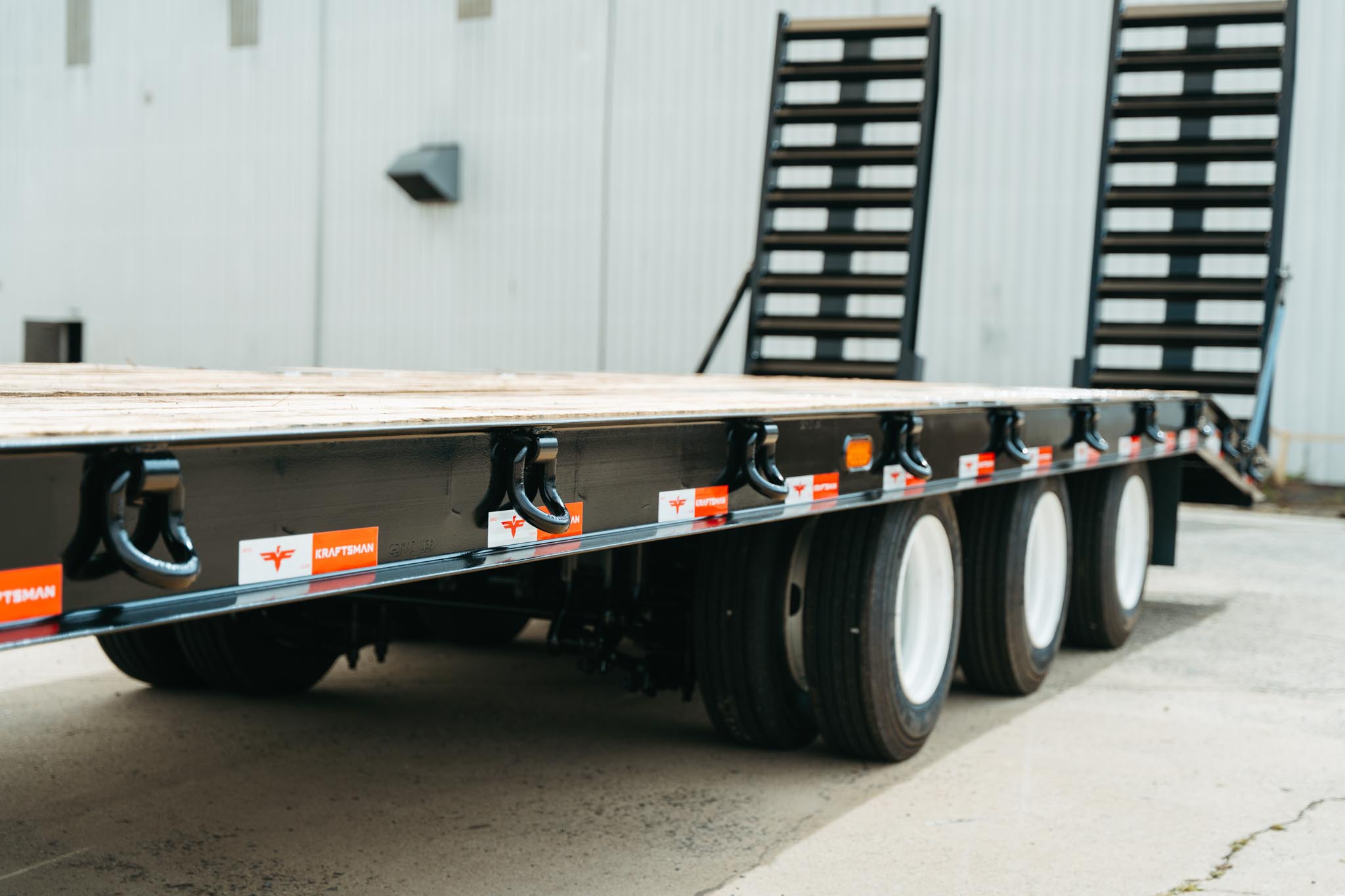

8” Channel Side Rail with Knee Braces
6” Channel Headboard

Electrical

Lifetime LED Lights, Rubber Mounted
Mid-Span Amber Turn Signals
USA Made Sealed Wiring Harness
7-Way Semi-Style Plug

Undercarriage

3 x 22,500 lb. Heavy Wall Oil Bath Axles
12 1/4” x 7 1/2” All Wheel Air Brakes
Hutch 9700 Suspension, 49” Axle Spread
2S/1M ABS, T3030 Air Chambers
12 x 215/75 R17.5 16 Ply Tires, 17.5” Rims

Dimensions

62,000 GVWR
25’ Flat Deck + 5’ Wood-Lined Beavertail

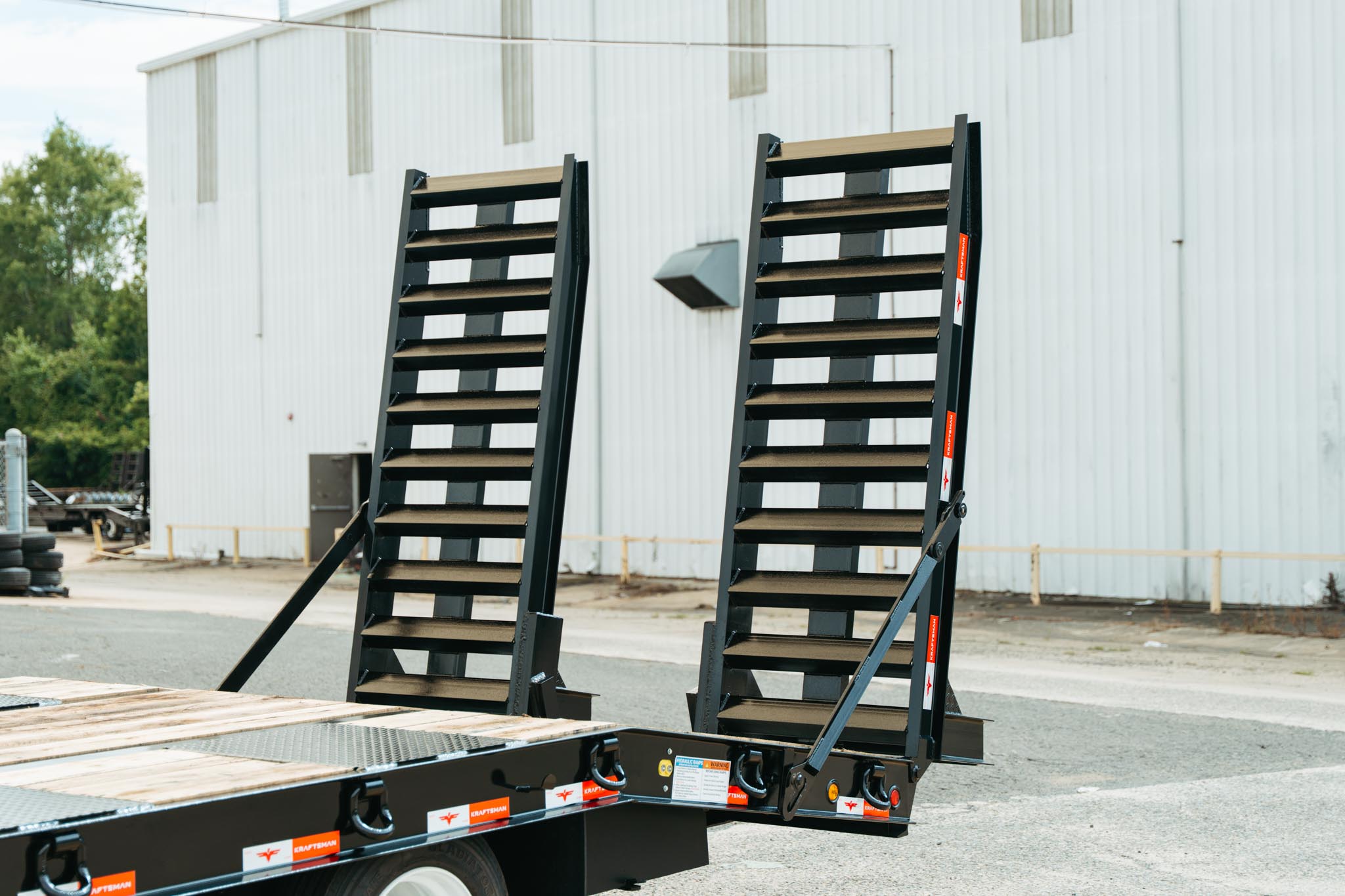

5’ Tall x 20” Wide Spring, Fold-Over Ramps
35” Unloaded Deck Height

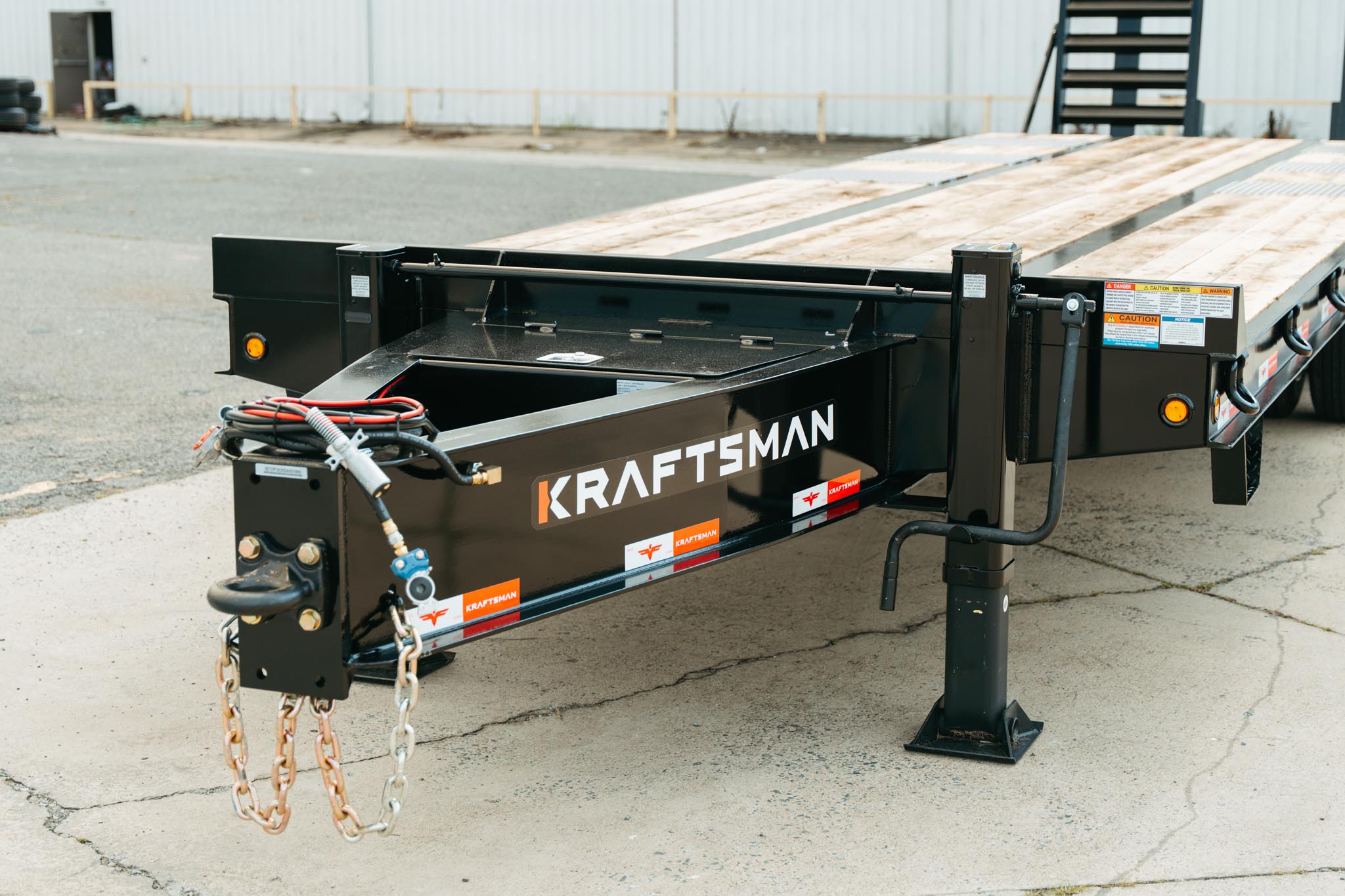

6’ Hydraulic Cold-Formed Tongue

Additional Features

2” Nominal Linseed Oil-Stained Oak Decking
Dual 2-Speed 50K Jacks
60,000 lb. Bolt-On, Adjustable Pintle
Heavy Duty D-Rings on 36” Centers
HD Anti-Sail Mudflaps

Finish

High Pressure Phosphate Wash
Primed Top & Bottom w/ Automotive Primer
Two Top Coats of 2-Part PPG Black Gloss
DOT Reflective Tape, Kraftsman Decals
Safety & Operational Decals

Available Trailer Options

The following options are available on this model; speak to your sales advisor for the most comprehensive selection. A variety of colors are available, and almost any color can be matched.

Deck Length + Dovetail

25' + 5'

27' + 5'

29' + 5'

Ramps

7' x 34" Self-Cleaning Hydraulic or Air

7' x 44" Self-Cleaning Hydraulic or Air

Functional

Hydraulic Jacks

Chainslots

Self-Cleaning Beavertail

Side Toolboxes

Air Ride Suspension

4S/2M ABS System

Front Lift Axle

Appearance

Pick Your Color

Aluminum Outer Wheels

Strobe Light Packages

Deck Stain

ABOUT THE HP-50 HEAVY EQUIPMENT TRAILER

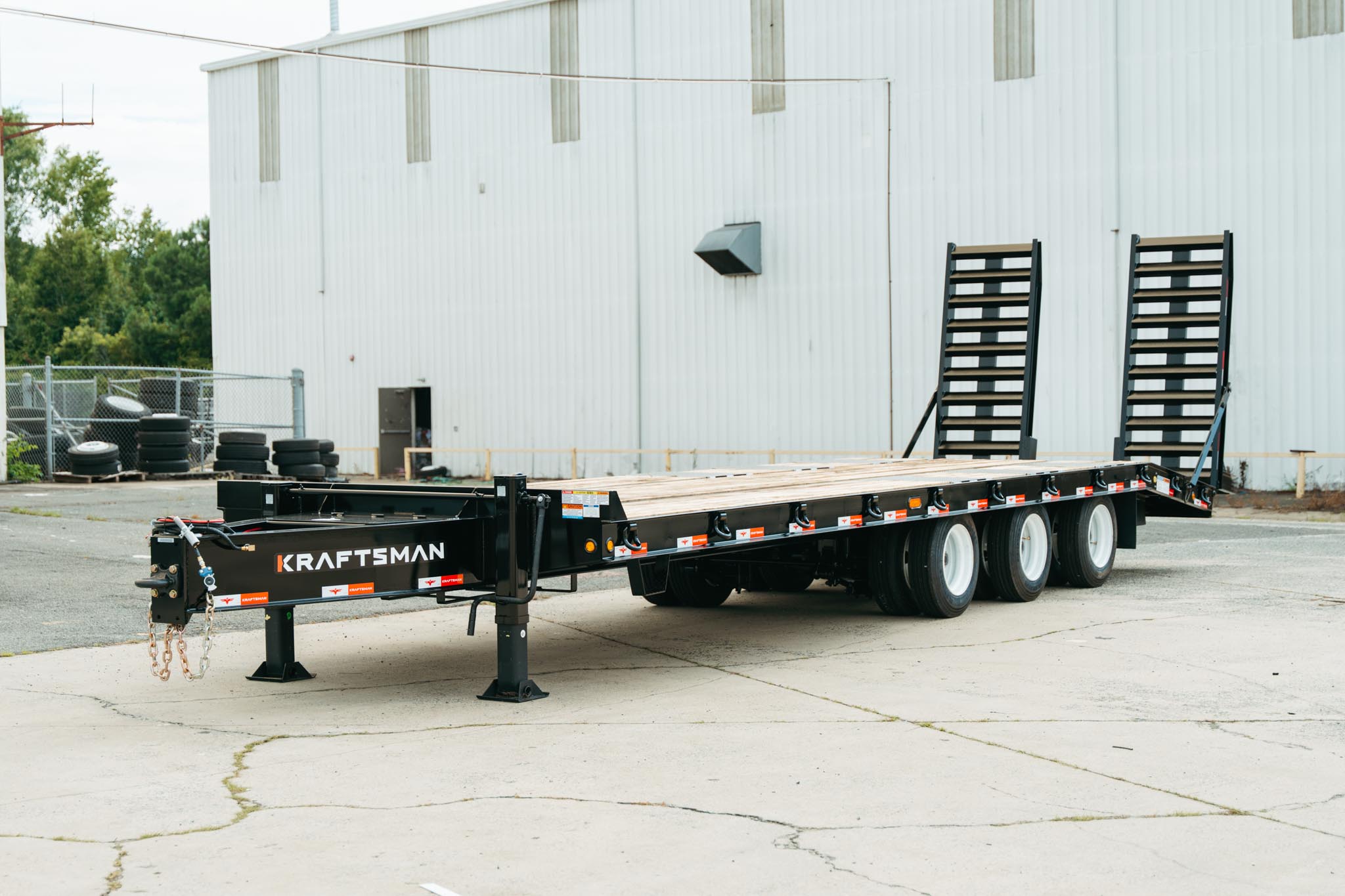

Kraftsman's 60K 25 Ton Tri-Axle Pintle Heavy Equipment Trailer is constructed with a 14" I-beam main frame and tongue, 4" pierced crosspieces throughout the main beam on 16" centers, and a 8" channel side rail with knee braces.

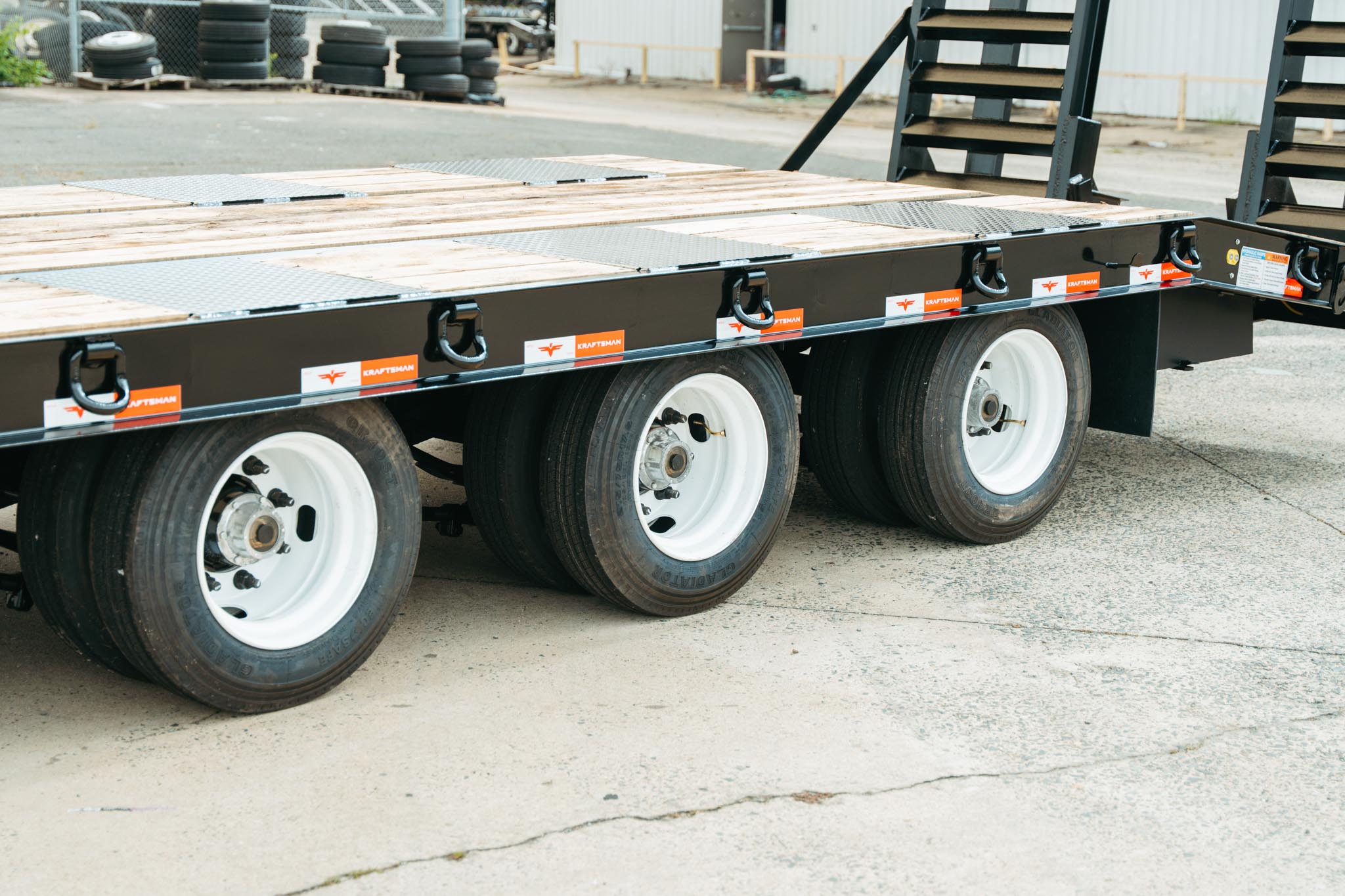

The running gear on the HP-50 includes 17.5" 16 ply radial tires, three 22,500 lb heavy wall oil bath axles, and a Hutch 9700 suspension with a 49" axle spread. It is decked with nominal 2” nominal linseed oil stained oak, and is equipped with 5' x 24" spring, fold-over ramps. The trailer is standard with a 62,000 GVWR rating, and has a 35" unloaded deck height.

The HP-50 features a 5' wood-lined beavertail, and is available in three sizes: 102" x 30' (25' + 5'), 102" x 32' (27' + 5'), and 102" x 34' (29' + 5')

Additional options are available. Contact us today to let us know how we can help you!
