Model HP-40

20 ton Pintle Heavy Equipment Trailer

GVWR: 49,000
Model #: HP-40

Trailer Specifications

The following configurations of this trailer are available to best suit your needs.

Construction

  • 14” @ 22 lb. I-Beam Main Frame & Tongue
  • Pierced 4” Crosspieces on 16” Centers
  • 8” Channel Side Rail with Knee Braces
  • 6” Headboard, 1 x Step per Side, Spare Mount

Electrical

  • Lifetime LED Lights, Rubber Mounted
  • Mid-Span Amber Turn Signals
  • USA Made Sealed Wiring Harness
  • 7-Way Semi-Style Plug

Undercarriage

  • 2 x 22,500 lb. Heavy Wall Oil Bath Axles
  • 12 1/4” x 7 1/2” All Wheel Air Brakes
  • Hutch 9700 Suspension, 49” Axle Spread
  • 2S/1M ABS, T3030 Air Chambers
  • 215/75 R17.5 16 Ply Tires, 17.5” Rims

Dimensions

  • 49,000 GVWR
  • 20’ Flat Deck + 5’ Wood-Lined Beavertail

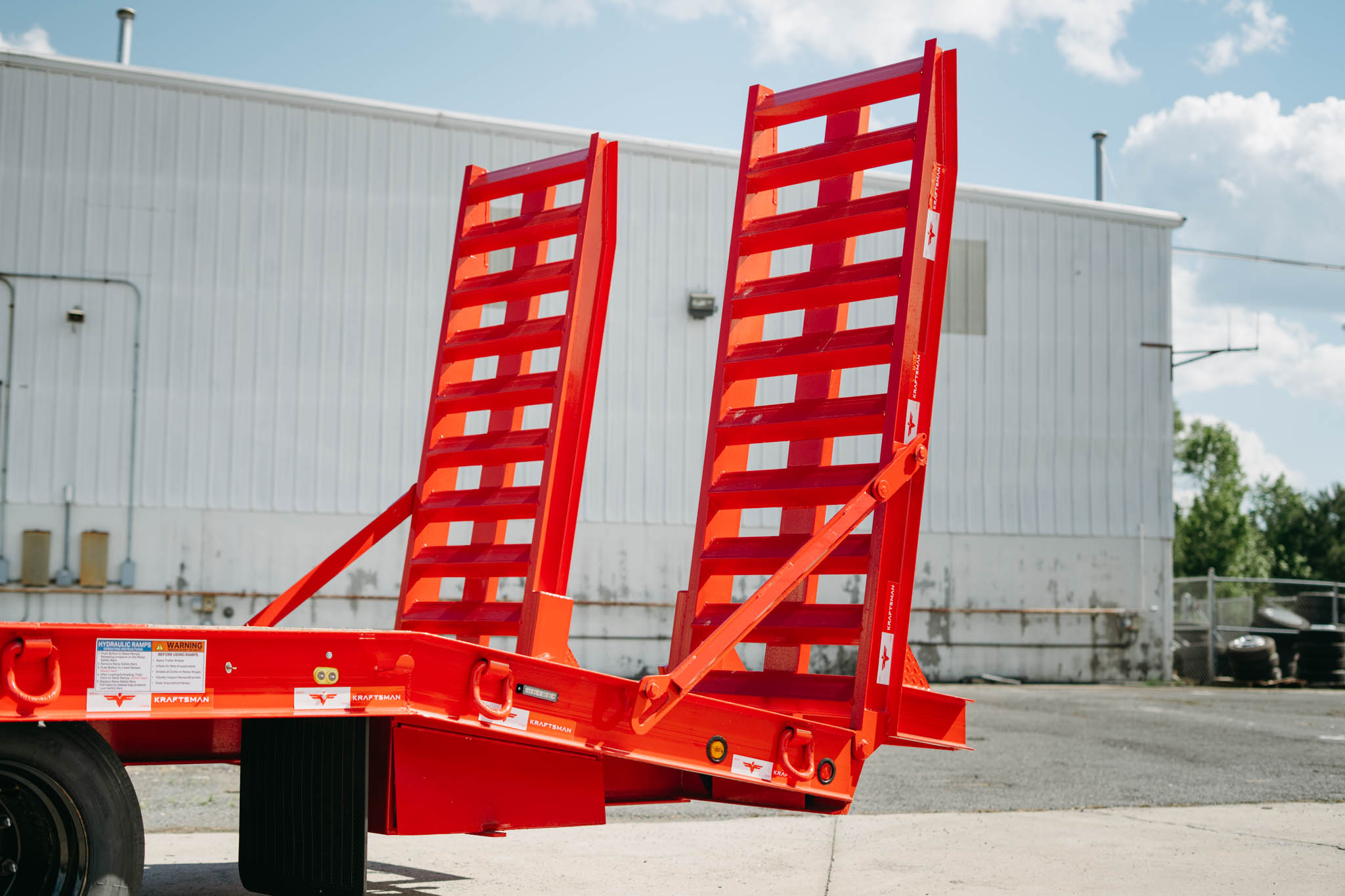

  • 5’ Tall x 20” Wide Spring, Fold-Over Ramps
  • 35” Unloaded Deck Height
  • 6’ Hydraulic Cold-Formed Tongue

Additional Features

  • 2” Nominal Linseed Oil-Stained Oak Decking
  • Single 25K 2-Speed Jack
  • 60,000 lb. Bolt-On, Adjustable Pintle

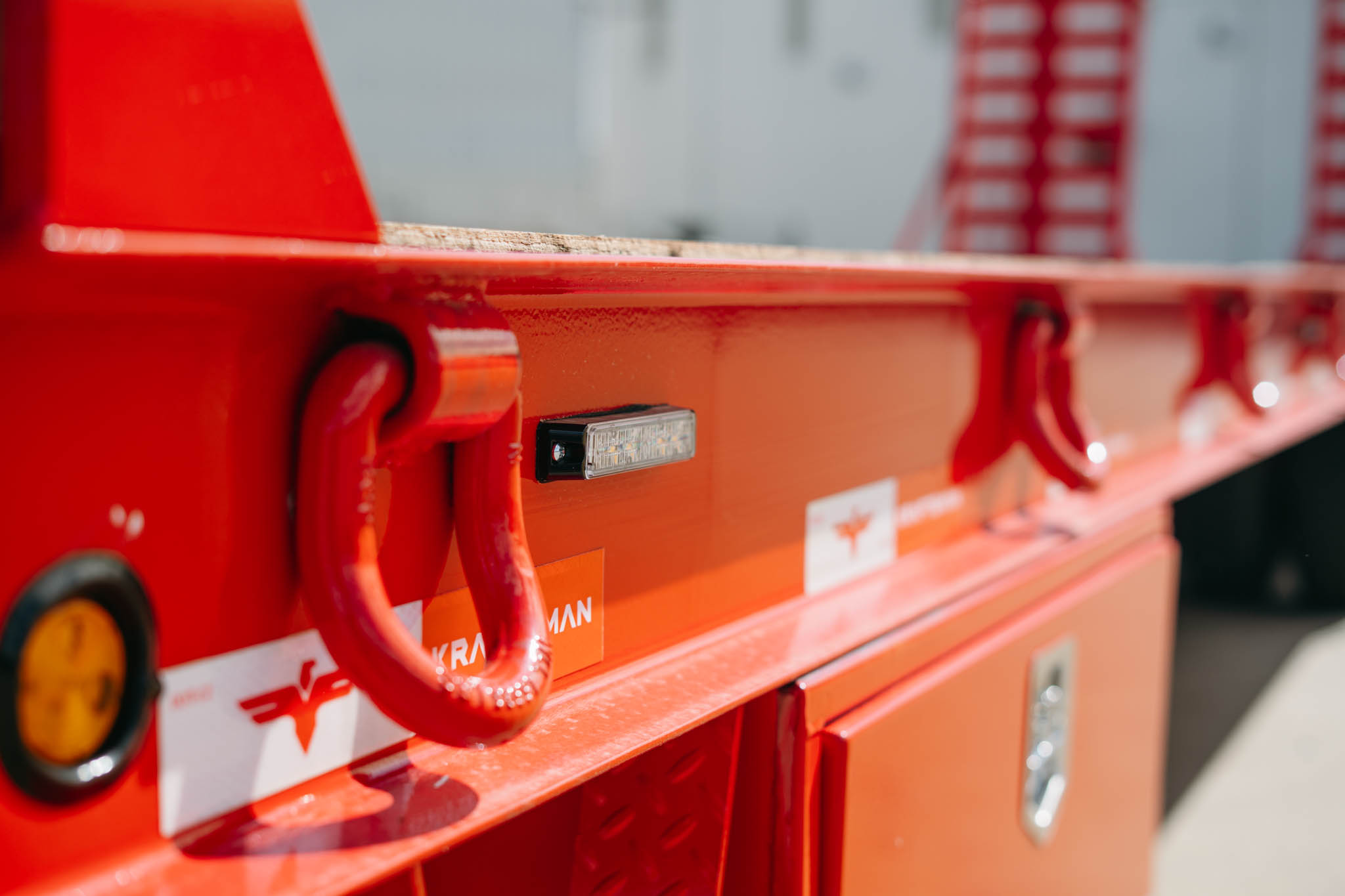

  • Heavy Duty D-Rings on 36” Centers
  • HD Anti-Sail Mudflaps

Finish

  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals

Available Trailer Options

The following options are available on this model; speak to your sales advisor for the most comprehensive selection. A variety of colors are available, and almost any color can be matched.

Deck Length + Dovetail

20' + 5'
25' + 5'
29' + 5'

Ramps

7' x 34" Self-Cleaning Hydraulic or Air
7' x 44" Self-Cleaning Hydraulic or Air

Functional

Hydraulic Jacks
Chainslots
Self-Cleaning Beavertail

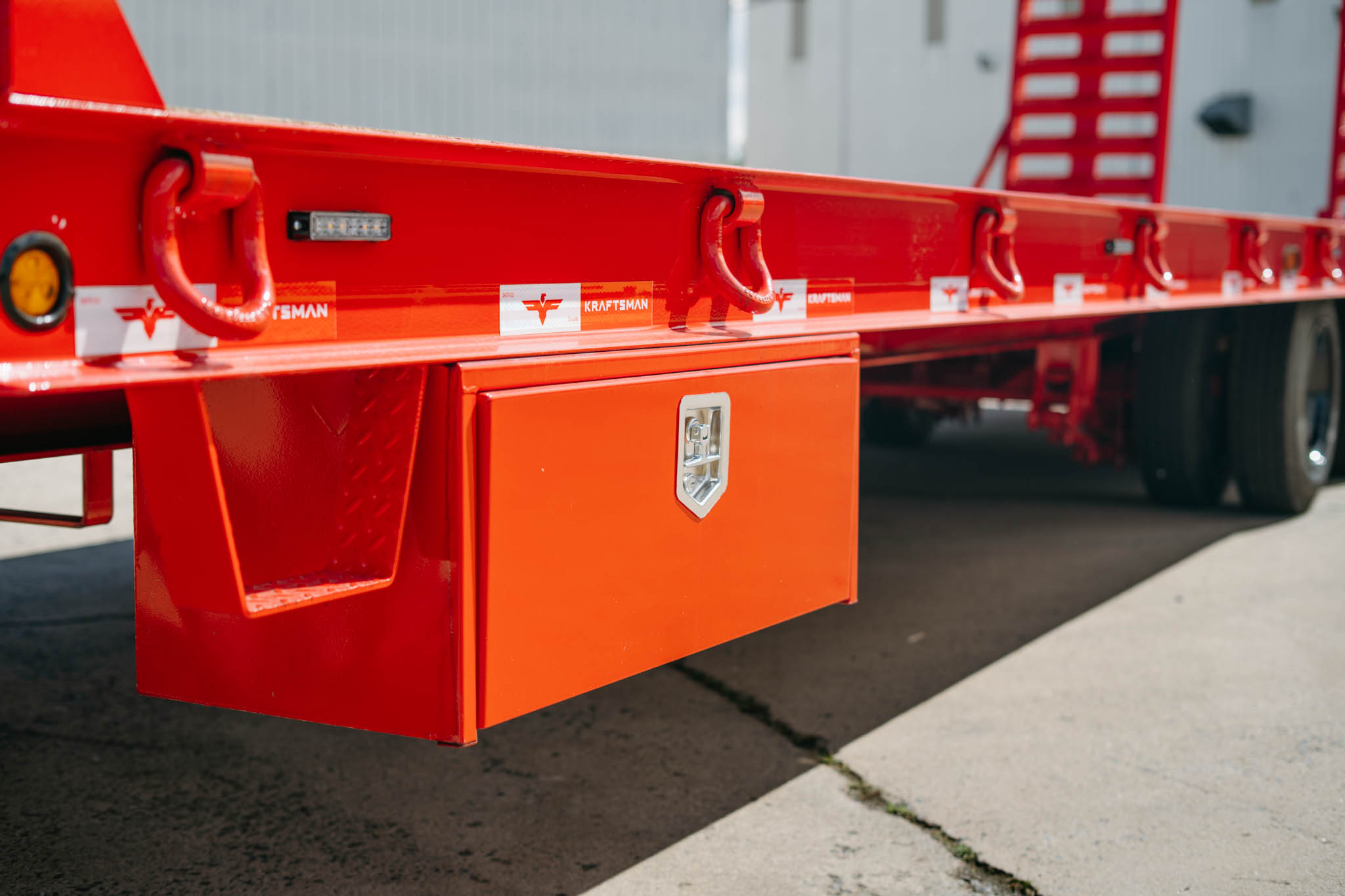

Side Toolboxes
Air Ride Suspension
4S/2M ABS System
Front Lift Axle

Appearance

Pick Your Color
Aluminum Outer Wheels
Strobe Light Packages
Deck Stain

ABOUT THE HP-40 HEAVY EQUIPMENT TRAILER

Kraftsman's HP-40 50K 20 Ton Pintle Heavy Equipment Trailer is constructed with a 14" I-beam main frame and tongue, 4" pierced crosspieces throughout the main beam on 16" centers, and an 8" channel side rail with knee braces.

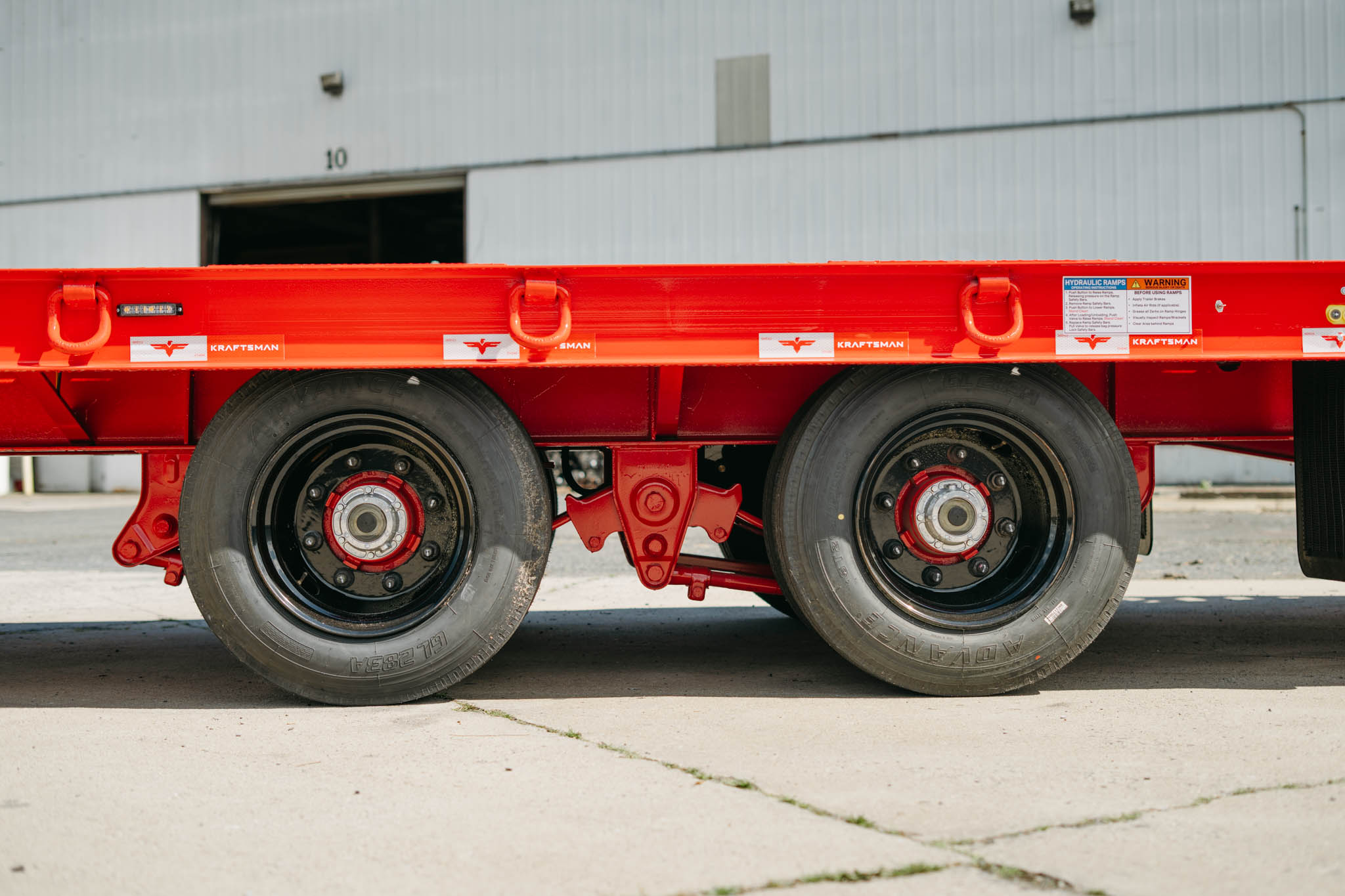

The running gear on the HP-40 includes 17.5" 16 ply radial tires, two 22,500 lb heavy wall oil bath axles, and Hutch 9700 suspension with a 49" axle spread. It is decked with 2" nominal linseed oil stained oak, and is equipped with 5' x 24" spring, fold-over ramps. The trailer comes standard with a 49,000 GVWR rating.

The HP-40 features a 5' woodlined beavertail, and is available in three sizes: 102" x 25' (20' + 5'), 102" x 30' (25' + 5'), and 102" x 34' (29' + 5')

Additional options are available. Contact us today to let us know how we can help you!
