Kraftsman FS-18

FS-18 Deckover Flatbed

GVWR: 18,000
Model #: Model FS-18

Trailer Specifications

The following configurations of this trailer are available to best suit your needs.

Construction

  • 12” @ 14 lb. I-Beam Frame
  • 3” Crosspieces on 16” Centers, Stacked

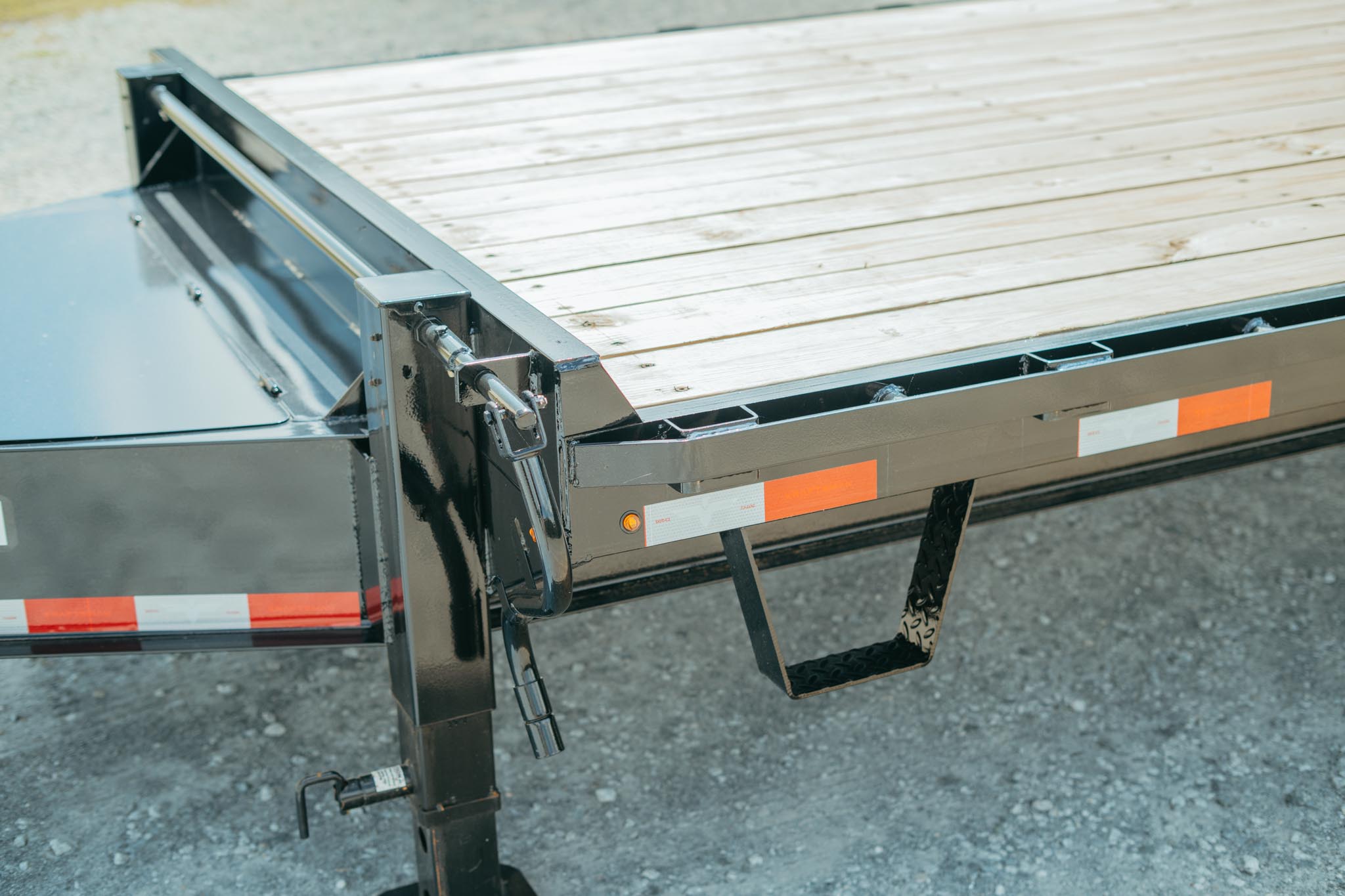

  • 6” Channel Side Rail , 1x Step Per Side
  • 4” Channel Ramp Runners

Electrical

  • Lifetime LED Lighting, Rubber Mount
  • Marker Lights on Front & Rear of Trailer
  • USA Made Sealed Wiring Harness
  • 7-Way RV-Style Plug

Undercarriage

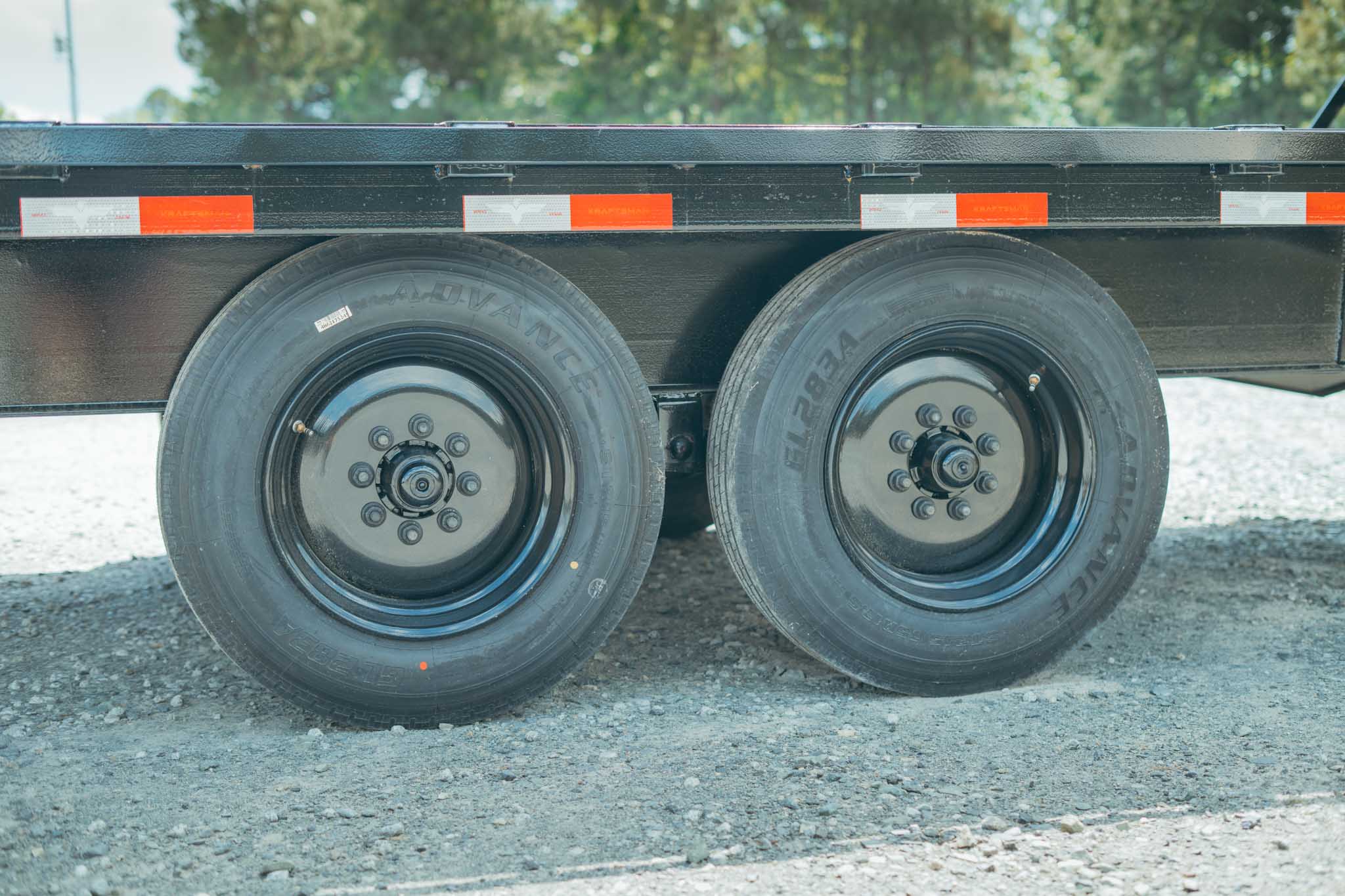

  • 2 x 8,000 lb. Oil Bath Axles
  • 12.25” x 2.5” Brakes on Both Axles
  • Heavy Duty Slipper Spring Suspension
  • 8 on 6.5” Bolt Pattern
  • 4 x 215/75 R17.5 16 Ply Tires

Dimensions

  • 18,000 GVWR, 13,500 lb. Capacity
  • 20’ Flat Deck, 5’ Woodlined Dovetail

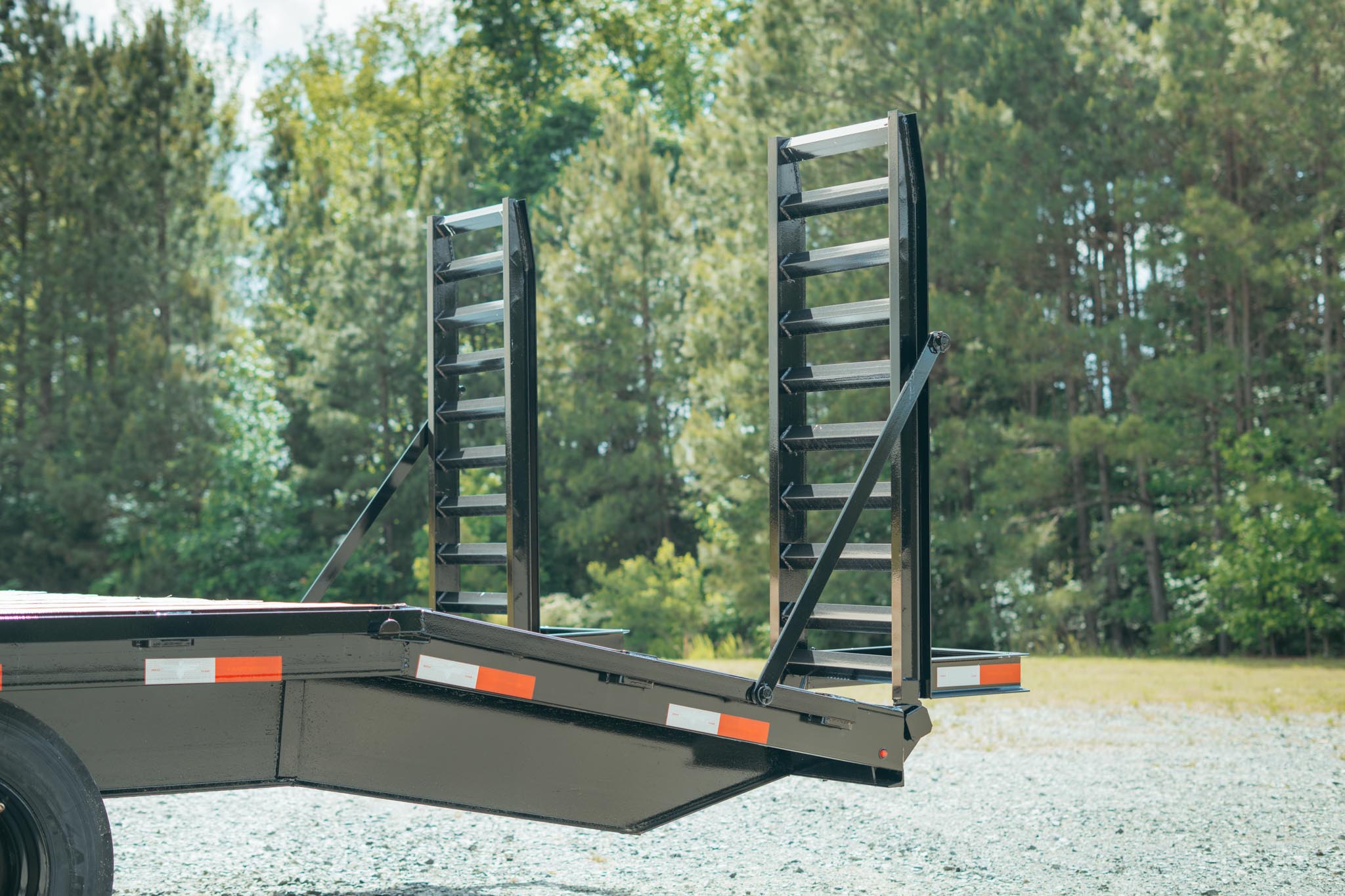

  • 60” Stand-Up Ramps, Adjustable
  • 36” Approx. Deck Height

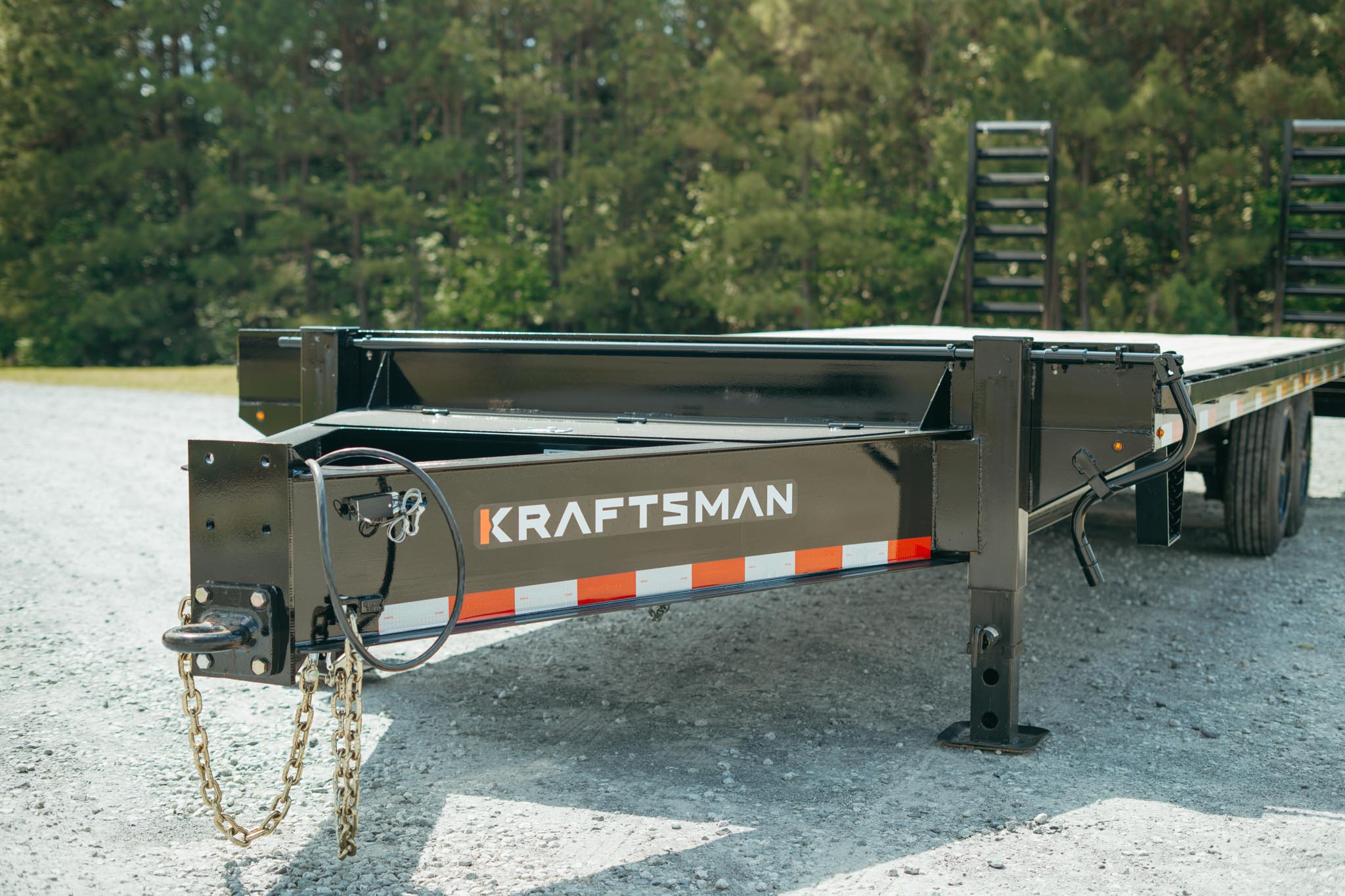

  • 6’ Tongue, Cold Formed in Hydraulic Press

Additional Features

  • Nominal 2” Pressure Treated #1 Pine
  • 12K Drop Leg, Spring Loaded
  • Adjustable Pintle Ring, Safety Chains
  • Stake Pockets & Rub Rails Full Length
  • Lockable Toolbox in Tongue

Finish

  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals

Available Trailer Options

The following options are available on this model; speak to your sales advisor for the most comprehensive selection. A variety of colors are available, and almost any color can be matched.

Deck Length

20' + 5'
22' + 5'
25' + 5'

Dovetail & Ramps

MAX Ramps
No Dovetail / No Ramps
96" Steel Slide-In Ramps / No Dovetail

Functional

Hydraulic Jacks
Extra Toolboxes
Dual 12k Spring Load Jacks
Slider Track & Ratchets w/Strap
Winch
Oak Decking
Blackwood Full or Outer Deck

Appearance

Linseed Oil Stained Decking
Aluminum Outer Wheels

ABOUT THE FS-18 DECKOVER FLATBED TRAILER

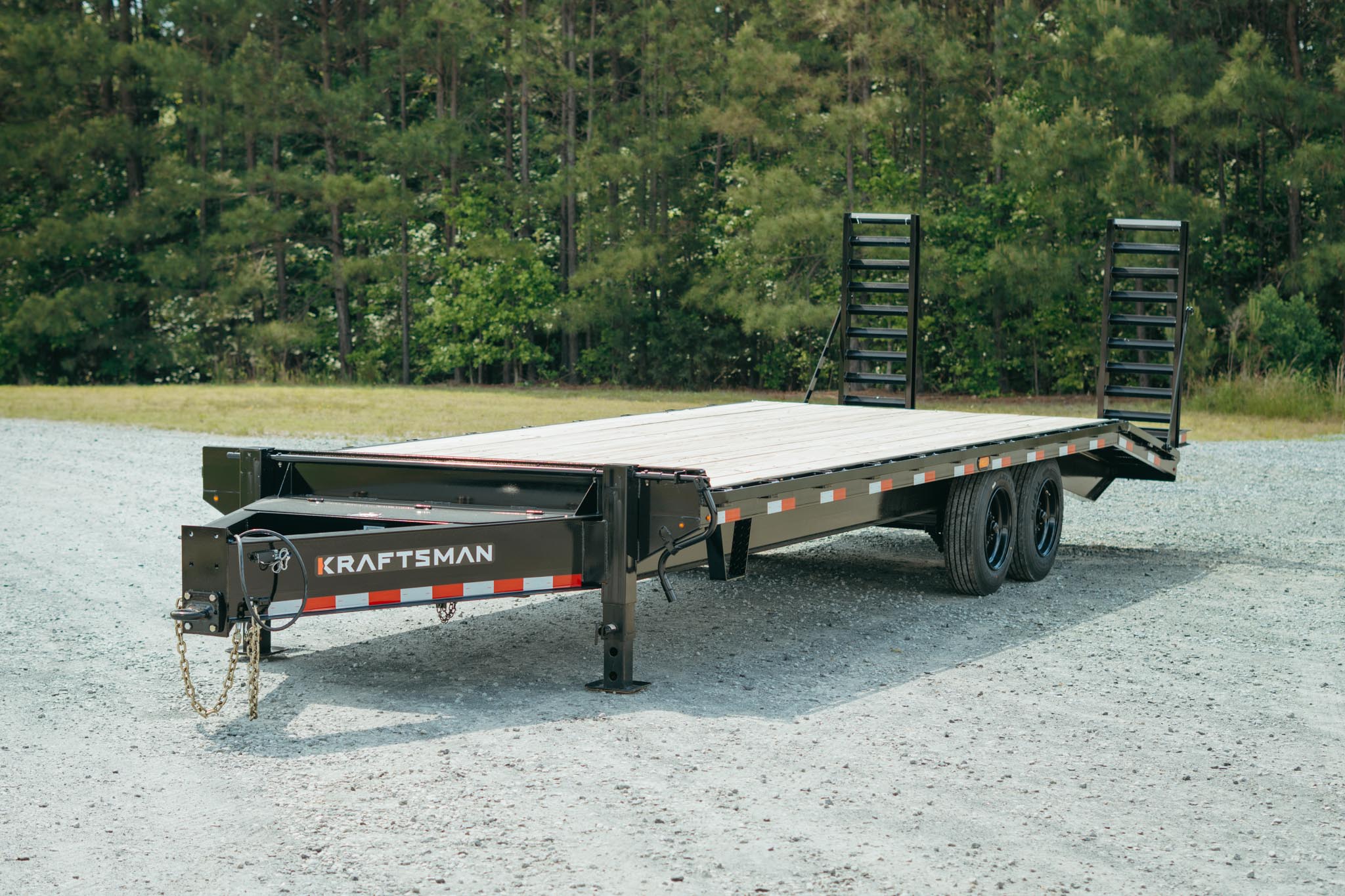

The Kraftsman FS-18 - 18K Single Wheel Deckover Flatbed Trailer is constructed with a 12", 14lb. I-beam main frame and tongue and 3" crosspieces on 16" centers.

Standard features include 17.5" tires, 2" pressure treated pine deck floor, and 2 x 8,000 lb. oil bath axles with 12.25" x 2.5" brakes. The adjustable, stand-up ramps measure 60", and there is a lockable trailer tongue toolbox. These models come with an 36" approximate deck height.

This 18,000 GVWR deckover flatbed is equipped with a 5 ft. dovetail, and is available in 102" x 25' (20' + 5'), 102" x 27' (22' + 5'), and 102" x 30' (25' + 5') models.

Additional options are available. Contact us today to let us know how we can help you!
