Model FL-25

FL-25 Deckover Flatbed

GVWR: 25,990
Model #: FL-25

Trailer Specifications

The following configurations of this trailer are available to best suit your needs.

Construction

  • 12” @ 19 lb. Per Foot I-Beam Frame & Tongue
  • 3” Crosspieces on 16” Centers, Pierced
  • 6” Channel Side Rail with Knee Braces

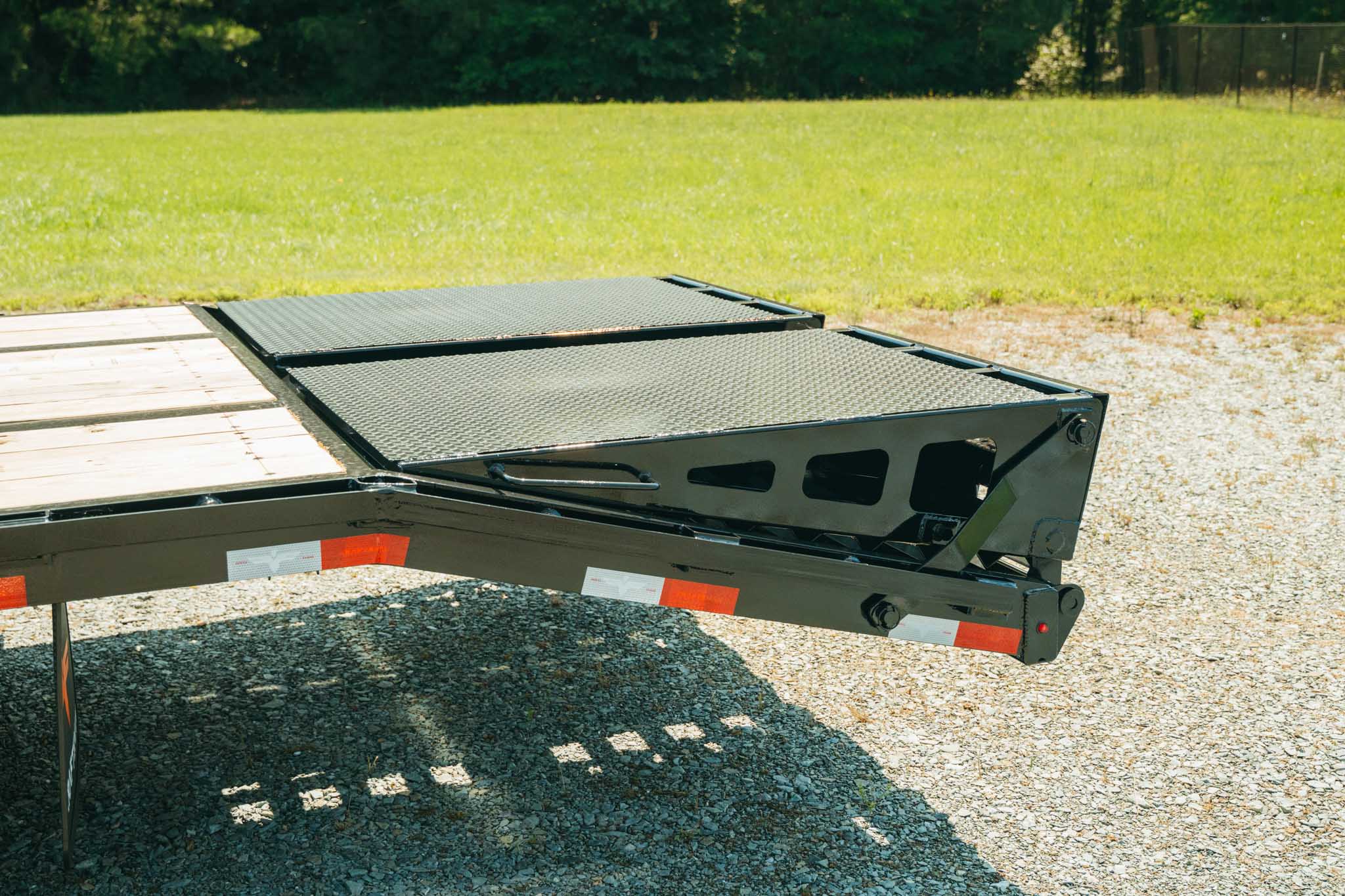

  • Spring Assisted Ramps

Electrical

  • Lifetime LED Lights, Rubber Mounted
  • Marker Lights on Front & Rear Corner
  • USA Made Sealed Wiring Harness
  • 7-Way RV-Style Plug

Undercarriage

  • 2 x 12,000 lb. Oil Bath Axles
  • 12 1/4” x 5” Brakes on All Wheels
  • Slipper Spring Suspension, 42.5” Spread
  • 8 on 6.5” Bolt Pattern

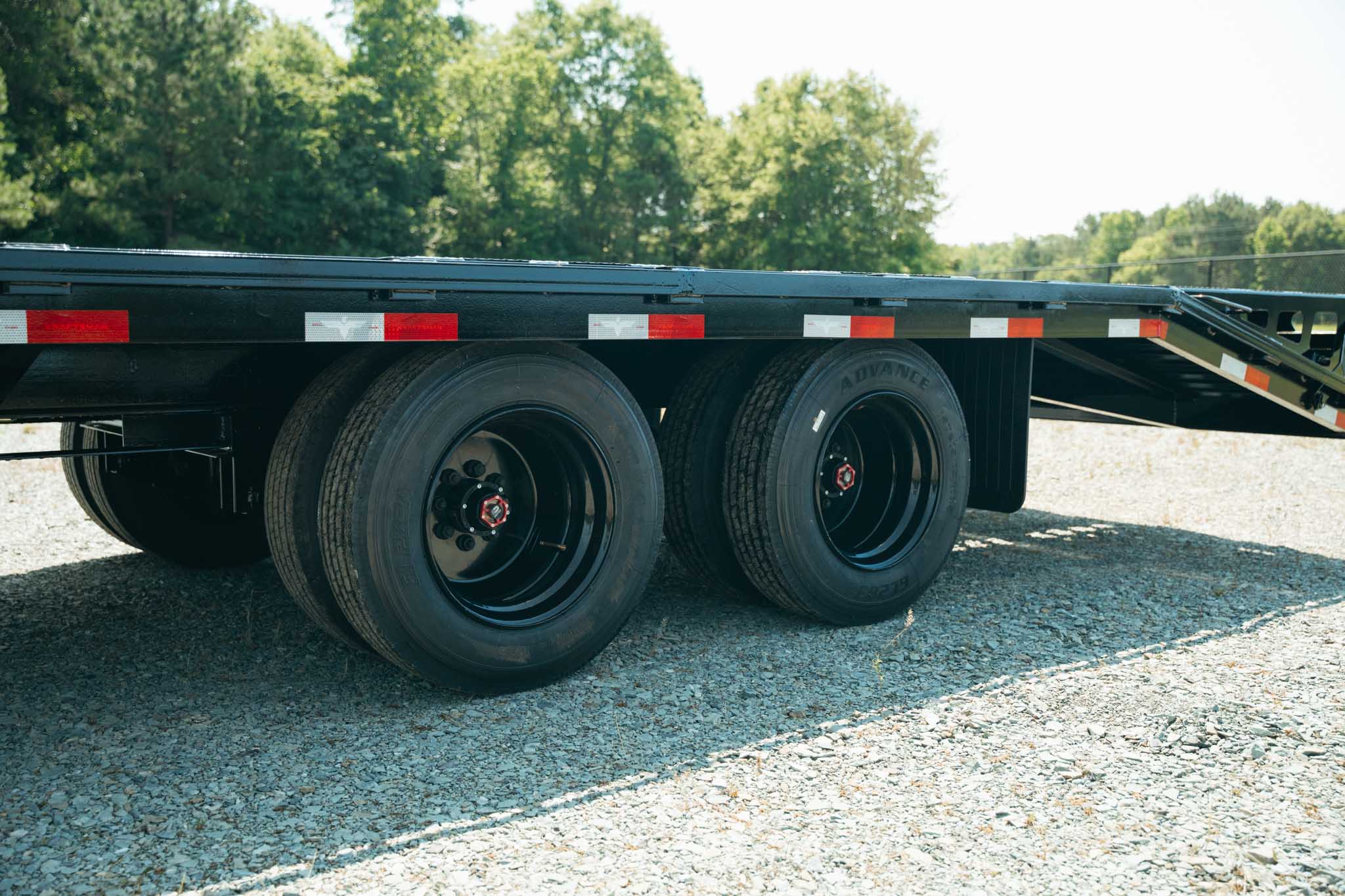

  • 8 x 215/75 R17.5 16 Ply Tires

Dimensions

  • 25,990 GVWR, 19,000 lb. Max Capacity
  • 20’ Flat Deck, 5’ Self-Cleaning Dovetail
  • 60” Stand-Up Ramps, Adjustable
  • 36” Approx. Deck Height

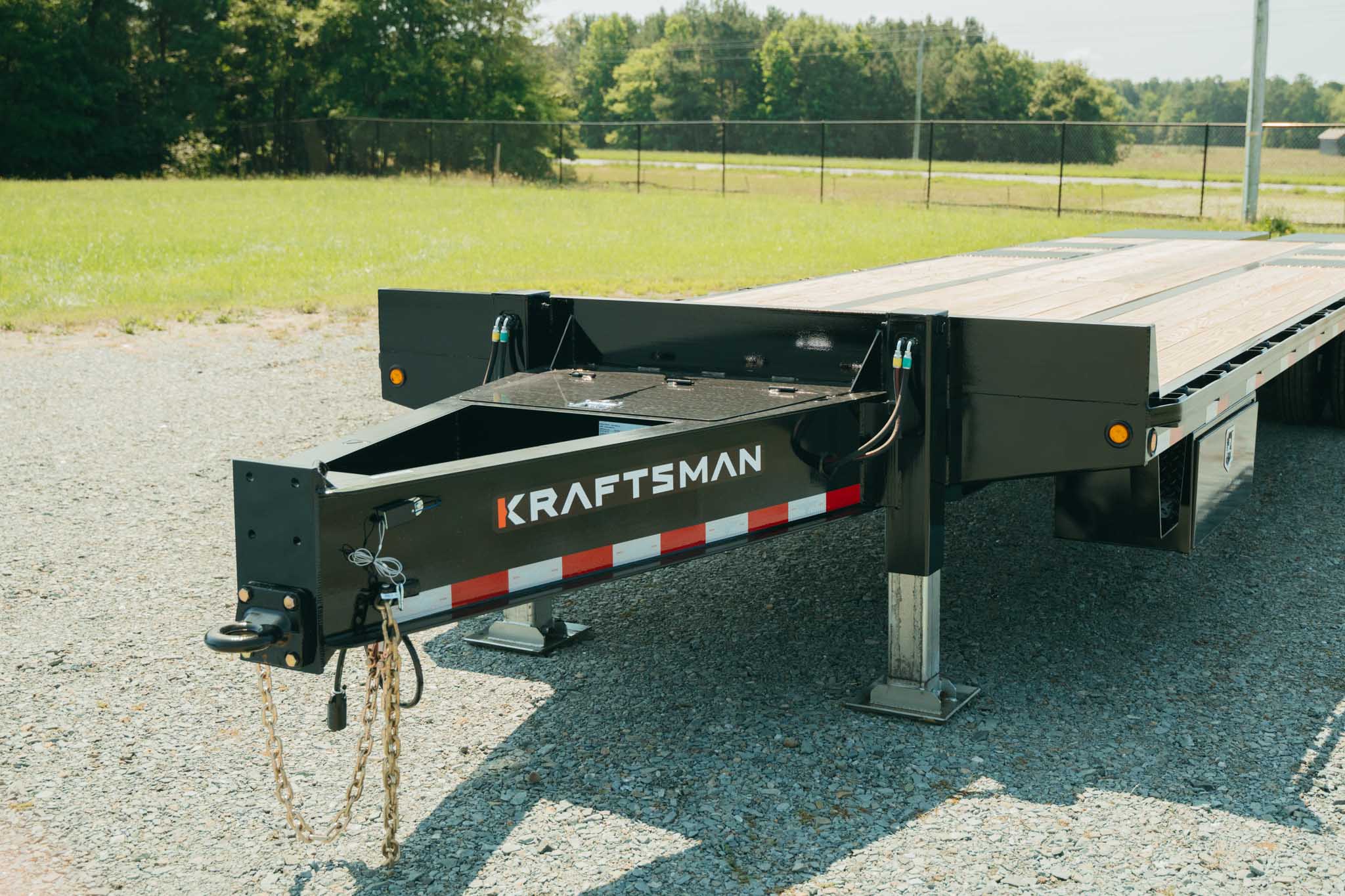

  • 6’ Tongue, Cold Formed in Hydraulic Press

Additional Features

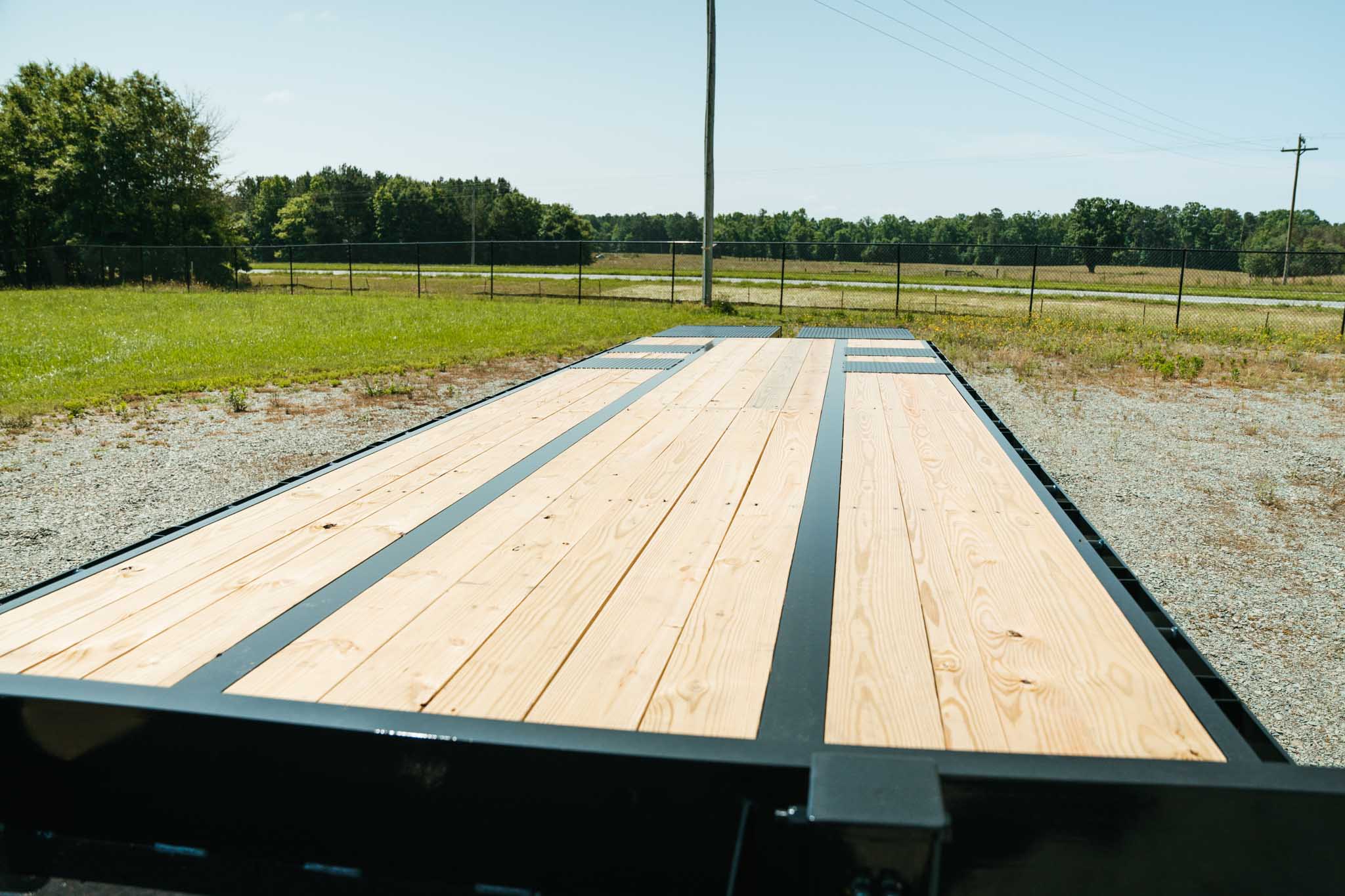

  • Nominal 2” Pressure Treated #1 Pine
  • Single 12K Drop Leg, Spring Loaded
  • Adjustable Pintle Ring, Safety Chains
  • Stake Pockets & Rub Rails with Spools

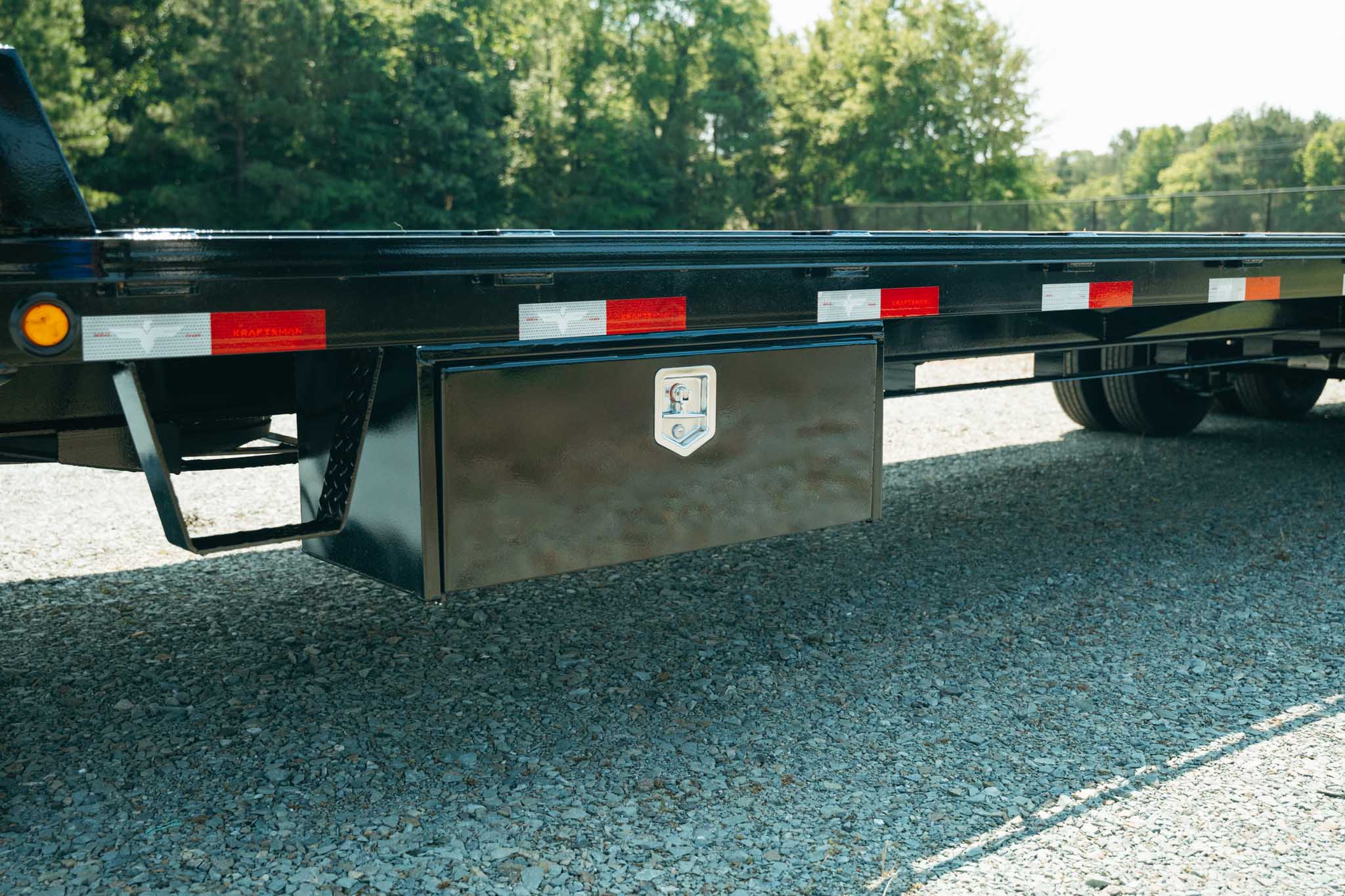

  • Lockable Toolbox in Tongue

Finish

  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals

Available Trailer Options

The following options are available on this model; speak to your sales advisor for the most comprehensive selection. A variety of colors are available, and almost any color can be matched.

Deck Length + Dovetail

20' + 5'
22' + 5'
25' + 5'

Ramps

60" x 20" Stand-Up, Spring-Assisted Ramps
MAX Ramps
96" Steel Slide-In Ramps / No Dovetail
No Dovetail, No Ramps

Functional

Dual 12k Spring-Loaded Jacks
Hydraulic Jacks
Additional Toolboxes
Winch
Slider Track & Ratchets w/Straps
Electric/Hydraulic Disc Brakes
Self-Contained Air Ride
Oak Decking
Blackwood Full or Outer Decking

Appearance

Aluminum Outer Wheels
Linseed Oil Deck Stain
Extra Marker Lights
Strobe Light Packages

ABOUT THE FL-25 DECKOVER FLATBED TRAILER

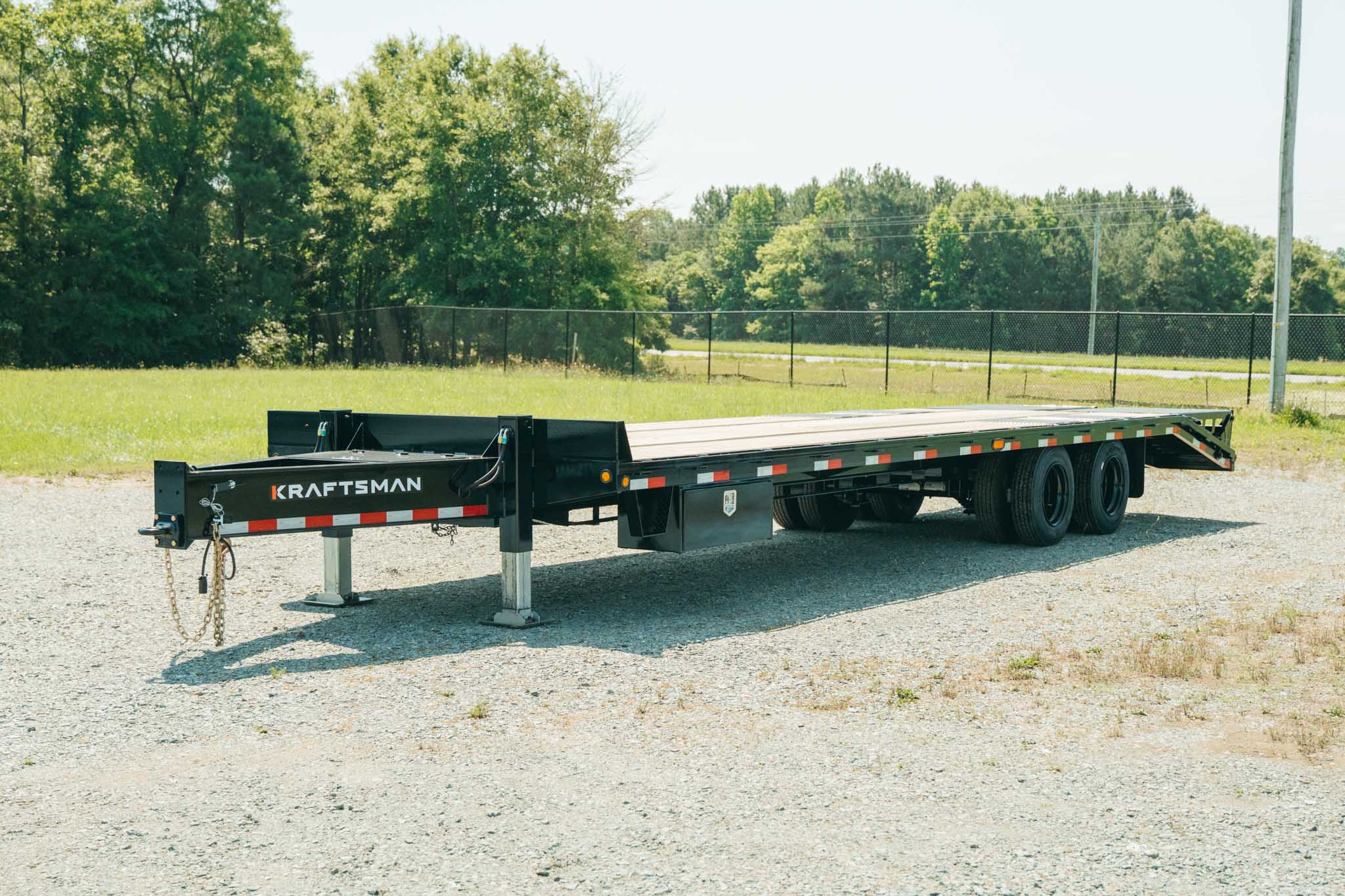

The Kraftsman FL-25 - 25K Dual Wheel Deckover Flatbed Trailer is constructed with a 12", 19lb-per-foot I-beam main frame and tongue and 3" crosspieces on 16" centers.

Standard features include 16" Radial tires, 2" pressure treated pine deck floor, 2 x 12,000lb oil bath axles, 12 1/4" x 5" brakes on all wheels, 60" adjustable stand-up ramps, and a lockable trailer tongue toolbox. It has a 36" approximate deck height, and each model is built with a 5' woodlined dovetail.

The FL-25 has a 25,990 GVWR rating with a 19,000 lb. max capacity, and is available in the following models: 102" x 25' (20' + 5'), 102" x 27' (22' + 5'), and 102" x 30' (25' + 5').

Additional options are available. Contact us today to let us know how we can help you!
