FL-18 Deckover Flatbed
GVWR: 18,000
Model #: Model FL-18
Trailer Specifications
The following configurations of this trailer are available to best suit your needs.
Construction
- 12” @ 14 lb. I-Beam Frame
- 3” Crosspieces on 16” Centers, Pierced
- 6” Channel Side Rail , 1x Step Per Side
- 4” Channel Ramp Runners
Electrical
- Lifetime LED Lighting, Rubber Mount
- Marker Lights on Front & Rear of Trailer
- USA Made Sealed Wiring Harness
- 7-Way RV-Style Plug
Undercarriage

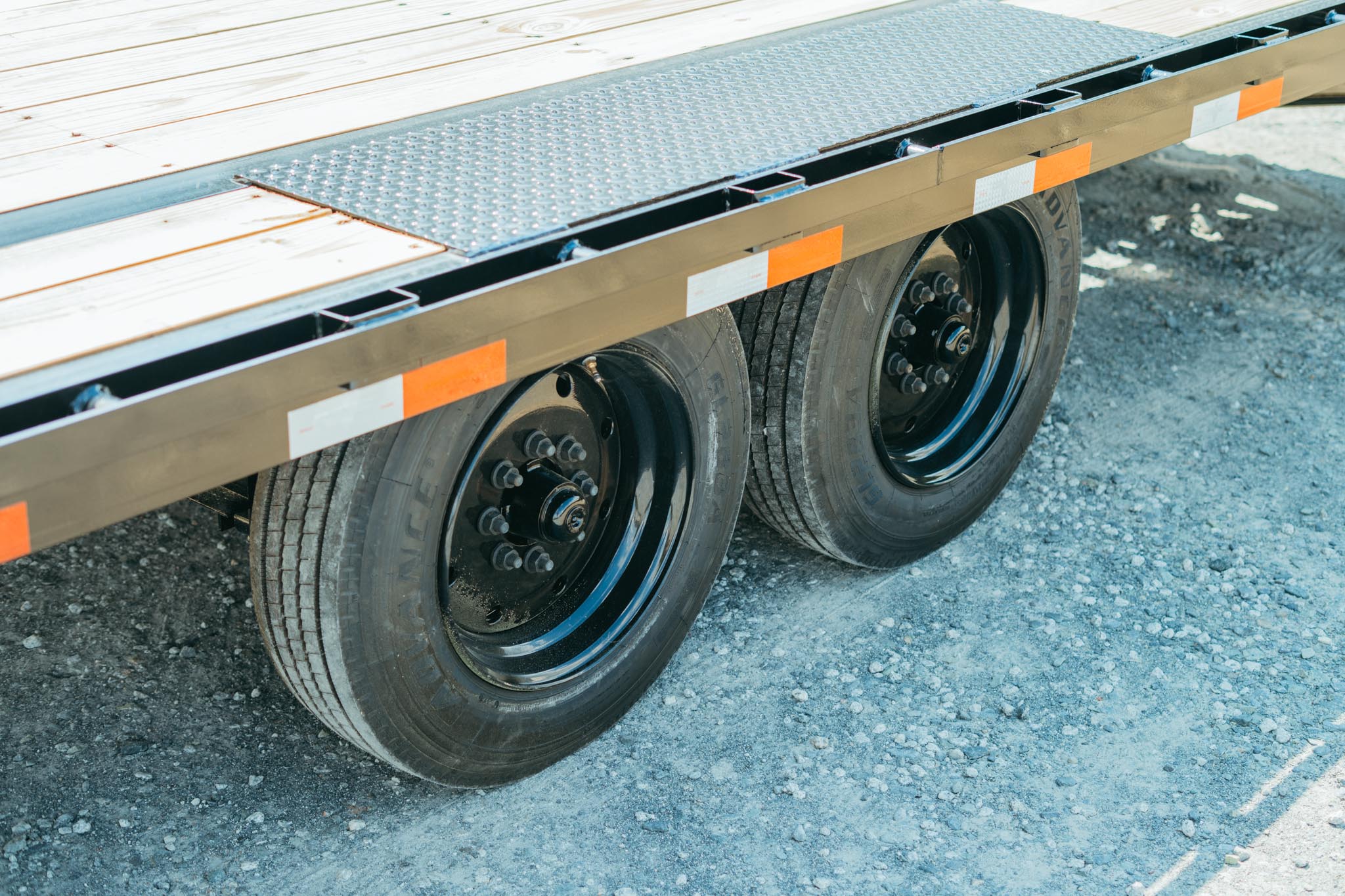

- 2 x 8,000 lb. Oil Bath Axles
- 12.25” x 2.5” Brakes on Both Axles
- Heavy Duty Slipper Spring Suspension
- 8 on 6.5” Bolt Pattern
- 4 x 235/80 R16 10 Ply Tires
- 4 x 215/75 R17.5 16 Ply Tires
Dimensions
- 18,000 GVWR, 13,500 lb. Capacity

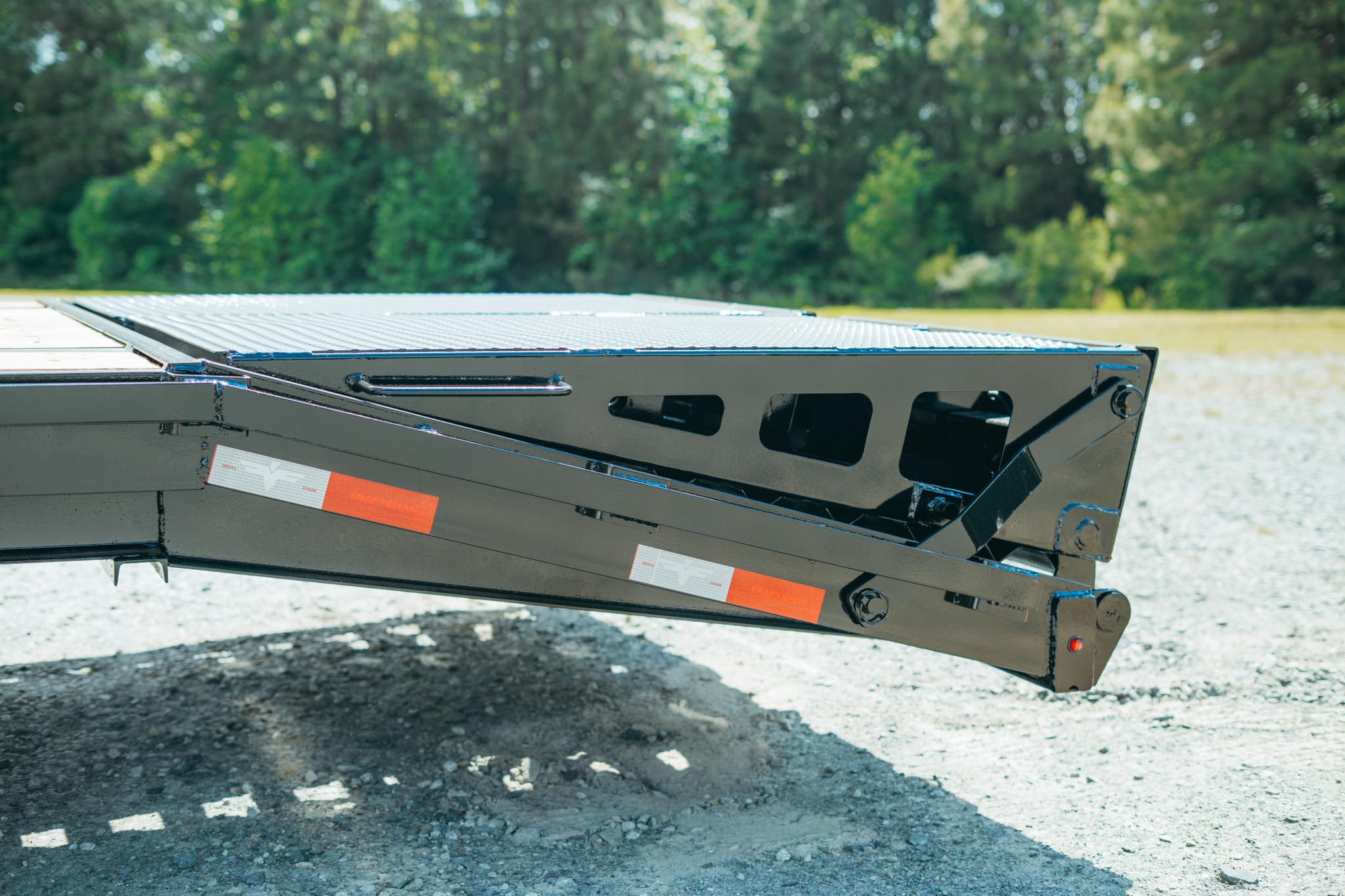

- 20’ Flat Deck, 5’ Self-Cleaning Dovetail
- 60” Stand-Up Ramps, Adjustable
- 34” Approx. Deck Height
- 6’ Tongue, Cold Formed in Hydraulic Press
Additional Features
- Nominal 2” Pressure Treated #1 Pine
- 12K Drop Leg, Spring Loaded
- Adjustable Pintle Ring, Safety Chains
- Stake Pockets & Rub Rails Full Length
- Lockable Toolbox in Tongue
Finish
- High Pressure Phosphate Wash
- Primed Top & Bottom w/ Automotive Primer
- Two Top Coats of 2-Part PPG Black Gloss
- DOT Reflective Tape, Kraftsman Decals
- Safety & Operational Decals
ABOUT THE FL-18 DECKOVER FLATBED TRAILER

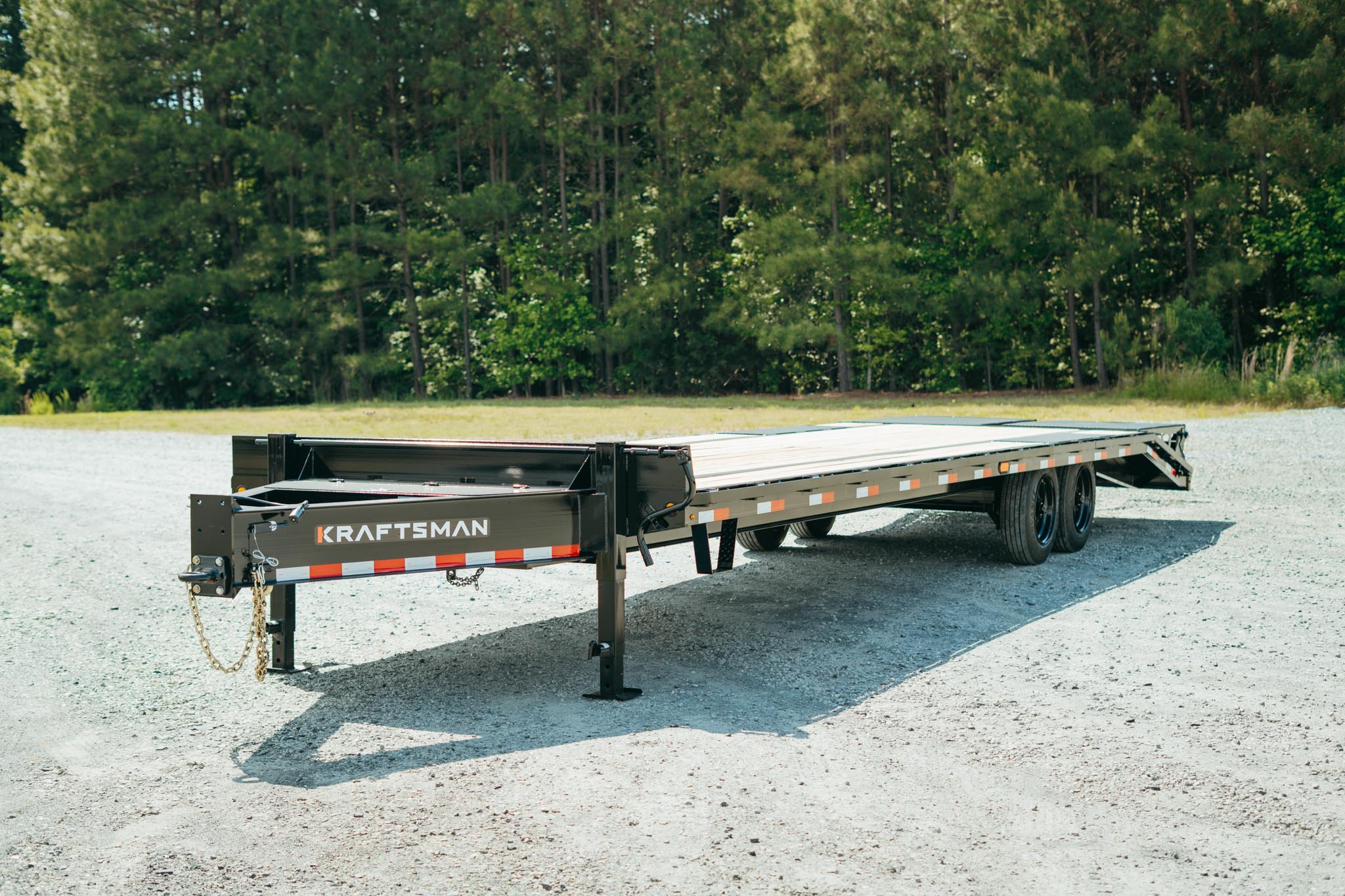

The Kraftsman FL-18 - 18K Heavy Duty Flatbed Trailer is constructed with a 12" pierced I-beam main frame and 3" crosspieces on 16" centers.
Standard features include 17.5" Radial tires, 2" pressure treated pine deck floor, 2 x 8,000 lb. oil bath axles, 12.25" x 2.5" brakes on both axles, 60" adjustable stand-up ramps, and a lockable trailer tongue toolbox, and has an approximately 34" deck height.
This trailer has a 18,000 GVWR rating and a 13,500 lb. max capacity. Model available in 102" x 25' (20' + 5'), 102" x 27' (22' + 5'), and 102" x 30' (25' + 5') sizes.
Additional options are available. Contact us today to let us know how we can help you!
