FL-15 Deckover Flatbed
Trailer Specifications
The following configurations of this trailer are available to best suit your needs.
Construction
- 12” @ 14 lb. I-Beam Frame
- 3” Crosspieces on 16” Centers, Pierced
- 6” Channel Side Rail , 1x Step Per Side
- 4” Channel Ramp Runners
Electrical
- Lifetime LED Lights, Rubber Mounted
- Marker Lights on Front & Rear of Trailer
- USA-Made Sealed Wiring Harness
- 7-Way RV-Style Plug
Undercarriage

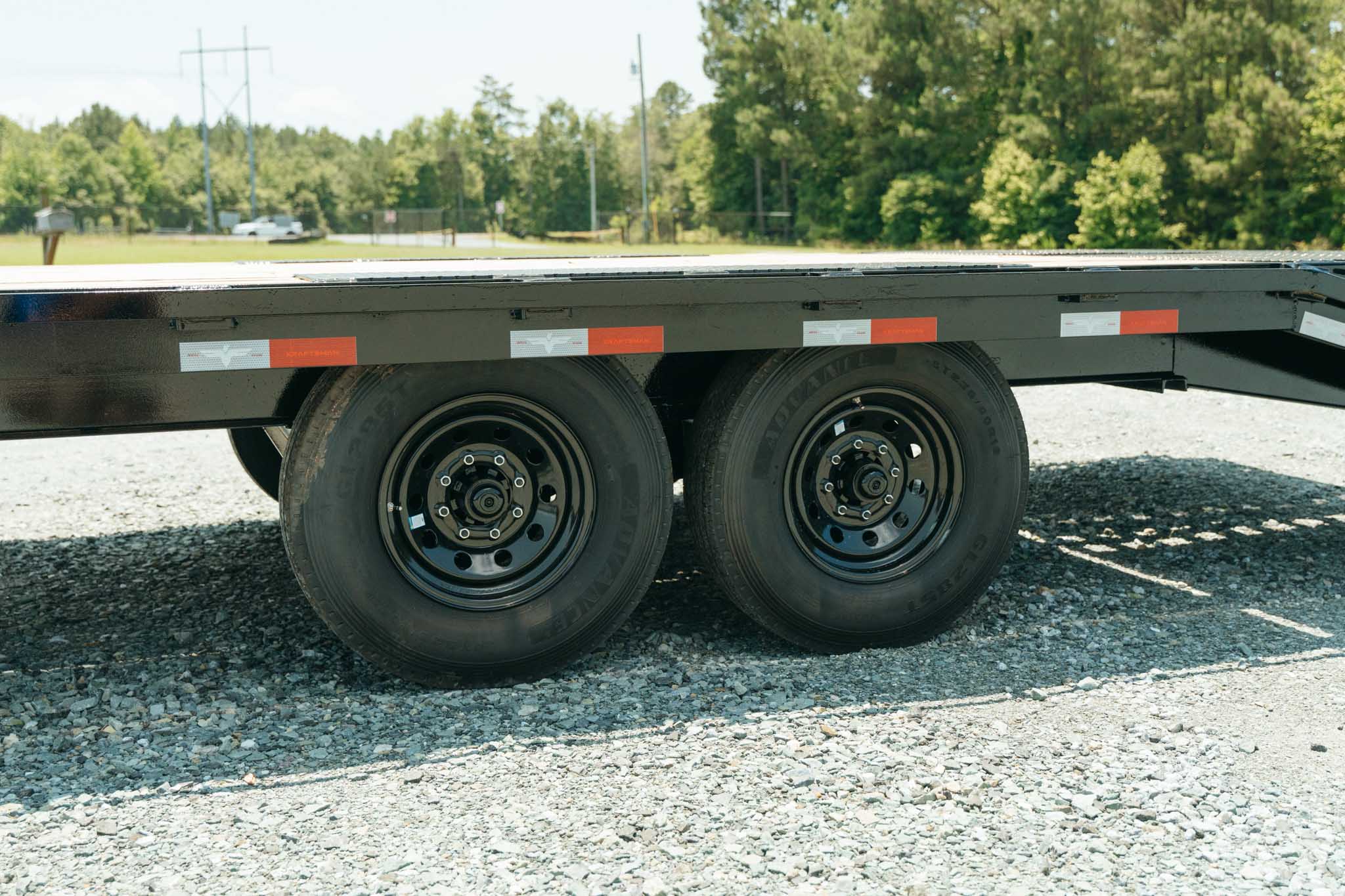

- 2 x 7,000 lb. EZ-Lube Dexter Axles
- 12” x 2” Brakes on Both Axles
- Heavy Duty Slipper Spring Suspension
- 8 on 6.5” Bolt Pattern
- 4 x 235/80 R16 10 Ply Tires
Dimensions
- 15,000 GVWR, 11,500 lb. Capacity

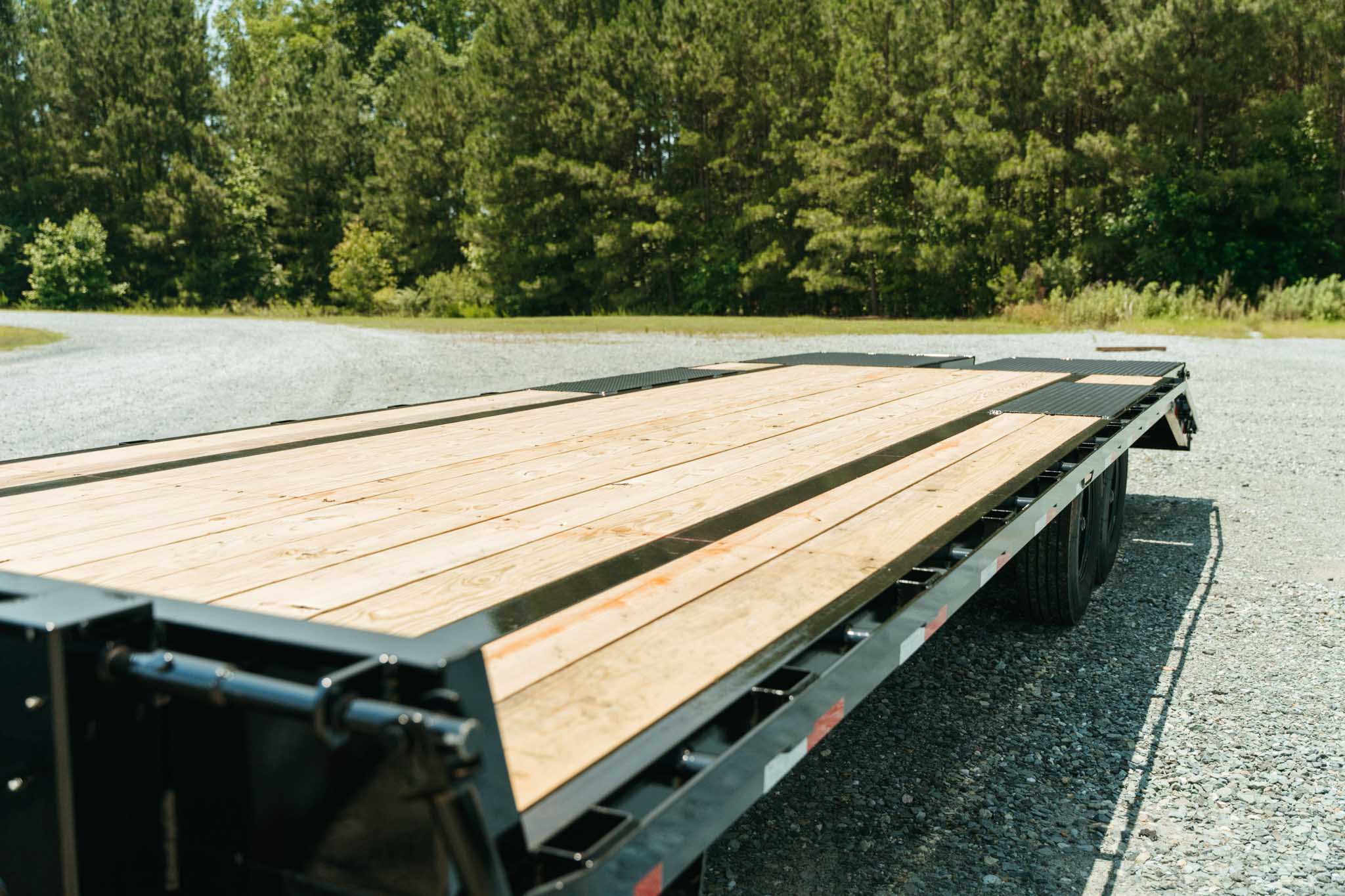

- 20’ Flat Deck, 5’ Self-Cleaning Dovetail
- 60” Stand-Up, Spring-Assisted Ramps, Adjustable
- 32” Approx. Deck Height

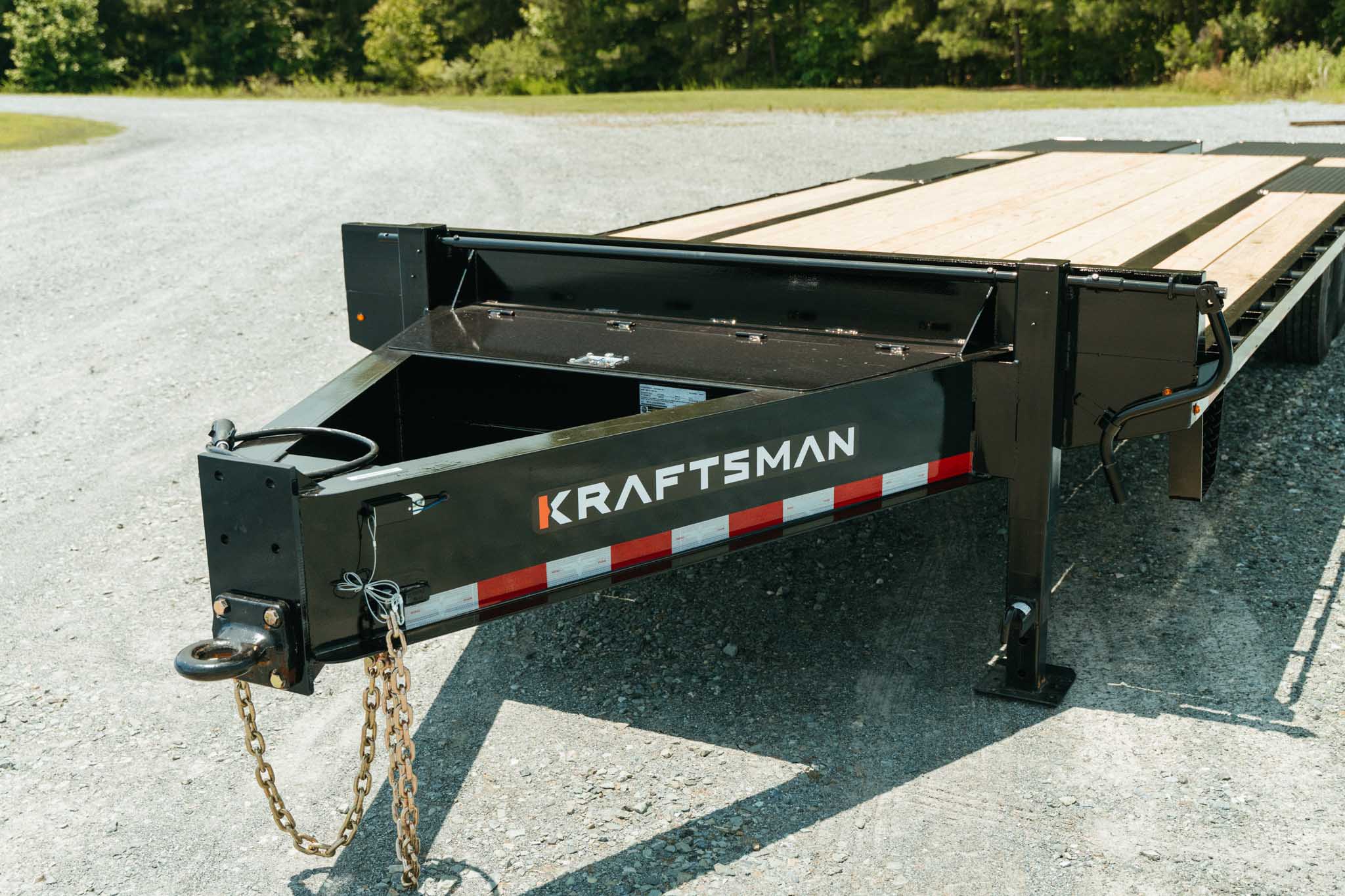

- 6’ Tongue, Cold Formed in Hydraulic Press
Additional Features
- Nominal 2” Pressure Treated #1 Pine
- 12K Drop Leg, Spring-Loaded Jack
- Adjustable Pintle Ring, Safety Chains
- Stake Pockets & Rub Rails Full Length
- Lockable Toolbox in Tongue
Finish
- High Pressure Phosphate Wash
- Primed Top & Bottom w/ Automotive Primer
- Two Top Coats of 2-Part PPG Black Gloss
- DOT Reflective Tape, Kraftsman Decals
- Safety & Operational Decals

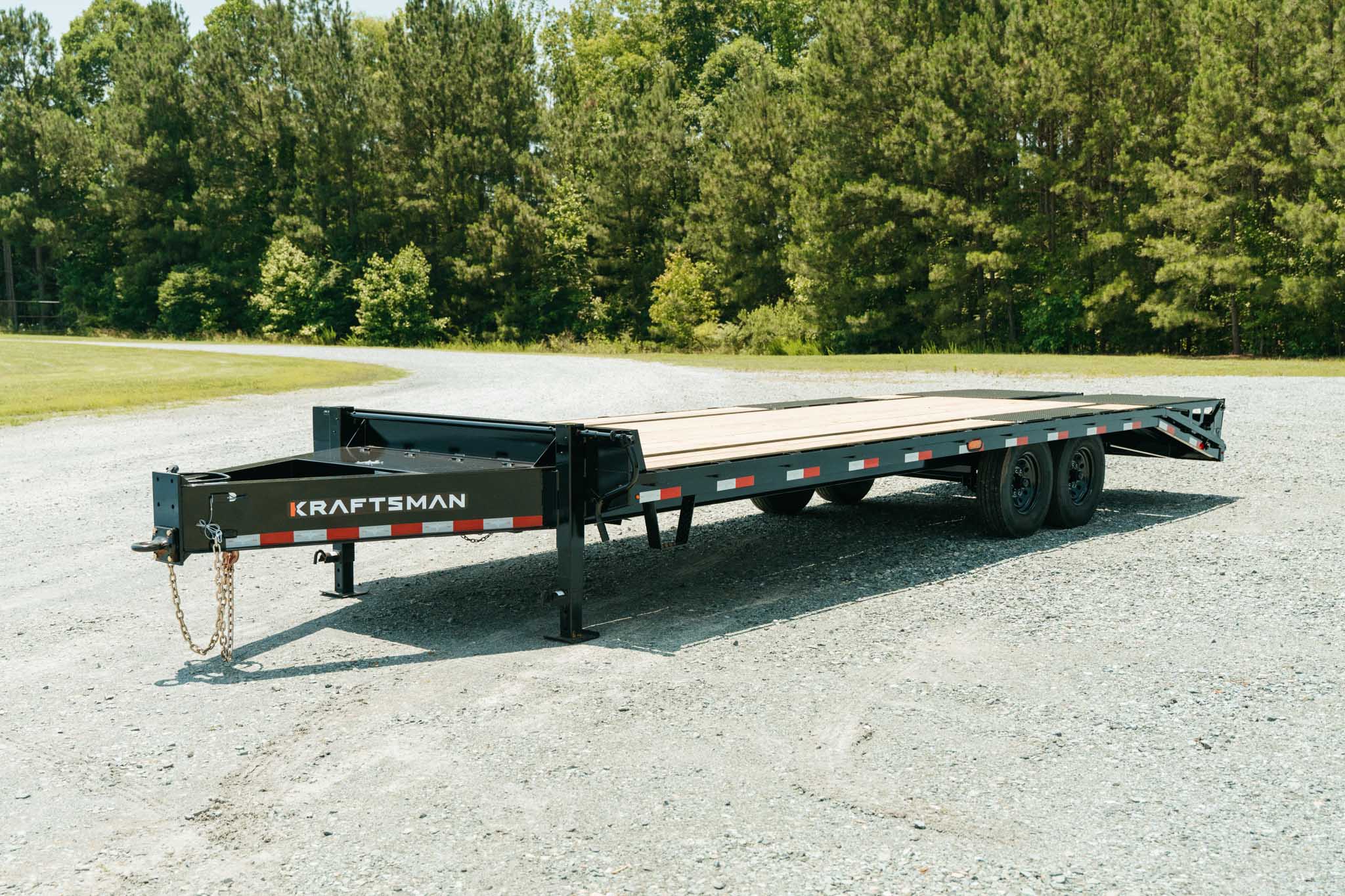

ABOUT THE FL-15 DECKOVER FLATBED TRAILER
The Kraftsman FL-15 - 15K Heavy Duty Flatbed Trailer is constructed with a 12" pierced I-beam main frame and 3" crosspieces on 16" centers.
Standard features include 16" wheels with radial tires, 2" pressure treated pine deck, 2 x 7,000 lb. EZ-Lube Dexter axles, 12" x 2" brakes on both axles, 60" adjustable stand-up ramps, a lockable trailer tongue toolbox, and an approximate 32" deck height.
This trailer has a 15,000 GVWR rating and a 11,500 lb. max capacity. This model is available in the following lengths: 102" x 25' (20' + 5'), 102" x 27' (22' + 5'), and 102" x 30' (25' + 5').
Additional options are available. Contact us today to let us know how we can help you!
