Model F1-16

F1-16 Deckover Flatbed

GVWR: 16,000
Model #: Model F1-16

Trailer Specifications

The following configurations of this trailer are available to best suit your needs.

Construction

  • 10” I-Beam @ 12 lb. Main Frame & Tongue
  • 3” Crosspieces on 16” Centers
  • 6” Flat Side Rail, 1x Step Per Side
  • 4” Channel Ramp Runners

Electrical

  • Lifetime LED Lighting, Rubber Mount
  • USA Made Sealed Wiring Harness
  • Break Away Kit w/ Charger
  • 7-Way RV-Style Plug

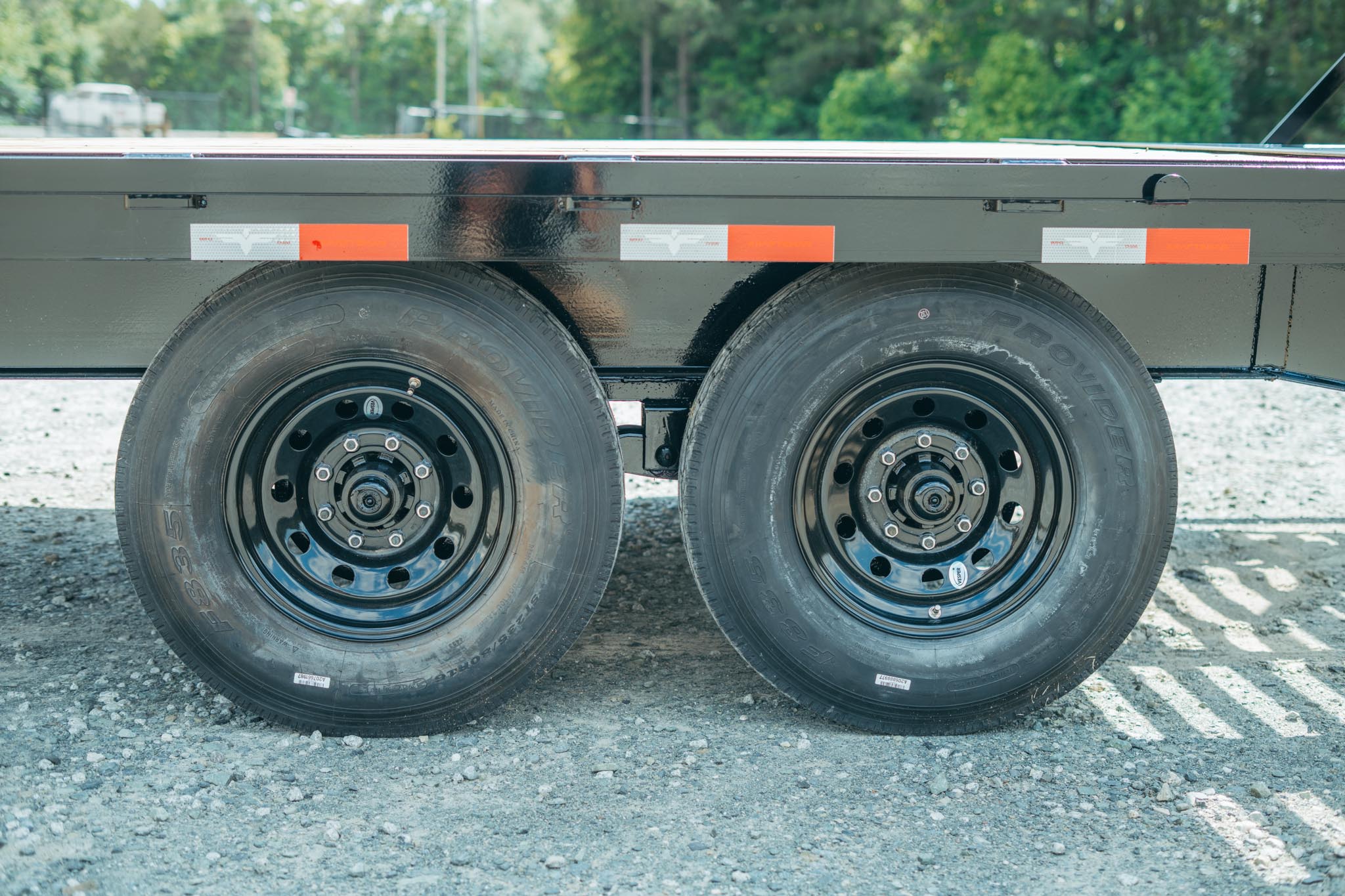

Undercarriage

  • 2 x 7,000 lb. EZ-Lube Axles
  • 12” x 2” Brakes on Both Axles
  • Heavy Duty Slipper Spring Suspension
  • 8 on 6.5” Bolt Pattern
  • 4 x 215/75 R17.5 16 Ply Tires

Dimensions

  • 16,000 GVWR, 12,200 lb. Max Capacity

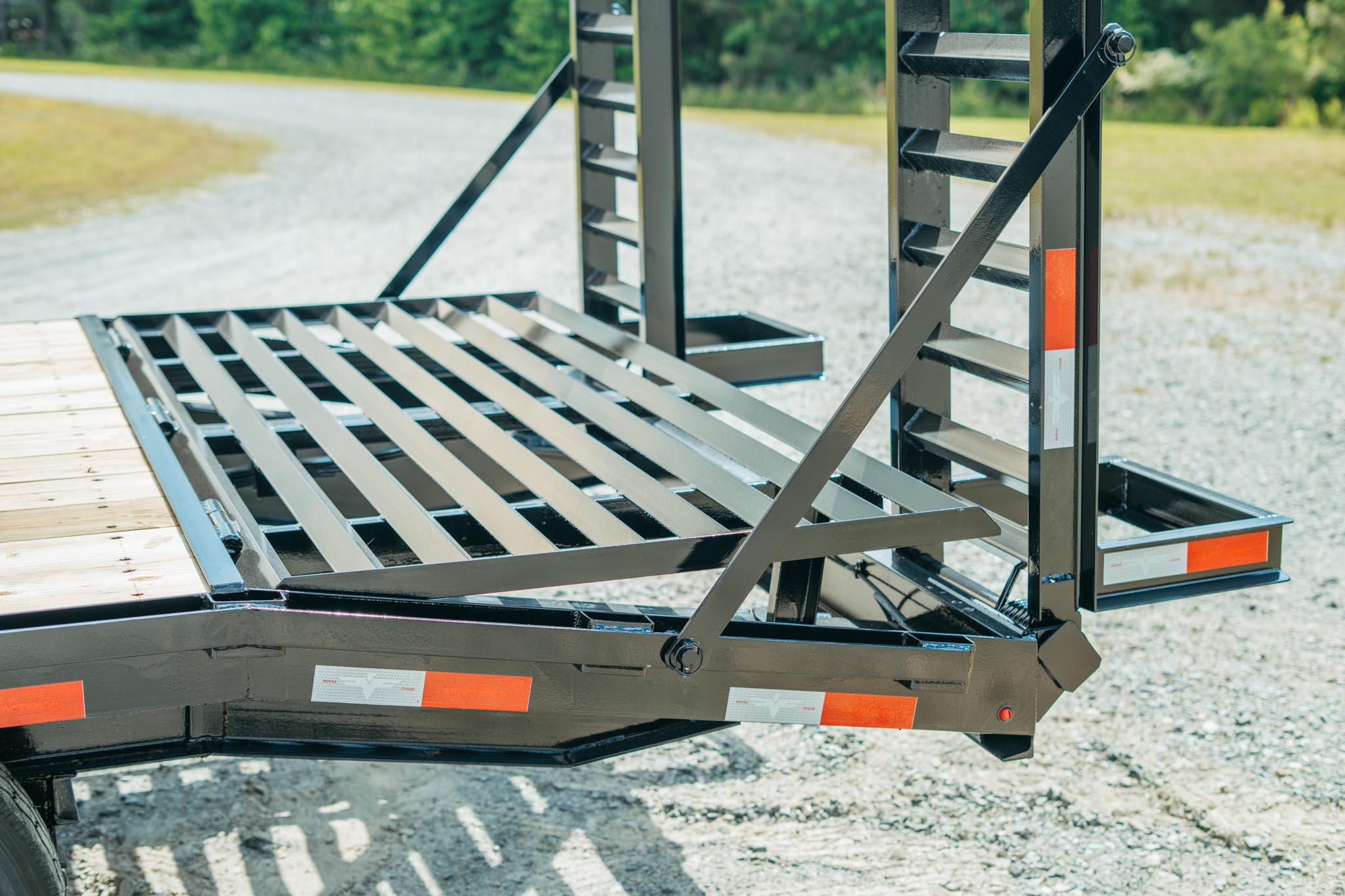

  • 18’ Flat Deck, 4’ Woodlined Dovetail

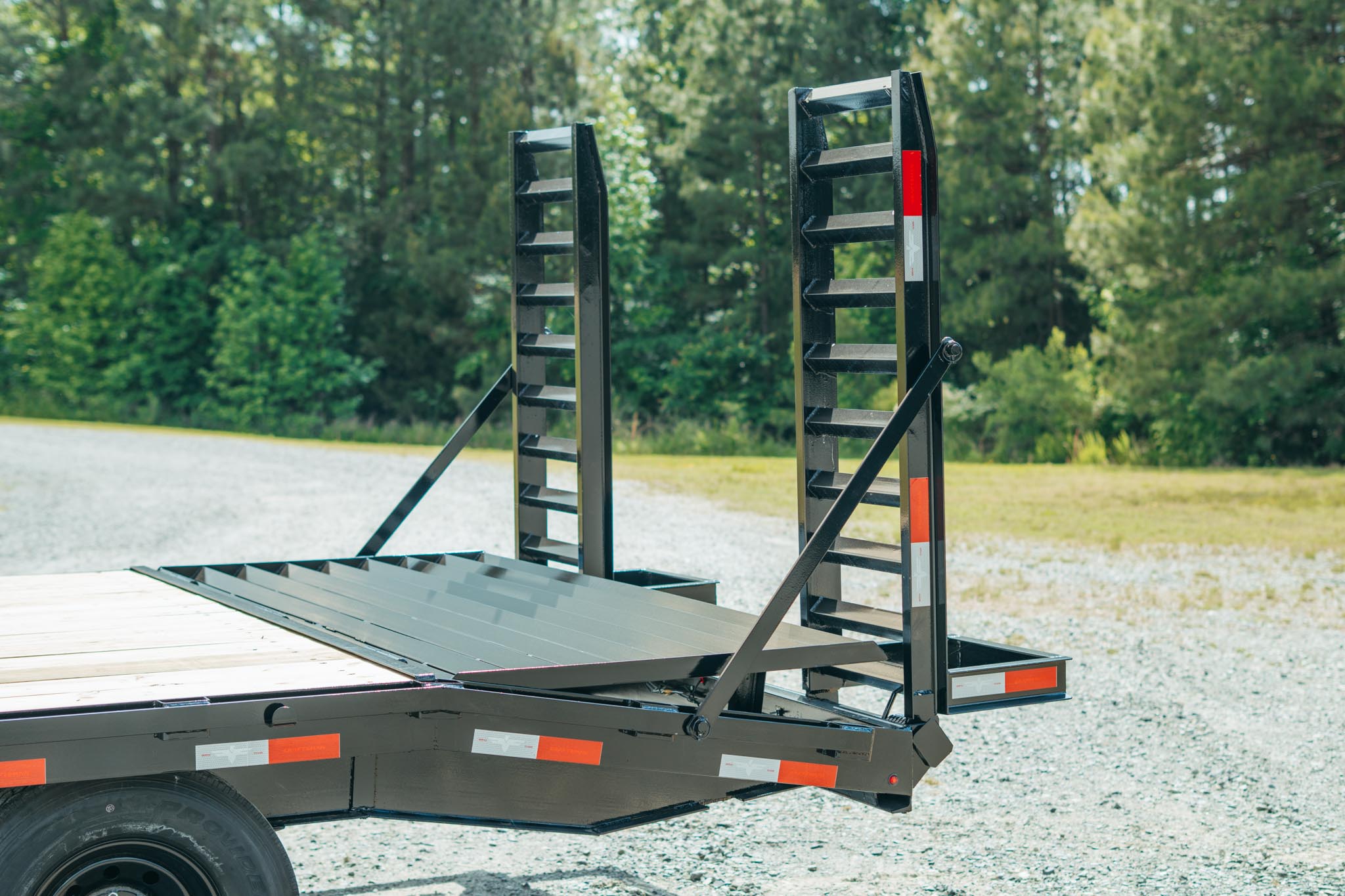

  • 60” Stand-Up Ramps with Spring Assist
  • 34” Approx. Deck Height

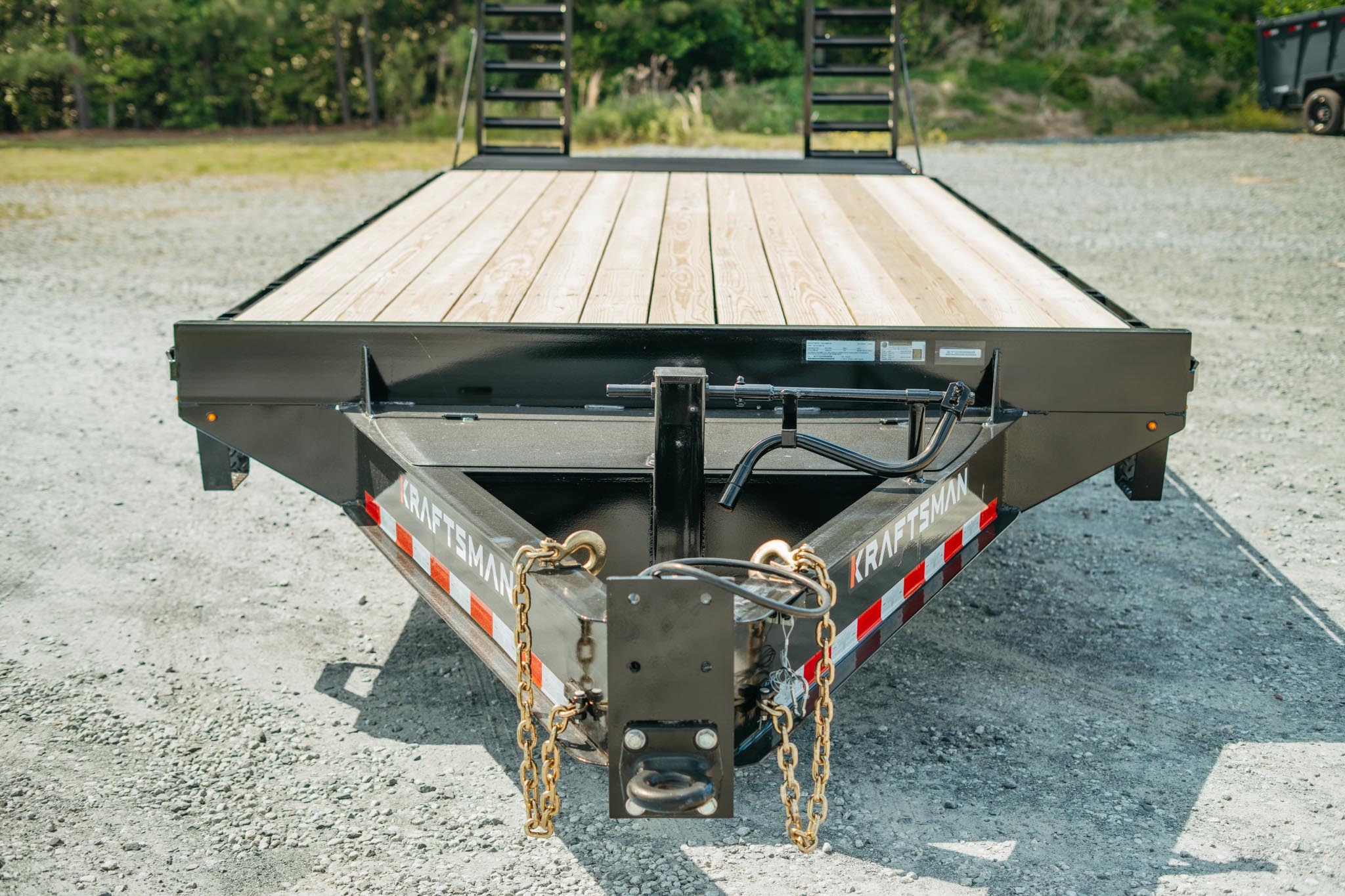

  • 6’ Tongue, Cold Formed in Hydraulic Press

Additional Features

  • Nominal 2” Pressure Treated #1 Pine
  • 12K Drop Leg, Spring Loaded
  • 2 5/16” Adj. Coupler, Safety Chains
  • Stake Pockets & Rub Rails Full Length
  • Lockable Toolbox in Tongue

Finish

  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals

Available Trailer Options

The following options are available on this model; speak to your sales advisor for the most comprehensive selection. A variety of colors are available, and almost any color can be matched.

Deck Length

18' + 4'
20' + 4'
22' + 4'

Dovetail + Ramps

4' Pop-Up Self-Cleaning Dovetail
No Dovetail / No Ramps
Cleated Dovetail

Functional

Dual 12k Spring-Loaded Jacks
Upgrade 14" OC Crossmembers & R16 14Ply Tires
Blackwood Full or Outer Deck

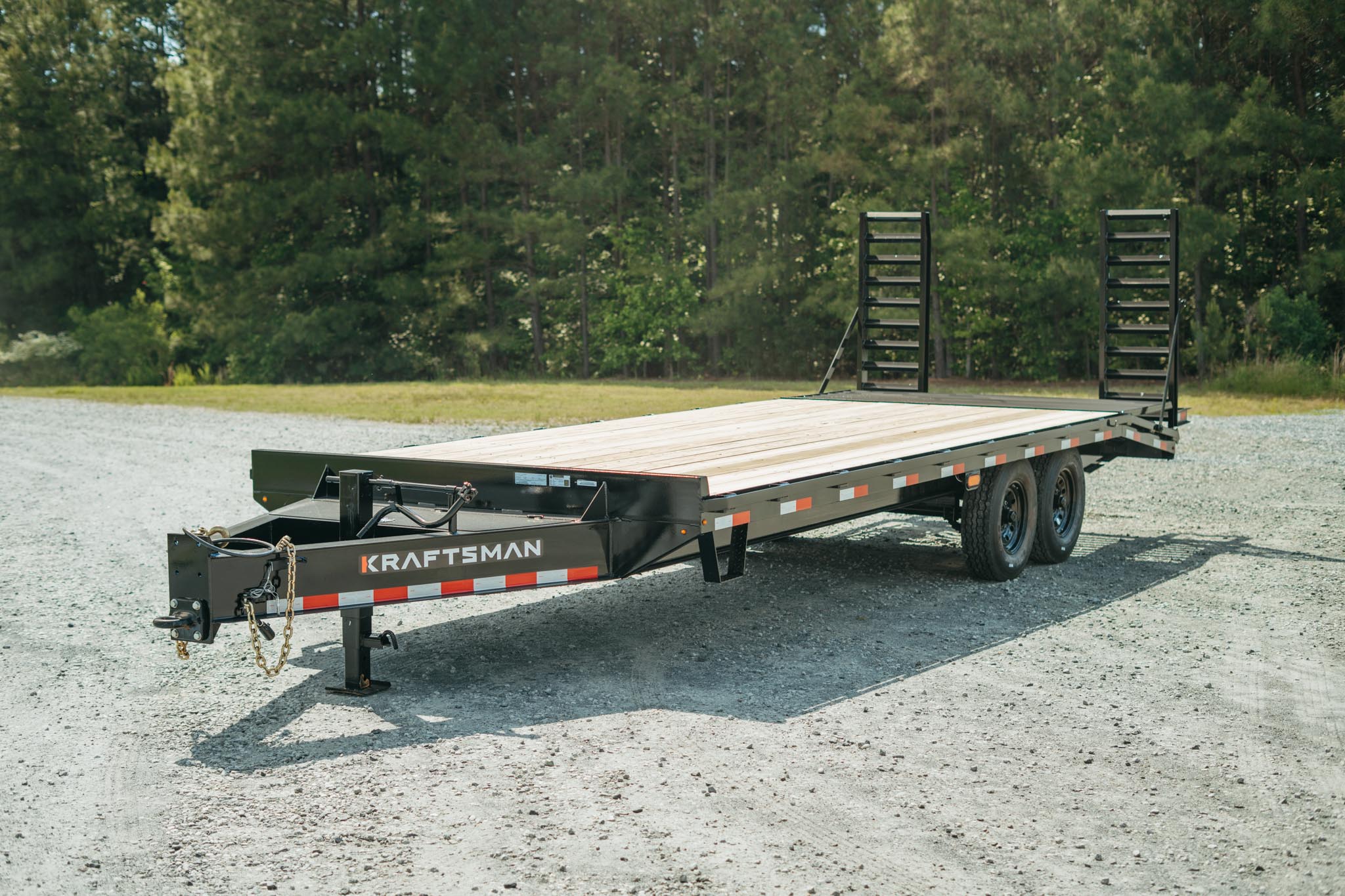

ABOUT THE F1-16 DECKOVER FLATBED TRAILER

Kraftsman's F1-16 - 16K Single Wheel Economy Deckover Flatbed Trailer is constructed with a 10" I-beam main frame and tongue and 3" crosspieces on 16" centers.

Standard features on this model include 17.5" Radial tires, 2" pressure treated pine deck floor, 2 x 7,000 lb. EZ-Lube axles, 12" x 2" brakes on both axles, 60" adjustable stand-up ramps, and a lockable toolbox in tongue. This model is equiped with a 34" approximate deck height for easy loading and unloading.

The F1-16 has a 16,000 GVWR rating with a 12,200 lb. max capacity, and is available in 102" x 22' (18' + 4'), 102" x 24' (20' + 4'), and 102" x 24' (22' + 4') lengths.

Additional options are available. Contact us today to let us know how we can help you!
