Model F1-14

F1-14 Deckover Flatbed

GVWR: 14,000
Model #: F1-14

Trailer Specifications

The following configurations of this trailer are available to best suit your needs.

Construction

  • 10” I-Beam @ 12 lb. Main Frame & Tongue
  • 3” Crosspieces on 24” Centers
  • 4” Flat Side Rail
  • 3” Channel Ramp Runners

Electrical

  • Lifetime LED Lights, Rubber Mounted
  • USA-Made Sealed Wiring Harness
  • Break Away Kit w/ Charger
  • 7-Way RV-Style Plug

Undercarriage

  • 2 x 7,000 lb. EZ-Lube Dexter Axles
  • 12” x 2” Brakes on Both Axles
  • Slipper Spring Suspension
  • 8 on 6.5” Bolt Pattern
  • 4 x 235/80 R16 10 Ply Radial Tires

Dimensions

  • 14,000 GVWR, 10,500 lb. Max Capacity

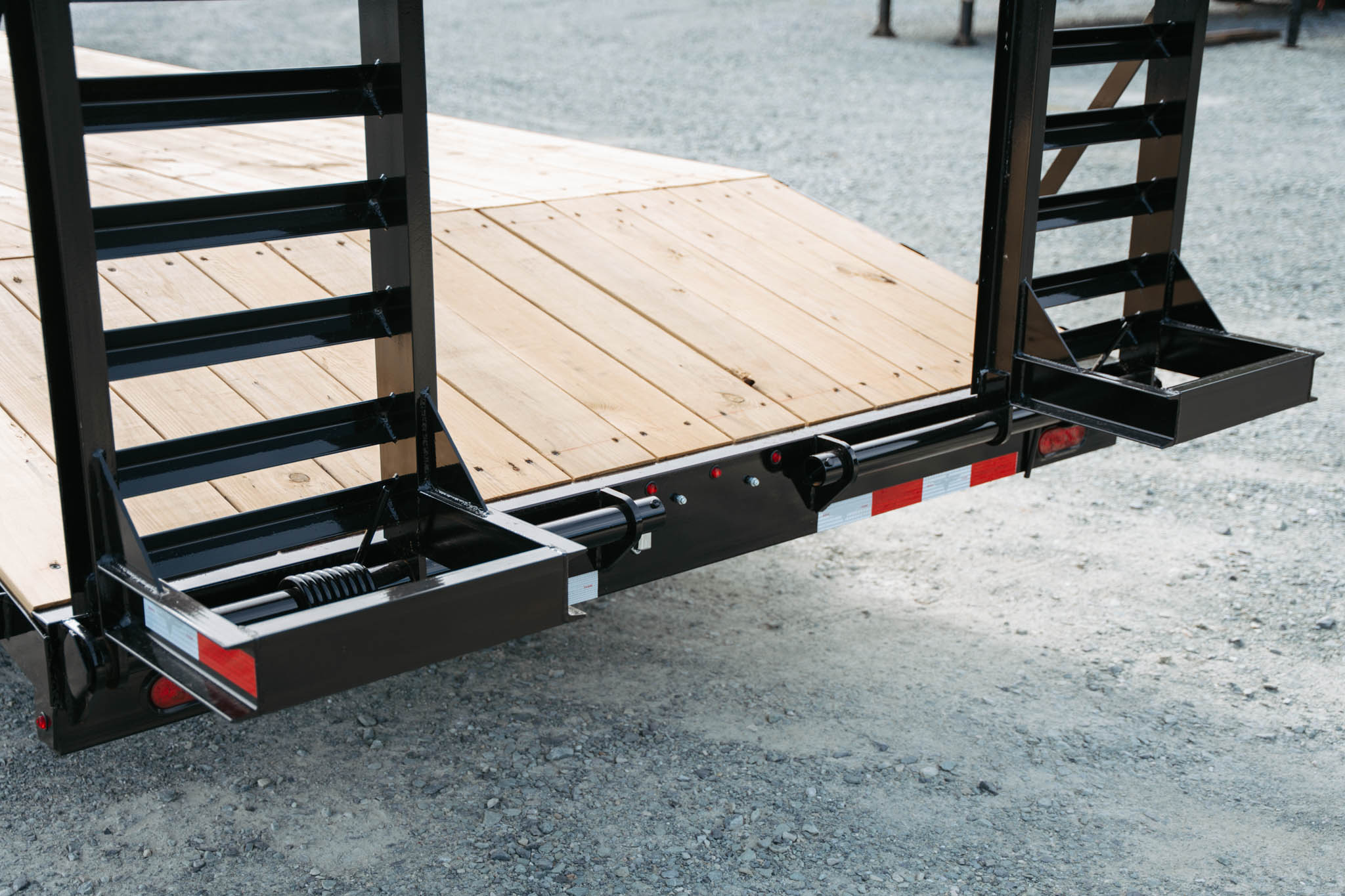

  • 18’ Flat Deck, 4’ Woodlined Dovetail

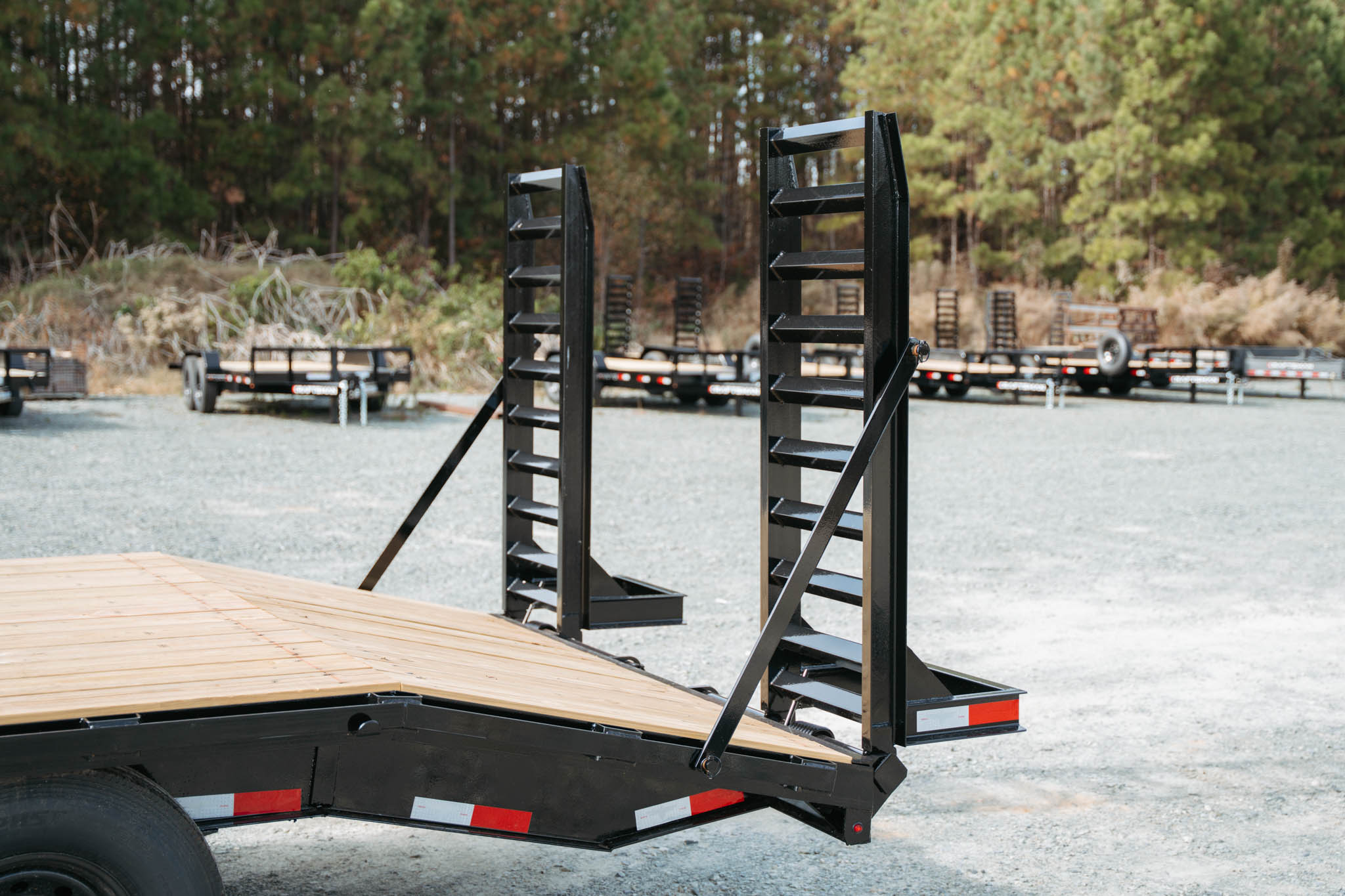

  • 60” Stand-Up Ramps
  • 34” Approx. Deck Height
  • 6’ Tongue, Cold Formed in Hydraulic Press

Additional Features

  • Nominal 2” Pressure Treated #1 Pine
  • 12K Drop Leg, Spring-Loaded Jack
  • 2 5/16” Adj. Coupler, Safety Chains

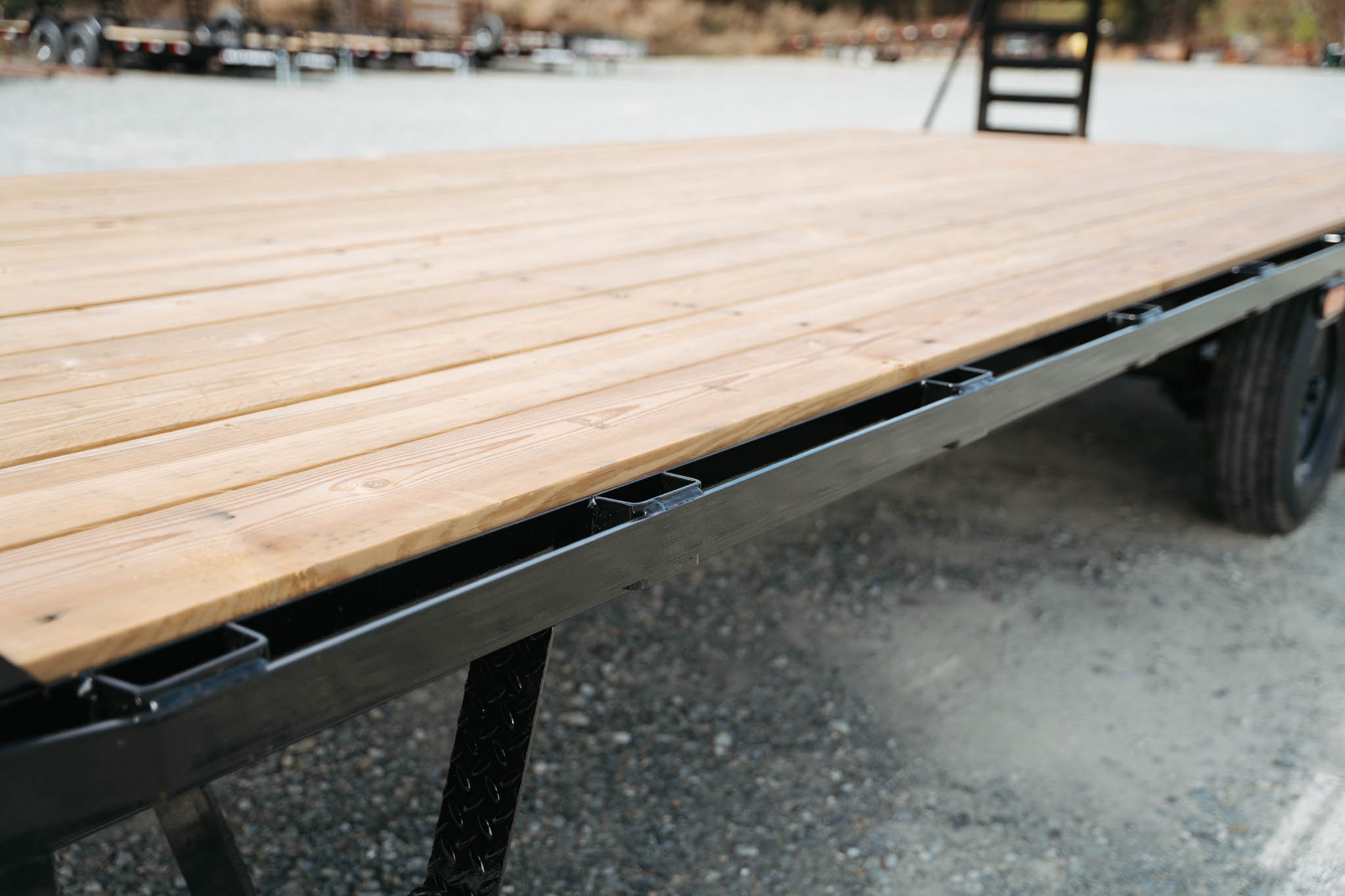

  • Stake Pockets & Rub Rails Full Length
  • Open Chain Tray in Tongue

Finish

  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals

Available Trailer Options

The following options are available on this model; speak to your sales advisor for the most comprehensive selection. A variety of colors are available, and almost any color can be matched.

Functional

Spare Wheel & Tire
Underslung Tire Mount

Appearance

Choose Your Color

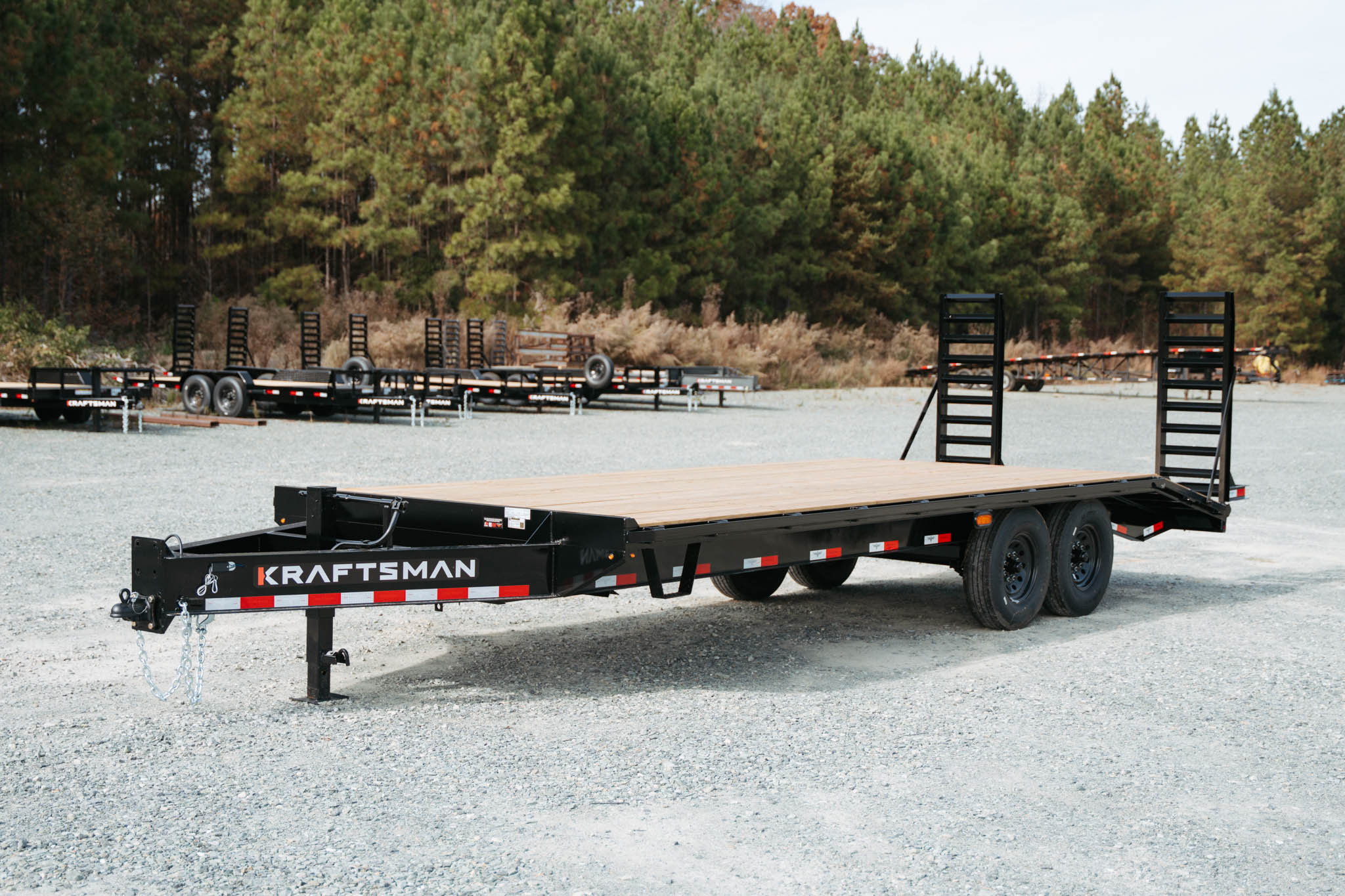

ABOUT THE F1-14 DECKOVER FLATBED TRAILER

The Kraftsman F1-14 - 14K Single Wheel Economy Deckover Flatbed Trailer is constructed with a 10" I-beam main frame and tongue and 3" crosspieces on 24" centers.

Standard features include 16" wheels with radial tires, 2" pressure treated pine deck, 2 x 7,000 lb. EZ-Lube Dexter axles, 12" x 2" brakes on both axles, and 60" adjustable stand-up ramps. This model comes with a 35" approximate deck height.

This 14,000 GVWR deckover flatbed is equipped with a 4 ft. wood-lined dovetail, and is available in a 102" x 22' (18' + 4') length.

Additional options are available. Contact us today to let us know how we can help you!
