T6-16 Fender Tilt Trailer
GVWR: 16,000
Model #: T6-16
Trailer Specifications
The following configurations of this trailer are available to best suit your needs.
Construction
- 6” Channel Main Frame, Tongue, & Wrapper
- 3” Crosspieces on 16” Centers
- 12” Tall Bump Rail with “K” Brackets
- Double-Break Diamond Treadplate Fenders
Electrical
- Rubber Mounted, Lifetime LED Lighting
- Marker Lights on Front of Trailer & Steps
- USA Made Sealed Wiring Harness
- 7-Way RV-Style Plug
Undercarriage

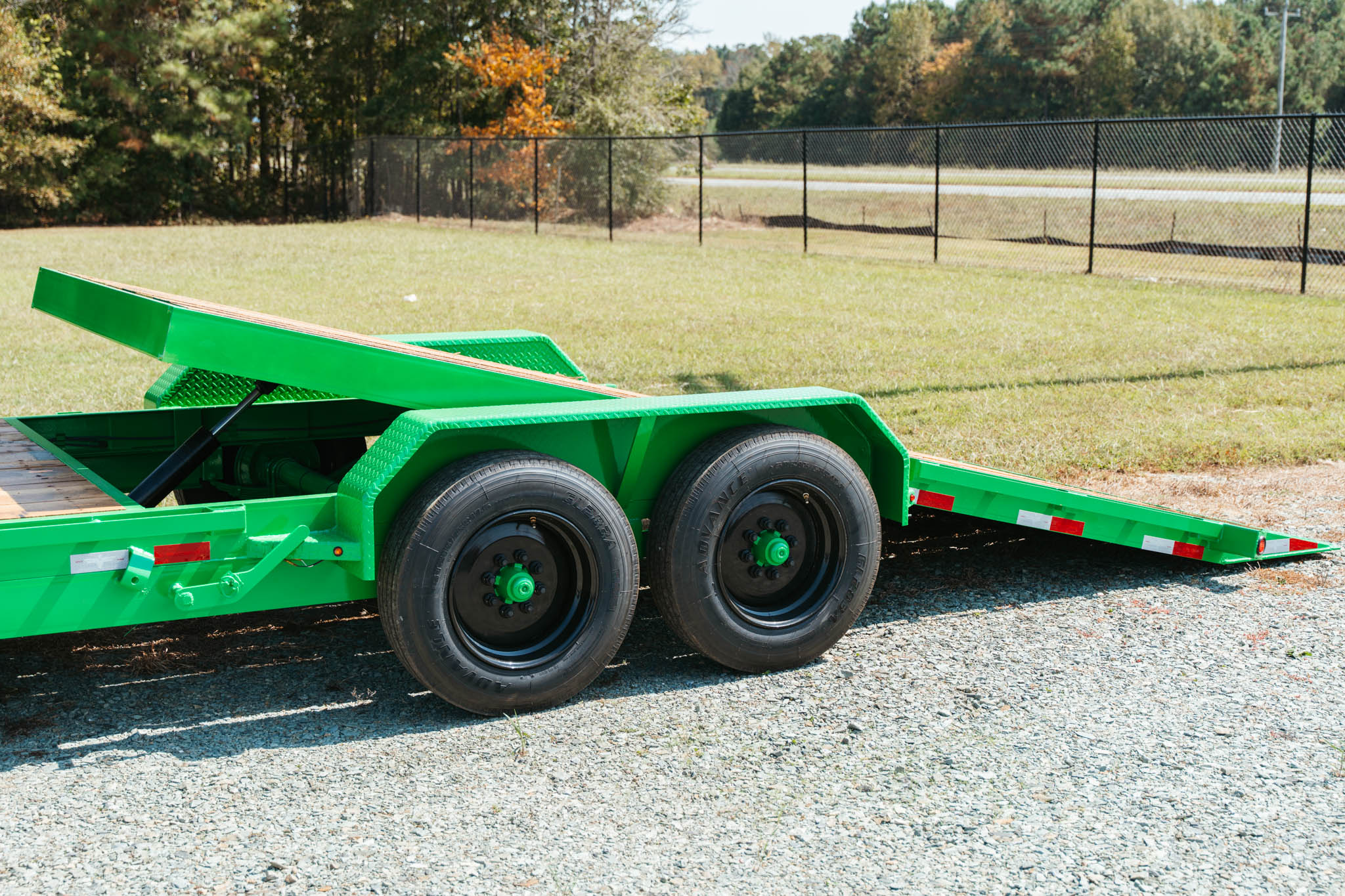

- 2 x 7,000 lb. EZ-Lube Dexter Axles
- 12” x 2” Brakes on Both Axles
- Heavy Duty Slipper Spring Suspension
- 8 on 6.5” Bolt Pattern, 16” x 6” Steel Wheels
- 4 x 215/75 R17.5 16 Ply Radial Tires
Dimensions
- 16,000 GVWR, 12,500 lb. Max Capacity

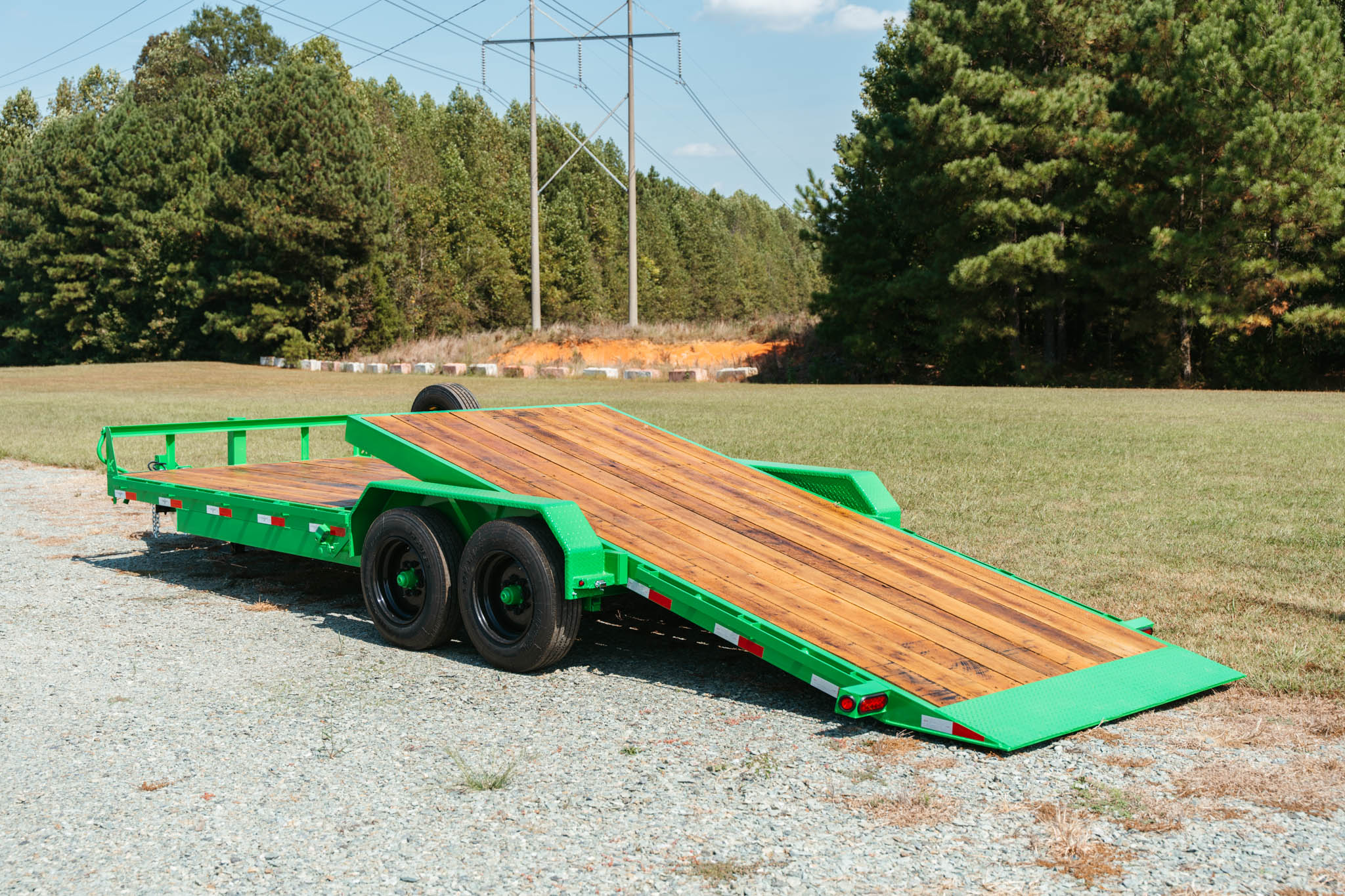

- 5’ Stationary Deck, 15’ Tilt Deck Std.
- 15” Knife-Edge Approach Plate
- 26” Approx. Deck Height

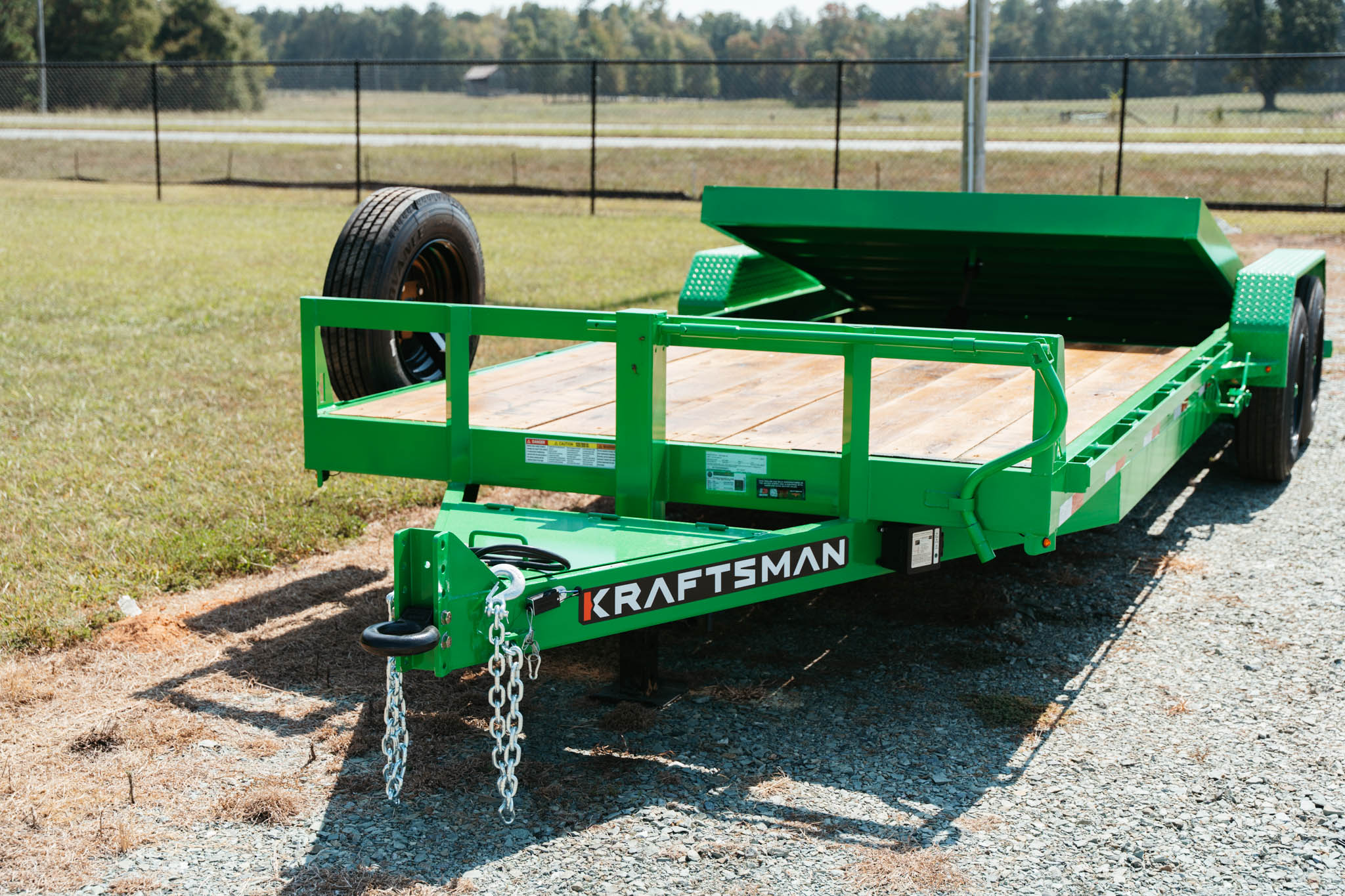

- Approx. 4’ Tongue, 6” Channel Construction
Additional Features
- Nominal 2” Pressure Treated #1 Pine Decking

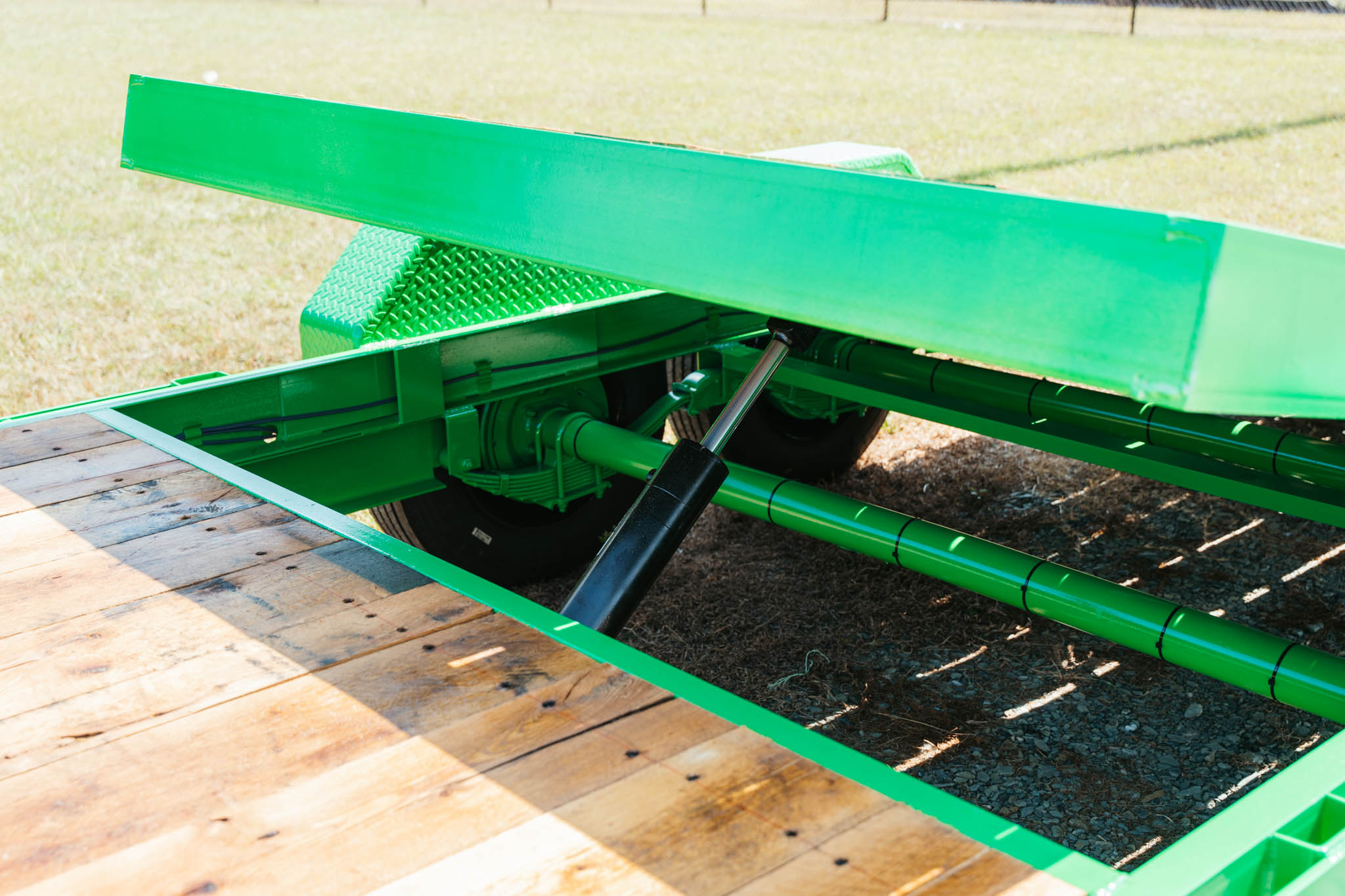

- Tilt-Lock Operated from Driver’s Side of Deck
- 2 5/16” Adj. Channel Coupler, Safety Chains
- Stake Pockets & Rail Rails with Chain Spools
- Lockable Toolbox, 12K Spring Loaded Jack
Finish
- High Pressure Phosphate Wash
- Primed Top & Bottom w/ Automotive Primer
- Two Top Coats of 2-Part PPG Black Gloss
- DOT Reflective Tape, Kraftsman Decals
- Safety & Operational Decals

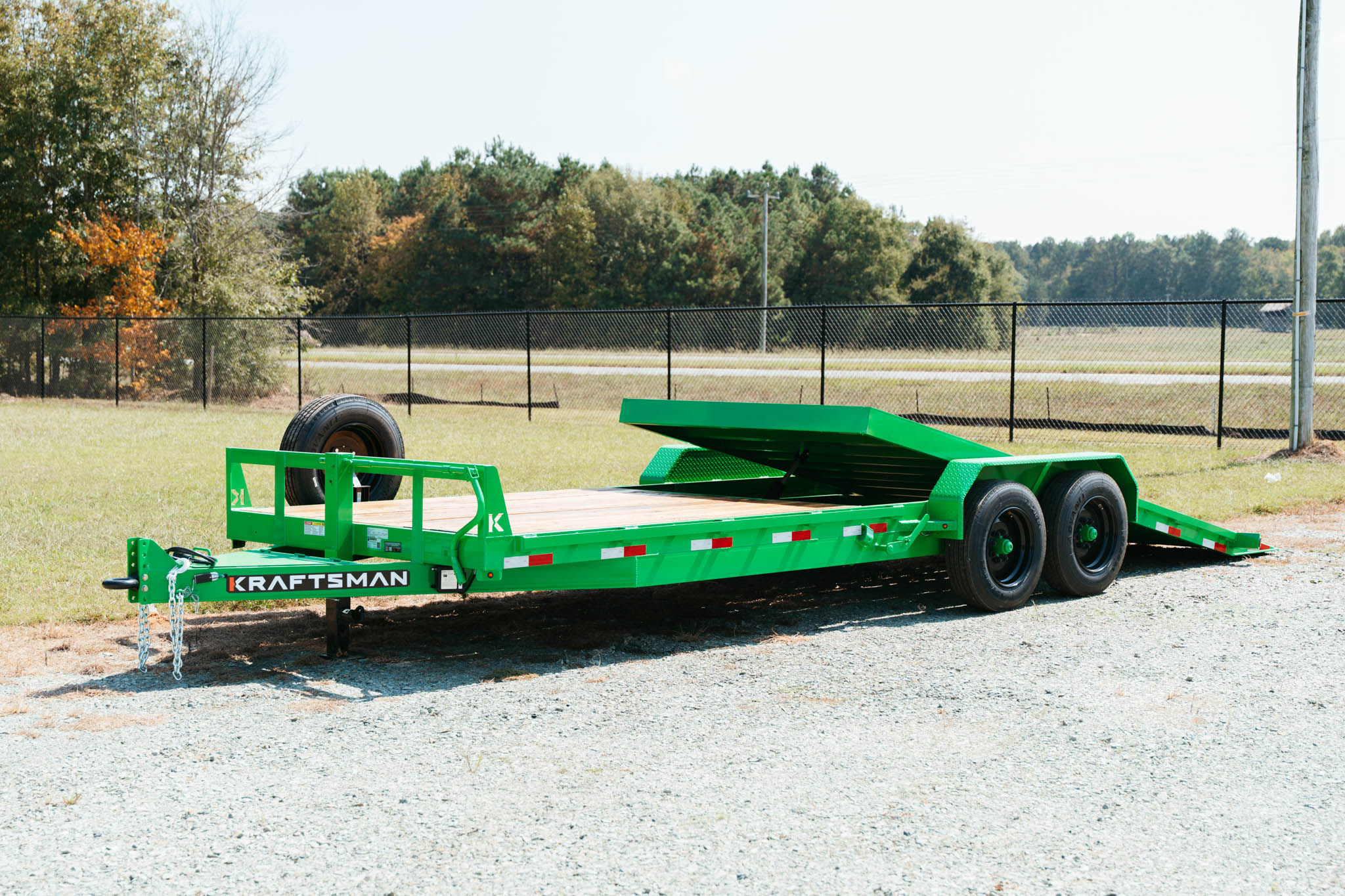

ABOUT THE T6-16 FENDER TILT TRAILER
The Kraftsman T6-16 is constructed with a 6" channel main frame and wrap-around tongue, and 3" crosspieces on 16" centers.
Standard features on this model include 17.5" steel wheels, 2" pressure treated pine deck floor, 2 x 7,000 lb. EZ-lube axles,12" x 2" brakes on both axles, and a lockable toolbox in tongue. The T6-16 has a 26" approximate deck height with a standard 15' tilt deck.
This model features a 16,000 GVWR rating with a 12,500 lb. max capacity, and is available in three deck sizes: 83" x 20' (5' + 15'), 83" x 22' (7' + 15'), and 83" x 24' (9' + 15')
Additional options are available. Contact us today to let us know how we can help you!
