Model E8-22 SW

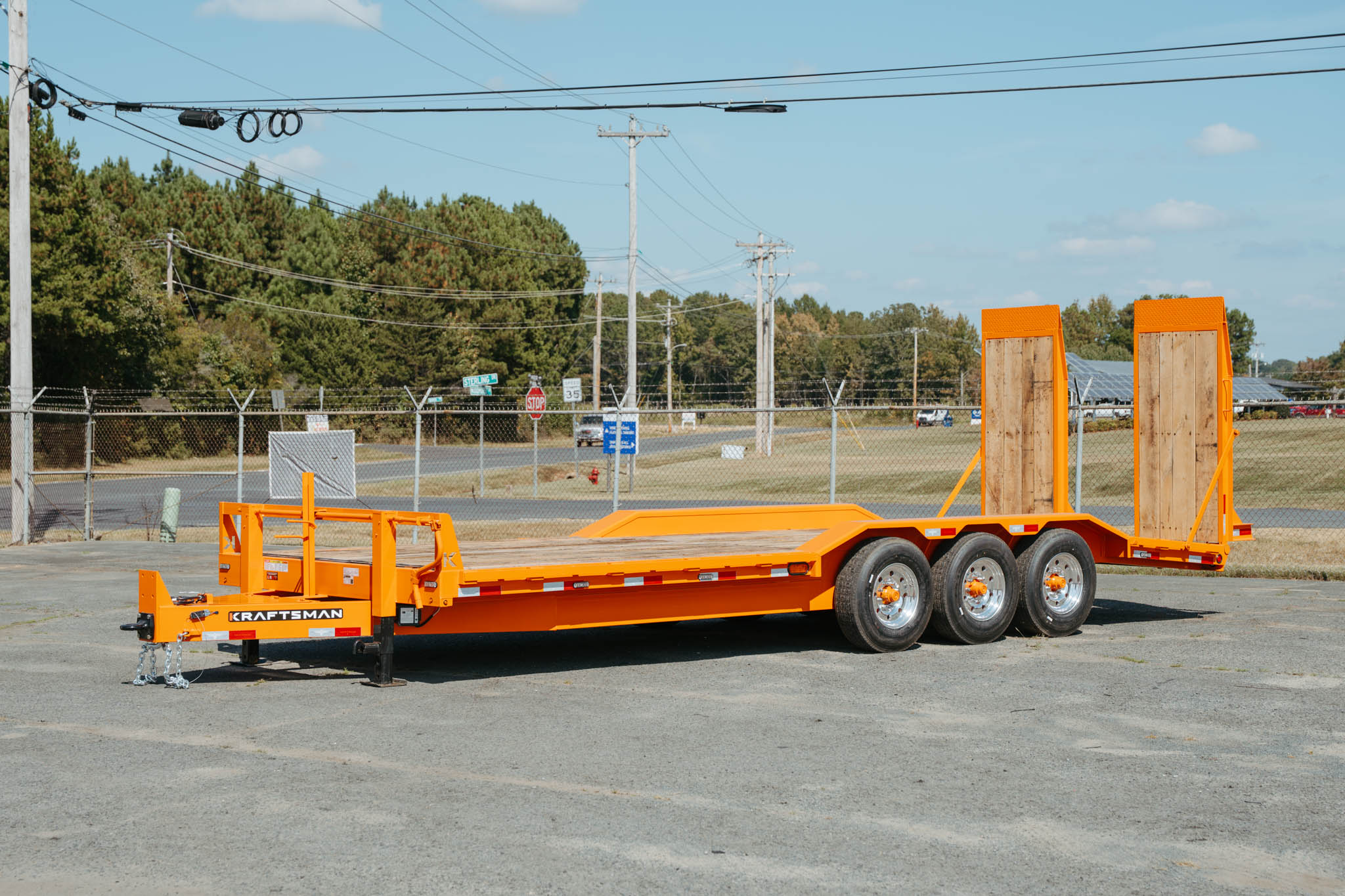

E8-22 SW Super-Wide Fender Equipment Trailer

GVWR: 22,000
Model #: E8-22 SW

Trailer Specifications

The following configurations of this trailer are available to best suit your needs.

Construction

  • 8” Channel Main Frame, Tongue, & Wrapper
  • 3” Crosspieces on 16” Centers
  • 3” C Bump Rail with ‘K’ Brackets

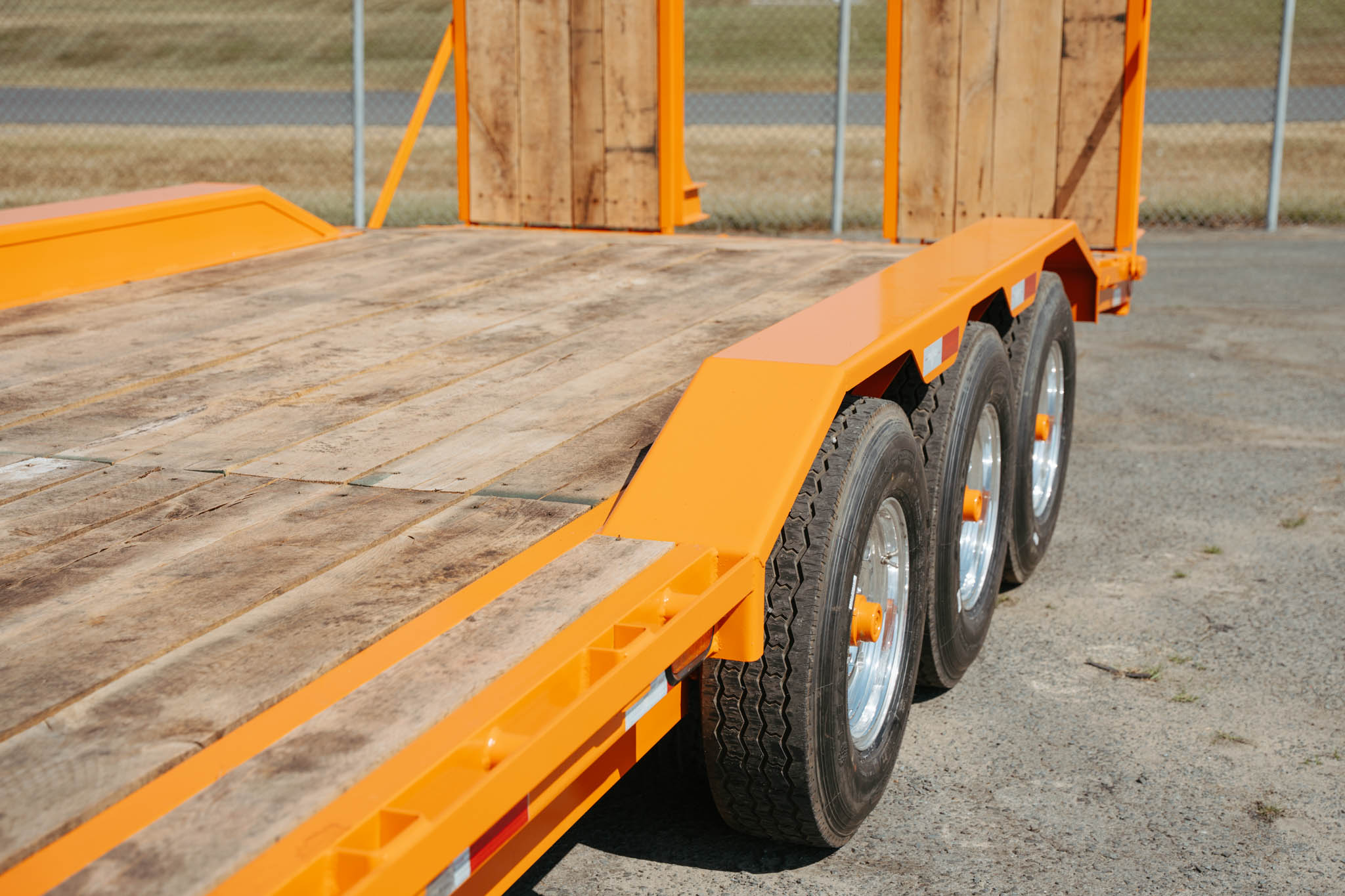

  • Heavy Duty Fabricated Fenders

Electrical

  • Lifetime LED Lighting, Rubber Mounted
  • Marker Lights on Front of Trailer & Steps
  • USA Built Sealed Wiring Harness
  • 7-Way RV-Style Plug

Undercarriage

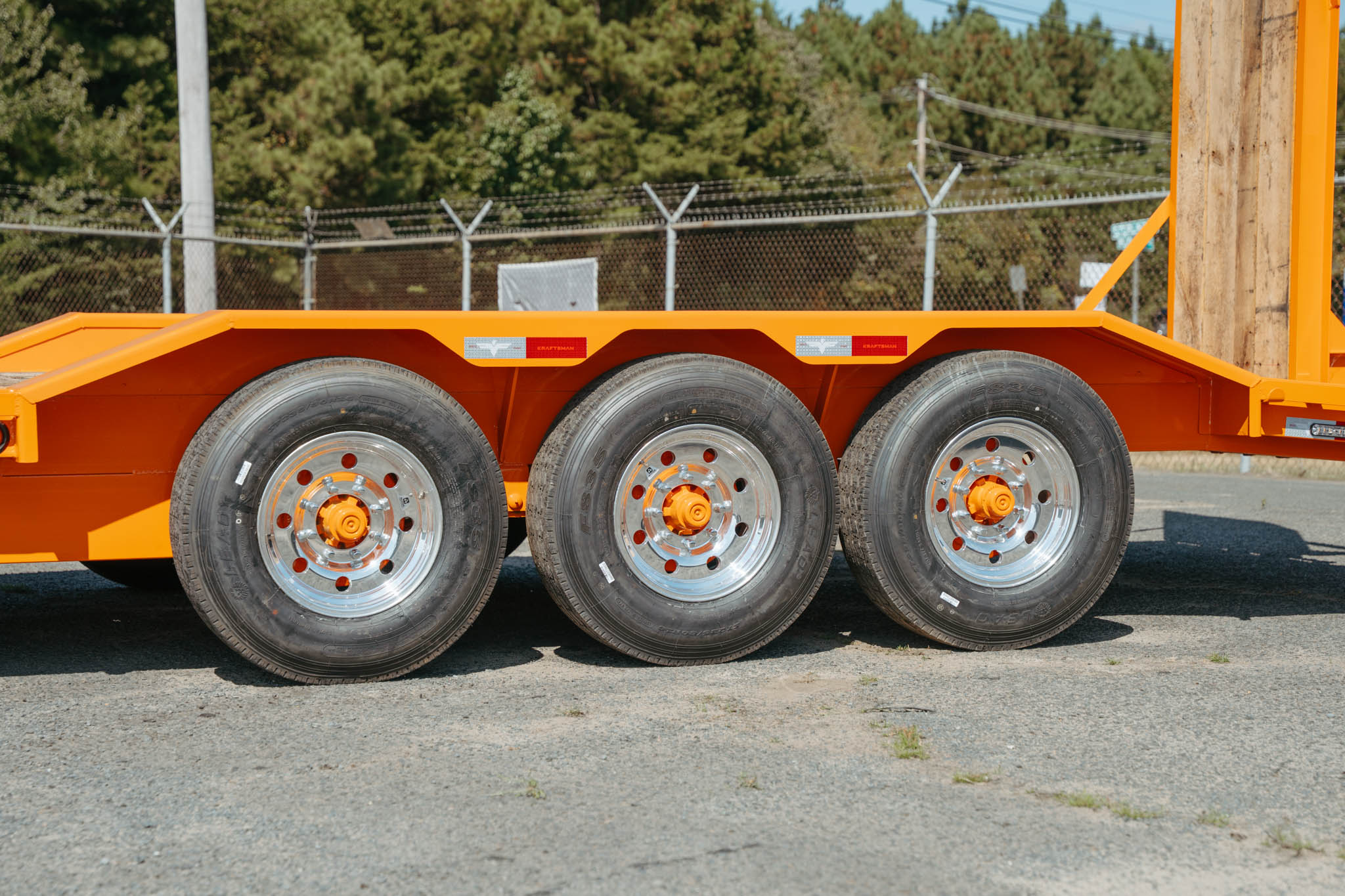

  • 3 x 7,000 lb. EZ-Lube Grease Axles
  • Electric Brakes on All Axles
  • Heavy Duty Slipper Spring Suspension
  • 8 on 6.5” Bolt Pattern
  • 4 x 215/75 R17.5 16 Ply Radial Tires

Dimensions

  • 22,000 GVWR
  • 24’ Deck Standard, 28’ & 32’ Available

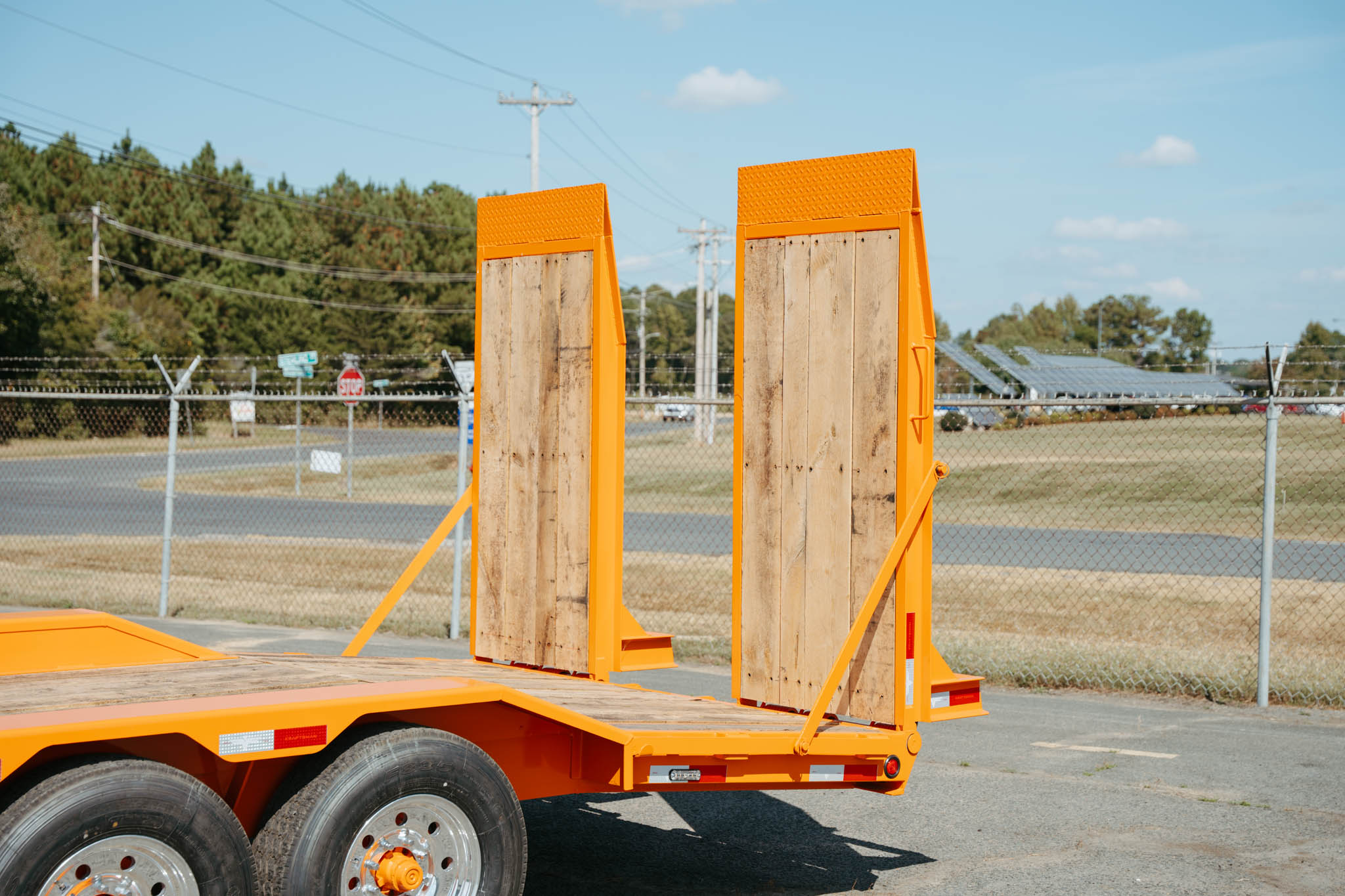

  • 60” x 20” Approx. Spring Assisted Ramps
  • 28” Approx. Deck Height
  • 102” Overall Width, 83” Between Fenders

Additional Features

  • Nominal 2” Pressure Treated #1 Pine
  • 12K Drop Leg, Spring Loaded Jack
  • 3” Pintle Eye Standard, Safety Chains
  • Stake Pockets, Rub Rails, Chain Spools

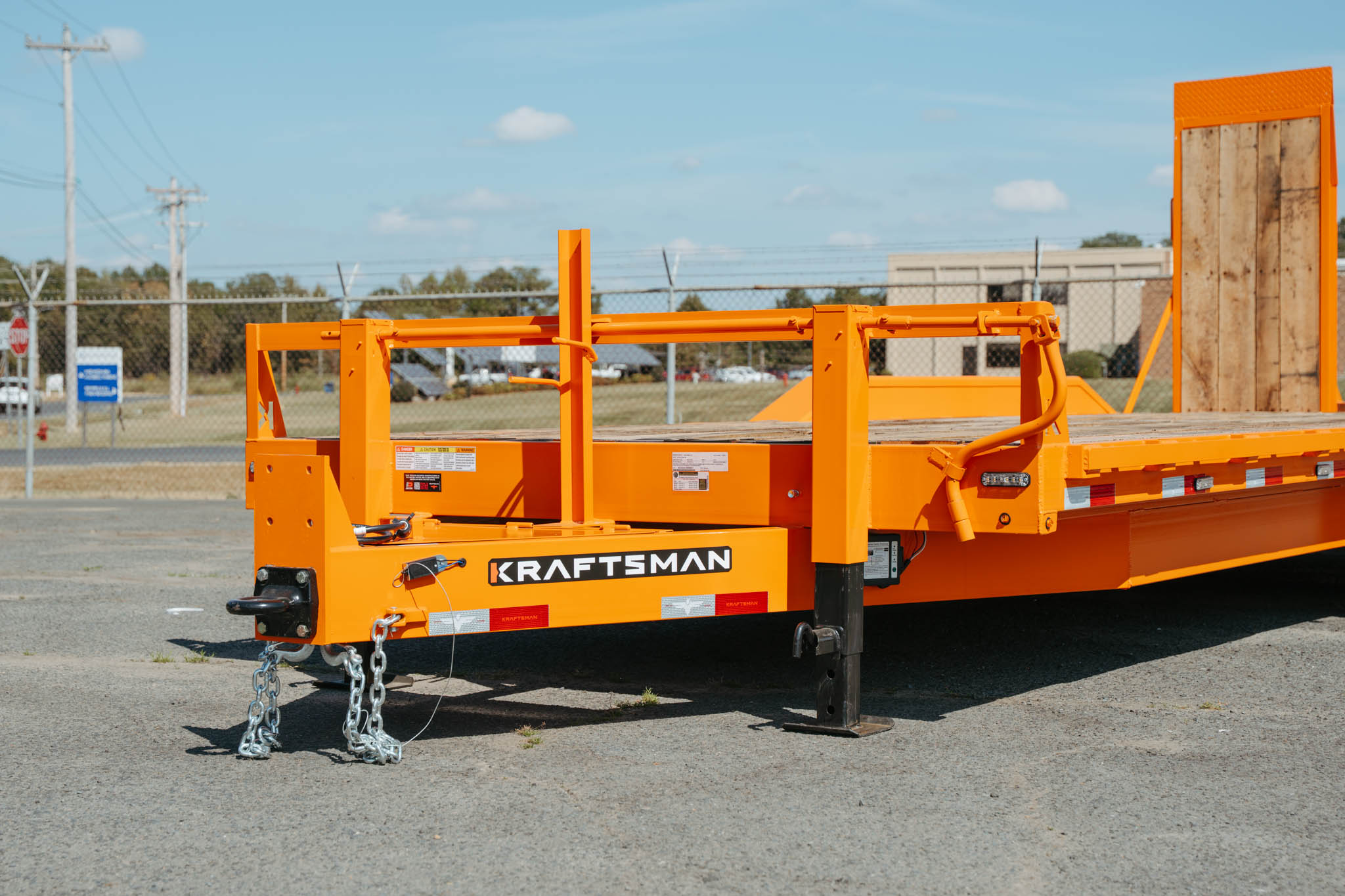

  • Lockable Toolbox in Tongue

Finish

  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals

Available Trailer Options

The following options are available on this model; speak to your sales advisor for the most comprehensive selection. A variety of colors are available, and almost any color can be matched.

Deck Length

20' + 4'
24' + 4'
28' + 4'

Ramps

No Dovetail / No Ramps
33" x 66" Wood-lined Ramps
33" x 66" HD Mesh Ramps
33” x 66” Hydraulic Ramps

Functional

Single or Dual Hydraulic Jacks
Dual 12k Spring Load Jacks
Fork Holders
Oak Decking
Blackwood Decking

Appearance

Linseed Oil Stained Decking

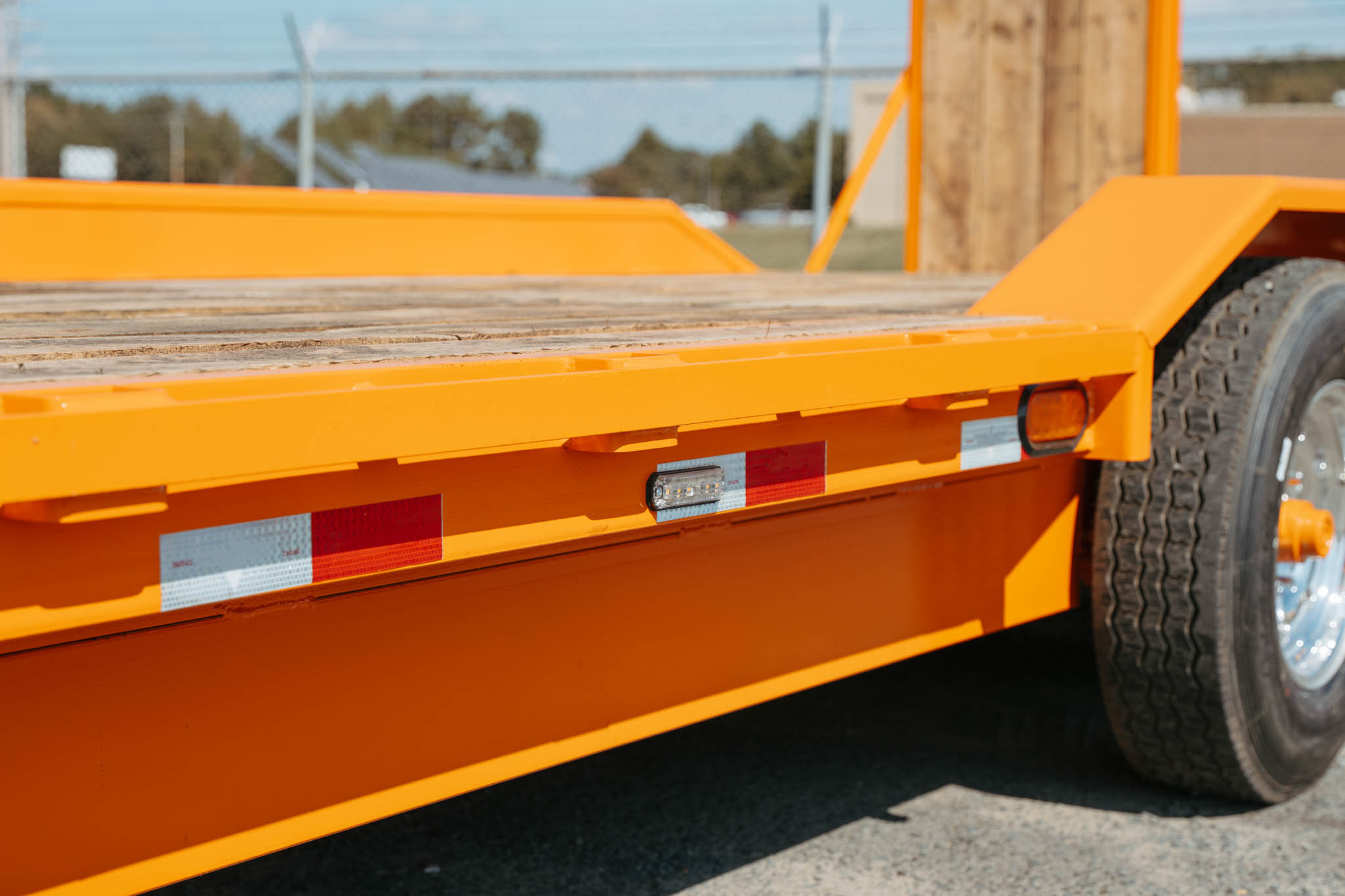

Strobe Light Packages
Aluminum Outer Wheels

ABOUT THE E8-22 SW SUPER-WIDE FENDER EQUIPMENT TRAILER

Kraftsman's model E8-22 SW is constructed with a 8" channel main frame, tongue, and wrapper, and 3" crosspieces on 16" centers.

Standard features on this model include 17.5" Radial tires, 2" pressure treated pine deck floor, 3 x 7,000 lb. EZ-lube grease axles, electric brakes on all axles, and a heavy duty slipper spring suspension. This super wide model boasts a 28" approximate deck height with 60" x 20" spring assisted ramps, perfect for any task you have!

The E8-22 SW has a 22,000 GVWR rating, and is available in the following dimensions: 102" x 24', 102" x 28', and 102" x 32'

Additional options are available. Contact us today to let us know how we can help you!
