E6-15 Fender Equipment Trailer

GVWR: 15,000
Model #: E6-15

Trailer Specifications

The following configurations of this trailer are available to best suit your needs.

Construction

  • 6” Channel Main Frame, Tongue, & Wrapper
  • 3” Crosspieces on 16” Centers
  • 3” C Bump Rail with ‘K’ Brackets
  • 3” Channel Ramp Runners

Electrical

  • Lifetime LED Lighting, Rubber Mounted
  • Marker Lights on Front of Trailer & Steps
  • USA Built Sealed Wiring Harness
  • 7-Way RV-Style Plug

Undercarriage

  • 2 x 7,000 lb. EZ-Lube Axles
  • 12” x 2” Brakes on Both Axles
  • Slipper Spring Suspension
  • 8 on 6.5” Bolt Pattern
  • 4 x 235/80 R16 10 Ply Radial Tires

Dimensions

  • 15,000 GVWR, 11,500 lb. Max Capacity
  • 18’ Deck Standard, 20’ & 22’ Available

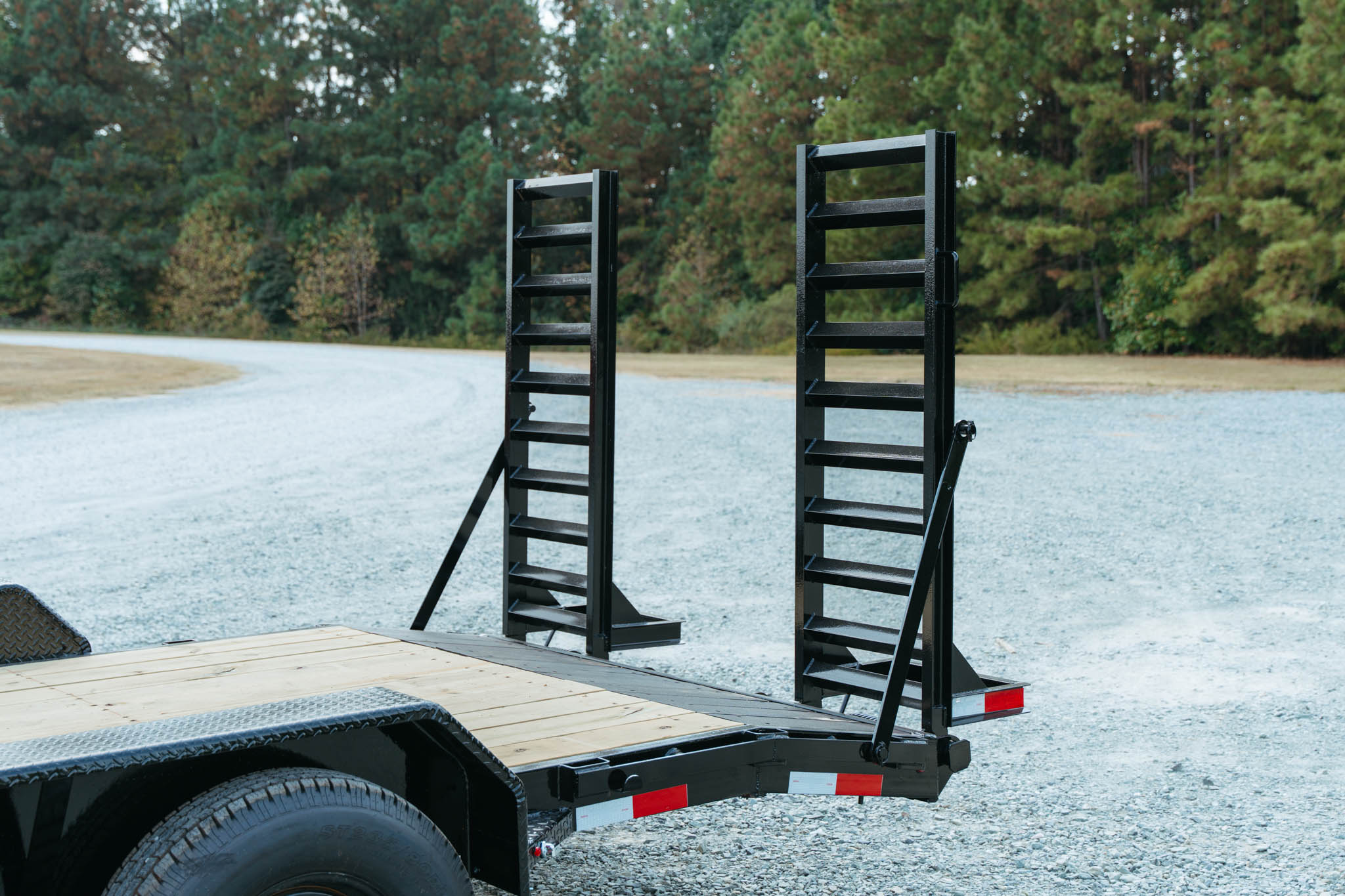

  • 60” x 20” Approx. Spring Assist Ramps
  • 26” Approx. Deck Height

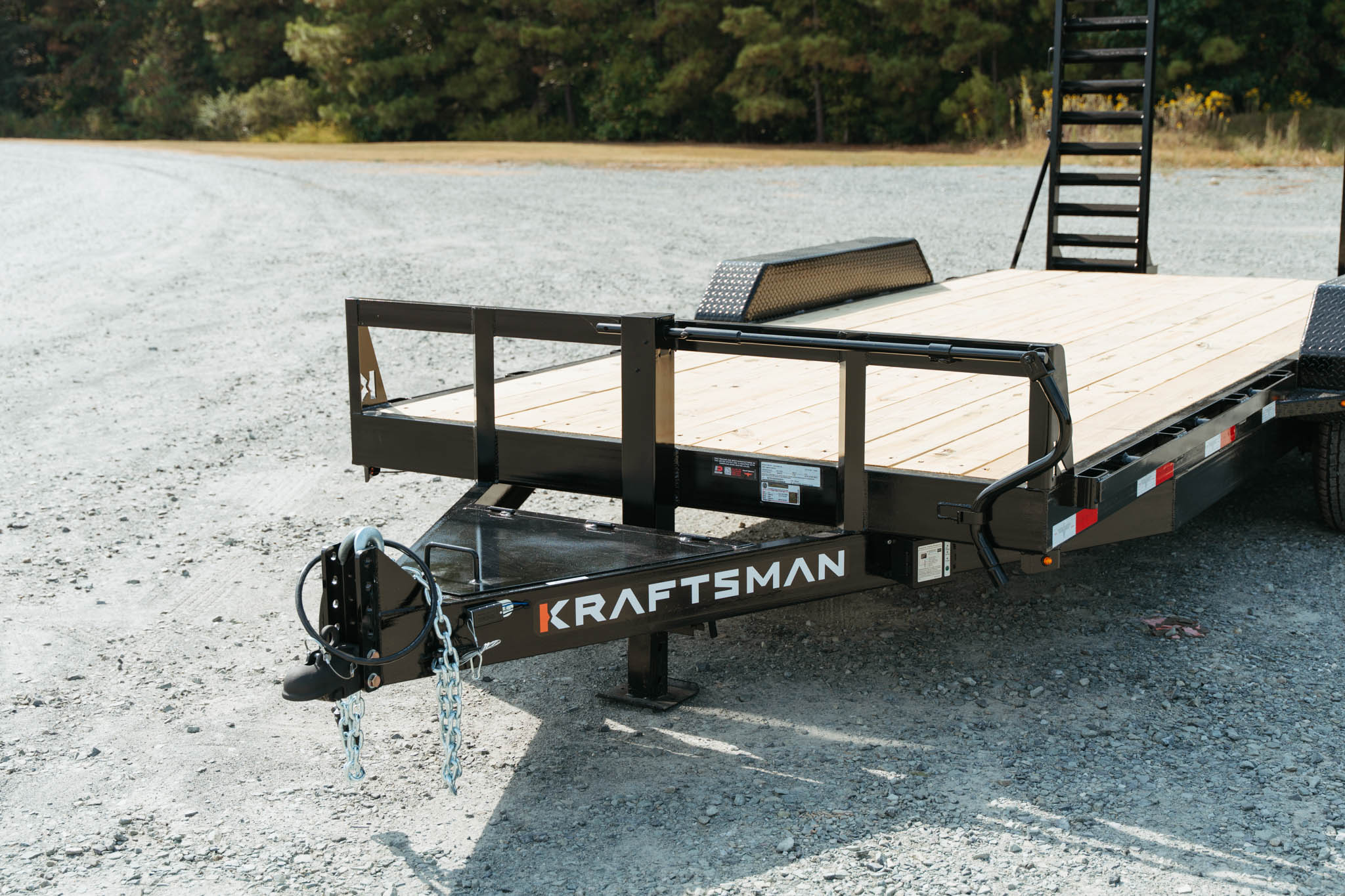

  • Approx. 4’ Tongue, 6” Channel Construction

Additional Features

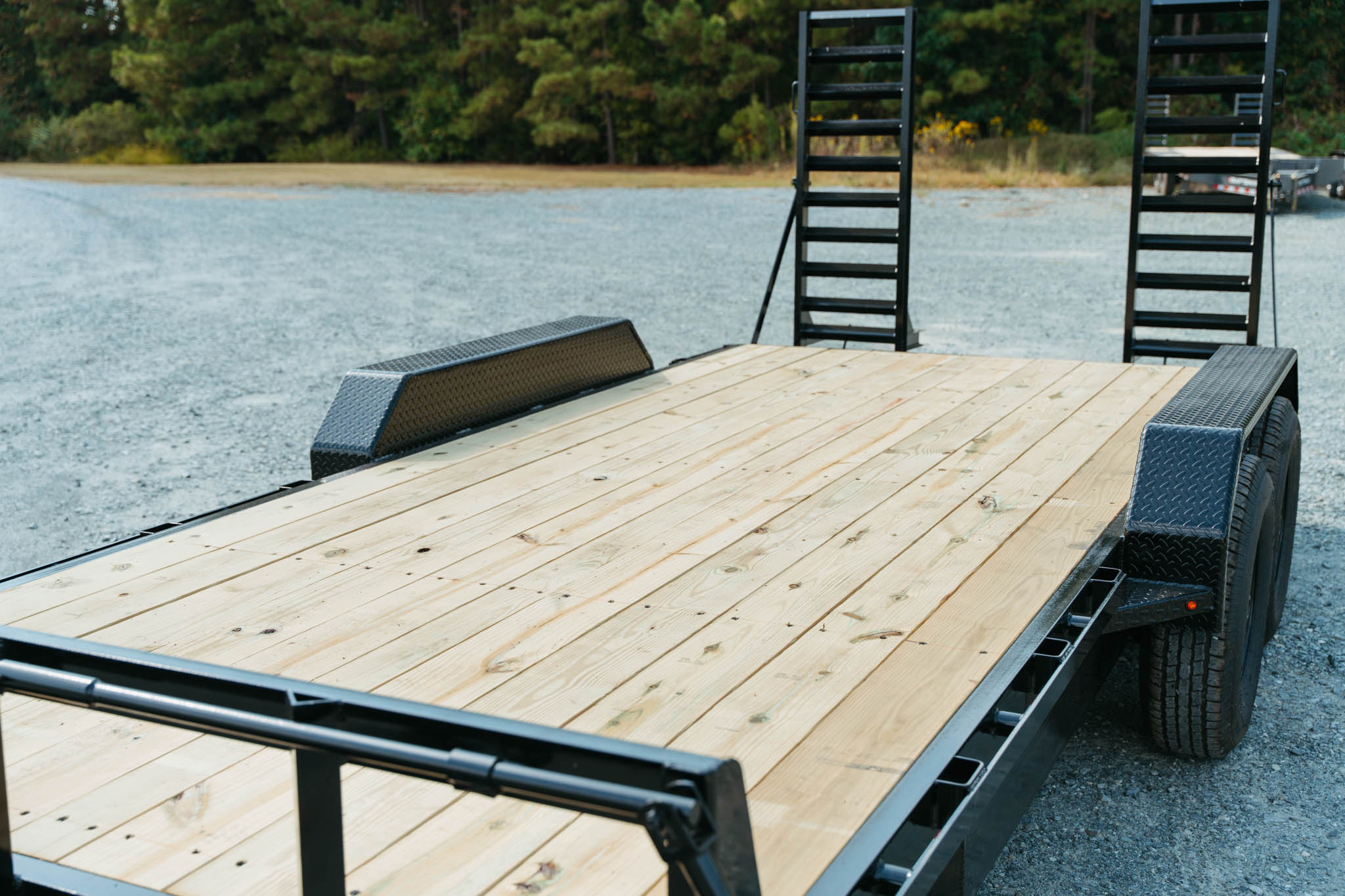

  • Nominal 2” Pressure Treated #1 Pine
  • 12K Drop Leg, Spring Loaded Jack
  • 2 5/16” Adj. Channel Coupler, Safety Chains
  • Stake Pockets, Rub Rails, Chain Spools
  • Lockable Toolbox in Tongue

Finish

  • High Pressure Phosphate Wash
  • Primed Top & Bottom w/ Automotive Primer
  • Two Top Coats of 2-Part PPG Black Gloss
  • DOT Reflective Tape, Kraftsman Decals
  • Safety & Operational Decals

Available Trailer Options

The following options are available on this model; speak to your sales advisor for the most comprehensive selection. A variety of colors are available, and almost any color can be matched.

Deck Length + Dovetail

16' + 2'
18' + 2'
20' + 2'

Ramps

60" x 20" Stand-Up, Spring-Assisted Ramps
No Dovetail / No Ramps
33" x 66" Wood-lined Ramps
33" x 66" HD Mesh Ramps

Functional

Up to 12" oc Crossmembers & 16" 14ply Tires
Fork Holders
Oak Decking
Blackwood Decking
Spare Tire & Mount

Appearance

Linseed Oil Stained Decking
Strobe Light Packages
Aluminum Outer Wheels

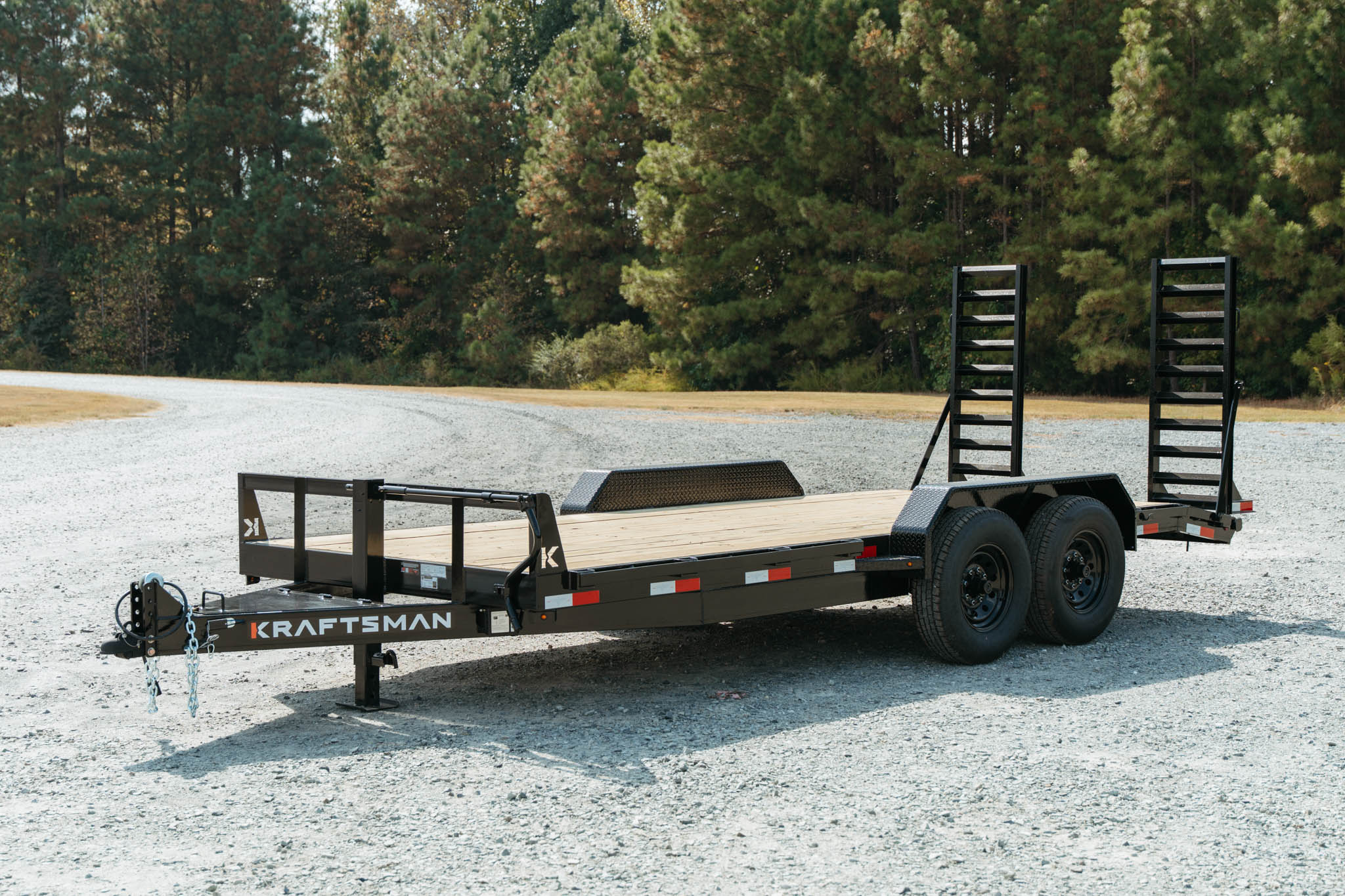

ABOUT THE E6-15 FENDER EQUIPMENT TRAILER

The Kraftsman E6-15 is constructed with a 6" channel main frame and tongue, and 3" crosspieces on 16" centers.

Standard features on this model include 16" Radial tires, 2" pressure treated pine deck floor, 2 x 7,000 lb. EZ-Lube axles,12" x 2" brakes on both axles, 60" x 20" stand-up ramps with springs, and a lockable trailer tongue toolbox. This model comes with an 26" approximate deck height for easy loading and unloading.

The E6-15 has a 15,000 GVWR rating with a 11,500 lb. true capacity, and is available as 83" x 18', 83" x 20', and 83" x 22'.

Additional options are available. Contact us today to let us know how we can help you!
