7K Scissor Hauler Tilt Trailer
Trailer Specifications
The following configurations of this trailer are available to best suit your needs.
Construction
- 5” Channel Frame
- 3/16 inch Diamond Plate Floor
- Formed Pan Sides
- Crosspieces on 16'' Centers
Electrical
- Lifetime LED Lighting, Rubber Mounted
- Marker Lights on Front of Trailer & Steps
- USA Made Sealed Wiring Harness
Undercarriage

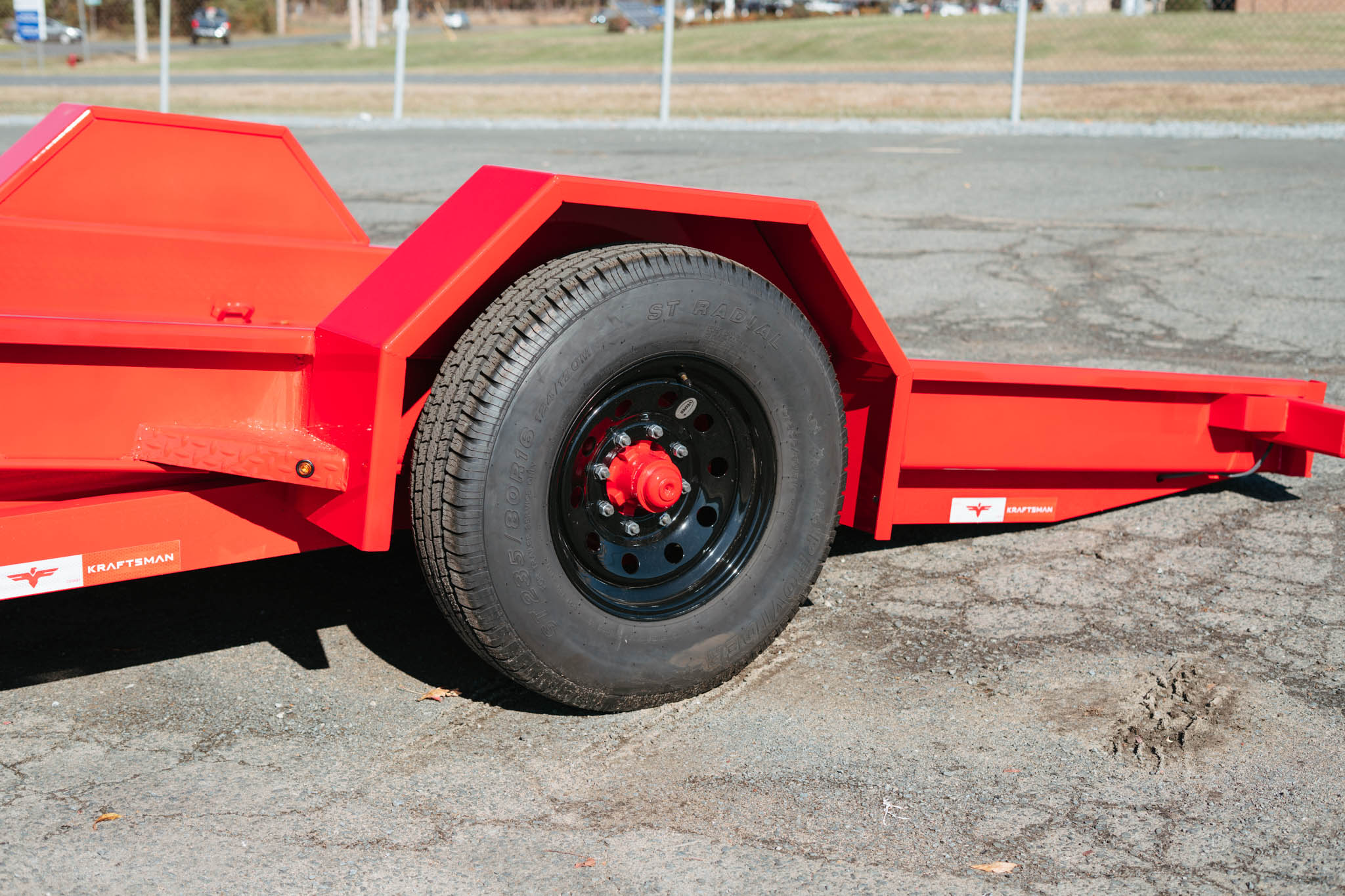

- 7K Easy Lube Electric Brake Spring Axles
- 2 x 235/80 R16 10 Ply Tires
- Torsion Suspension
Dimensions
- 7,000 GVWR, 5,135 lb. Max Capacity
- 12’ Tilt Deck Standard
Additional Features
- 8K Drop Leg Jack

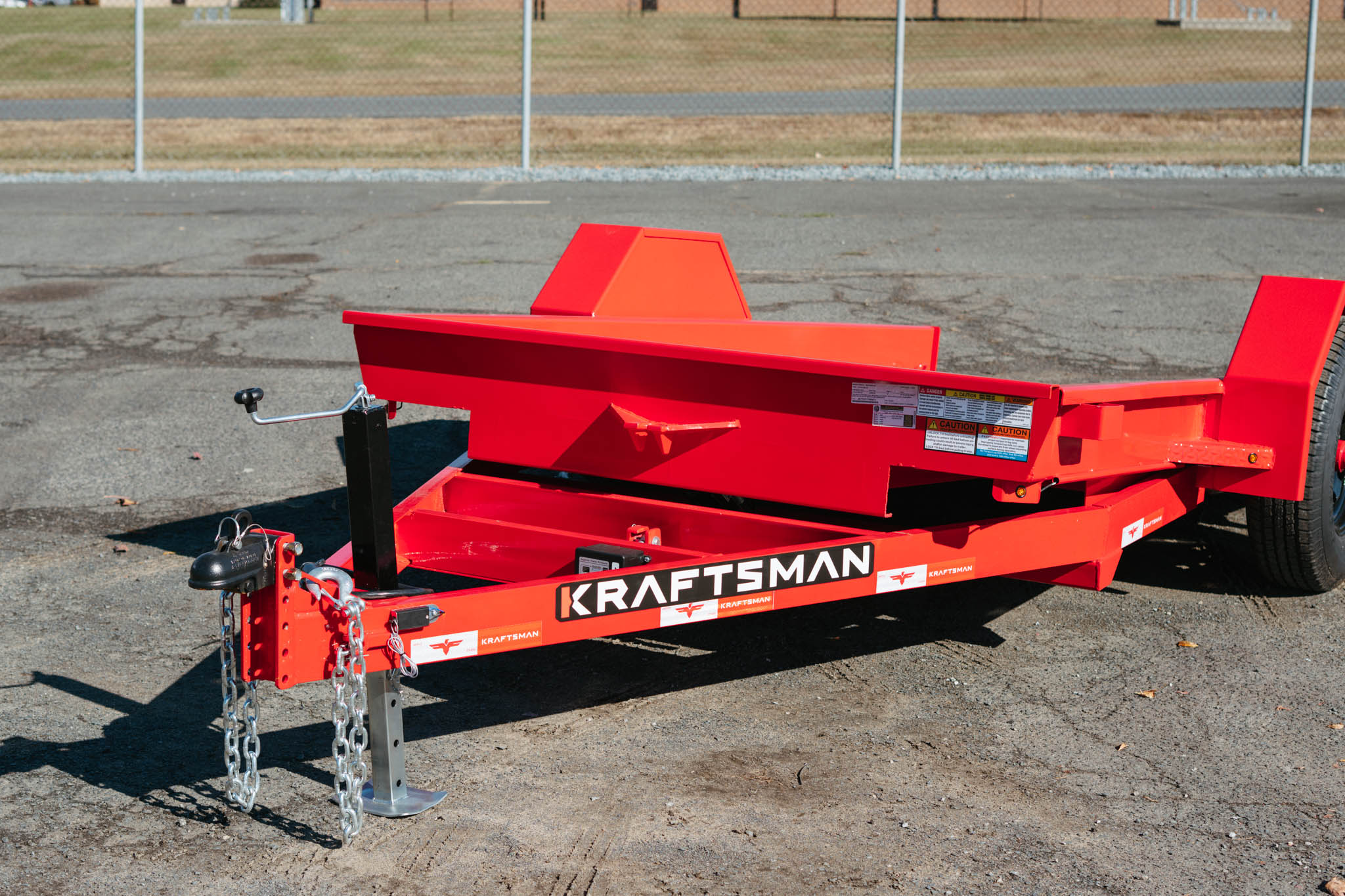

- 2-5/16” 21K Adjustable Coupler
- 7 x D-Rings
- Knife Edge Approach
Finish
- High Pressure Phosphate Wash
- Primed Top & Bottom w/ Automotive Primer
- Two Top Coats of 2-Part PPG Black Gloss
- DOT Reflective Tape, Kraftsman Decals
- Safety & Operational Decals

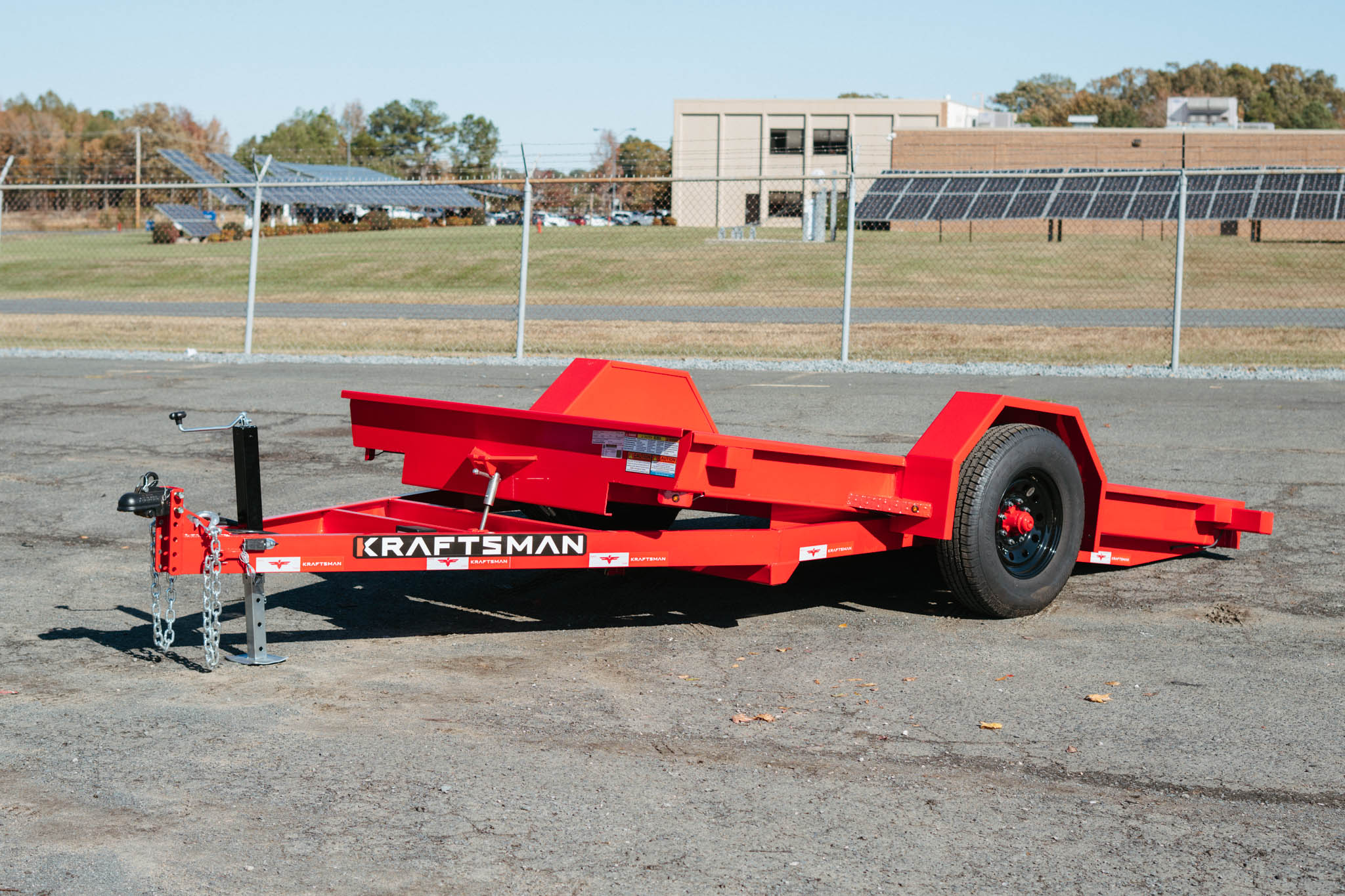

The Kraftsman TS-07 scissor hauler is a trailer truly built for purpose: hauling and loading/offloading scissor lifts and similar low-clearance equipment.

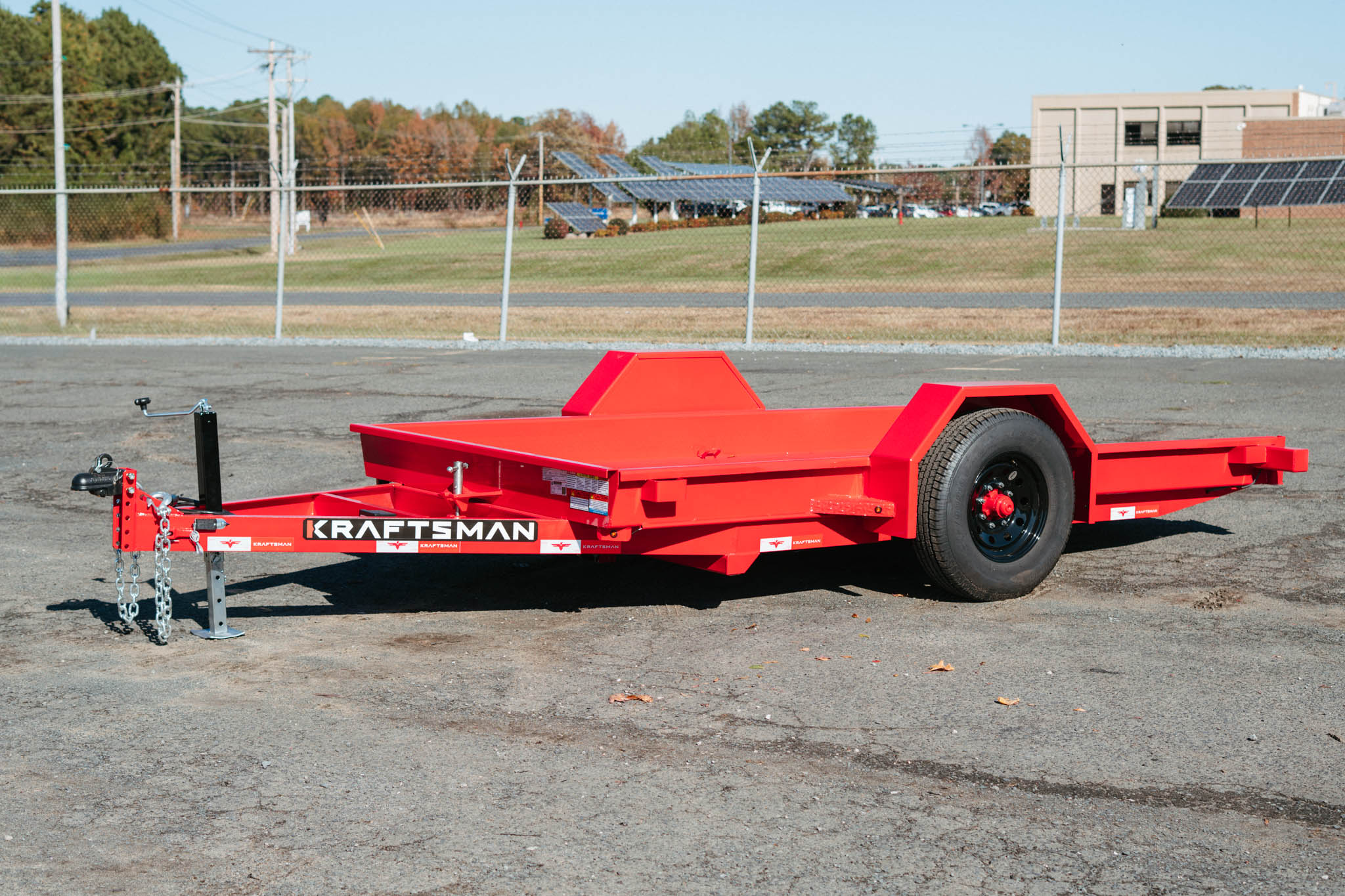

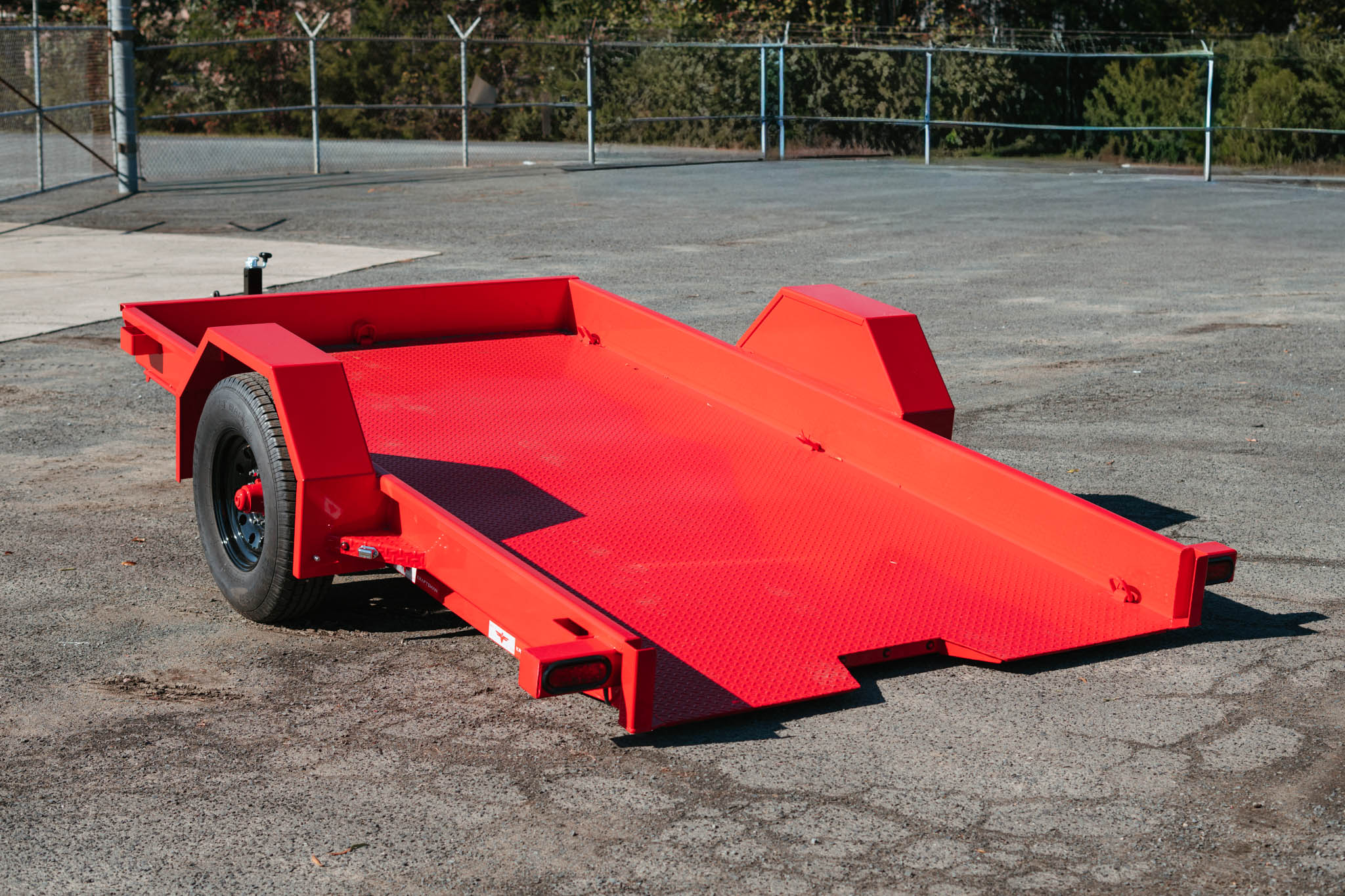

The TS scissor lift trailer has a 5" channel frame and features a 3/16 diamond plate floor, 7K torsion axle, 2-5/16" 21k coupler, 7k drop leg jack, and a gravity tilting bed with a 10 degree loading angle.
This trailer also sports a knife-edge approach on the rear of the bed for easy loading, and to secure your scissor lift, four stake pockets and seven D-Rings.
If you're hauling a scissor lift, or other lighter equipment that needs a an easy-loading tilt, check out the Kraftsman TS-07 scissor hauler tilt trailer!
