21K Kraftsman Deckover Flatbed Tilt Trailer
Trailer Specifications
The following configurations of this trailer are available to best suit your needs.
Construction
- 10” @ 12 lb. I-Beam Main Frame
- 3” Crosspieces on 16” Centers
- Rub Rail with Stake Pockets & Chain Spools
- Diamond Plate Steel Approach Plate
Electrical
- Lifetime LED Lights, Rubber Mounted
- Marker Lights on Front of Trailer & Steps
- USA Made Sealed Wiring Harness

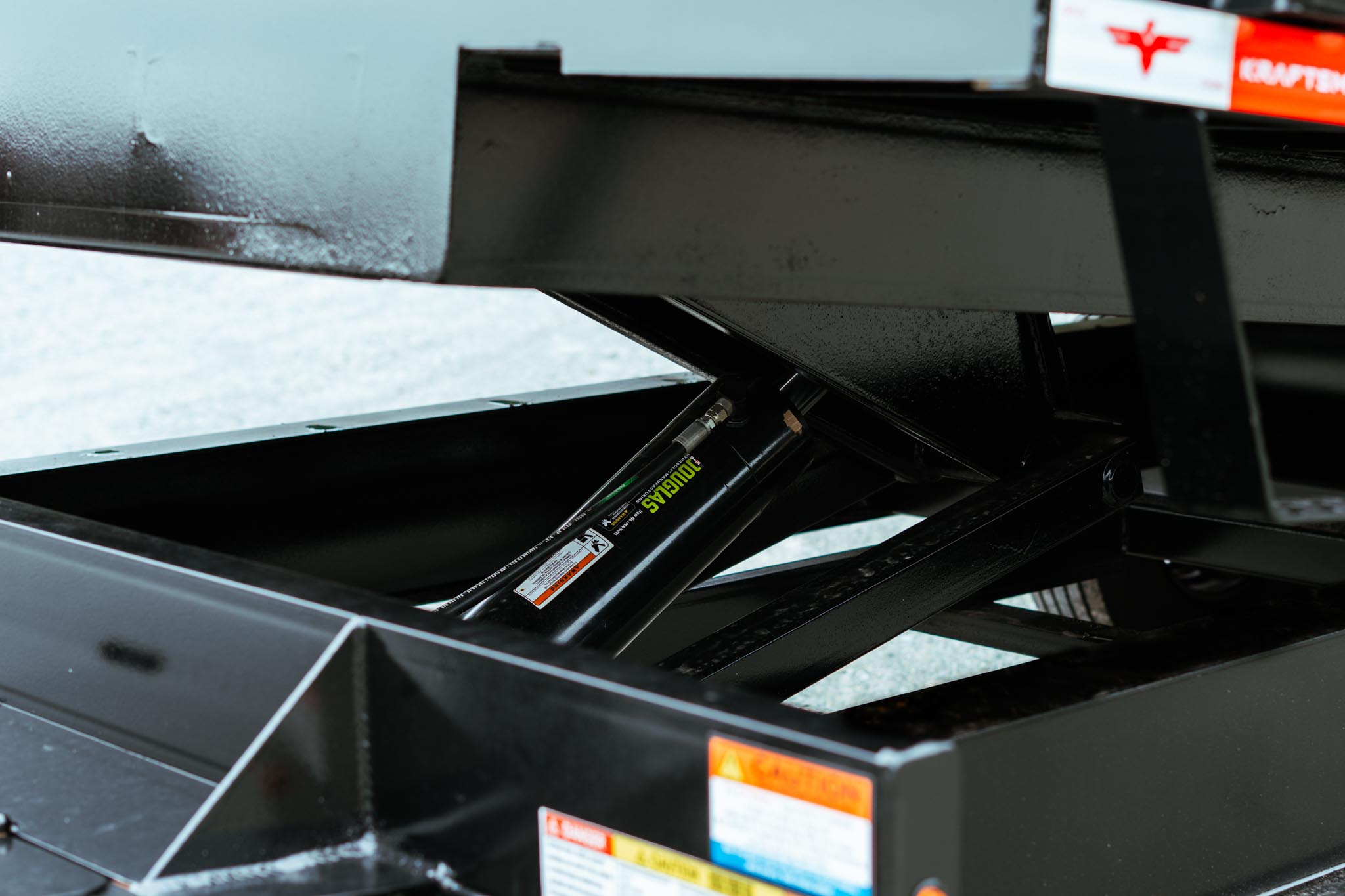

- 3 Way 12V DC Pump
Undercarriage

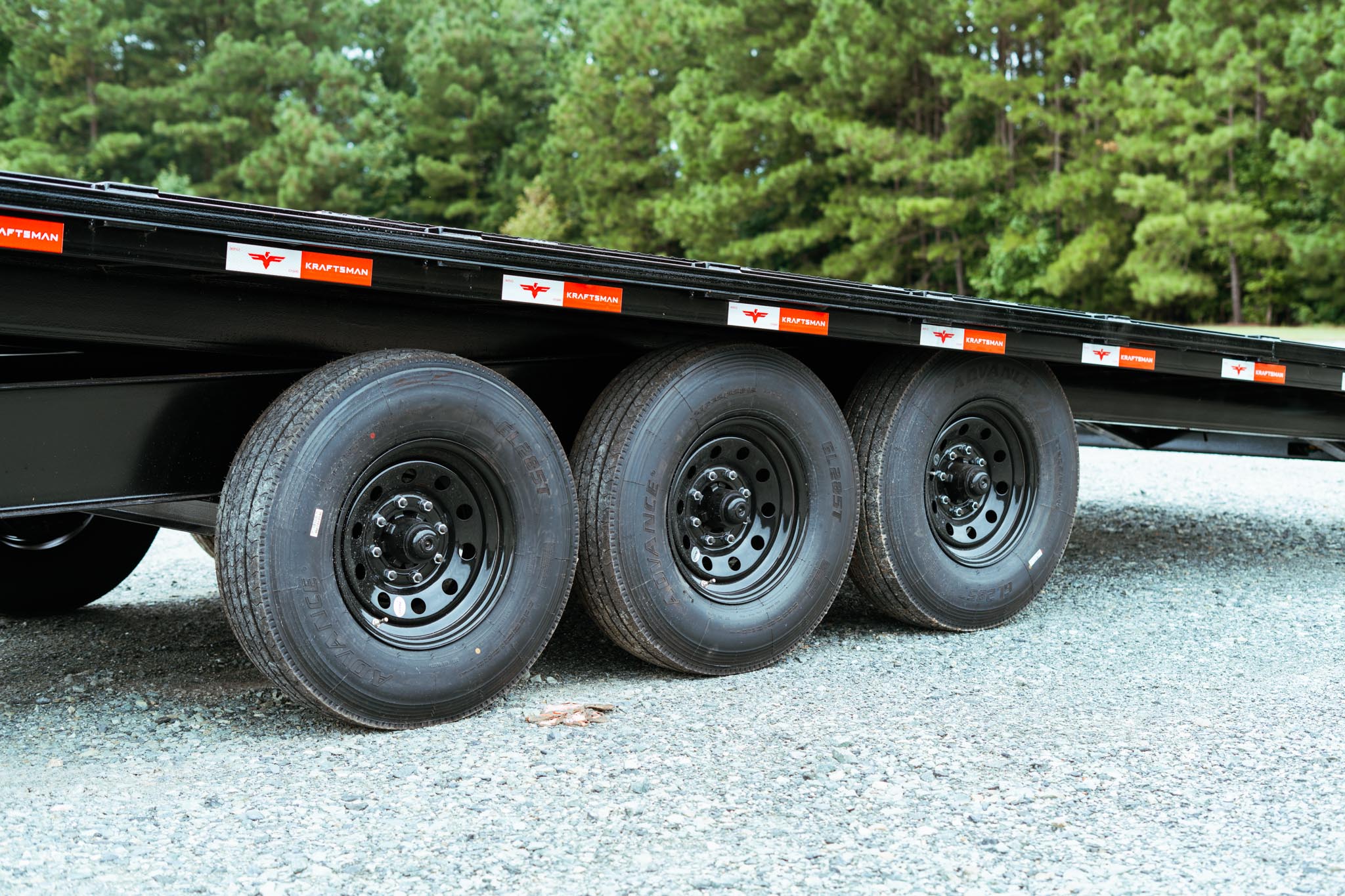

- 3 x 7,000 lb. EZ Lube Axles
- 6 x 235/80 R16 10 Ply Radial Tires
- 8 on 6.5” Bolt Pattern
- Slipper Spring Suspension
Dimensions
- 21,000 lb. GVWR
- 102” Wide x 26’ Deck Standard
- Approx. 35” Deck Height
- Approx. 6’ Cold-Formed Tongue
Additional Features
- Nominal 2'' Pressure Treated #1 Pine Deck
- Single 12K Drop-Leg, Spring-Loaded Jack
- 2-5/16” Adjustable Coupler
- Large Front Tool Box
Finish
- High Pressure Phosphate Wash
- Primed Top & Bottom w/ Automotive Primer
- Two Top Coats of 2-Part PPG Black Gloss
- DOT Reflective Tape, Kraftsman Decals
- Safety & Operational Decals
About The FT-21 Deckover Full Tilt Equipment Trailer
Kraftsman Trailer's model FT-21 is a 21K deckover full tilt equipment trailer designed for reliable hauling and constructed with a 10” 12-pound I-beam frame and 3” crosspieces on 16” centers.

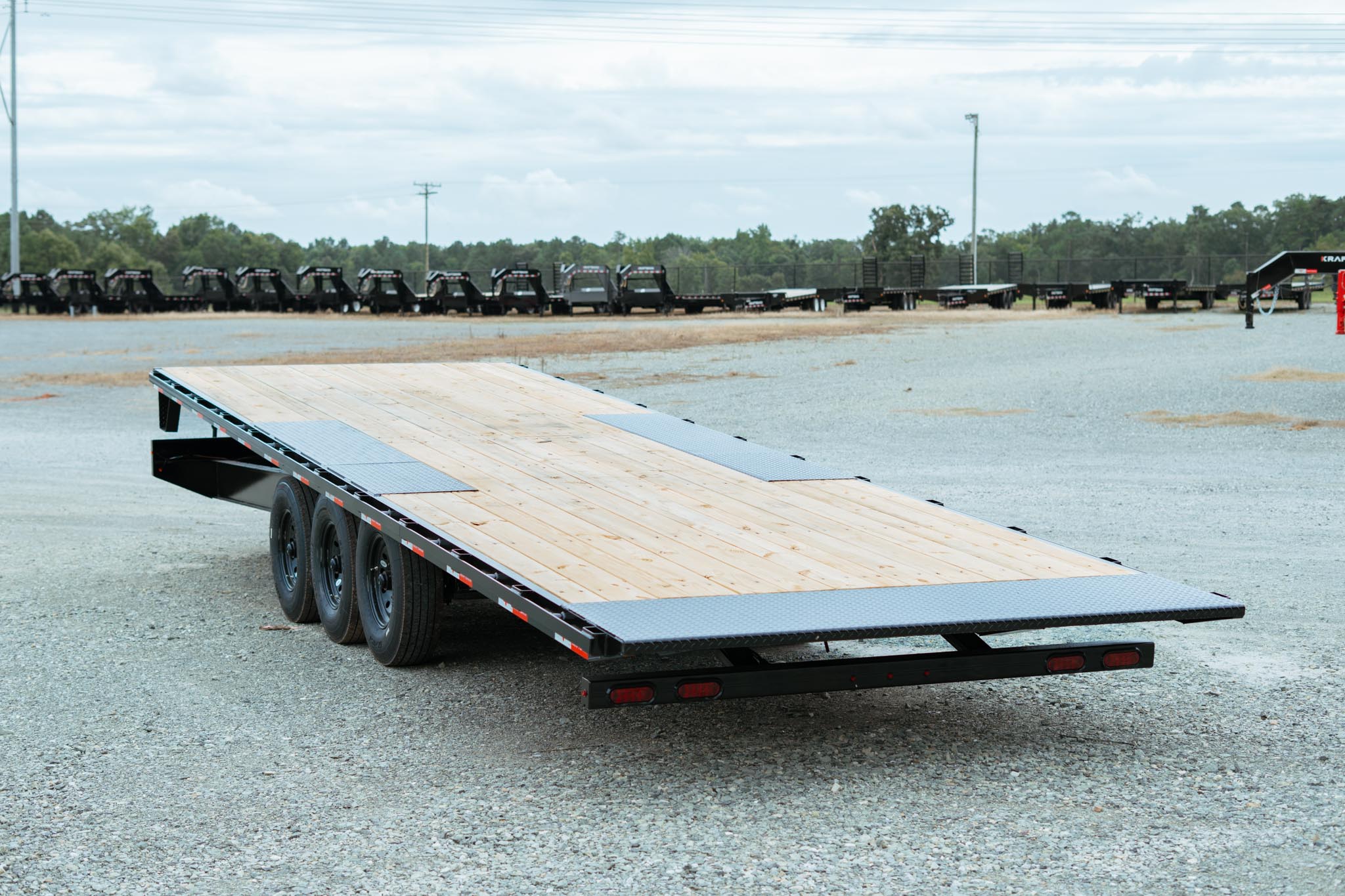

Standard features on the FT-21 full tilt trailer include 16" wheels with 10 ply radial tires, 2" pressure treated pine deck floor, 3 x 7,000 lb. EZ-Lube axles, 12" x 2" brakes on both axles, diamond plate steel approach plate, and a lockable front toolbox. This model comes with a 35" approximate deck height and a 26' standard tilt deck for easy loading and unloading.
The FT-21 hydraulic full tilt equipment trailer has a 21,000 GVWR rating, and is available in one deck size of 102” x 26’. A heavy duty package that puts crosspieces on 12" centers is also available, and allows the trailer to haul more per foot. Additional options are available.
Contact us today at 833-789-4285 to learn more about this 21K full tilt equipment trailer. If you're looking for other tilt trailers, check out our full tilt trailer category page.
