20 Ton Partial Tilt Heavy Equipment Trailer
Trailer Specifications
The following configurations of this trailer are available to best suit your needs.
Construction
- 14” @ 22 lb. I-Beam Main Frame & Tongue
- 6” Crosspieces on 16” Centers
- 10'' @ 19 lb. I-beam Perimeter Frame on Tilt
- 6” Channel Headboard
Electrical
- Lifetime LED Lights, Rubber Mounted
- Mid-Span Amber Turn Signals
- USA Made Sealed Wiring Harness
- 7-Way Semi-Style Plug
Undercarriage
- 2 x 25,000 lb. Heavy Wall Oil Bath Axles
- 12 1/4” x 7 1/2” All Wheel Air Brakes
- Hutch 9700 Suspension, 49” Axle Spread
- 2S/1M ABS, T3030 Air Chambers
- 215/75 R17.5 16 Ply Tires, 17.5” Rims
Dimensions
- 49,000 GVWR
- 5’ Fixed Deck + 25’ Tilt Bed
- 12'' Air-Activated Approach Plate
- 36” Unloaded Deck Height

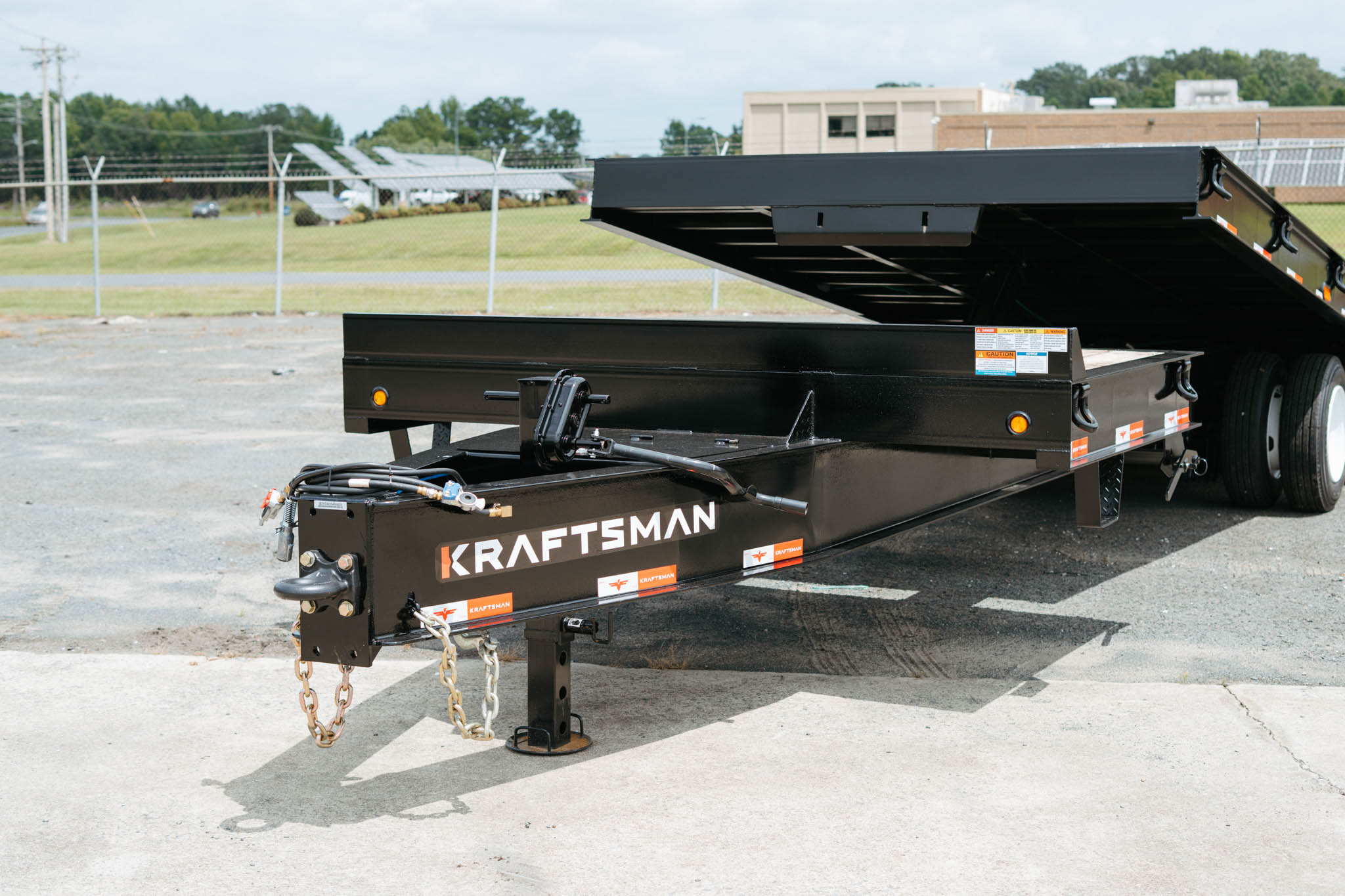

- 6’ Hydraulic Cold-Formed Tongue
Additional Features

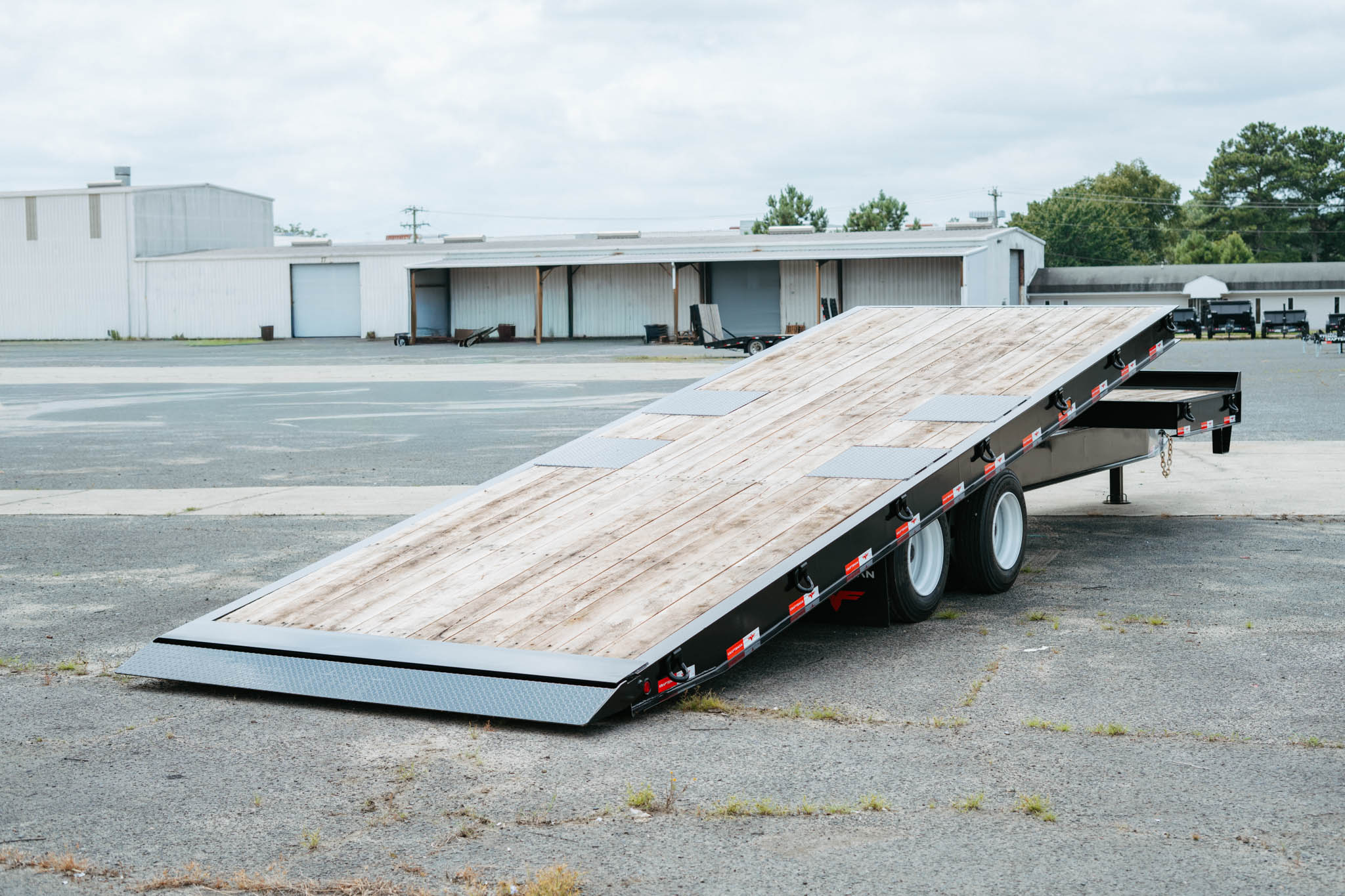

- 2” Nominal Oak Decking
- Single 25K 2-Speed Jack
- 60,000 lb. Bolt-On, Adjustable Pintle
- Heavy Duty D-Rings on 48” Centers
- HD Anti-Sail Mudflaps
Finish
- High Pressure Phosphate Wash
- Primed Top & Bottom w/ Automotive Primer
- Two Top Coats of 2-Part PPG Black Gloss
- DOT Reflective Tape, Kraftsman Decals
- Safety & Operational Decals
ABOUT THE HT-40 FD HEAVY EQUIPMENT PARTIAL TILT TRAILER

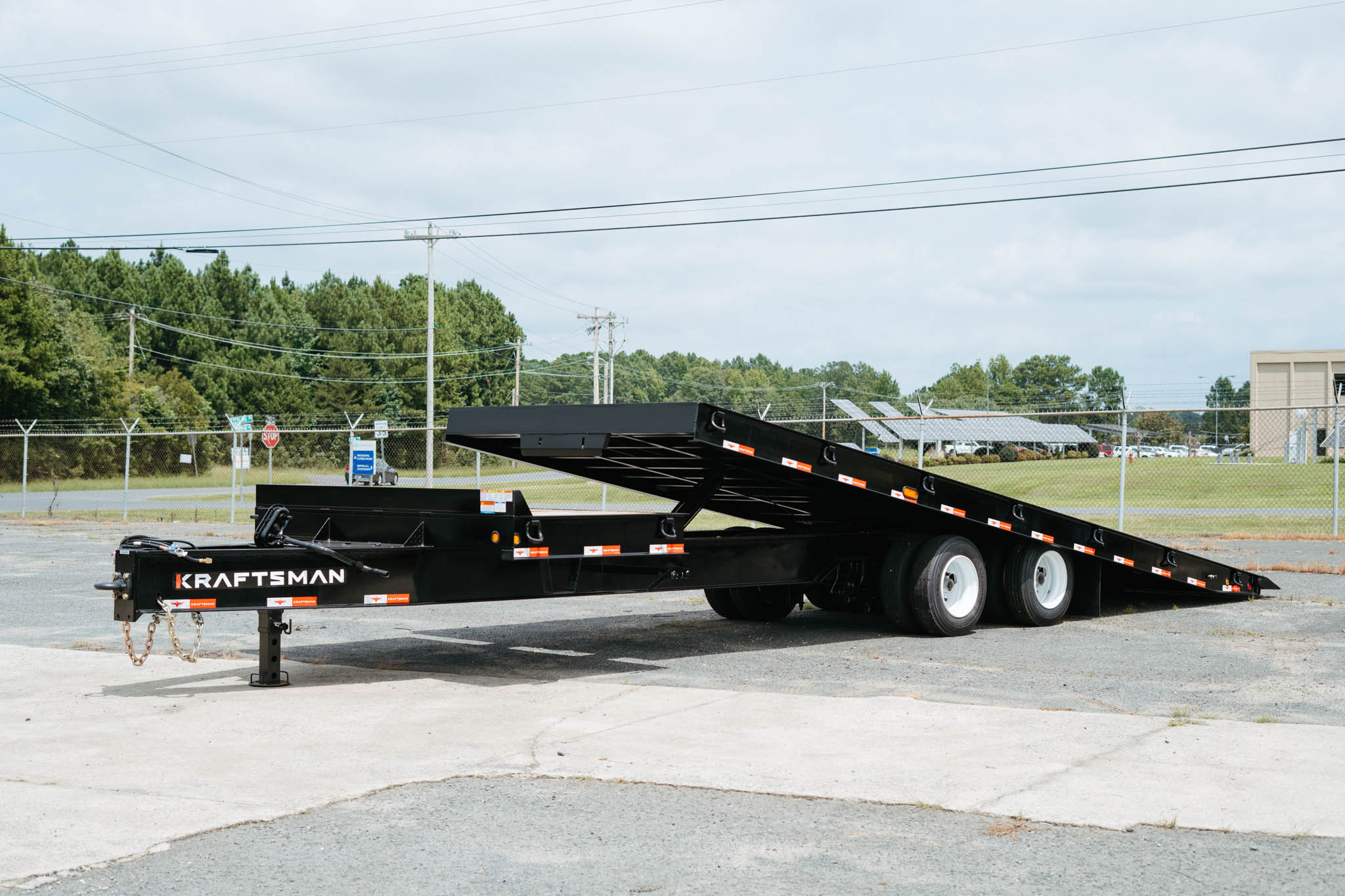

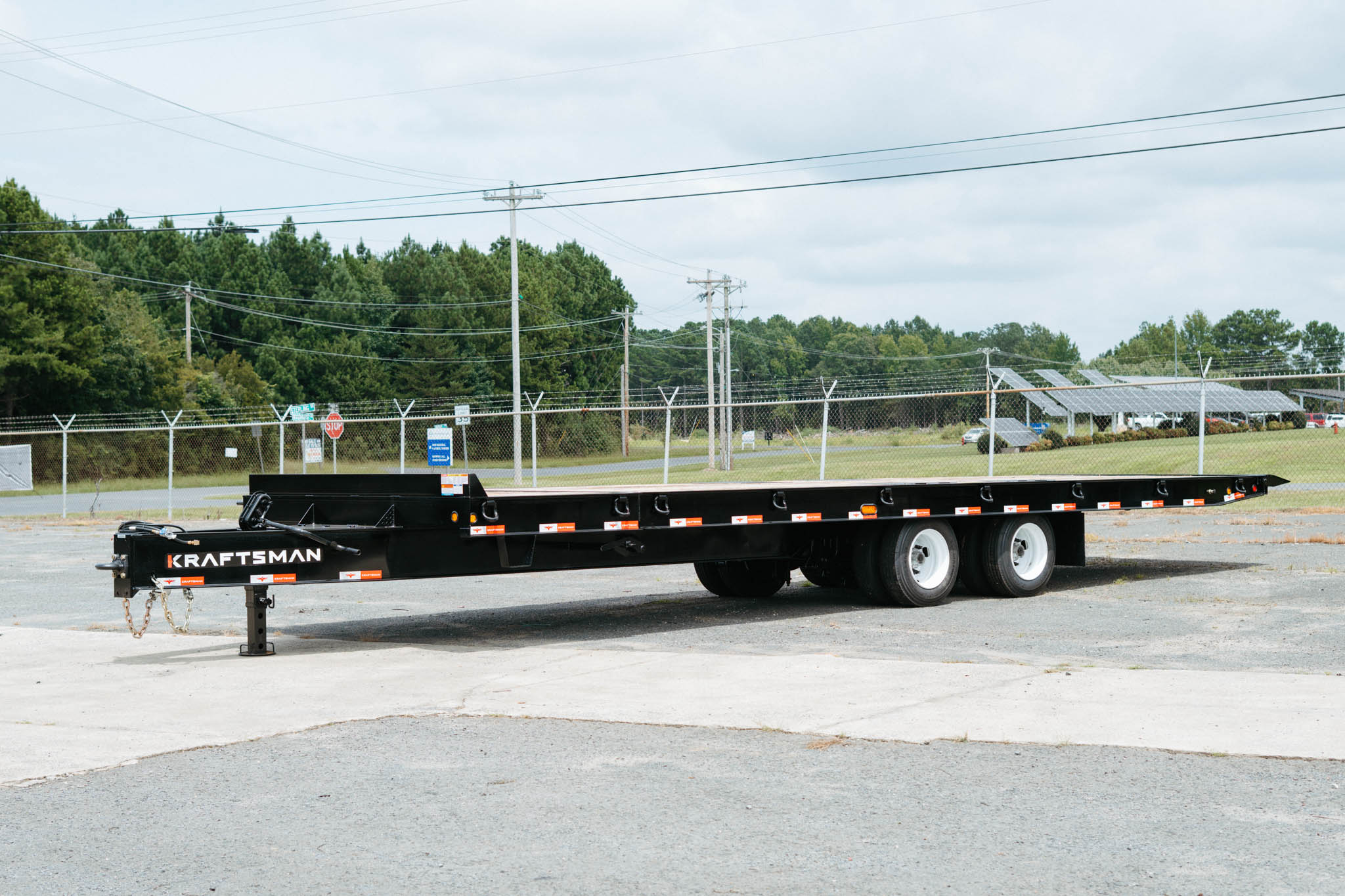

Kraftsman's HT-40 FD 20 Ton Partial Tilt Heavy Equipment Trailer is constructed with a 14" I-beam main frame and tongue, 6" pierced crosspieces throughout the main beam on 16" centers, and a 10" I-beam side rail on tilt.

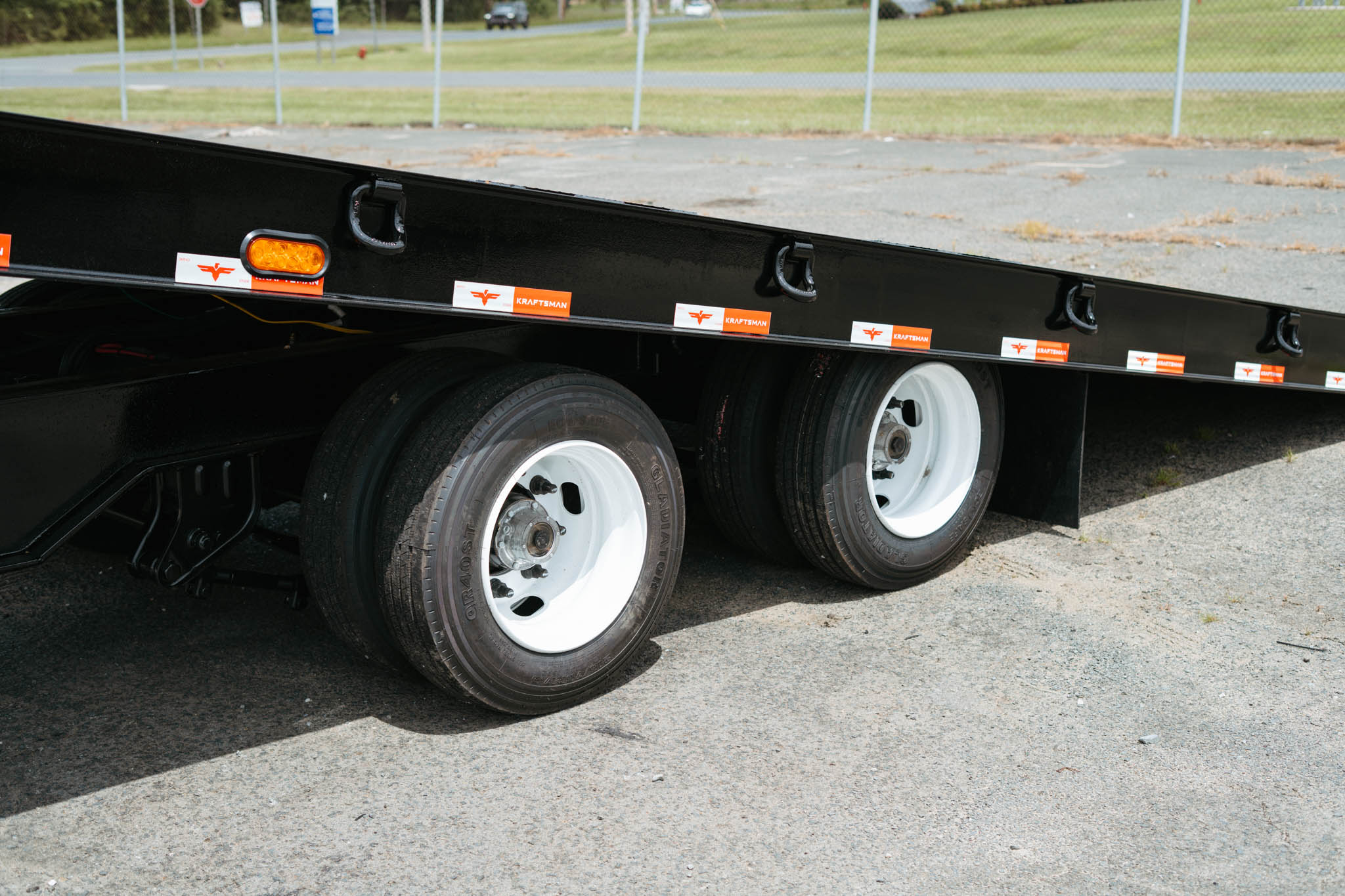

The running gear on the HT-40 FD includes 17.5" 16 ply radial tires, two 25,000 lb heavy wall oil bath axles, and Hutch 9700 suspension with a 49" axle spread. It is decked with 2" nominal oak, and is equipped with a 25' tilt deck. The trailer comes standard with a 49,000 GVWR rating.
The HT-40 FD features a 25' tilt deck, and is available in three lengths: 102" x 30' (5' + 25'), 102" x 32' (7' + 25'), and 102" x 34' (9' + 25')
Additional options are available. Contact us today to let us know how we can help you!
