14K Full Tilt Low Bed Trailer
GVWR: 14,000
Model #: TR-14
Trailer Specifications
The following configurations of this trailer are available to best suit your needs.
Construction

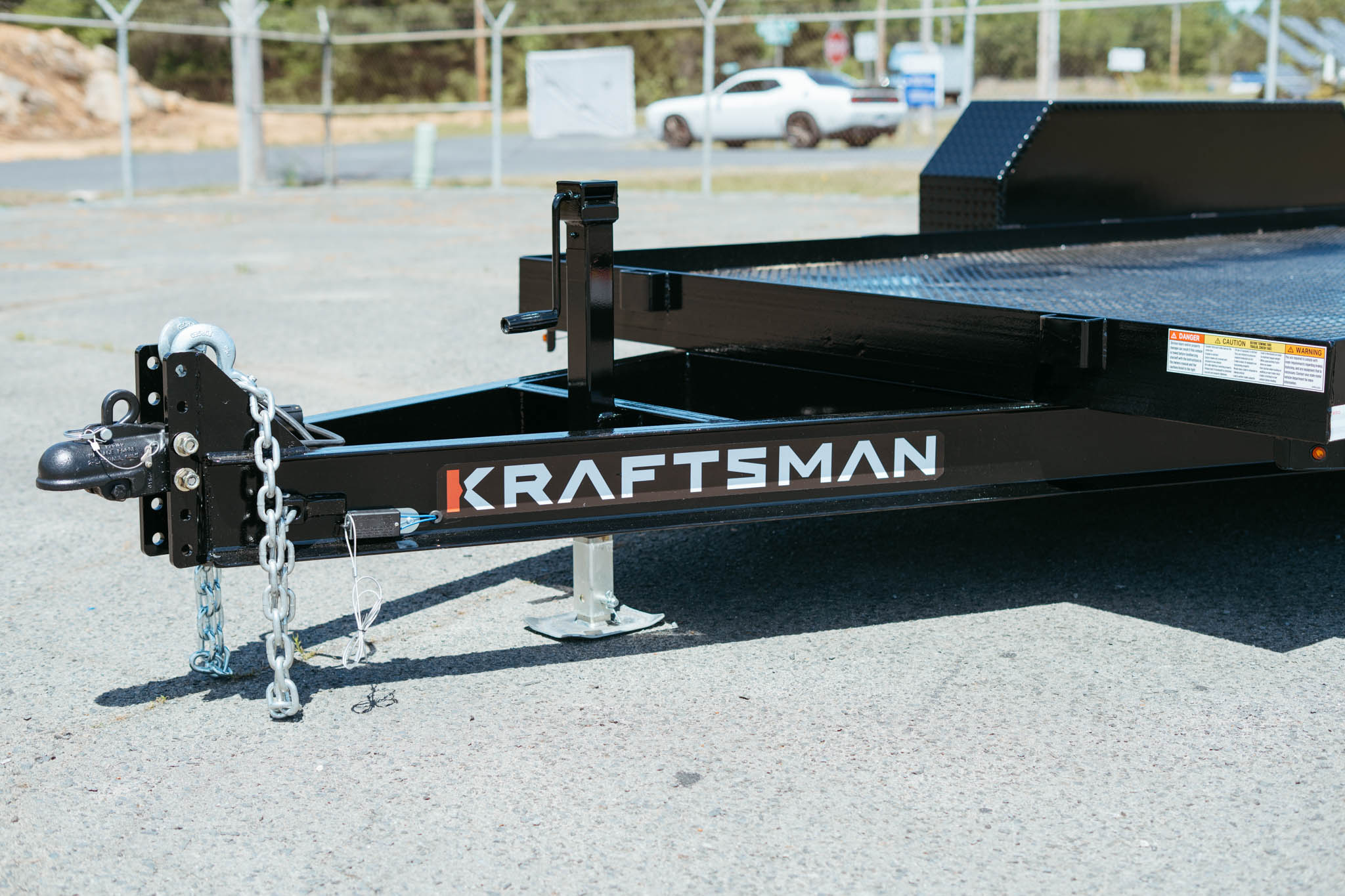

- 6” Angle Main Frame & Channel Tongue
- 3” Crosspieces on 16” Centers
- Diamond Treadplate Steel Deck
- Double-Break Diamond Treadplate Fenders
Electrical
- Rubber Mounted, Lifetime LED Lighting
- Marker Lights on Front of Trailer & Steps
- USA Made Sealed Wiring Harness
- 7-Way RV-Style Plug
Undercarriage
- 2 x 7,000 lb. EZ-Lube Axles
- 12” x 2” Brakes on Both Axles
- Slipper Spring Suspension w/ 4'' Drop
- 4 x 235/80 R16 10 Ply Radial Tires
Dimensions
- 14,000 GVWR (10K GVWR Available)

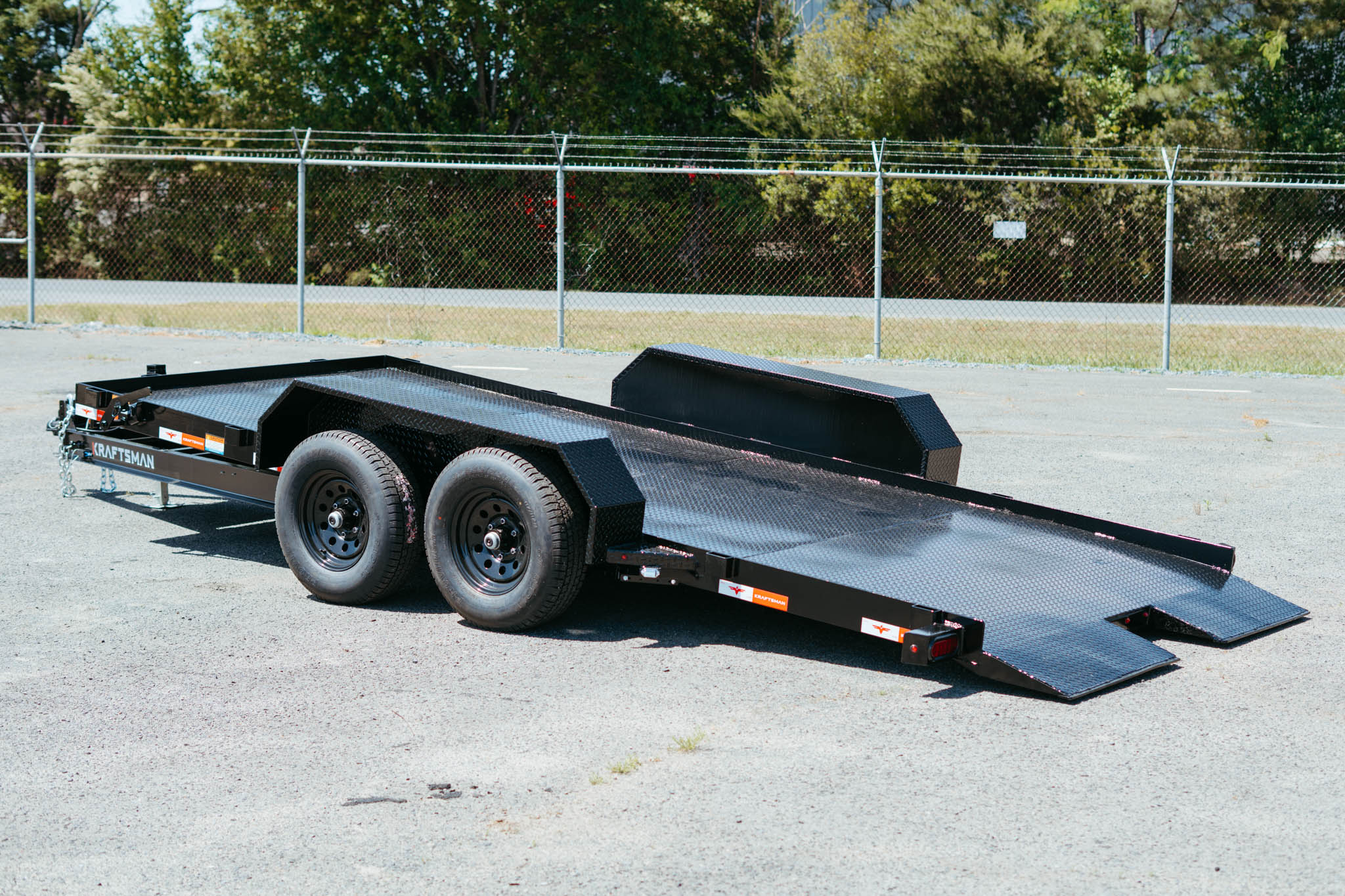

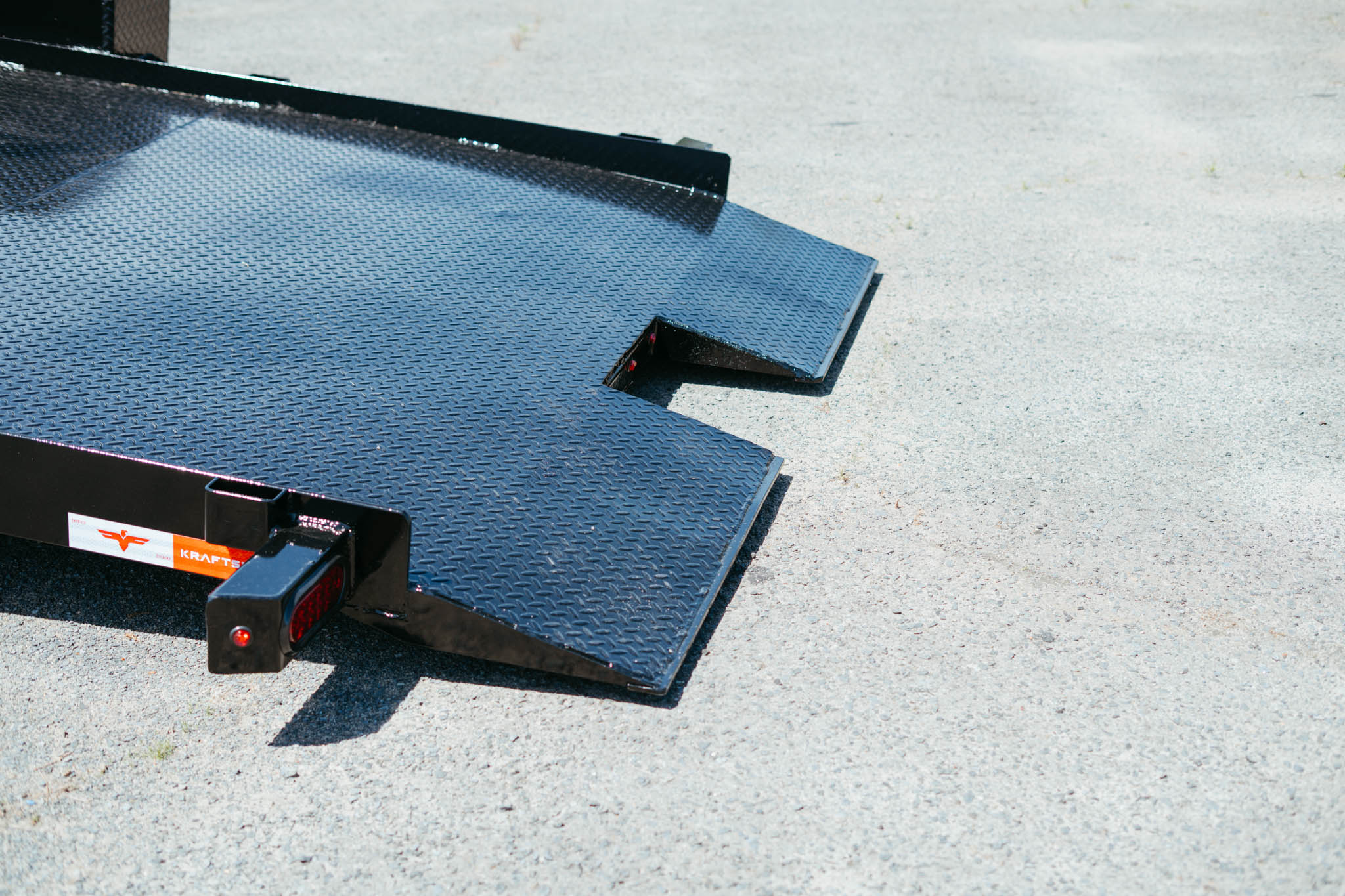

- 16’ Tilt Deck, 15'’ Dovetail (17' 3'' Total)
- 18” Approx. Deck Height
- 78'' Nominal Deck Width
Additional Features
- Tilt-Lock Operated from Driver’s Side of Deck
- 2 5/16” Adj. Channel Coupler, Safety Chains

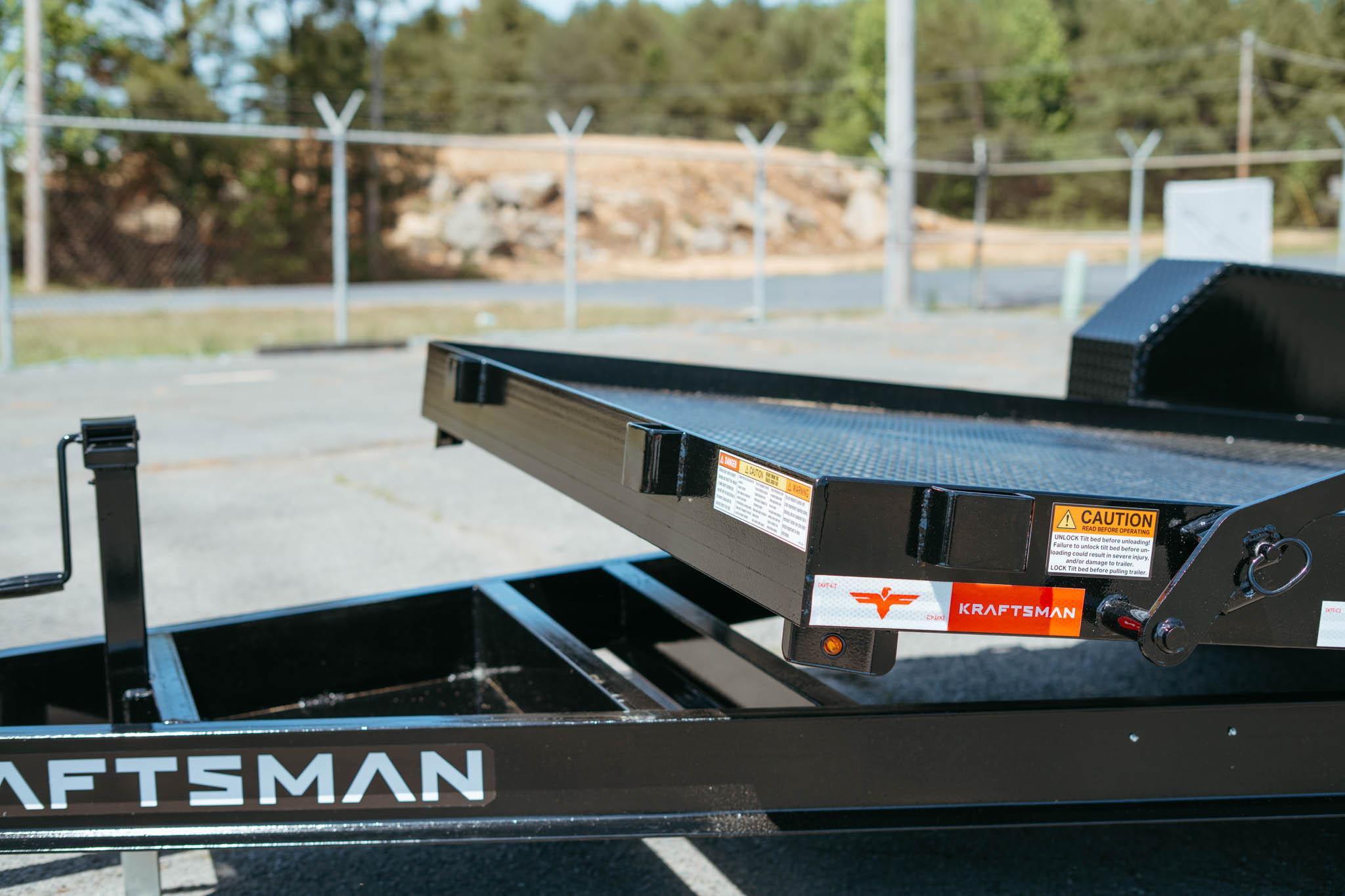

- Stake Pocket Tie Downs
- Chain Tray, 8K Spring Loaded Jack
Finish
- High Pressure Phosphate Wash
- Primed Top & Bottom w/ Automotive Primer
- Two Top Coats of 2-Part PPG Black Gloss
- DOT Reflective Tape, Kraftsman Decals
- Safety & Operational Decals

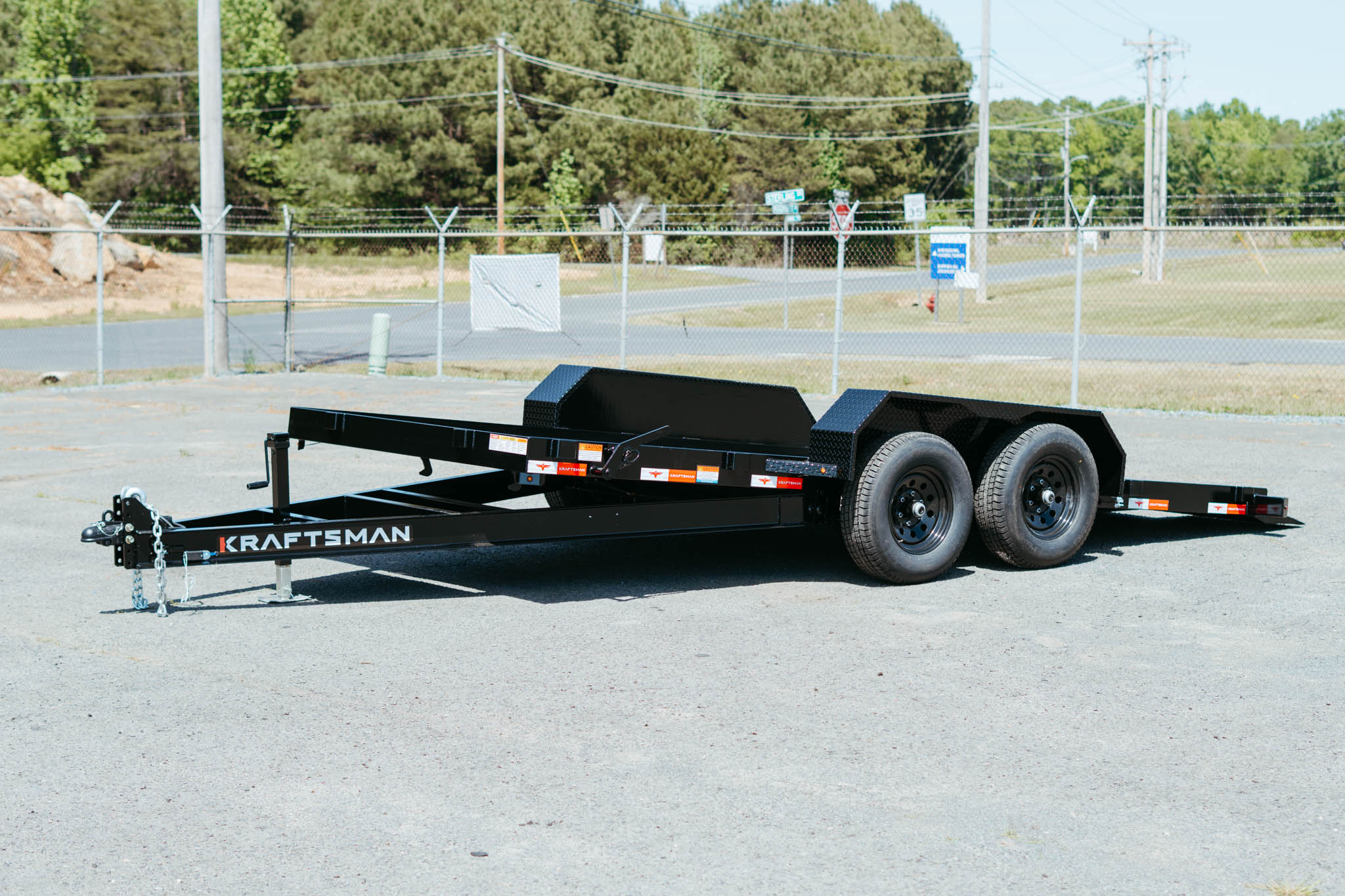

ABOUT THE TR-14 FULL-TILT TRAILER
Kraftsman Trailers' model TR-14 is constructed with a 6" angle main frame, a 6" channel tongue, and 3" crosspieces on 16" centers.
Standard features on the TR-14 include 16" Radial tires, diamond tread plate deck, 2 x 7,000 lb. EZ-Lube axles, 12" x 2" brakes on both axles, double-break diamond tread plate fenders, and a chain tray in tongue. This model comes with a 18" approximate deck height, 16' standard tilt deck, and a 15'' dovetail.
The TR-14 has a 14,000 GVWR rating and is available in one length: 78'' x 17' 3'' (16' + 15'')
Additional options are available. Contact us today to let us know how we can help you!
