15 Ton Electric Brake Pintle Paver Special Flatbed

GVWR: 40,000

Model #: HP-30 PS

Get a Quote

Call Now

Finance Options

Trailer Specifications

The following configurations of this trailer are available to best suit your needs.

Construction

14” @ 26 lb. I-Beam Main Frame & Tongue
Pierced 4” Crosspieces on 16” Centers
8” Channel Side Rail with Knee Braces
6” Channel Headboard, 1x Step Per Side, Spare Mount

Electrical

Lifetime LED Lights, Rubber Mounted
USA Made Sealed Wiring Harness
7-Way Semi Plug for Signals & Lighting
2-Way Plug, 4 GA Charge Cable for Batteries (Not Applicable on Air Ramps Trailers)

Undercarriage

2 x 16,000 lb. Heavy Wall Oil Bath Axles
12 1/4” x 5” Electric Brakes on All Hubs
Hutch 9700 Suspension, 49'' Axle Spread
Electric Brakes with Breakaway Kit
8 x 215/75 R17.5 Tires, 17.5” Wheels

Dimensions

40,000 GVWR, 31,500 lb. Max Capacity
24’ Flat Deck + 6’ Wood-Lined Beavertail

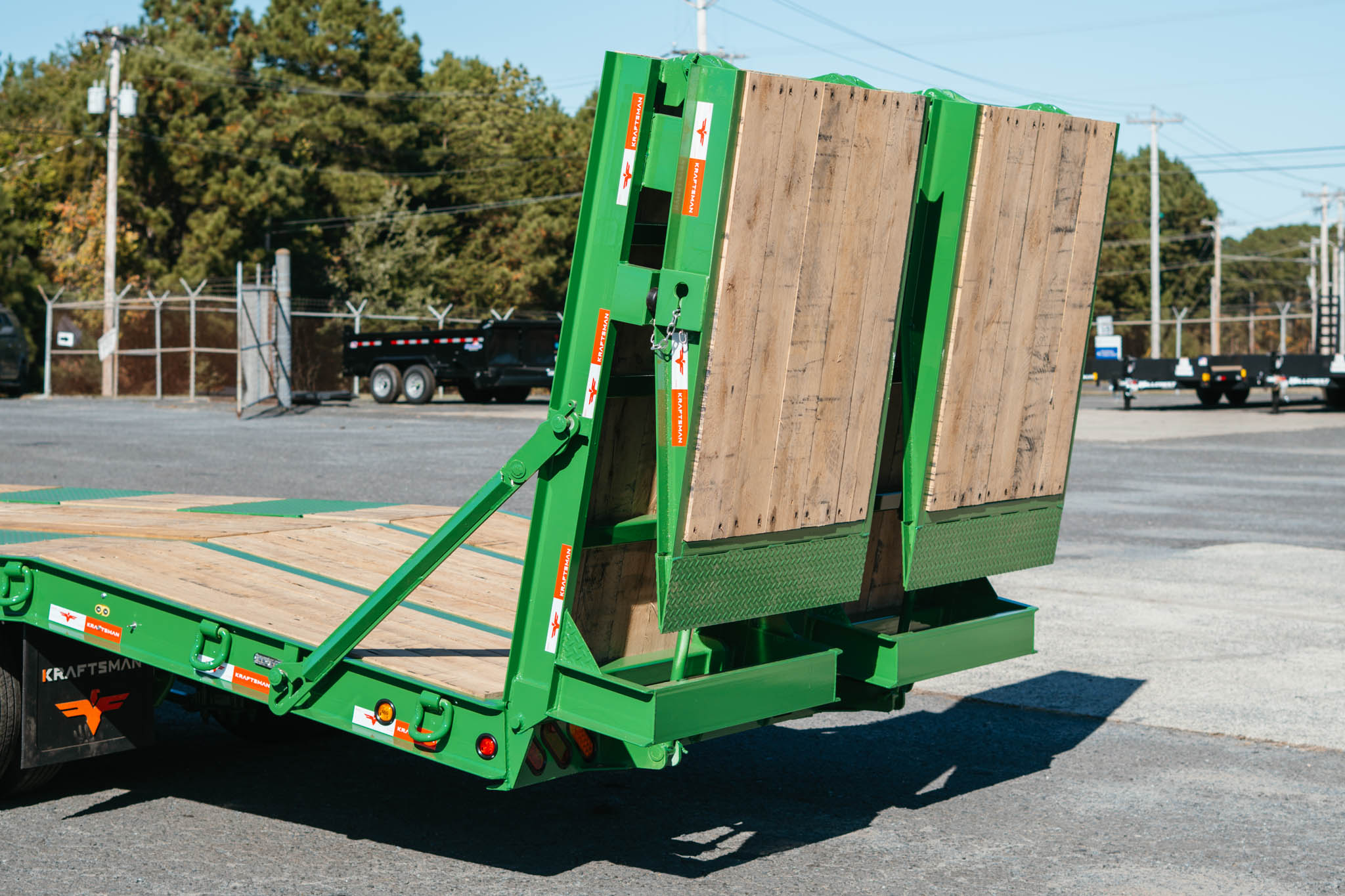

8’ Tall x 34” Wide Hydraulic Ramps
35” Unloaded Deck Height
6’ Cold-Formed Hydraulic Tongue

Additional Features

2” Nominal Oak Decking
Dual 2-Speed 50K Jacks
60,000 lb. Bolt-On, Adjustable Pintle
Heavy Duty D-Rings on 36” Centers
HD Anti-Sail Mudflaps

Finish

High Pressure Phosphate Wash
Primed Top & Bottom w/ Automotive Primer
Two Top Coats of 2-Part PPG Black Gloss
DOT Reflective Tape, Kraftsman Decals
Safety & Operational Decals

Available Trailer Options

The following options are available on this model; speak to your sales advisor for the most comprehensive selection. A variety of colors are available, and almost any color can be matched.

Deck Length + Dovetail

24' + 6'

26' + 6'

28' + 6'

Ramps

8' x 44'' Hydraulic Ramps

11' x 44" Bi-Fold Hydraulic Ramps

Functional

Hydraulic Jacks

Double-Break Beavertail

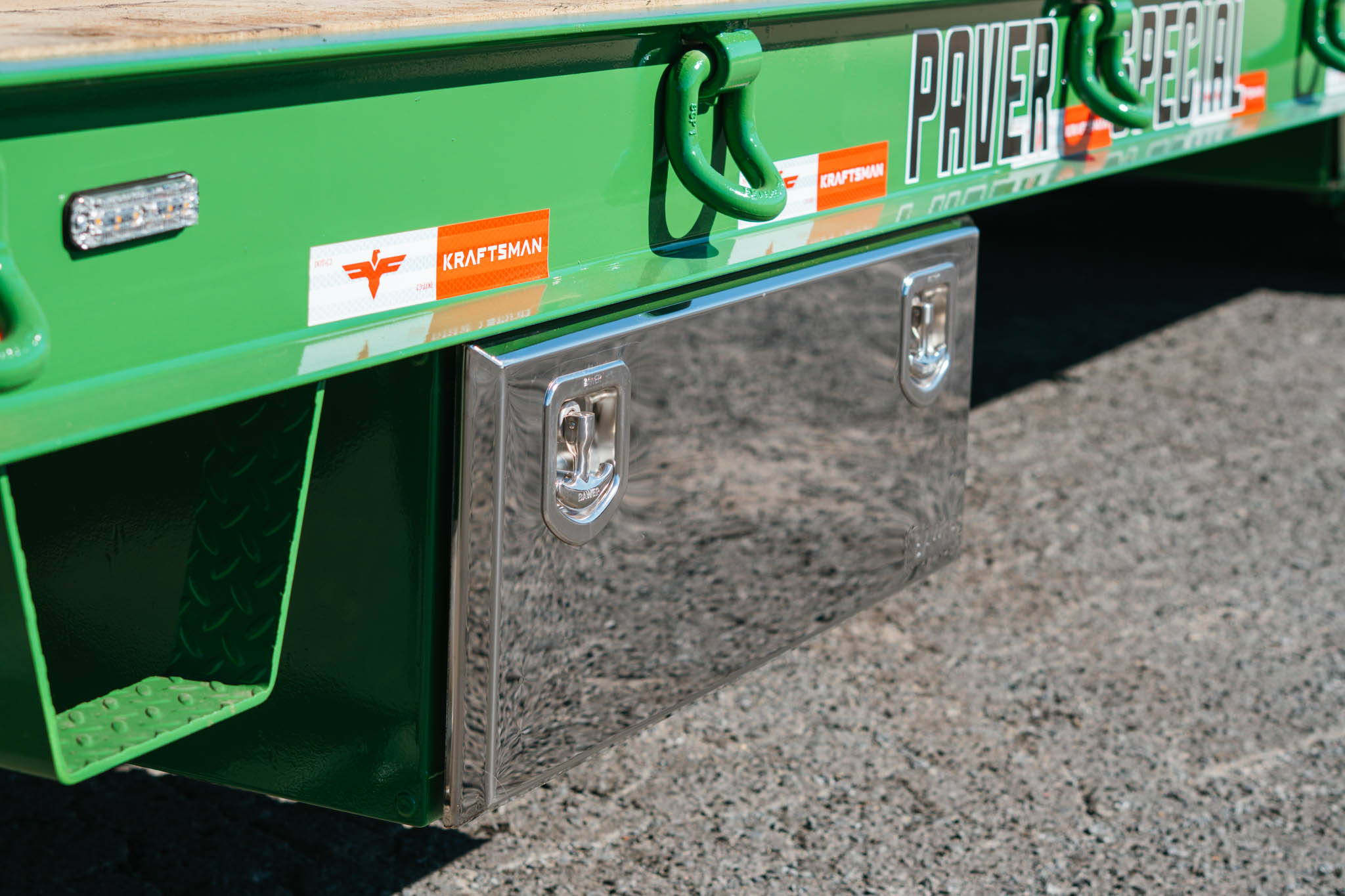

Side Toolboxes

Chain Slots

Electric/Hydraulic Disc Brakes

Appearance

Choose Your Color

Aluminum Outer Wheels

Strobe Light Packages

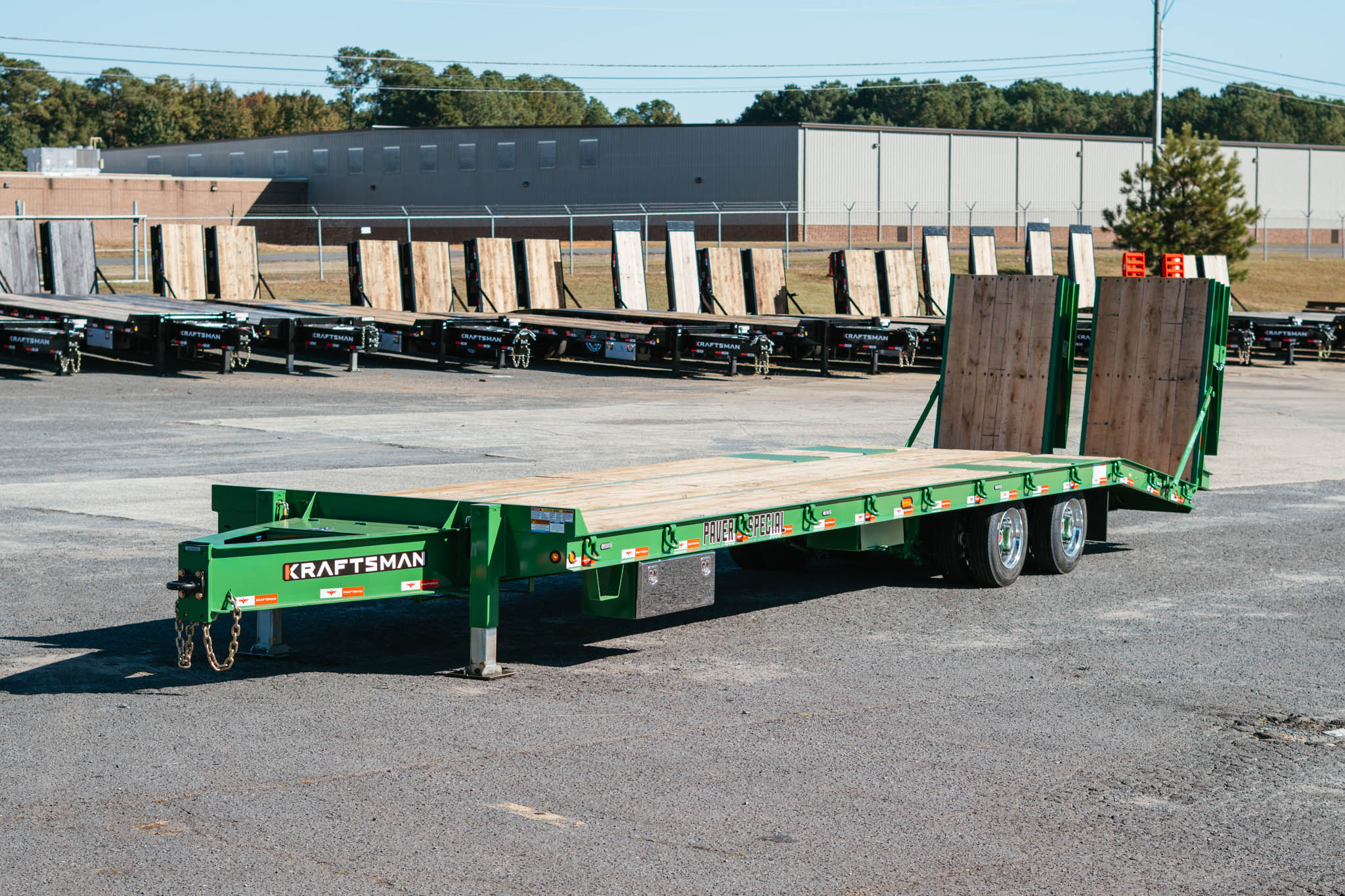

ABOUT THE HP-38 PAVER SPECIAL TRAILER

Kraftsman's HP-30 PS is our heaviest electric brake trailer. It carries the same features as our heavier air brake trailers, but with slightly lighter electric brake axles.

The main frame is a 14" I-beam weighing 26 lb. per foot. It has 4" pierced crosspieces on 16" centers, and an 8" channel side rail with knee braces.

The HP-30 PS is loaded with features that make it perfect for the paving industry! It features 17.5" 16 ply tires, two 16,000 lb. heavy wall oil bath axles, and a Hutch 9700 suspension with a 49" axle spread. It is decked with 2" nominal oak decking, and is equipped with 8' x 34" hydraulic ramps. Each trailer is equipped with a 6' wood-lined beavertail and a 35" unloaded deck height.

The trailer comes standard with a 40,000 GVWR rating (31,500 lb. capacity) and is available in three sizes: 102" x 30' (24' + 6'), 102" x 32' (26' + 6'), and 102" x 34' (28' + 6')

Kraftsman is the industry leader in paver trailers! Contact us today to find out about additional options, and let us know how we can help you!
