22.5 Ton Pintle Heavy Equipment Trailer | 22.5" Tires

GVWR: 53,500

Model #: HP-45 HD

Get a Quote

Call Now

Finance Options

Trailer Specifications

The following configurations of this trailer are available to best suit your needs.

Construction

16” @ 26 lb. I-Beam Main Frame & Tongue
High-Strength I-Beam Crossmembers on 16” Centers
8” Channel Side Rail, Wheel Wells
6” Channel Headboard, 1x Step Per Side, Spare Mount

Electrical

Lifetime LED Lights, Rubber Mounted
USA Made Sealed Wiring Harness
7-Way Semi Plug for Signals & Lighting
2-Way Plug, 4 GA Charge Cable for Batteries (If Applicable)

Undercarriage

2 x 25,000 lb. Heavy Wall Oil Bath Axles
16” x 7” Air Brakes on All Hubs, 2S/1M
Heavy Duty Slipper Suspension, 49” Spread
3 Leaf High-Arch Springs

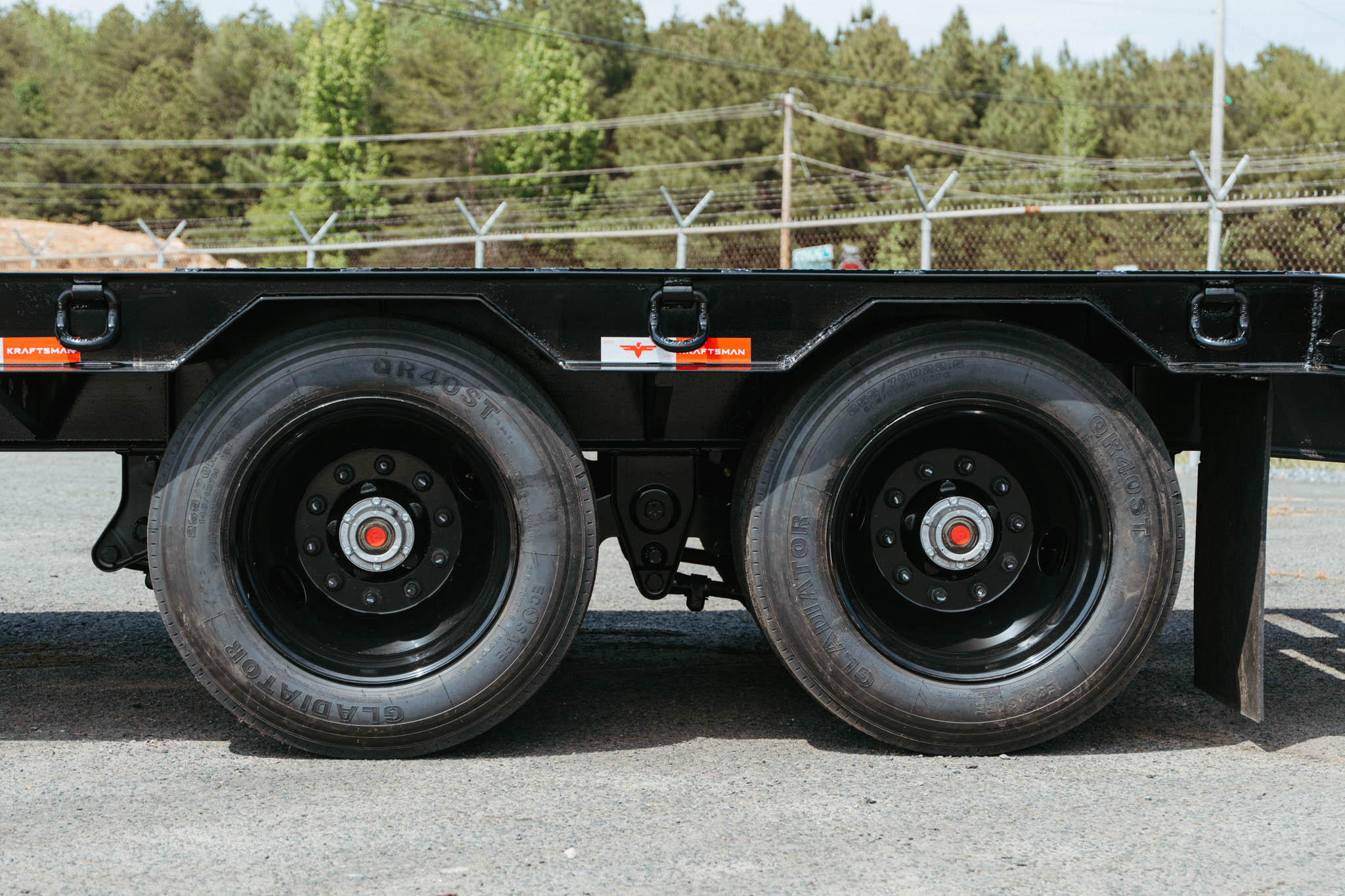

8 x 255/70 R22.5 16 Ply Tires, 22.5” Rims

Dimensions

53,500 GVWR

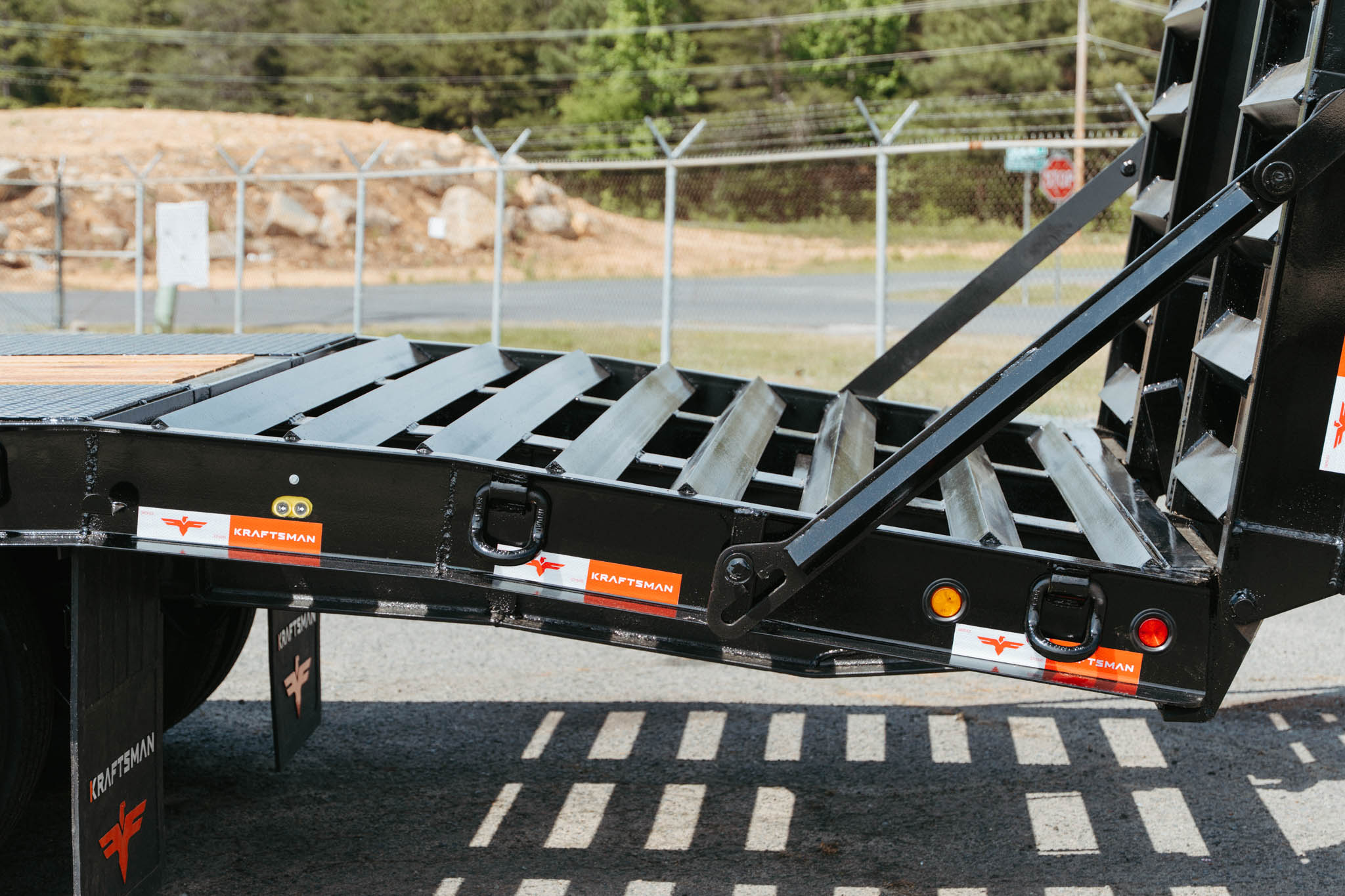

20’ Flat Deck + 6’ Wood-Lined Beavertail

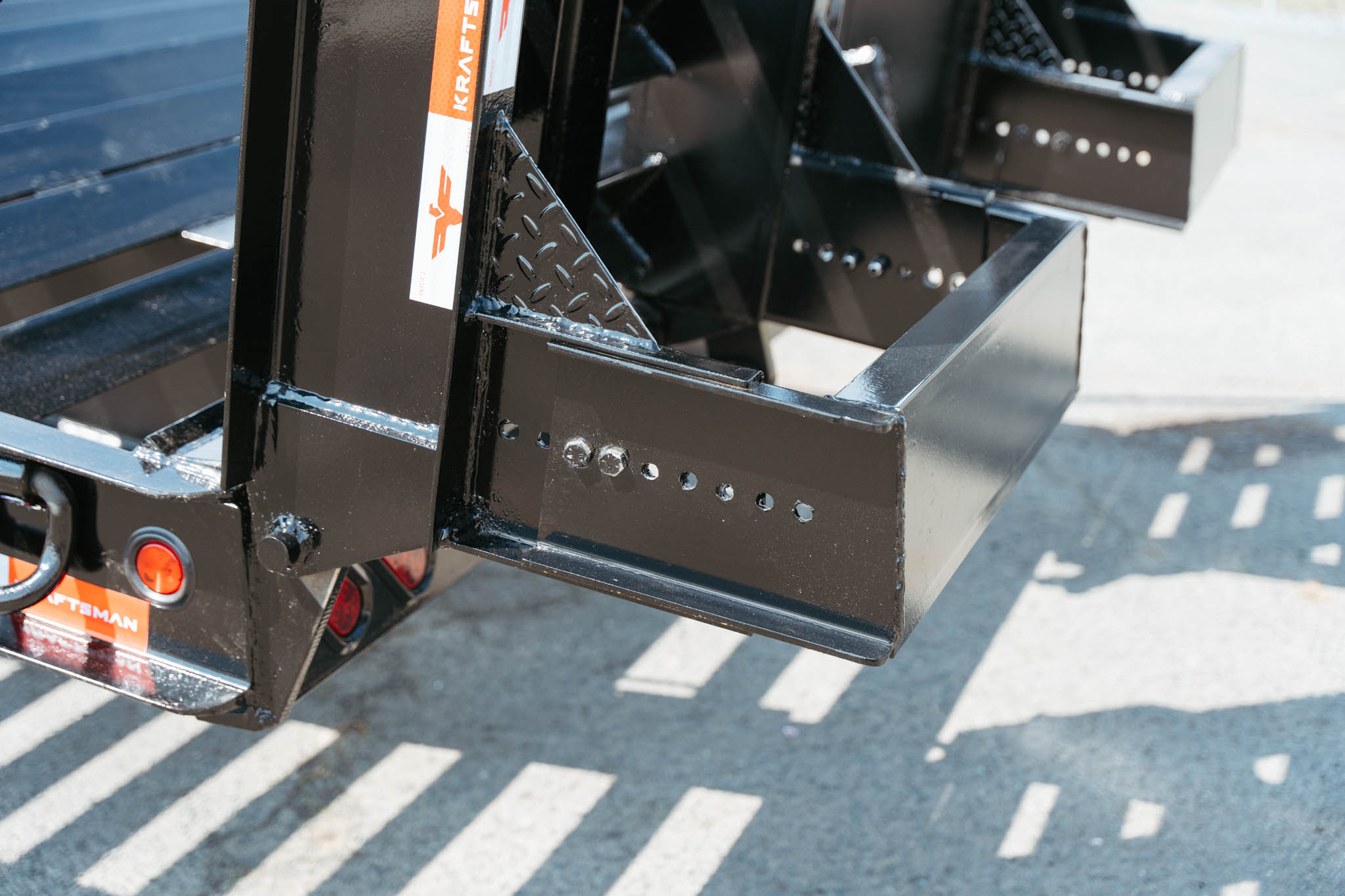

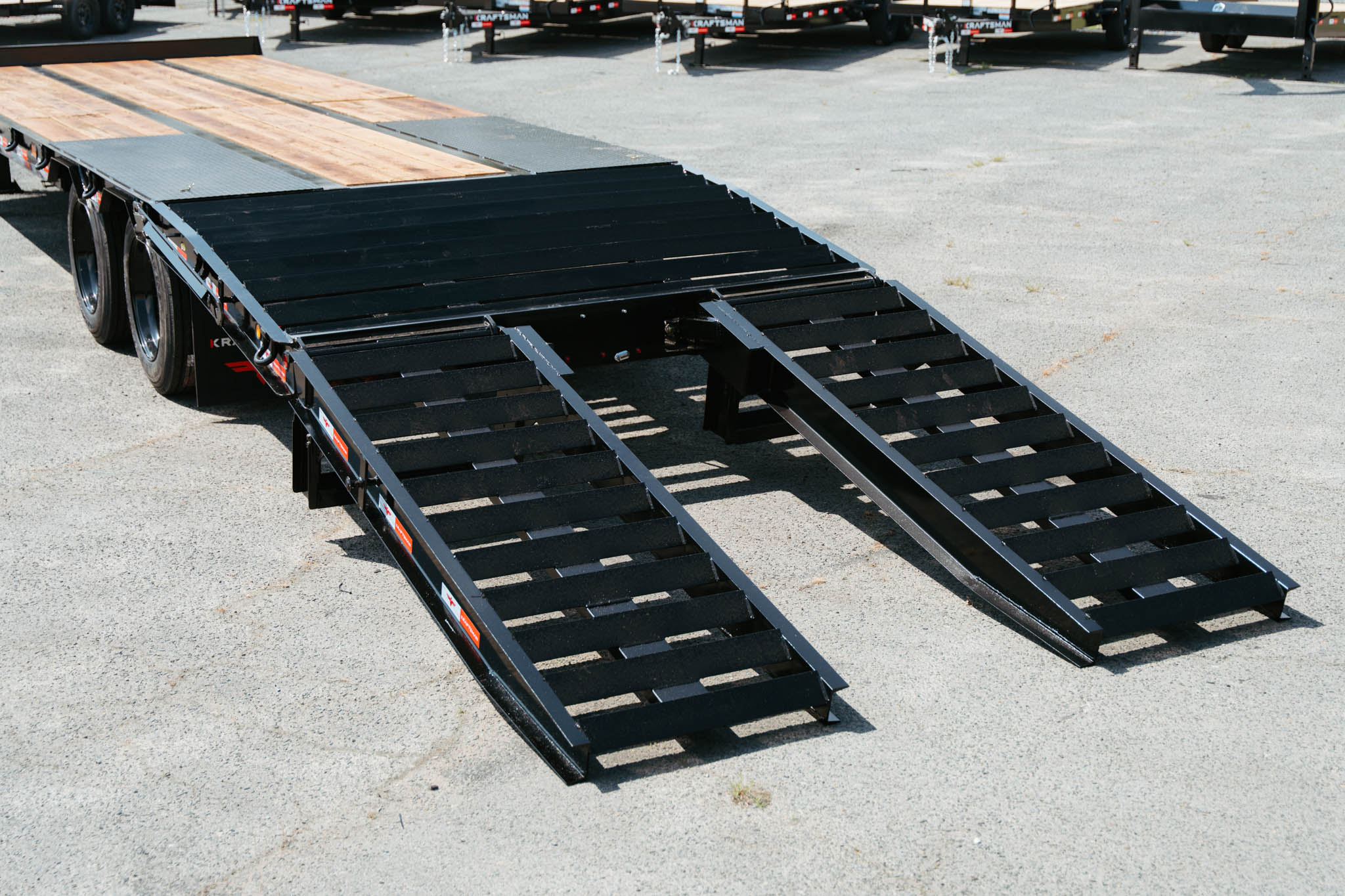

6’ x 30” Spring-Assisted Wood Ramps
40” Unloaded Deck Height

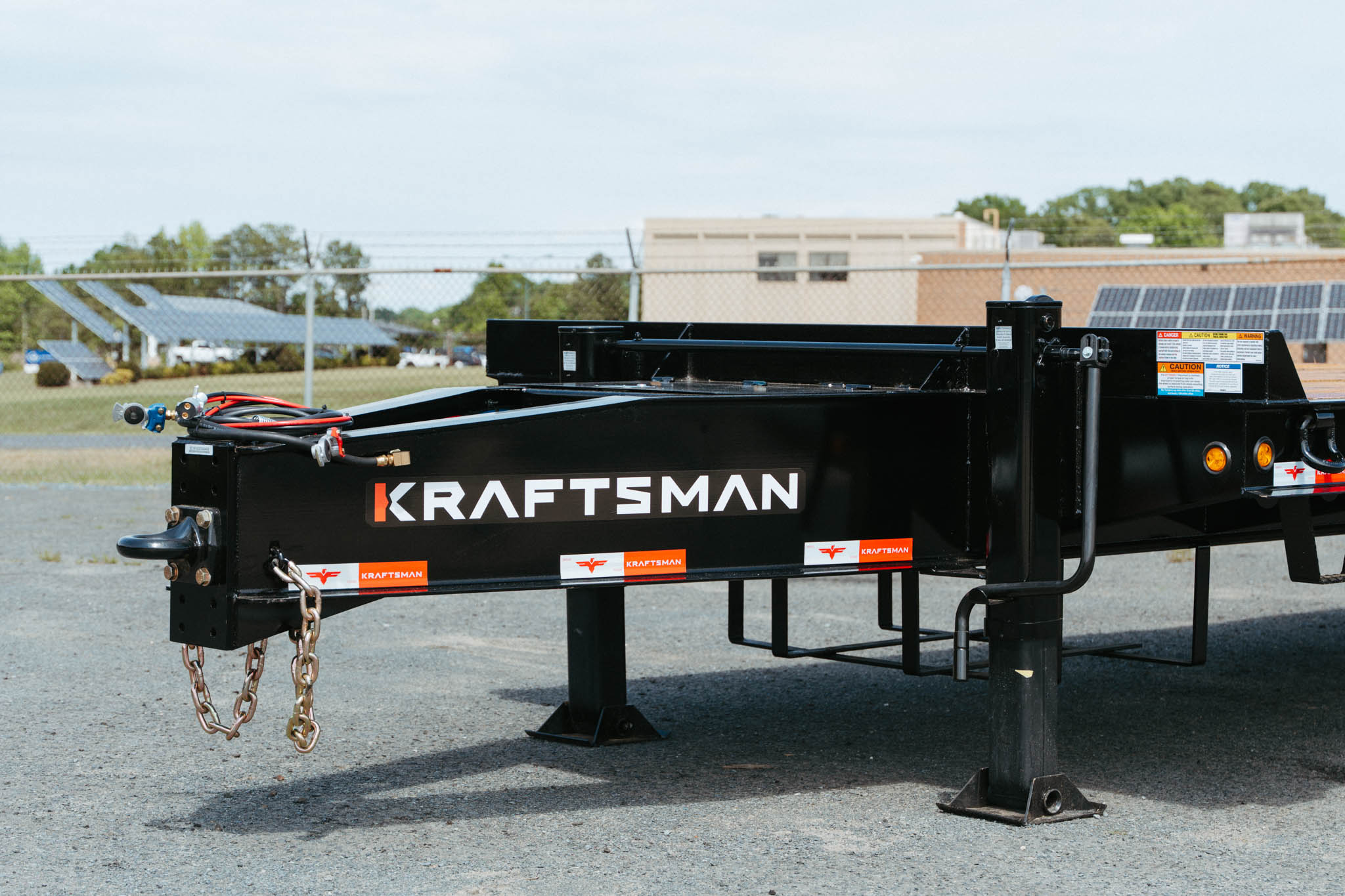

6’ Cold-Formed Tapered Tongue w/ Toolbox

Additional Features

2” Nominal Oak Decking
Dual 2-Speed 50K Jacks
60,000 lb. Bolt-On, Adjustable Pintle

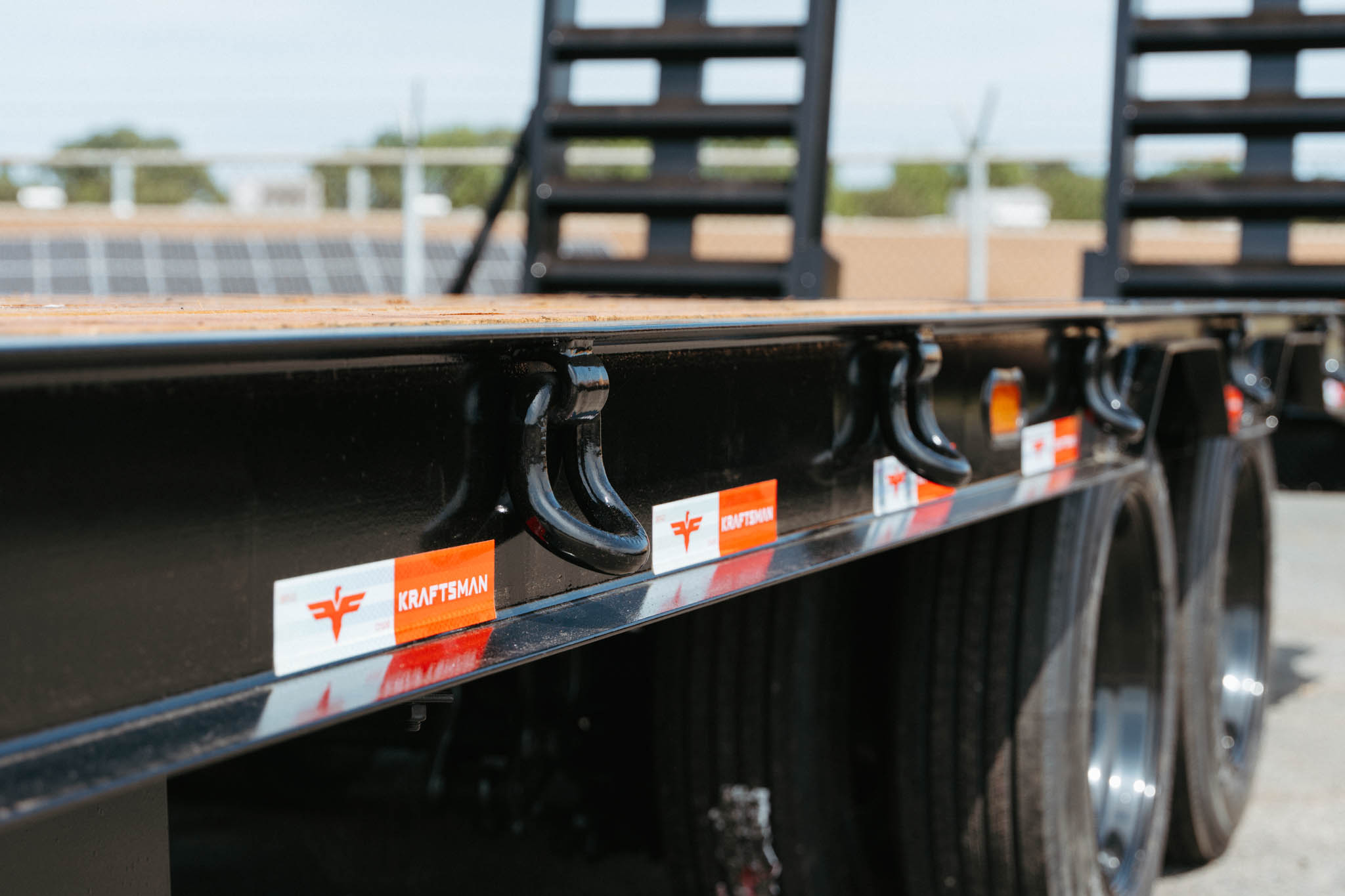

Heavy Duty D-Rings on 36” Centers
HD Anti-Sail Mudflaps

Finish

High Pressure Phosphate Wash
Primed Top & Bottom w/ Automotive Primer
Two Top Coats of 2-Part PPG Black Gloss
DOT Reflective Tape, Kraftsman Decals
Safety & Operational Decals

Available Trailer Options

The following options are available on this model; speak to your sales advisor for the most comprehensive selection. Almost any color can be matched.

Deck Length + Dovetail

20' + 6'

24' + 6'

28' + 6'

Ramps

8' x 34" Self-Cleaning, Hydraulic or Air

8' x 44" Self-Cleaning, Hydraulic or Air

6' x 30'' Self-Cleaning, Spring-Assisted

Functional

Hydraulic Jacks

Chainslots

Double-Break Beavertail

Side Toolboxes

Air Ride Suspension

4S/2M ABS System

Appearance

Choose Your Color

Aluminum Outer Wheels

Strobe Light Packages

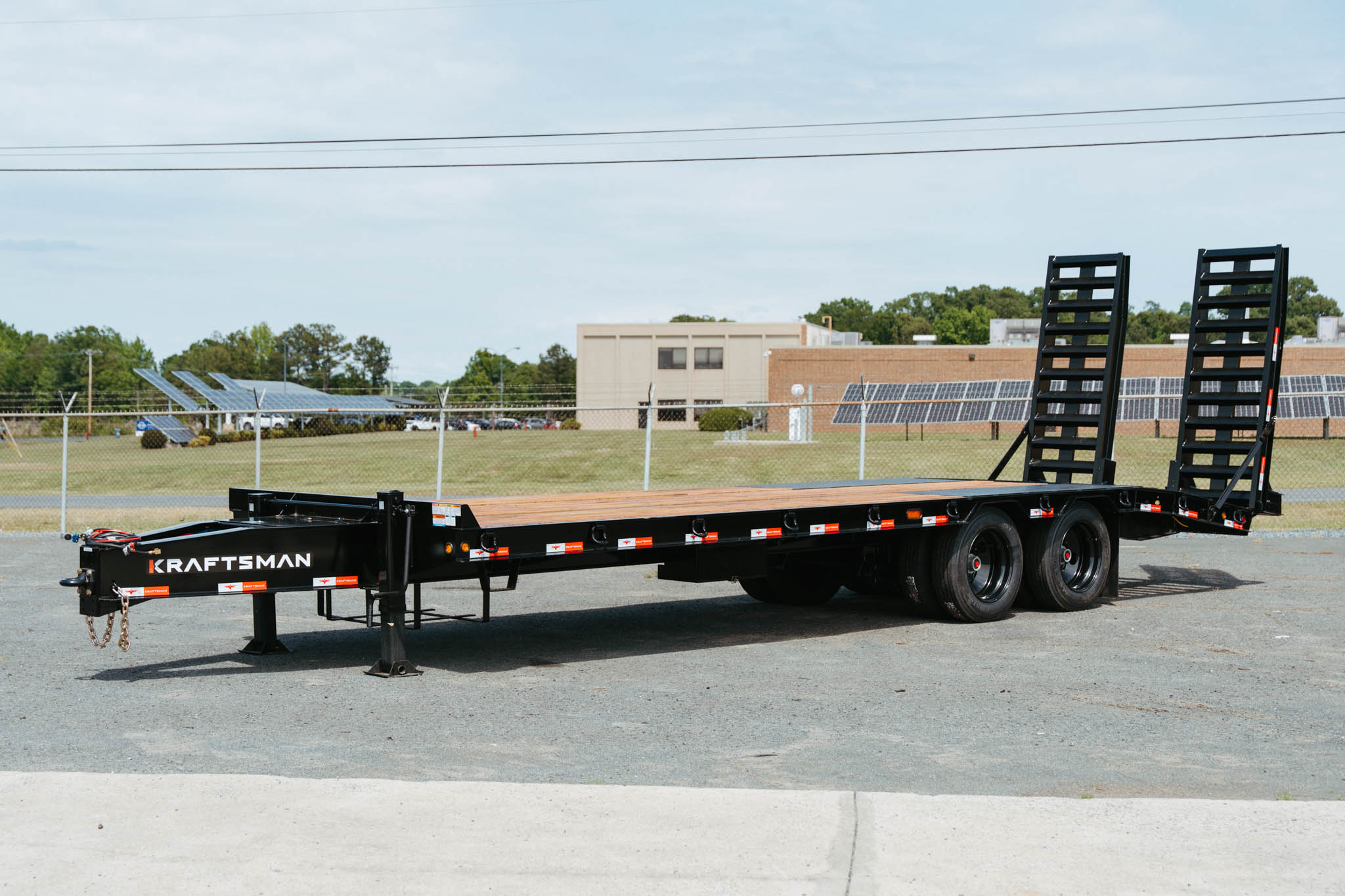

ABOUT THE HP-45 HD HEAVY EQUIPMENT TRAILER

Kraftsman's HP-45 HD is constructed with a 16" I-beam main frame weighing 26 lb. per foot, high-strength I-beam crossmembers on 16” centers, and an 8" channel side rail with knee braces.

Standard features on the HP-45 HD include dual 2-speed 50K jacks, two 25,000 lb. heavy wall oil bath axles, 22.5" 16 ply radial tires, and 6' x 30'' spring-assisted wood ramps. It has an unloaded deck height of 40" and a 6' wood-lined beavertail.

The HP-45 HDPS has a 53,500 GVWR rating, and is available in three lengths: 102" x 26' (20' + 6'), 102" x 30' (24' + 6'), and 102" x 34' (28' + 6')

Kraftsman is an industry leader in pintle heavy equipment trailers! Contact us today to find out about additional options, and let us know how we can help you!
