15 Ton Electric Brake Pintle Heavy Equipment Trailer

GVWR: 40,000

Model #: HP-30

Get a Quote

Call Now

Finance Options

Trailer Specifications

The following configurations of this trailer are available to best suit your needs.

Construction

14” @ 26 lb. I-Beam Main Frame & Tongue
Pierced 4” Crosspieces on 16” Centers
8” Channel Side Rail with Knee Braces
6” Channel Headboard, 1x Step Per Side, Spare Mount

Electrical

Lifetime LED Lights, Rubber Mounted
USA Made Sealed Wiring Harness
7-Way Semi Plug for Signals & Lighting
2-Way Plug, 4 GA Charge Cable for Batteries (Not Applicable on Air Ramps Trailers)

Undercarriage

2 x 16,000 lb. Heavy Wall Oil Bath Axles
12 1/4” x 5” Electric Brakes on All Hubs
Hutch 9700 Suspension, 49'' Axle Spread
Electric Brakes with Breakaway Kit
8 x 215/75 R17.5 Tires, 17.5” Wheels

Dimensions

40,000 GVWR, 31,500 lb. Max Capacity
20’ Flat Deck + 5’ Wood-Lined Beavertail

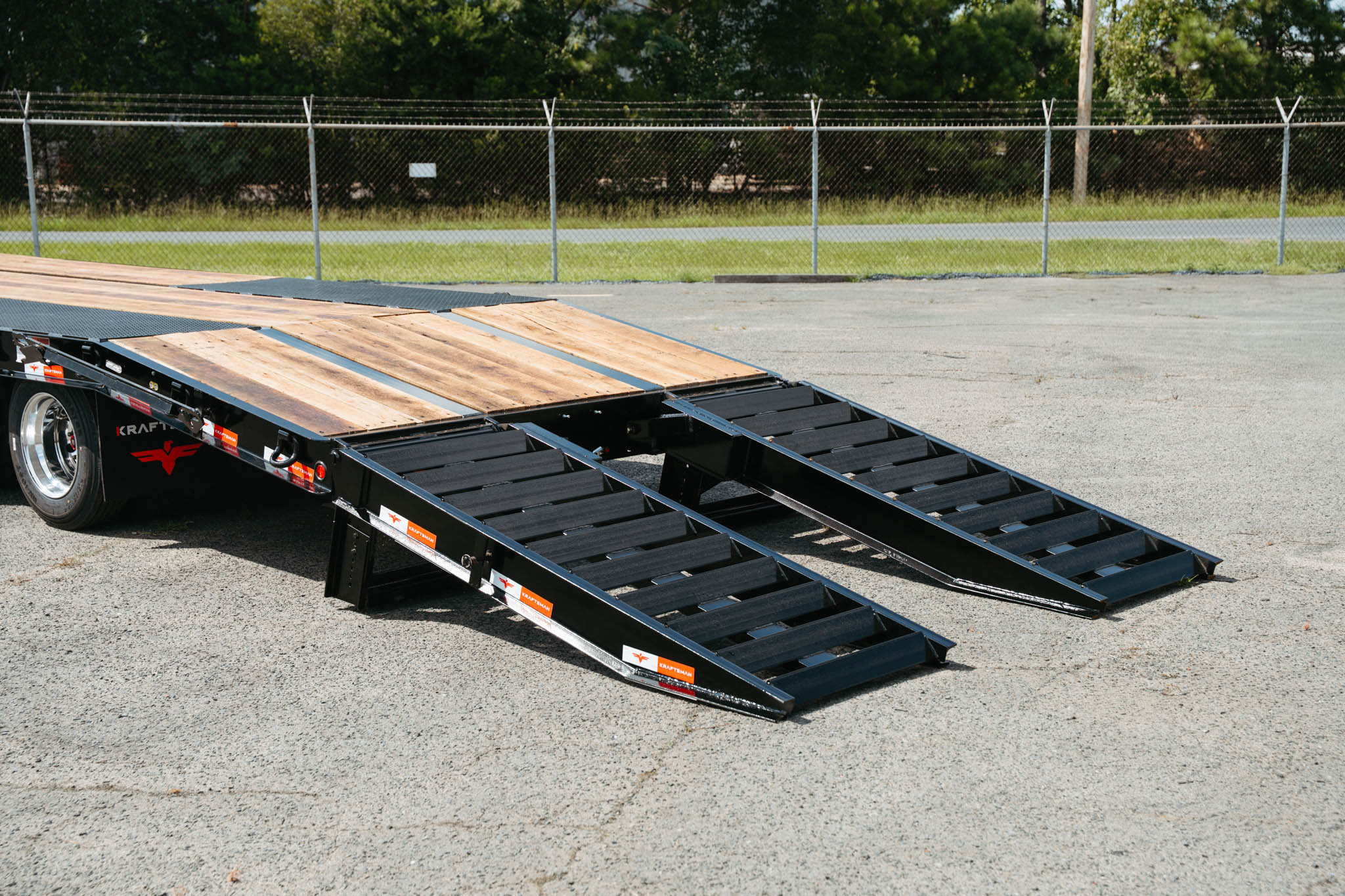

5’ Tall x 20” Wide Spring, Fold-Over Ramps
35” Unloaded Deck Height

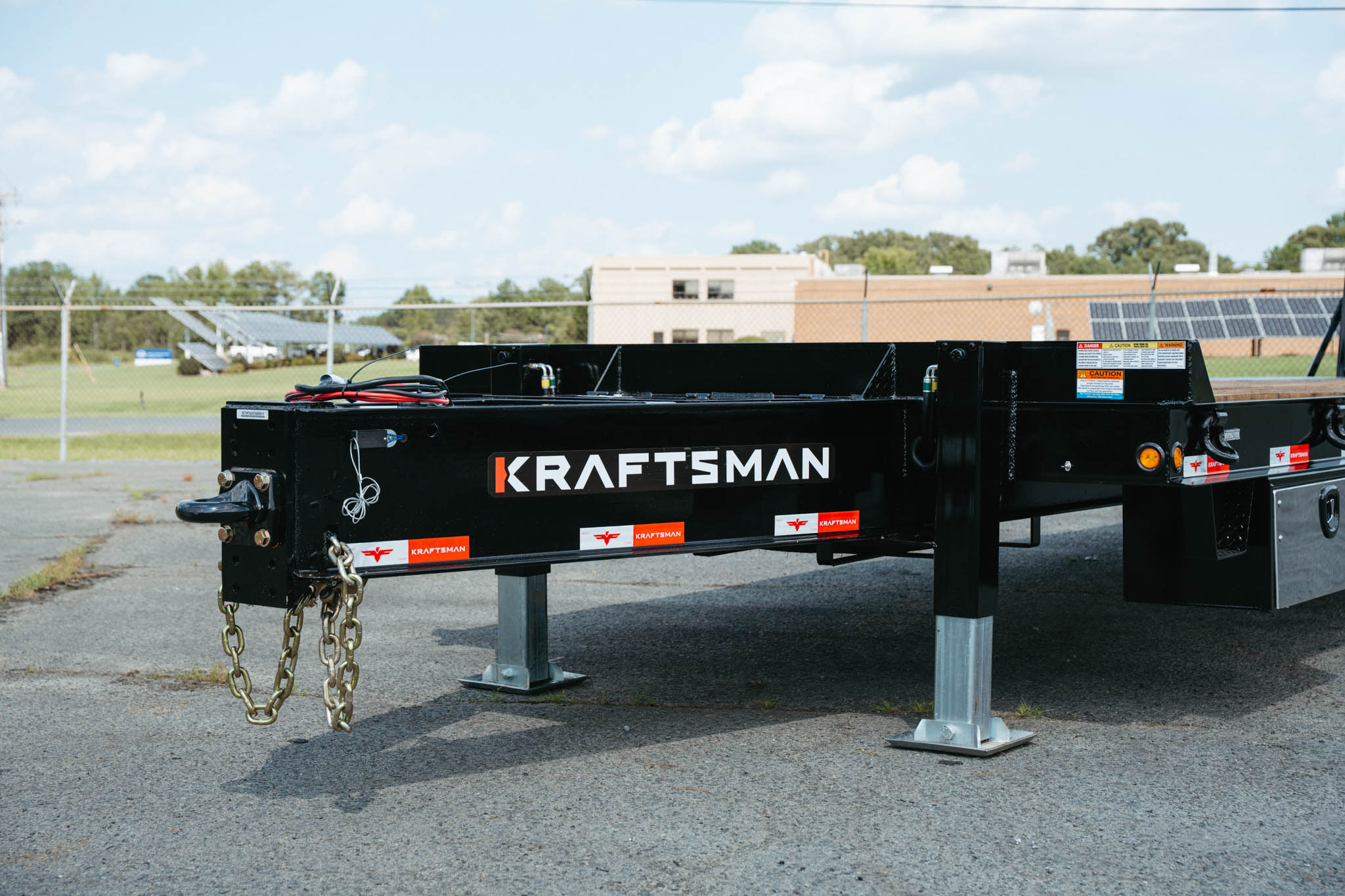

6’ Cold-Formed Hydraulic Tongue

Additional Features

2” Nominal Oak Decking
Dual 2-Speed 50K Jacks
60,000 lb. Bolt-On, Adjustable Pintle

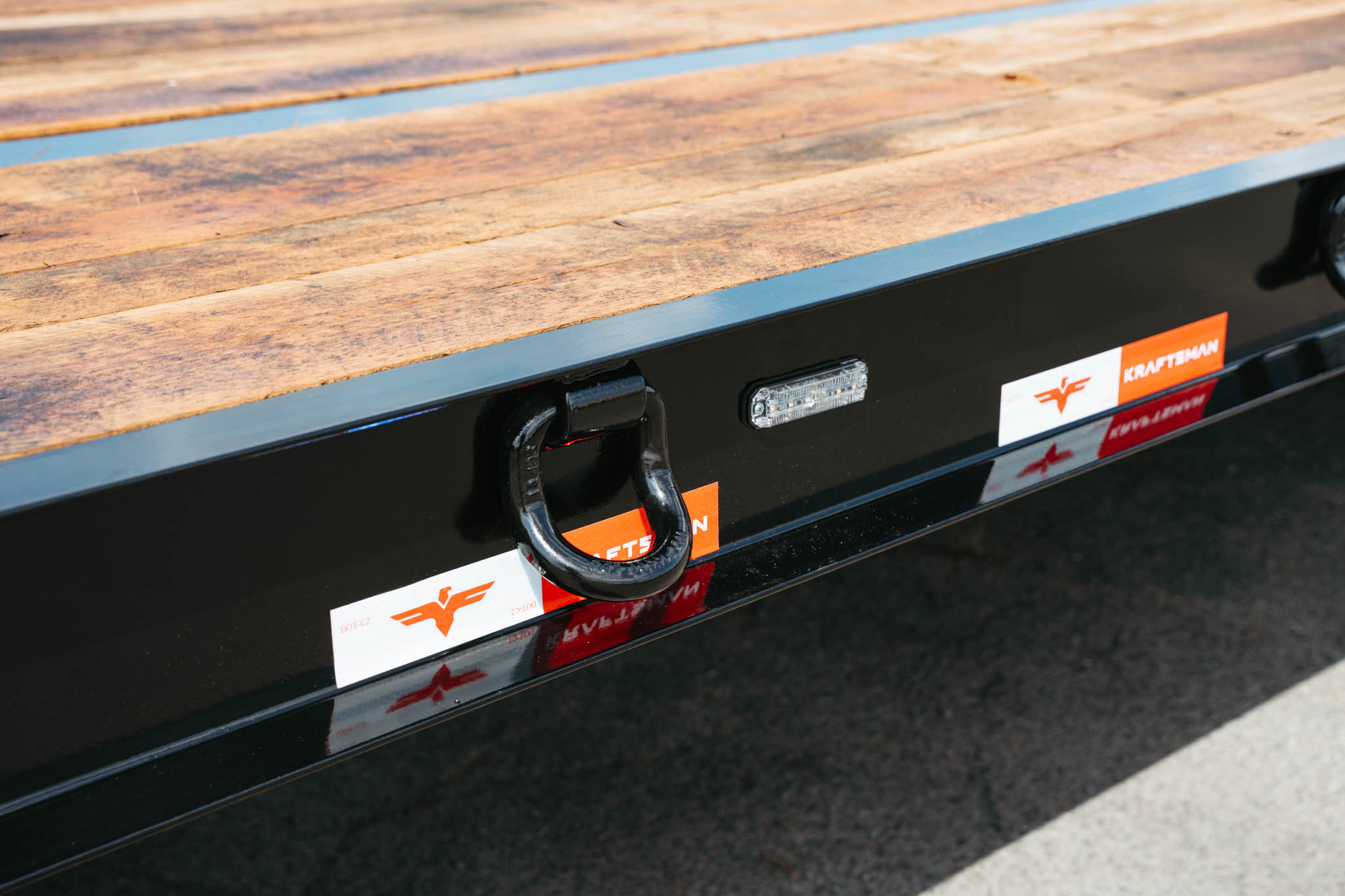

Heavy Duty D-Rings on 36” Centers
HD Anti-Sail Mudflaps

Finish

High Pressure Phosphate Wash
Primed Top & Bottom w/ Automotive Primer
Two Top Coats of 2-Part PPG Black Gloss
DOT Reflective Tape, Kraftsman Decals
Safety & Operational Decals

Available Trailer Options

The following options are available on this model; speak to your sales advisor for the most comprehensive selection. A variety of colors are available, and almost any color can be matched.

Deck Length + Dovetail

20' + 5'

25' + 5'

29' + 5'

Ramps

7' x 34" Self-Cleaning Hydraulic or Air

7' x 44" Self-Cleaning Hydraulic or Air

Functional

Hydraulic Jacks

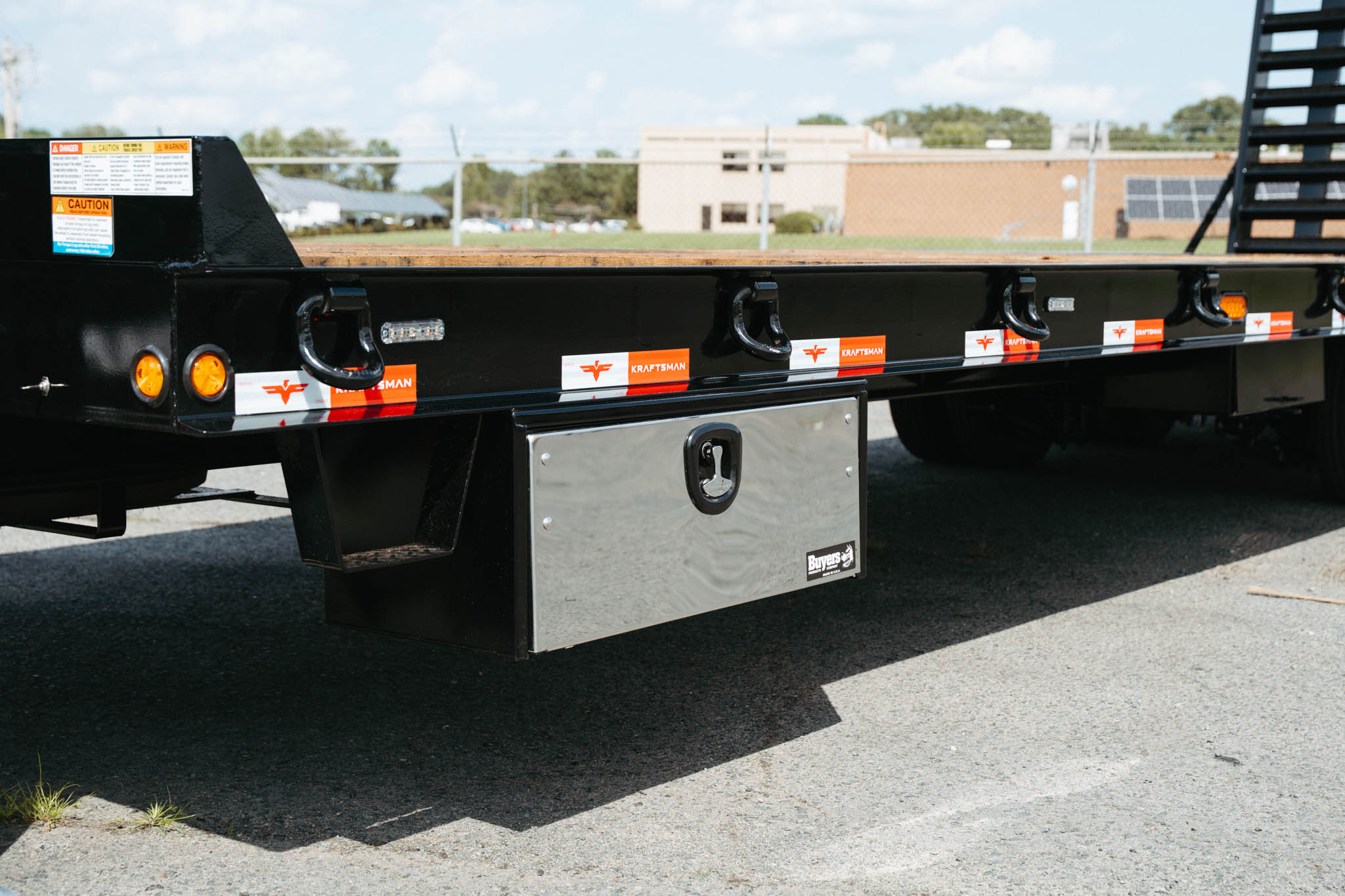

Side Toolboxes

Chain Slots

Self-Cleaning Beavertail

Electric/Hydraulic Disc Brakes

Appearance

Choose Your Color

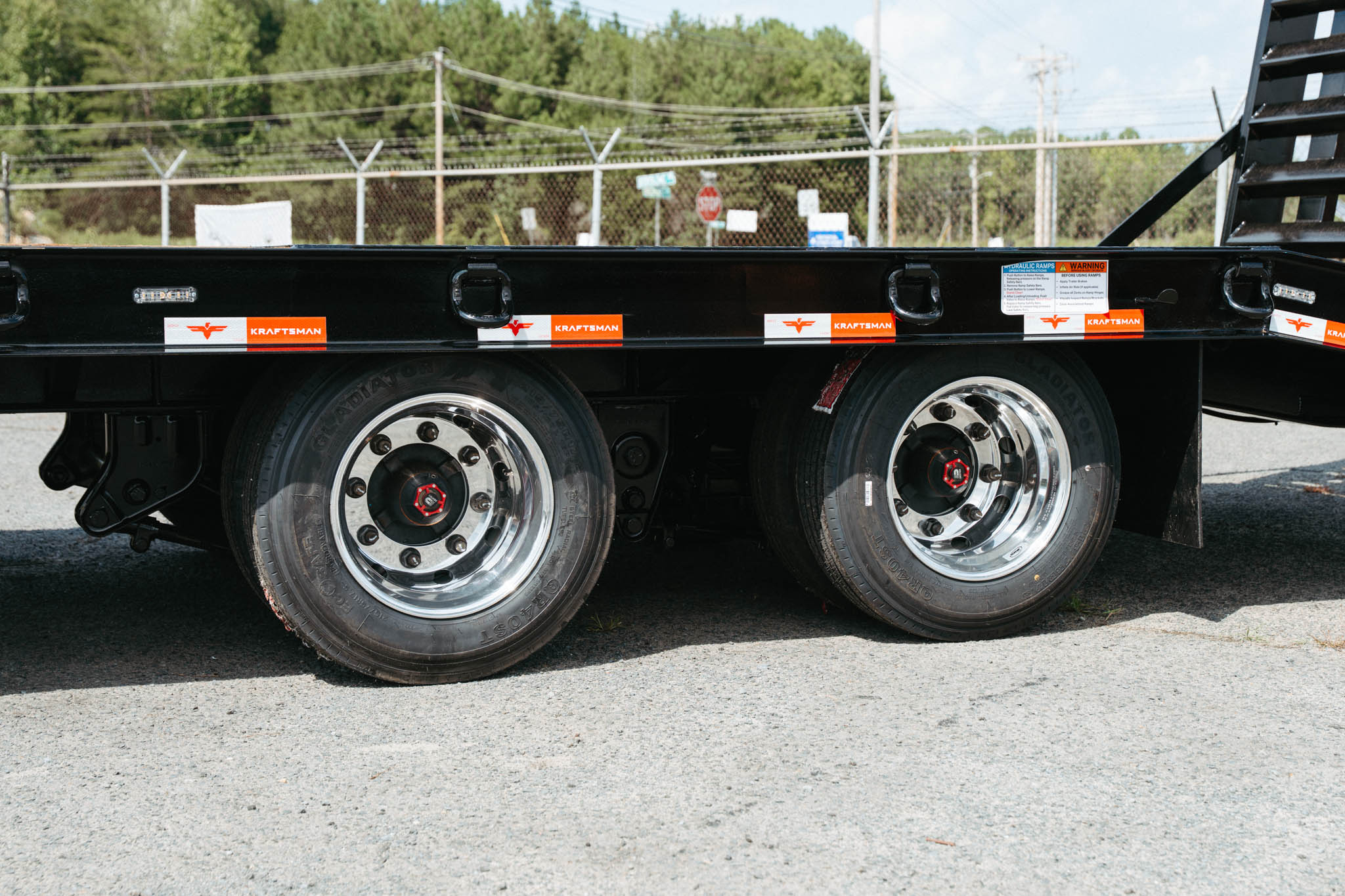

Aluminum Outer Wheels

Strobe Light Packages

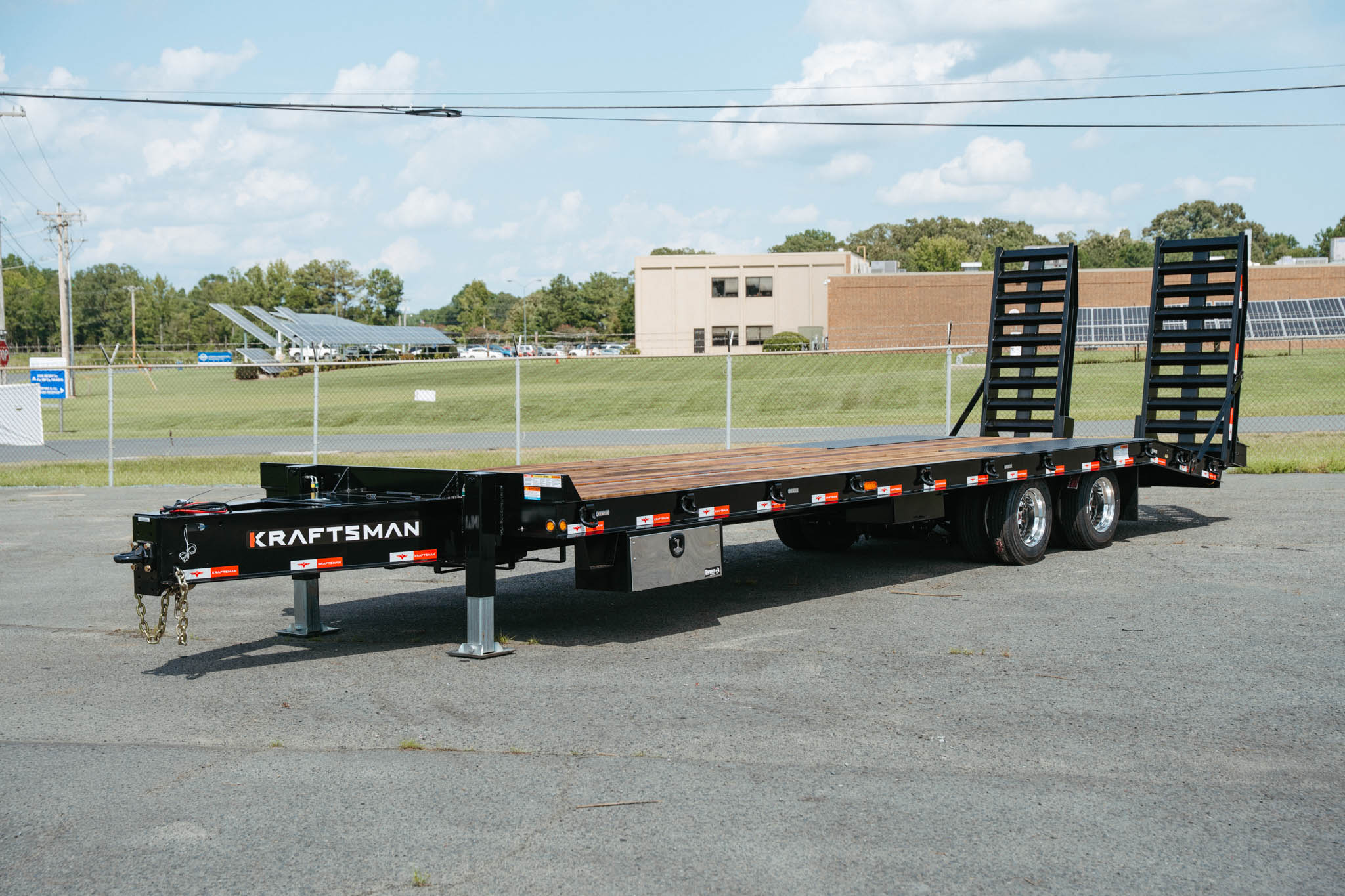

ABOUT THE HP-38 HEAVY EQUIPMENT TRAILER

Kraftsman's HP-30 is our heaviest electric brake equipment trailer. It carries the same features as our heavy air brake pintle trailers, but with slightly lighter electric brake axles.

The main frame is a 14" I-beam weighing 26 lb. per foot. It has 4" pierced crosspieces on 16" centers, and an 8" channel side rail with knee braces.

The HP-30 is loaded with features that make it perfect for the construction & excavation industry! It features 17.5" 16 ply tires, two 16,000 lb. heavy wall oil bath axles, and a Hutch 9700 suspension with a 49" axle spread. It is decked with 2" nominal oak decking, and is equipped with 5' x 20'' spring-assisted, fold-over ramps. Each trailer is equipped with a 5' wood-lined beavertail and a 35" unloaded deck height.

The trailer comes standard with a 40,000 GVWR rating (31,500 lb. capacity) and is available in three sizes: 102" x 25' (20' + 5'), 102" x 30' (25' + 5'), and 102" x 34' (29' + 5')
