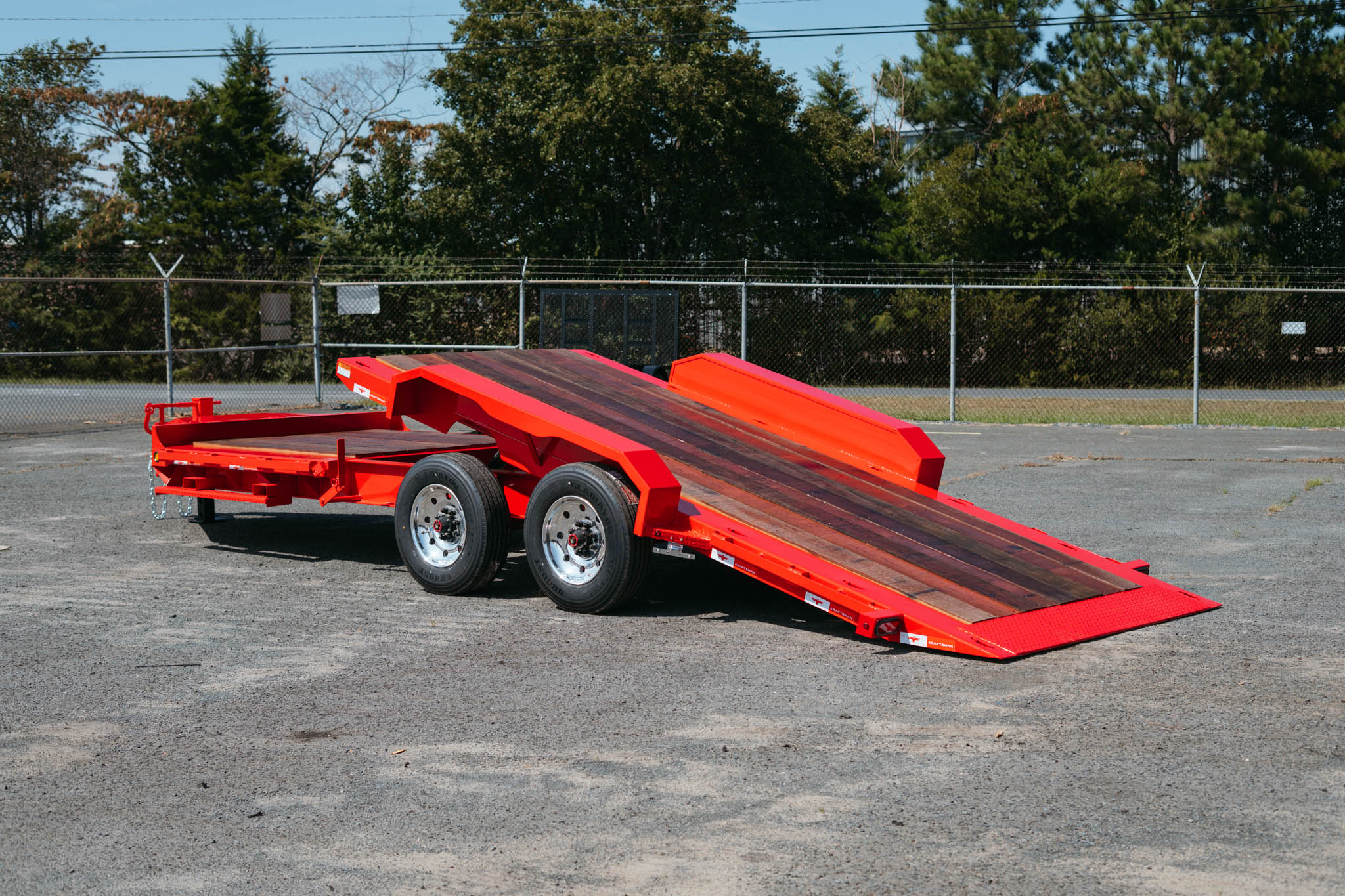

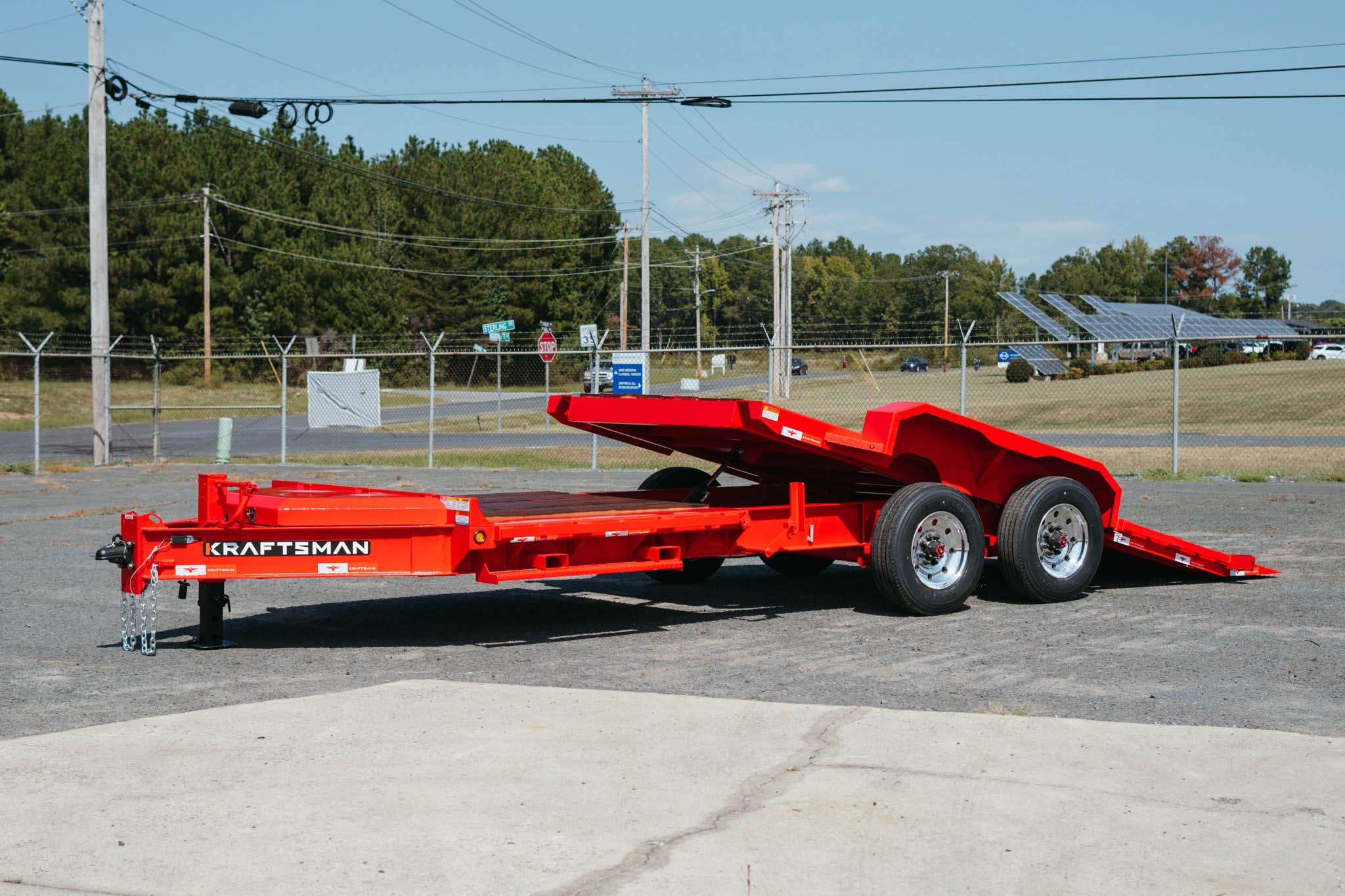

10 Ton Fender Tilt Trailer
GVWR: 22,500
Model #: T1-22
Trailer Specifications
The following configurations of this trailer are available to best suit your needs.
Construction
- 10” I-Beam @ 19 lb. Per Foot Main Frame
- Engineered/Fabricated Heavy Duty Tilt Frame
- 3” Crosspieces on 16” Centers

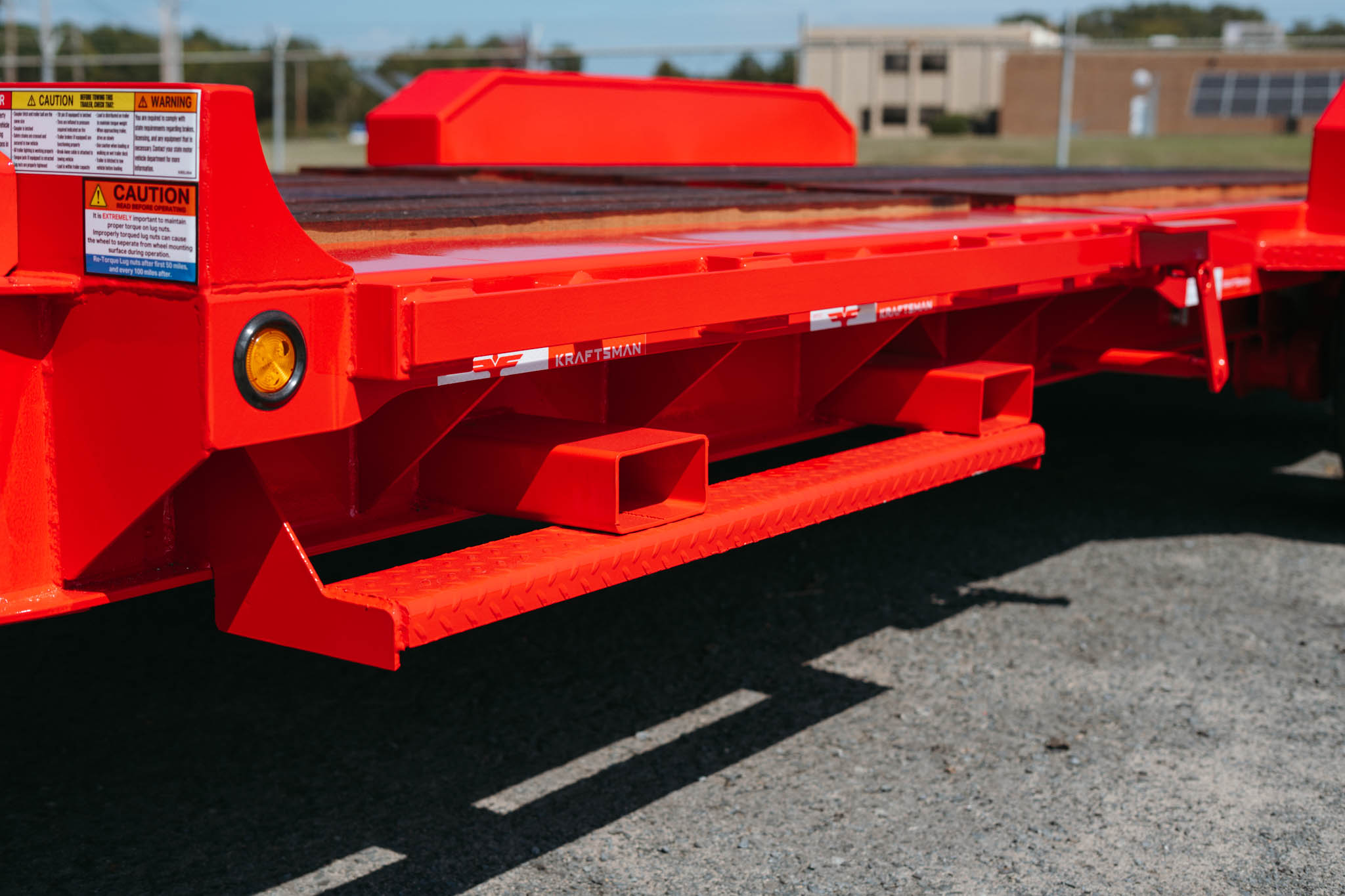

- Heavy Duty Formed Fenders with Steps
Electrical
- Rubber Mounted, Lifetime LED Lighting
- Marker Lights on Front of Trailer & Steps
- USA Made Sealed Wiring Harness
- 7-Way RV-Style Plug
Undercarriage
- 2 x 10,000 lb. Dexter Oil Bath Axles
- HD Torsion Suspension, 4” Drop
- 12 1/4” x 3 3/8” Electric Brakes

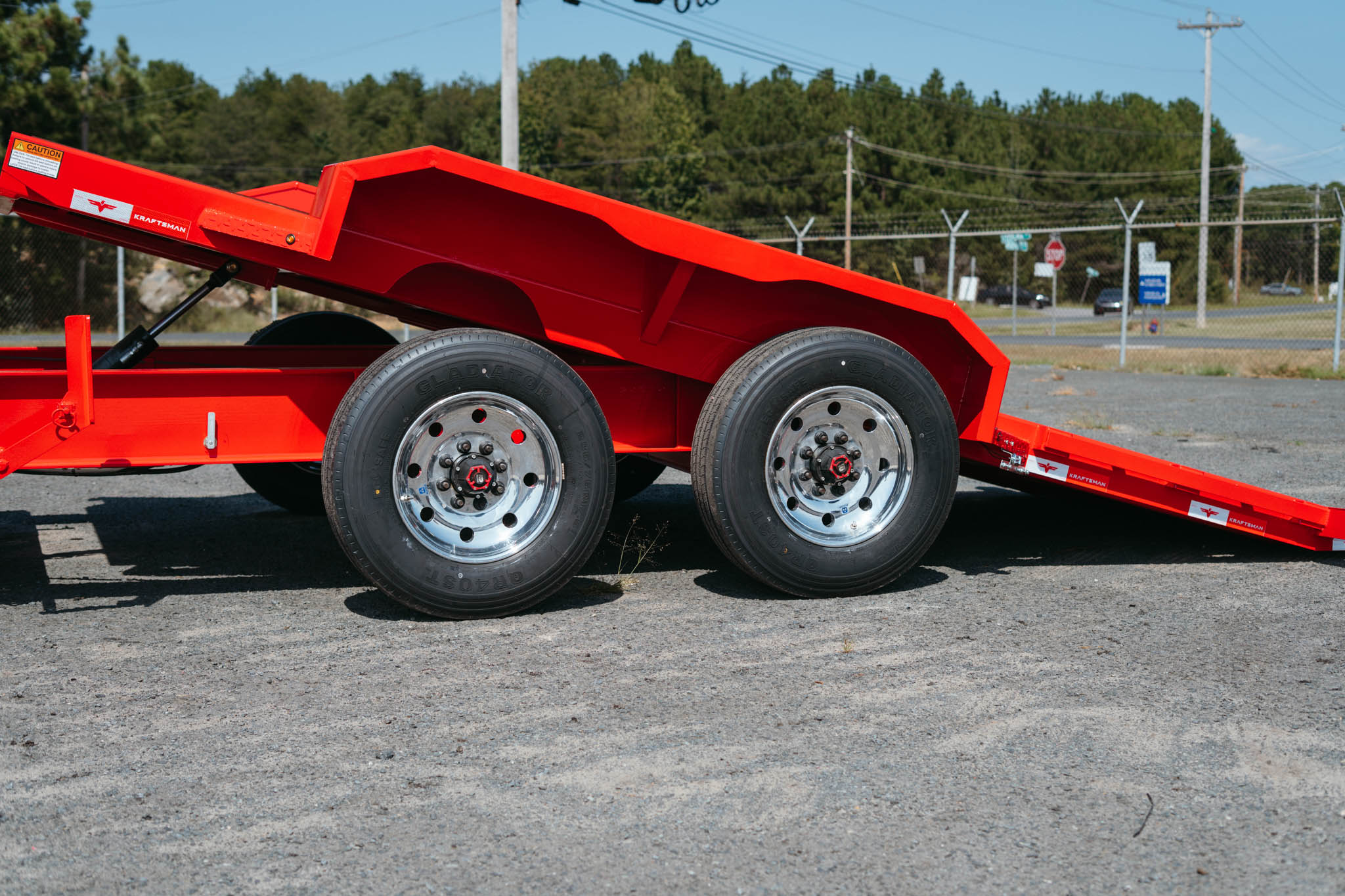

- 4 x 235/75 R17.5 16 Ply HD Radial Tires
- 17.5” Steel Rims, 8 on 6.5” Bolt Pattern
Dimensions
- 22,500 GVWR (18K Max Cap. w/ Prop. Dist.)
- 16’ Tilt Bed + 4’ Stationary Front Deck
- Low Profile 13.6° Load Angle
- 26” Approx. Deck Height
- 82.5” Deck Width Between Fenders
Additional Features
- Lockable Toolbox w/ Slam Latch & Shocks
- Tilt-Lock Operated from Driver’s Side of Deck

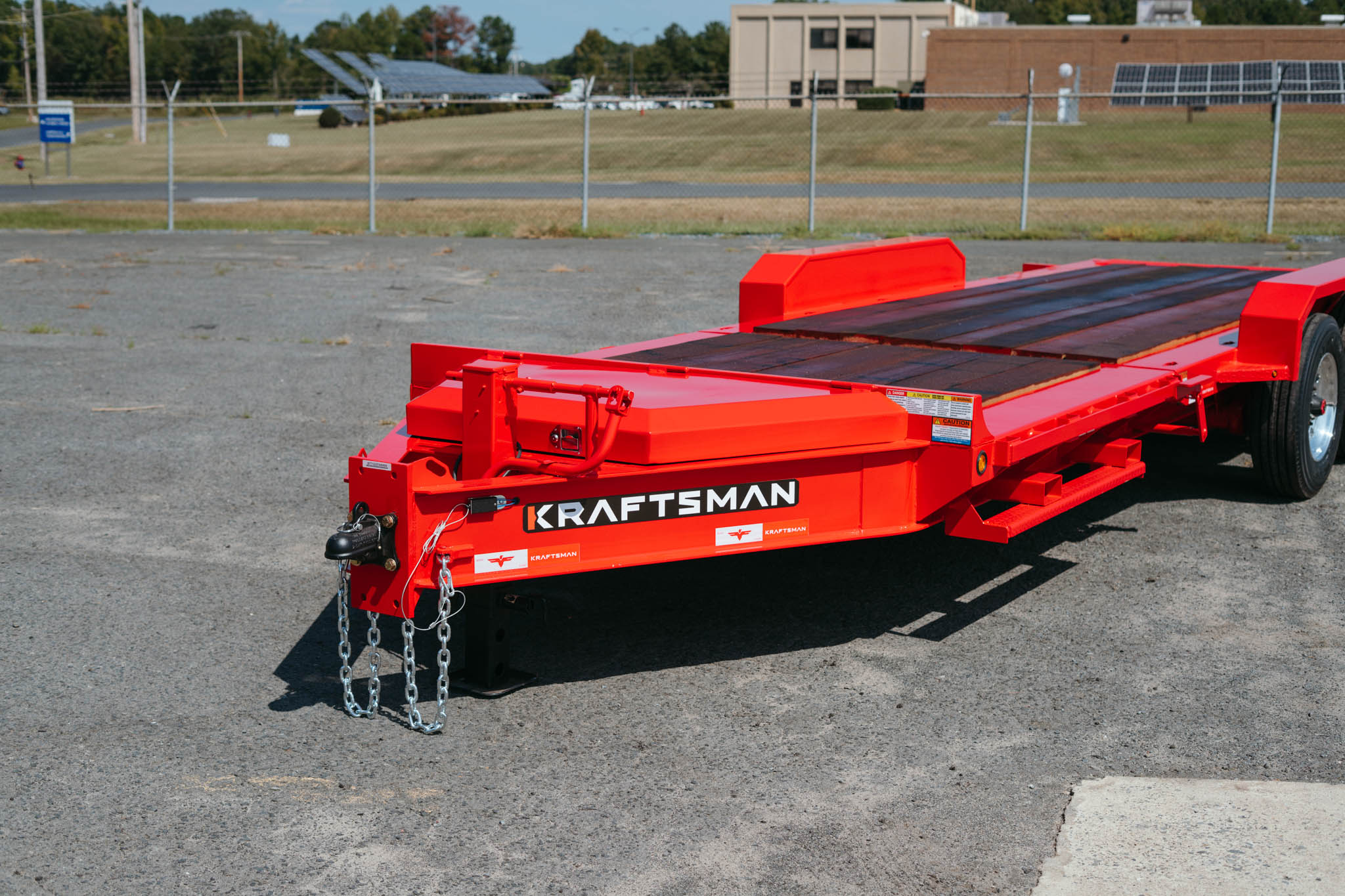

- 3” ID 48k Adjustable Pintle Ring
- Chain Slots, SP & Rub Rail w/ Chain Spools
- Hydraulic Damper Cylinder with Flow Control
Finish
- High Pressure Phosphate Wash
- Primed Top & Bottom w/ Automotive Primer
- Two Top Coats of 2-Part PPG Black Gloss
- DOT Reflective Tape, Kraftsman Decals
- Safety & Operational Decals
