2026 HP-45 PS #4332
Trailer Specifications
See this section, and the 'Options' section below, for more information on this specific in-stock trailer.
Construction
- 14” @ 26 lb. I-Beam Main Frame w/ Bridging
- High Strength I-Beam Crossmembers, 16’’ OC
- 8” Channel Side Rail w/ Engineered Formed Knee Braces
- 6” Headboard, 1 x Step per Side, Spare Mount
Dimensions & Ramps
- 53,500 GVWR

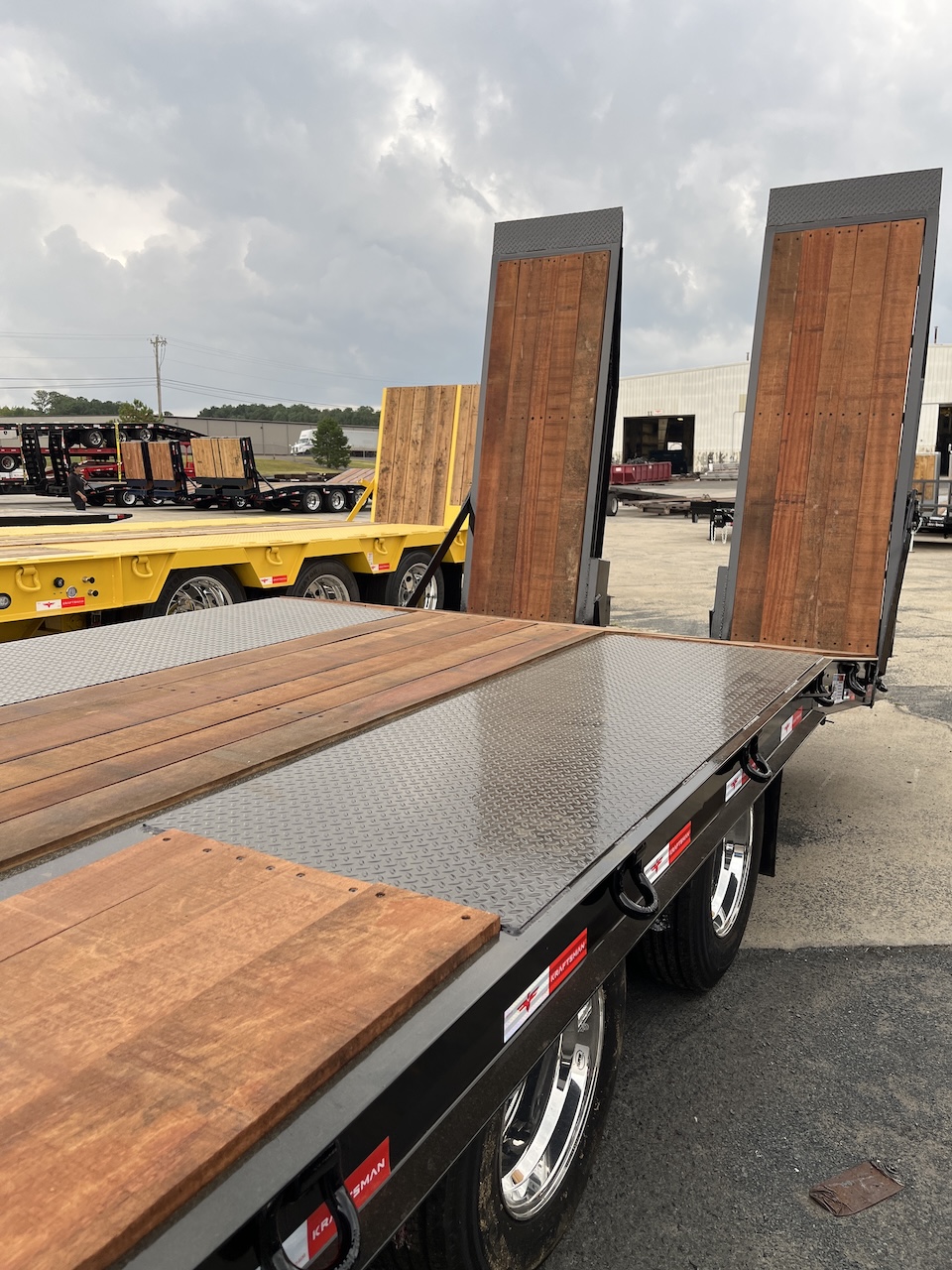

- 28’ Flat Deck + 6’ Wood-Lined Beavertail

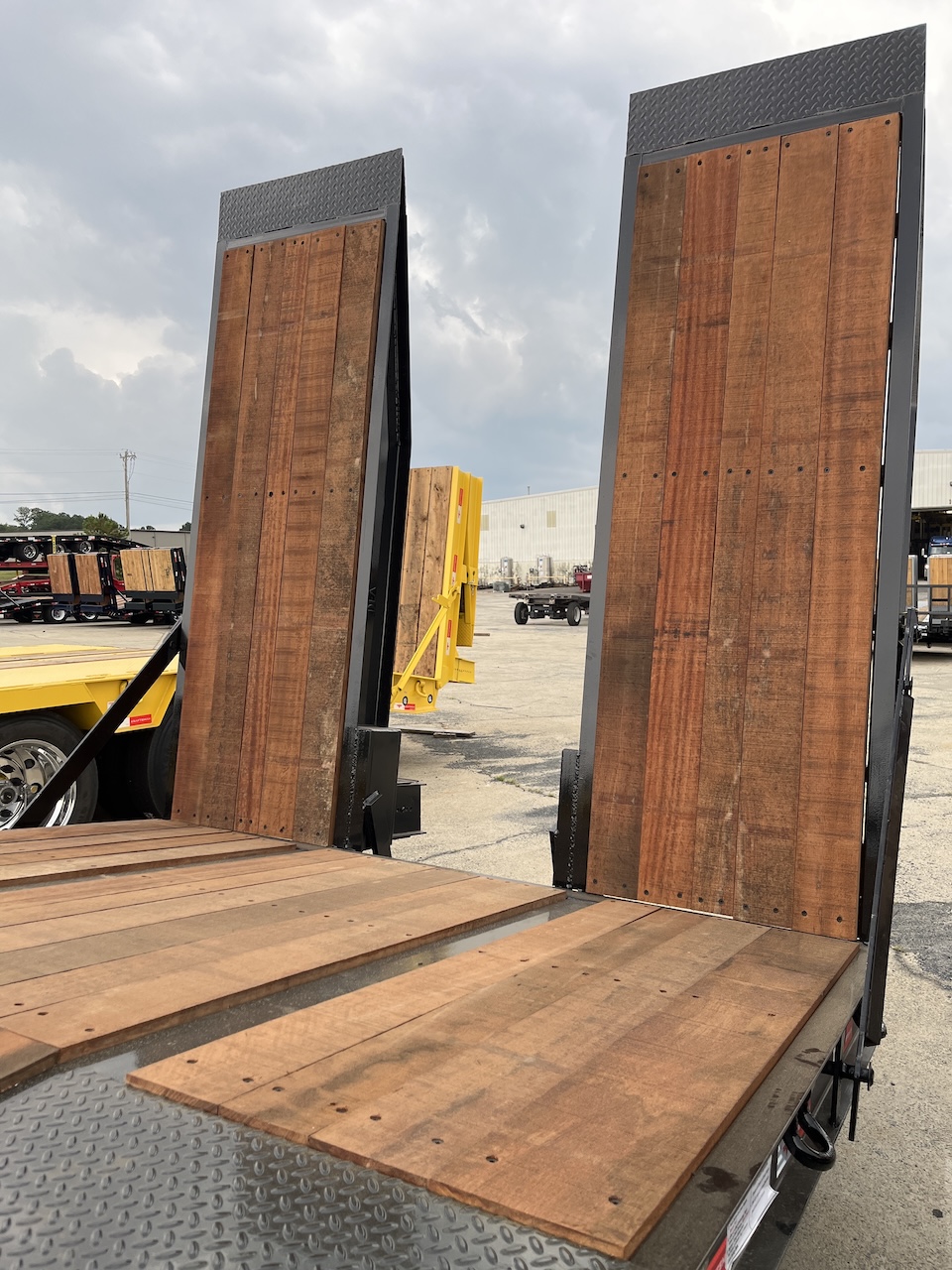

- 8’ Tall x 34” Wide Hydraulic Ramps
- 35” Unloaded Deck Height

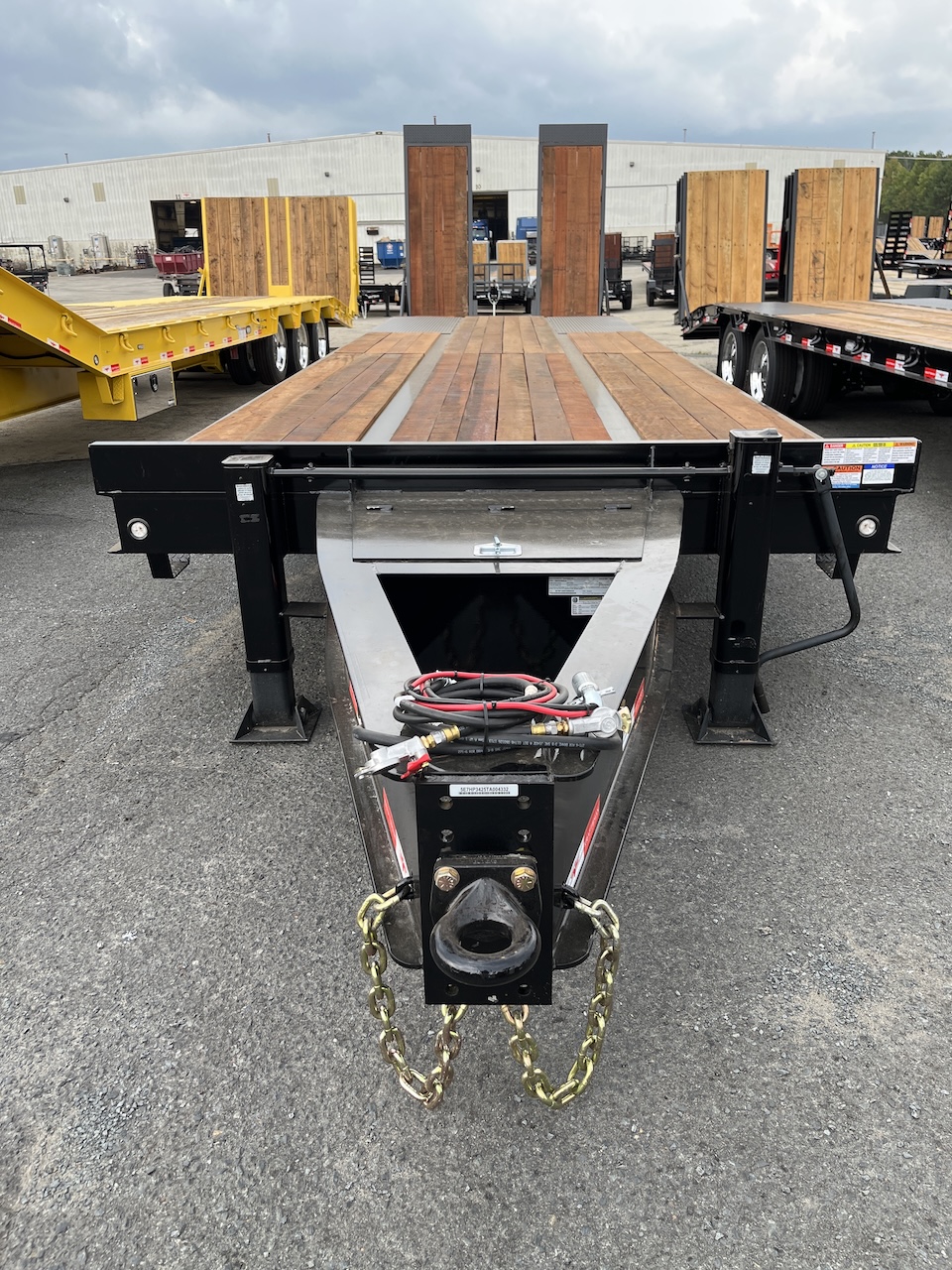

- 6’ Cold-Formed Tongue w/ Toolbox
Lighting & Wiring
- Lifetime LED Lights, Rubber Mounted
- Mid-Span Amber Turn Signals
- USA Made Sealed Wiring Harness
- 7-Way Semi-Style Plug
- 2-Way Plug, 4 GA Charge Cable for Batteries
Undercarriage
- 2 x 25,000 lb. Heavy Wall Oil Bath Axles
- 12 1/4” x 7 1/2” All Wheel Air Brakes
- Hutch 9700 Suspension, 49” Axle Spread
- 2S/1M ABS, T3030 Air Chambers
- 235/75 R17.5 18 Ply Tires, 17.5” Rims
Finish
- High Pressure Phosphate Wash
- Primed Top & Bottom w/ Automotive Primer
- Two Top Coats of 2-Part PPG Black Gloss
- DOT Reflective Tape, Kraftsman Decals
- Safety & Operational Decals
Additional Features
- Apitong Decking
- Dual 2-Speed 50K Jacks
- 66,000 lb. Bolt-On, Adjustable Pintle
- Heavy Duty D-Rings on 36” Centers
- HD Anti-Sail Mudflaps
