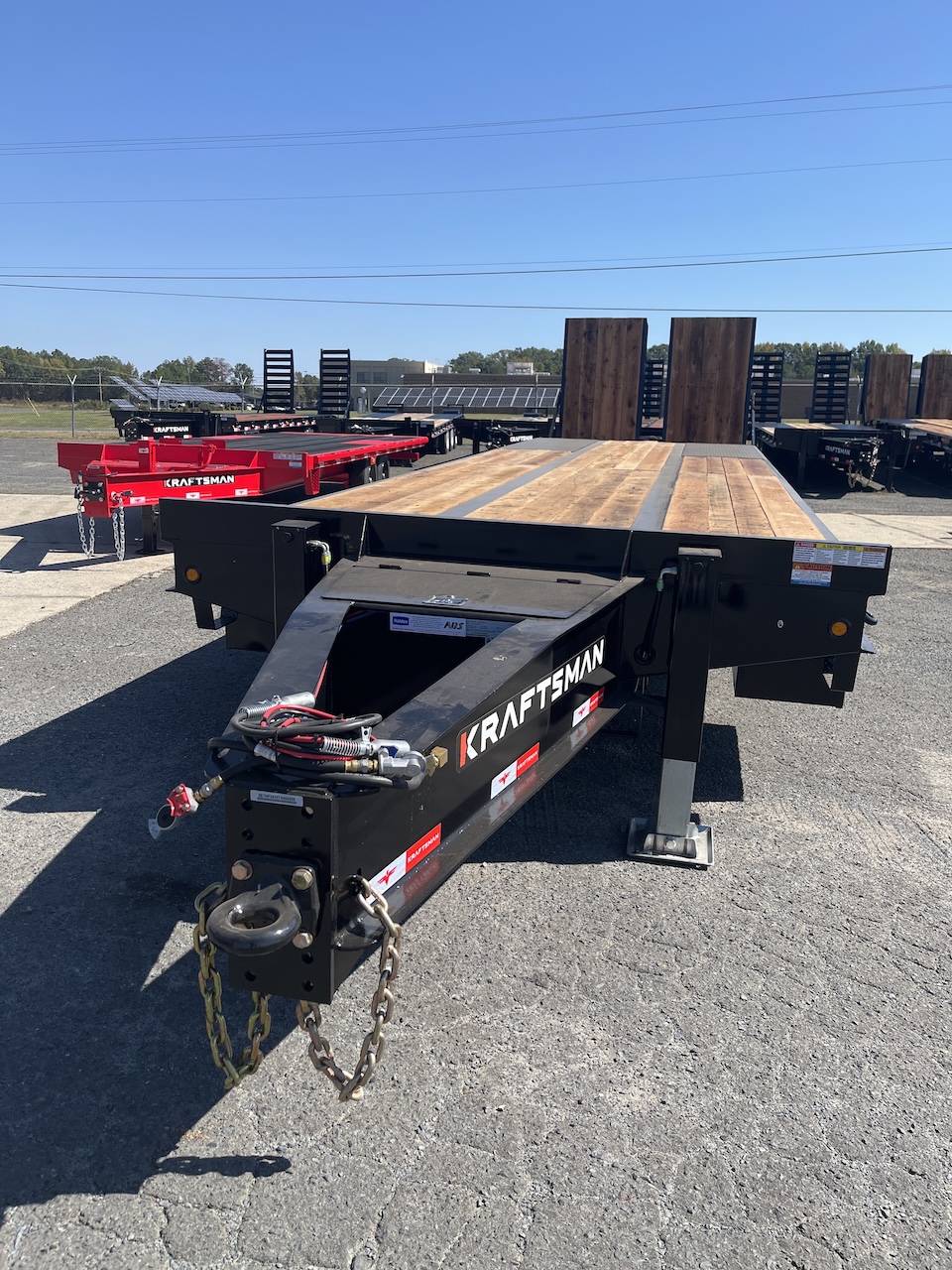

2026 HP-45 HDPS #4959
Trailer Specifications
See this section, and the 'Options' section below, for more information on this specific in-stock trailer.
Construction
- 16” @ 26 lb. I-Beam Main Frame & Tongue
- High Strength I-Beam Crossmembers, 16’’ OC
- 8” Channel Side Rail w/ Engineered Formed Knee Braces
- 6” Headboard, 1 x Step per Side, Spare Mount
- Engineered Formed Knee Braces
Dimensions & Ramps
- 53,500 GVWR
- 28’ Flat Deck + 6’ Wood-Lined Beavertail

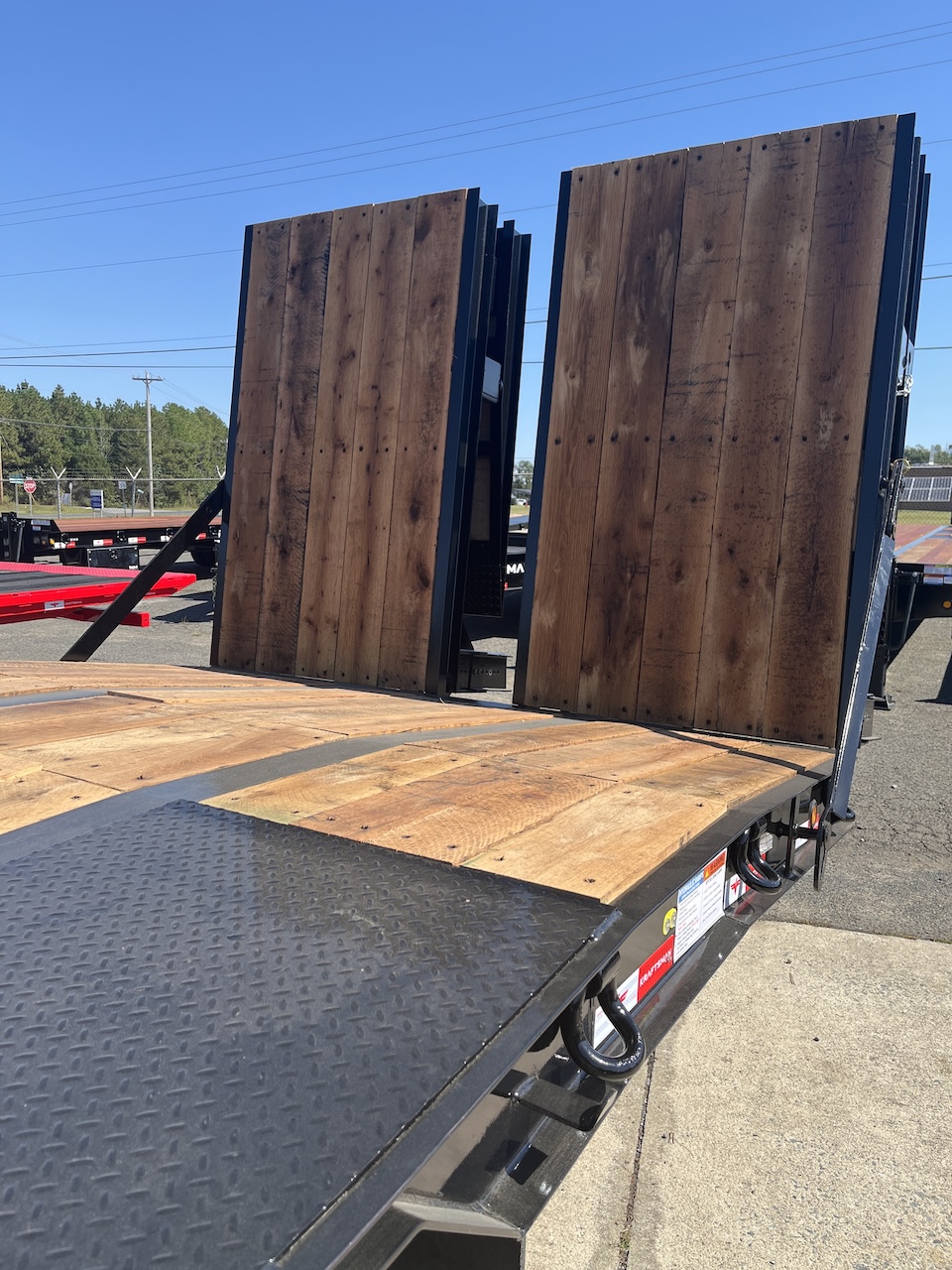

- 11’ x 44” Bi-Fold Wood Hydraulic Ramps
- 35” Unloaded Deck Height
- 6’ Cold-Formed Tongue w/ Toolbox
- 6’ Double-Break Beavertail
Lighting & Wiring
- Lifetime LED Lights, Rubber Mounted
- Mid-Span Amber Turn Signals
- USA Made Sealed Wiring Harness
- 7-Way Semi-Style Plug
- 2-Way Plug, 4 GA Charge Cable for Batteries
Undercarriage
- 2 x 25,000 lb. Heavy Wall Oil Bath Axles
- 16” x 7” Air Brakes on All Hubs, 2S/1M
- Heavy Duty Slipper Suspension, 49” Spread
- 3 Leaf High-Arch Springs
- 255/70 R22.5 16 Ply Tires, 22.5” Rims
Finish
- High Pressure Phosphate Wash
- Primed Top & Bottom w/ Automotive Primer
- Two Top Coats of 2-Part PPG Black Gloss
- DOT Reflective Tape, Kraftsman Decals
- Safety & Operational Decals
Additional Features
- 2” Nominal Oak Decking
- Hydraulic Jacks
- 66,000 lb. Bolt-On, Adjustable Pintle
- Heavy Duty D-Rings on 36” Centers
- HD Anti-Sail Mudflaps
