2026 HP-40 PS #4703
Trailer Specifications
See this section, and the 'Options' section below, for more information on this specific in-stock trailer.
Construction
- 14” @ 26 lb. I-Beam Main Frame & Tongue
- Pierced 4” Crosspieces on 16” Centers
- 8” Channel Side Rail with Knee Braces
- 6” Headboard, 1 x Step per Side, Spare Mount
Dimensions & Ramps
- 49,000 GVWR
- 24’ Flat Deck + 6’ Wood-Lined Beavertail
- 35” Unloaded Deck Height
- 6’ Cold-Formed Hydraulic Tongue

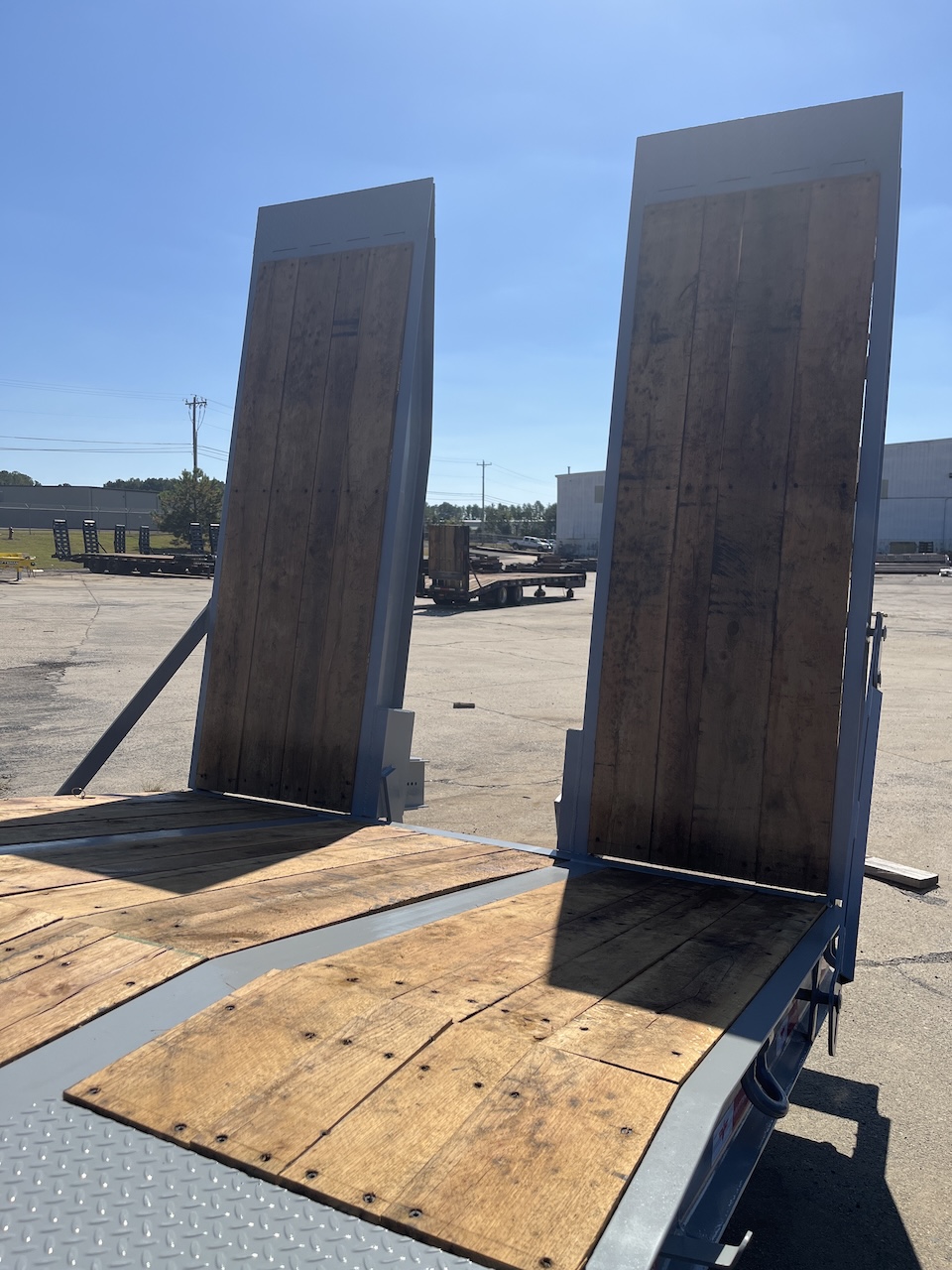

- 8’ Tall x 34” Air Ramps
Lighting & Wiring
- Lifetime LED Lights, Rubber Mounted
- USA Made Sealed Wiring Harness
- 7-Way Semi-Style Plug
Undercarriage
- 2 x 25,000 lb. Heavy Wall Oil Bath Axles
- 12 1/4” x 7 1/2” All Wheel Air Brakes
- Hutch 9700 Suspension, 49” Axle Spread
- 2S/1M ABS, T3030 Air Chambers
- 215/75 R17.5 16 Ply Tires, 17.5” Rims
Finish
- High Pressure Phosphate Wash
- Primed Top & Bottom w/ Automotive Primer
- Two Top Coats of Genie Gray
- DOT Reflective Tape, Kraftsman Decals
- Safety & Operational Decals
Additional Features
- 2” Nominal Oak Decking
- Dual 2-Speed 50K Jacks
- 66,000 lb. Bolt-On, Adjustable Pintle
- Heavy Duty D-Rings on 36” Centers
- HD Anti-Sail Mudflaps
